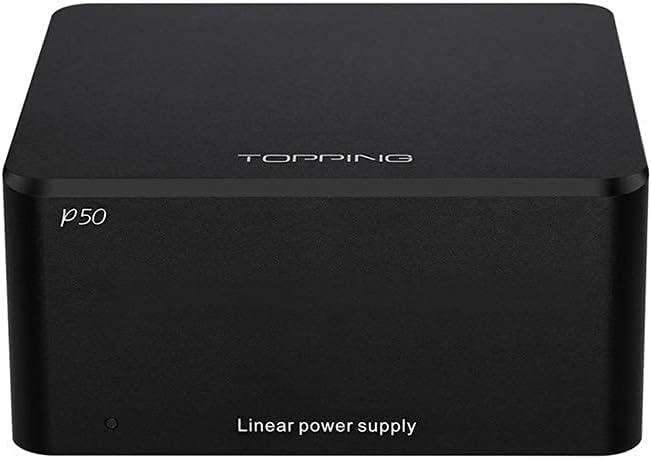

The P50 is a high quality linear power supply with one 15V/1A DC output and two 5V/1A DC outputs. It supports 110V/220V AC input.We believe that the P50 will bring you more fun!

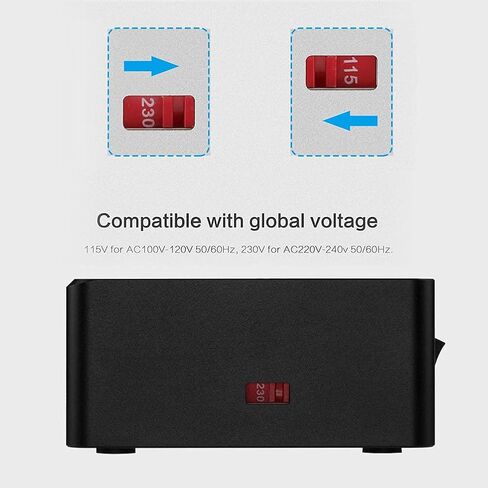

Voltage setting on side panel
Voltage selector switch:
115 V for AC100V-120V50/60Hz,
230 V for AC220V-240V50/60Hz.

Note:
1. Please choose the correct voltage before using;the wrong voltage setting will damage your P50.
2. For reducing the noise and get the best output quality,please use three-phase power cable which is including the ground terminal and ensure the ground is reliable connected.

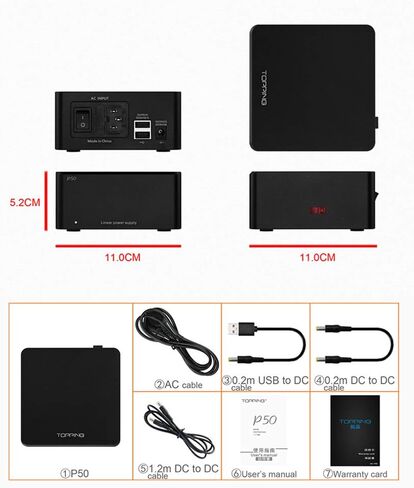

Contents list
P50 x 1
AC cable x 1
0.2 m USB to DC line ×1
0.2 m DC to DC line x 1
1.2 m DC to DC line x 1
User's manual x 1
Warranty card ×1

Precautions for daily use
1. Ensure the outputjack could not short circuit or connect to ground.
2. You must not keep the power supply in a hot,humid environment or make it subject to strong shocks.
3. Opening the case instantly voids the warranty!
4. Indoor use only.

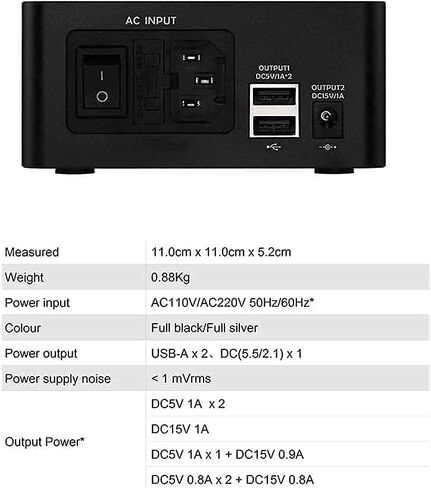

Attribute
Measured: 11.0cmx11.0cm×5.3cm
Weight: 0.88Kg
Power input: AC110V/AC220V*
Power output1: USB-A x2
Power output2: DC(5.5/2.1)
Power supply noise Output Power*
(1) DC5V 1A×2
(2) DC15V 1A
(3) DC5V 1A×1 + DC15V 0.9A
(4) DC5V 0.8A×2 + DC15V 0.8A
*Warning: Please select to your local voltage. The shell will be quite hot at high power output, this is normal.
