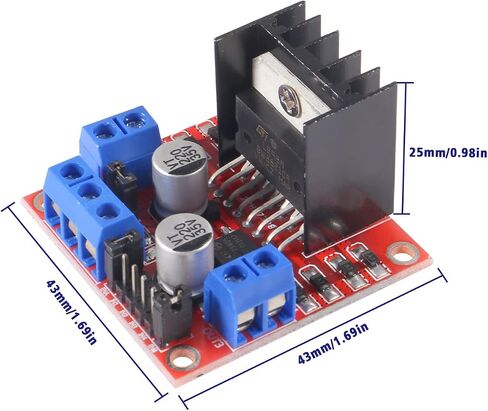

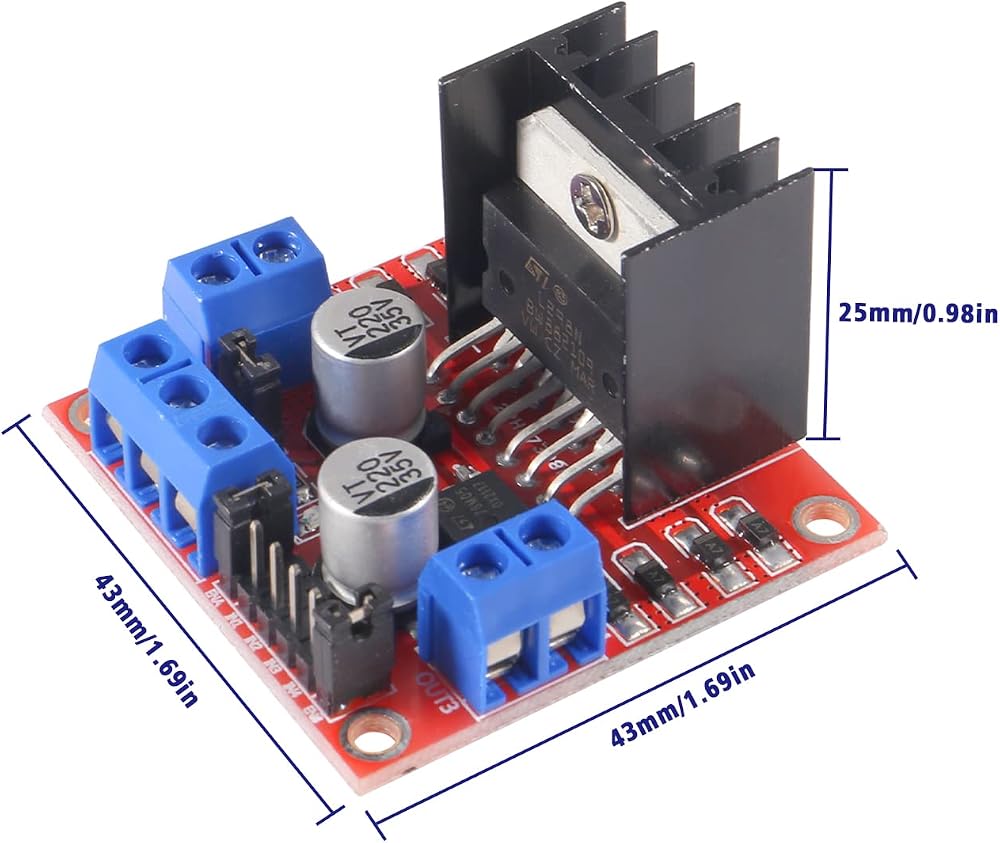

8PCS L298N Motor Drive Controller Board Dual H Bridge DC Robot Stepper Motor Compatible with Electric Projects, Smart Car Robot

KWD 7
Brand
DORHEA
Weight
230 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

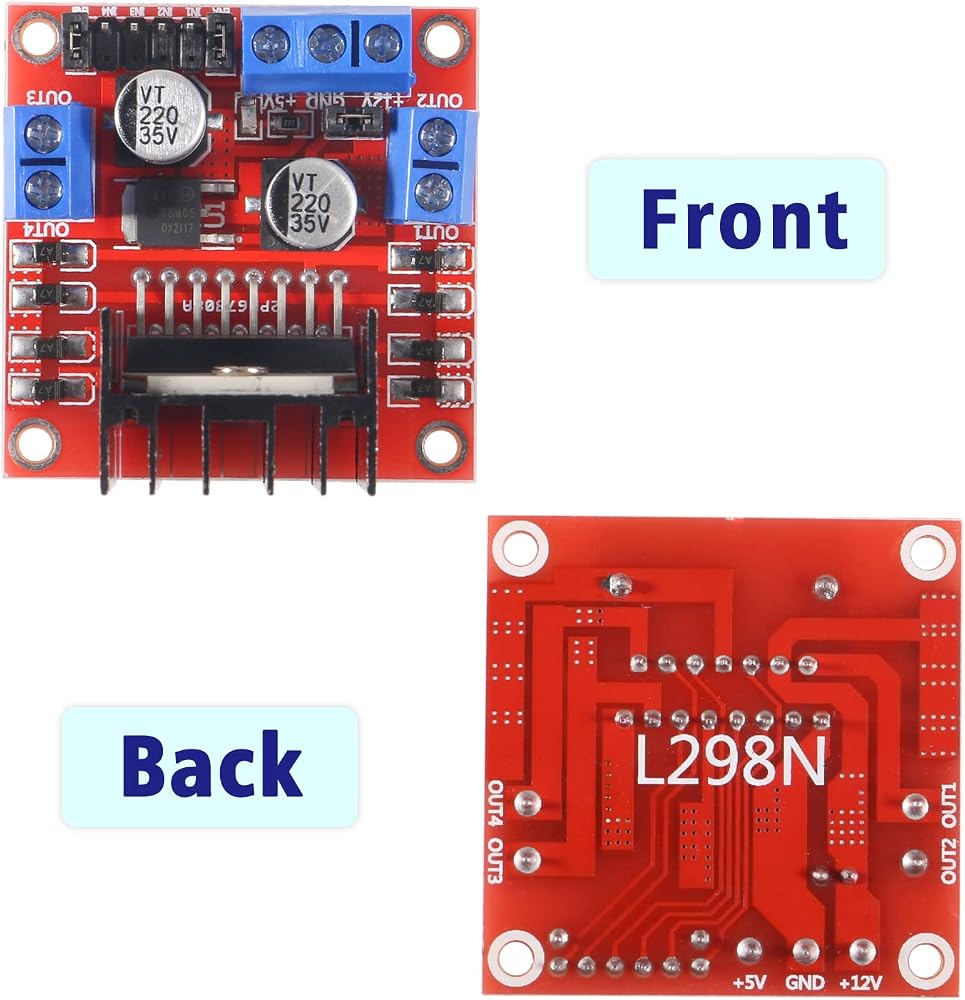

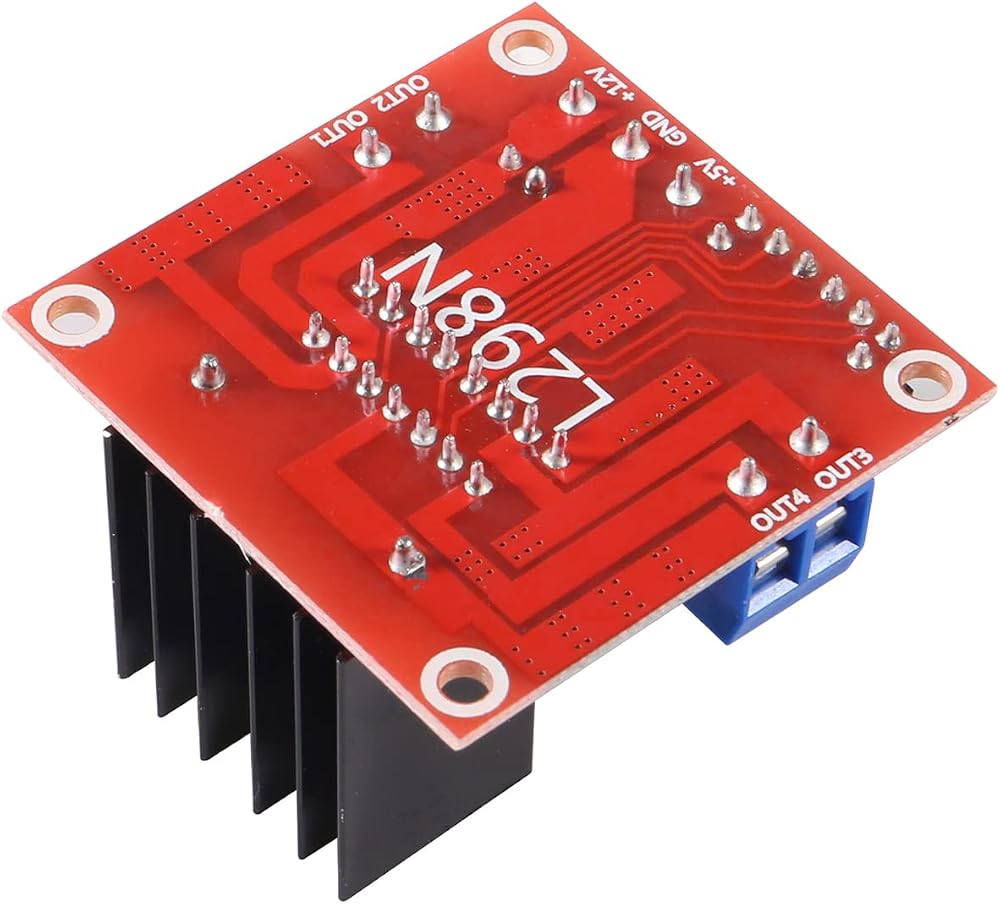

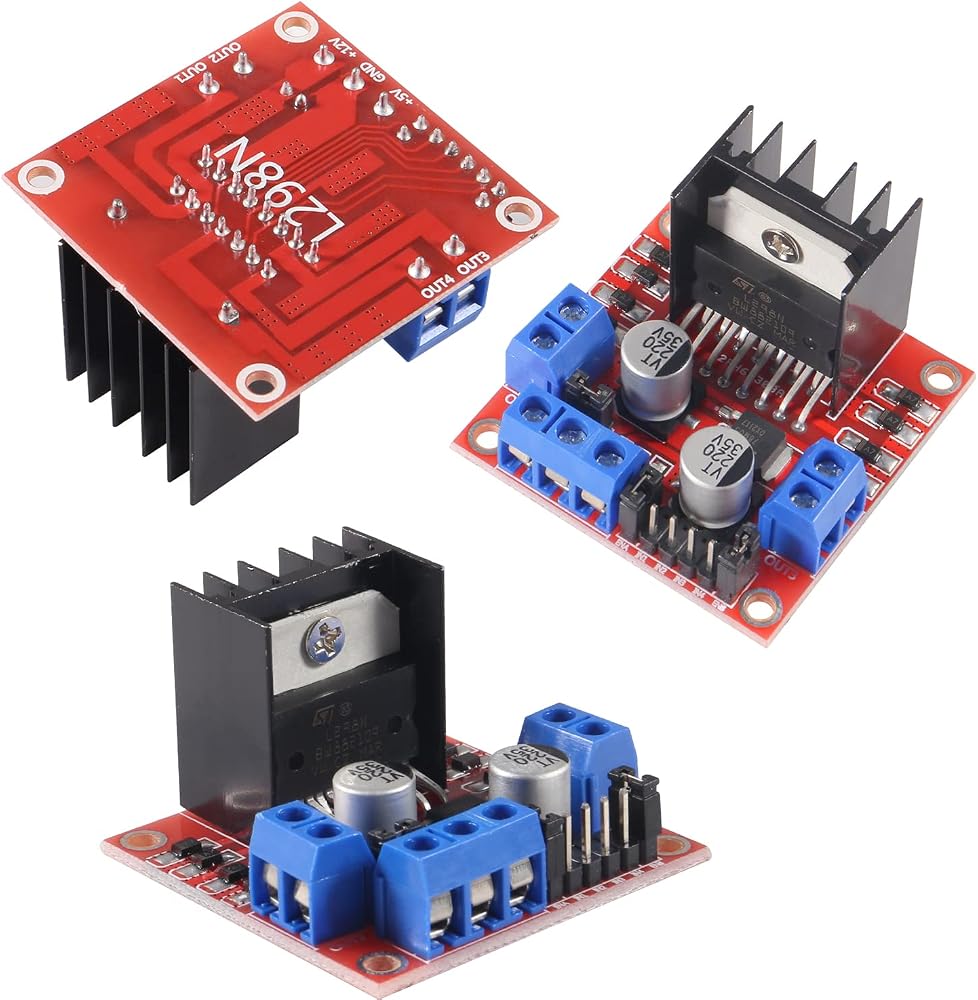

  • Dual-channel H-bridge driver working mode creates higher working efficiency,L298N as main chip, Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
  • The L298N driver module, using L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.
  • Terminal driver part of the supply area VMS: +5V ~ +35V;Drive part of the peak current Io: 2A / Bridge; Logical part of the terminal power supply range Vss :4.5-5 .5V;Logical part of the operating current range: 0 ~ 36mA; The control signal input voltage range: 4.5-5.5V low 0V high;Maximum power consumption: 20W
  • To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage; High working power to 46v, large current can reach 3A MAX and continue current is 2A, power to 25w.

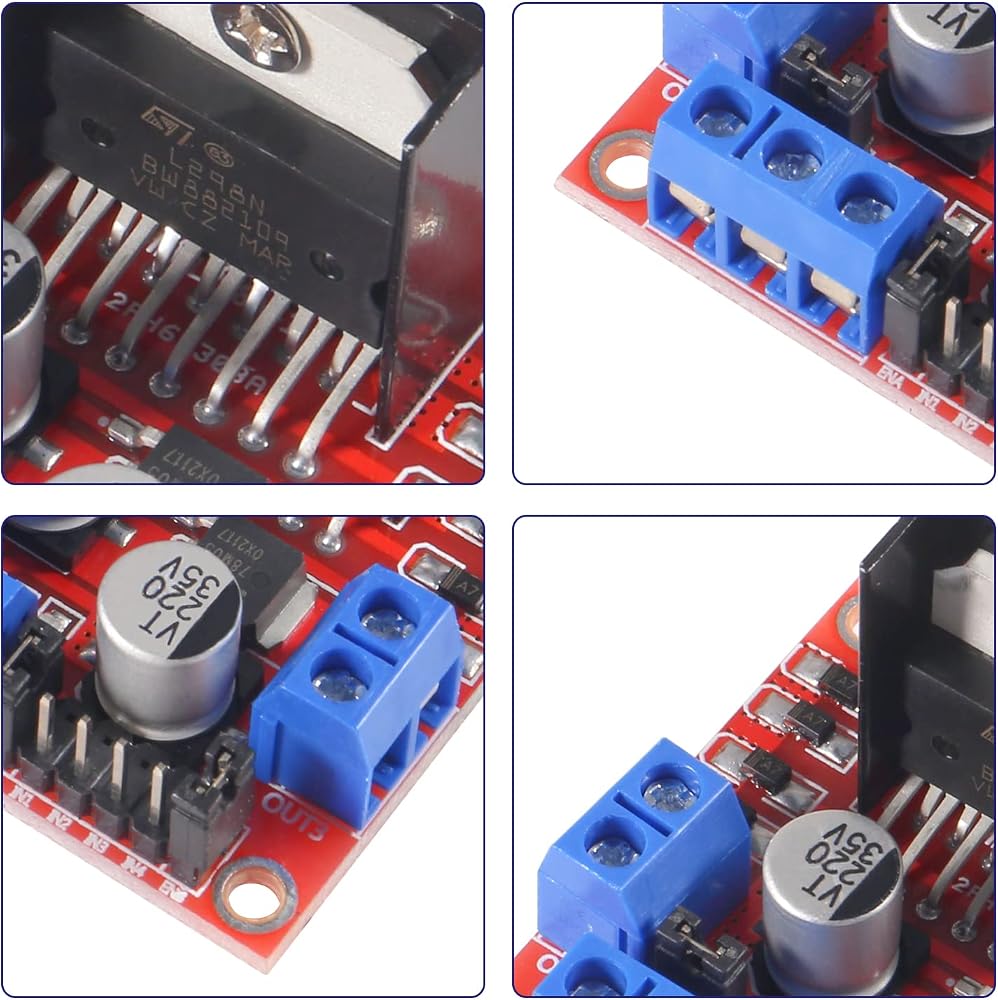

  • Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability, large capacity filter capacitance,afterflow protection diode, more stable and reliable.

Description

Chip: L298N
Logic voltage: 5V
Logic current 0mA-36mA
Maximum power: 25W
Drive voltage: 5V-35V
Drive current: 2A (for each DC motor)
Operating mode: Dual H-bridge driver (can drive 2 DC motors)

Wide Application:
L298N motor drive controller board module, smart car

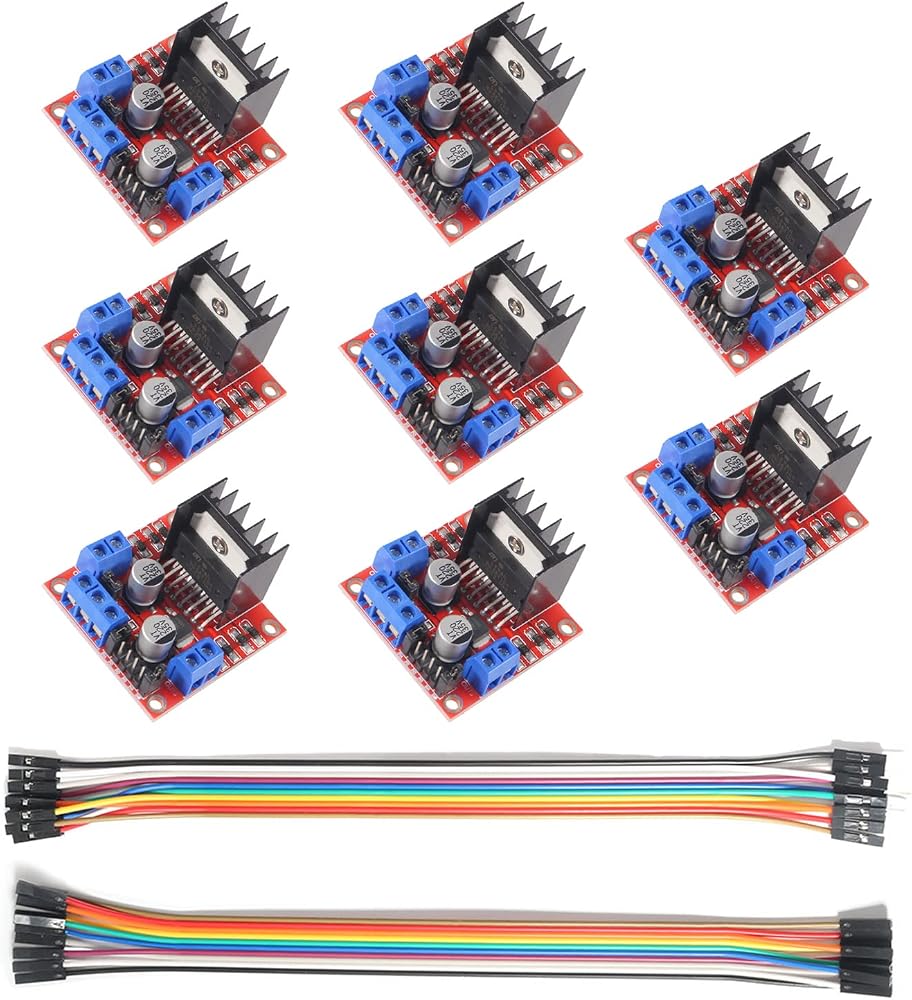

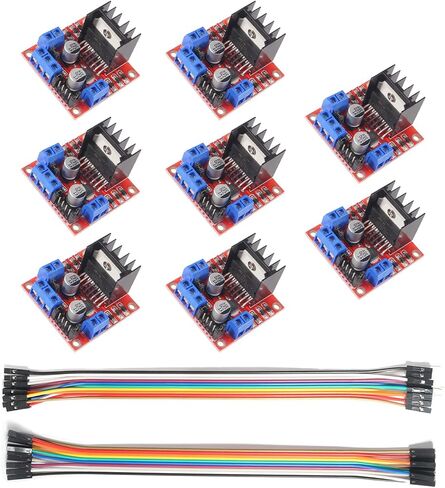

Package Included :
8 x L298N motor drive controller board module
10 X Female-Male dupont cables
10 X Female-Female dupont cables

Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4
