Product Information:
Before connecting the equalization board, check whether each piece of wiring is correct, insulation between the bottom board and the battery connection terminals is required to prevent burnout. With Bluetooth mobile phone English APP function, you can contact us about app use and usage instructions.
Model:8S-24S
Suitable : Lithium Iron Phosphate,Lithium Titanate,NCM Ternary Polymer (NCM/LFP/LTO)
Voltage is 1.0 V-4.5V
Maximum balance current 4A,APP custom Settings :1-4A
The minimum total voltage of the battery pack :>30V
the undervoltage hibernation voltage : 1.5-4.2V
the static working current is the balance of 10mA,the balance of 25m
the working environment temperature :-20 degrees to +55 degrees
Cywhrvzsf capacitive energy transfer balance board, capacitor high precision 1mv, point-to-point energy transfer balance, patent balanced structure flying capacitor method, combining point-to-point energy transfer algorithm to achieve efficient balance, due to the use of constant current constant voltage technology, balance current and battery voltage difference has nothing to do.there is no need for external power supply, the whole battery is balanced by internal energy transfer. equalizing capacitor can also be used in the 3S 4S 5S 6S, but requires the addition of an additional booster power supply.

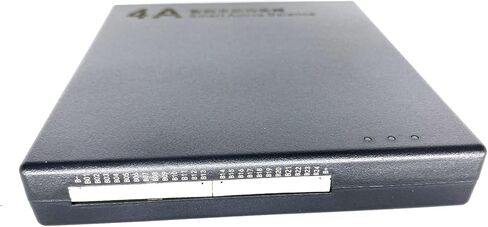

3 Indicator Light:
Blue Bluetooth status indicator Steady on: The Bluetooth connection is successful. Blinking: the Bluetooth link is down.
Red Fault status indicator Steady on, it indicates an internal fault. The battery flicker test failed.
Procedure Green The working status indicator is steady on, indicating that the balance is complete. Flash and balance are working.

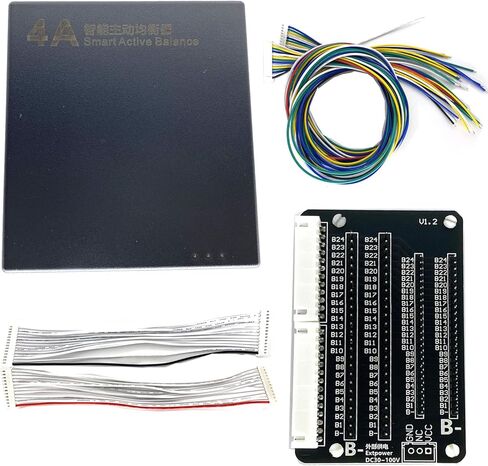

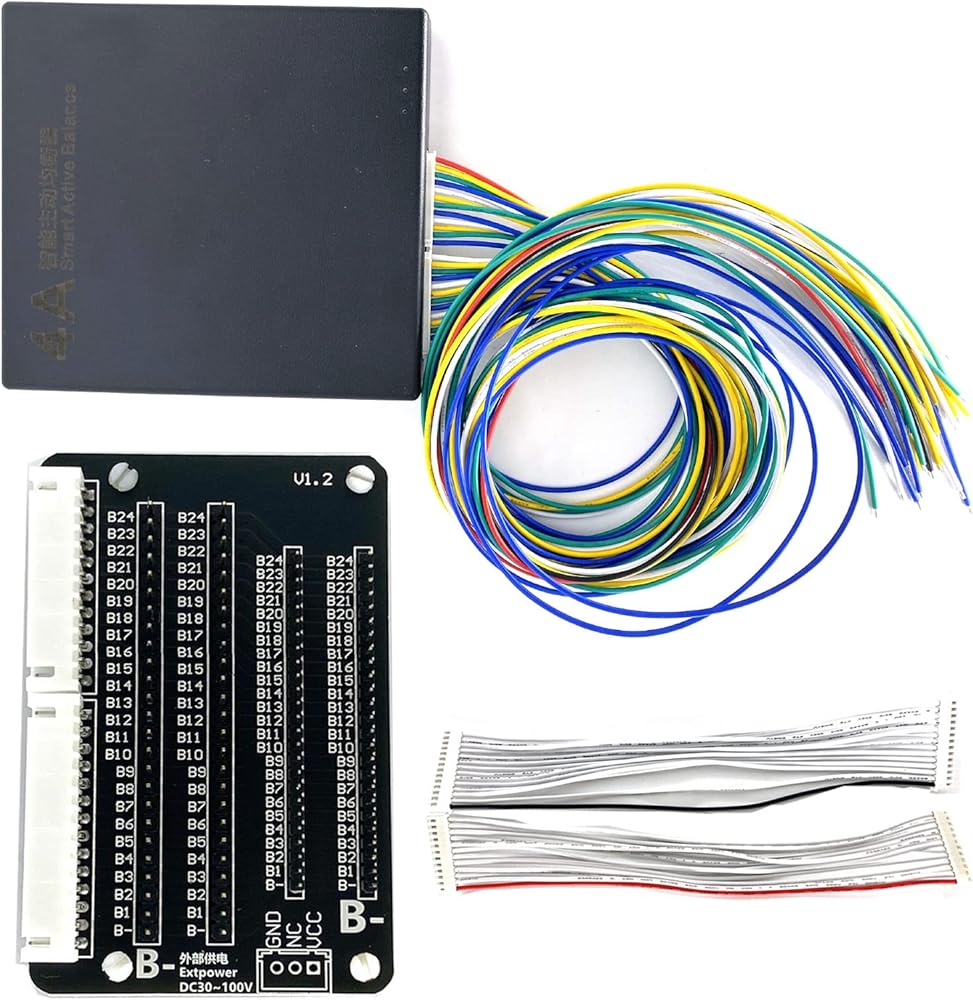

Package Included:

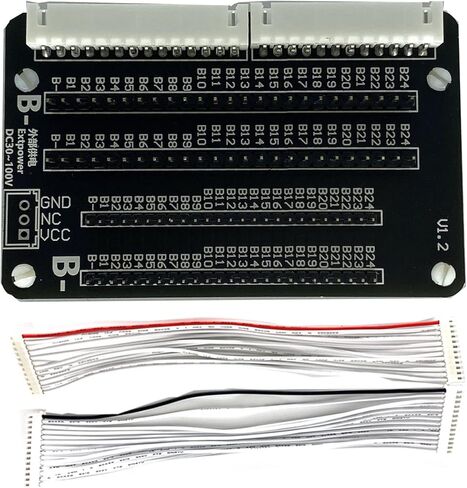

1*10-24S Active Equalizer
1*14pin 18awg Cable
1*12pin 18awg Cable
