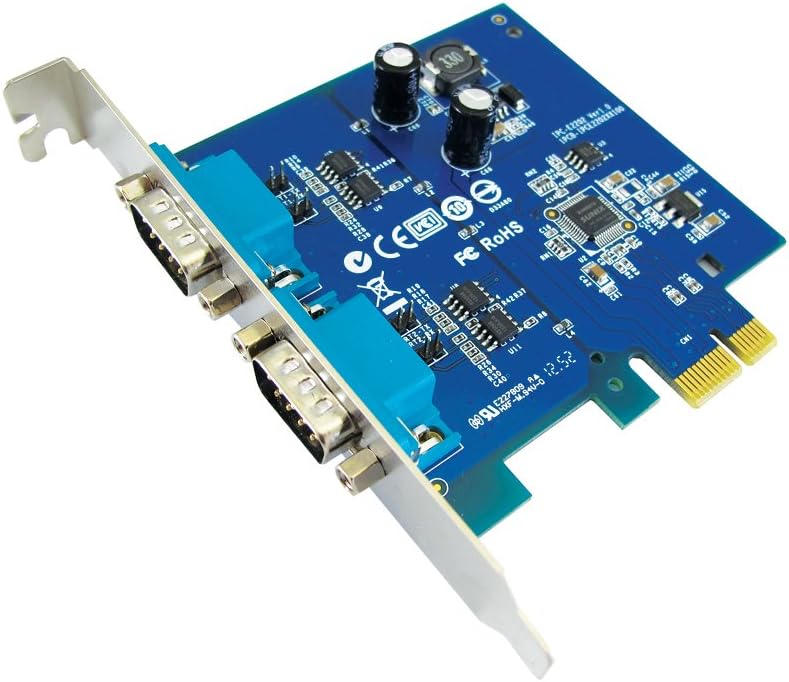

SUNIX IPC-E2202S, Industrial 2-port RS-422/485 with Surge PCI-Express Serial Card, allows users to expand two RS-422/485 ports on PC-based system. Each serial port achieves data rates up to 921.6 Kbps and utilizes 16C950 UART with an on-chip 128-bytes hardware FIFO buffer for reliable, high-speed serial I/O. With SUNIX patented Auto-Switching RS-422/485 and RS-485 AHDC technology, user can easily manage different serial interfaces selection and RS-485 signal direction control. SUNIX IPC-E2202S board is provided with 2KV IEC6100-4-5 Level 3 Surge Suppressor and 15KV IEC61000-4-2 ESD Discharge Transceiver. Besides, board supports a wide variety of operating systems, including Windows, Linux, DOS, and UNIX. It is the best serial communicating solution for industrial and harsh environment applications.
Expands 2 independent RS-422/485 serial ports with communication speeds up to 921.6Kbps.
With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
Designed to meet PCI Express Base Specification Revision 2.0.
RS-422 and RS-485 auto detect and switching technology – jumper and software free.
AHDC/CS technology for collision free communication.
On-chip hardware auto flow control to guarantee no data loss.
Ultra low power consumption design for Green Environment.
15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS OS.
