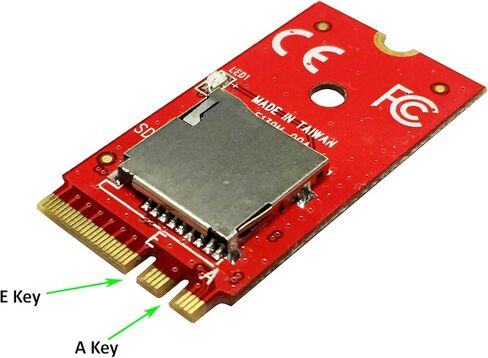

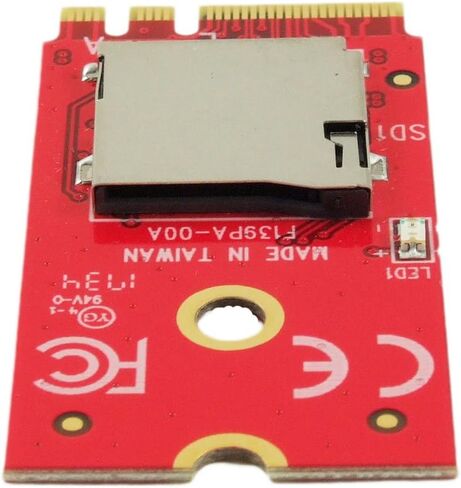

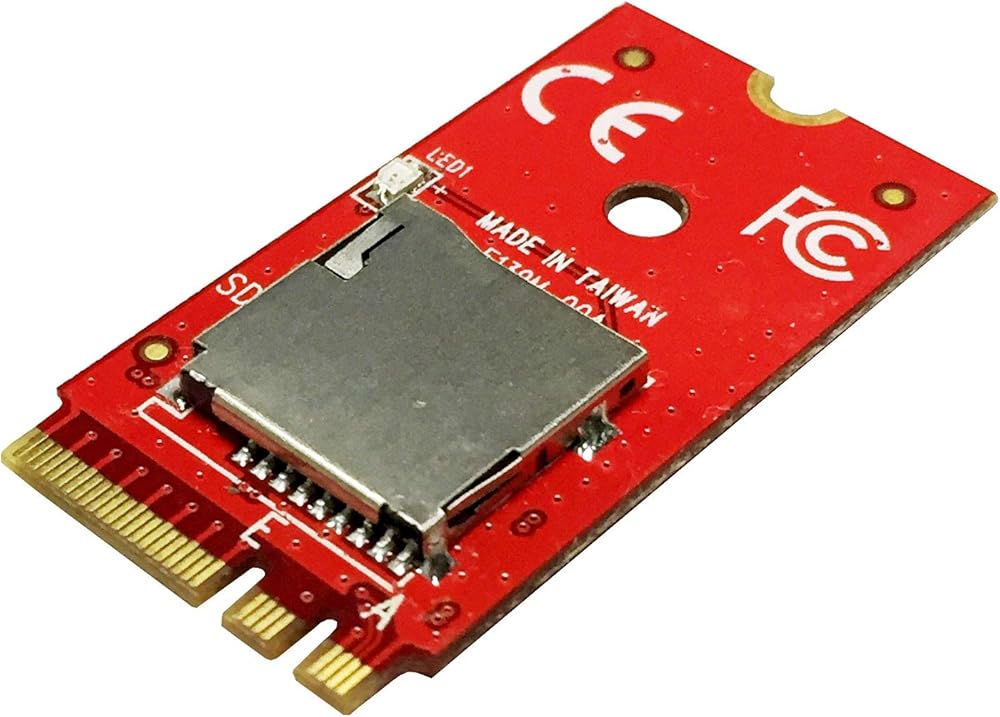

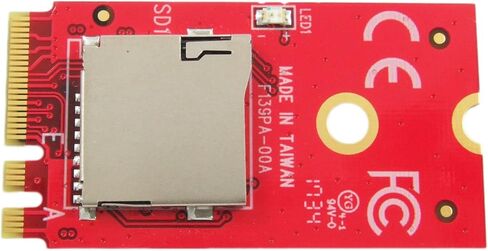

The Ableconn M2SD139PA allows you to Install a Micro SD to system via a M.2 A Key or E key socket using PCIe signals.
Features
* Connector:
- 1x Micro SD socket
- 1x Fast PCIe based M.2 (type 2242-D5-A-E Dual A-E Key notch) 75-Pin

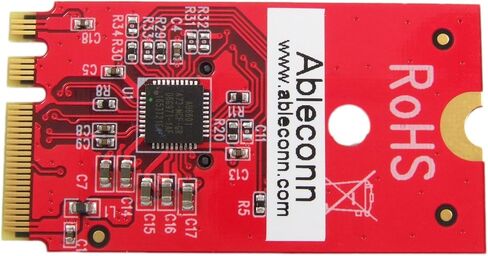

* Chipset: Alcor AU6601
* Software:
- Windows driver is available

* Micro SD socket on board support up to 2TB Secure Digital Memory Card
* Work with main board M.2 "A Key" and "E Key" Socket
* Complies with Secure Digital Card (SD) specification up to ver. 3.0 (SDXC)
* Supports SDR-104 / DDR 50.
* Supports CPRM function.
* 1K bytes of ping-pong FIFO buffs the data transmission between transmitter and receiver
* Supports M.2 type 2230 and 2242 plated-holes
* Supports industrial operating temperature range: -40 - 80 ºC
* PCBA size : 42mm x 22mm / 1.65" x 0.87"
* Fully RoHS compliant
* Made in Taiwan
Package Contents
* Ableconn PCIe Based M.2 Module to Micro SD 3.0
Warranty
* Limited One-Year Warranty and Lifetime Product Support
