Deal4GO 9260NGW 2.4GHz 5GHz 802.11ac 1730Mbps 2230 M.2 NGFF Wireless WiFi Adapter WLAN Card with Bluetooth 5.0 for Intel 9260ac Windows 10 64-bit

Sorry, this product is not available

Brand
Deal4Go
Category
Internal Cards

Special Features

  • Supports 2.4GHz and 5GHz Dual Band with Bluetooth 5.0, Complies with IEEE 802.11AC/A/B/G/N standards and downlink MU-MiMO.
  • Wireless 5GHz data rate up to 1730Mbps, 2.4GHz up to 300Mbps (The router must on 160MHz).
  • Connector interface: M.2 2230 or M.2 1216 (Not for (M2:CNVi)), IPEX4 Antenna connector.
  • Supported Operating Systems: ONLY work on Windows 10* 64bit (Compatibility NOTE: NOT works with Windows 7/8/8.1).
  • Compatible with Samsung /Dell/Sony/Acer/ASUS/MSi/Clevo/Terransforce/Hasee etc Laptop PC. (NOt support IBM/Thinkpad/Lenovo/HP laptop, if it can use after rewrite the whitelist ).

Description

The Wireless-AC 9260ac adapter supports Bluetooth+ 5 and 2x2 802.11ac Wi-Fi including wave features such as 160MHz channels, delivering up to 1.73Gbps and downlink MU-MIMO. These new features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 802.11ac devices. Combined with Core processors and exceptional Intel wireless innovations, the Wireless-AC 9260 can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.

Specifications

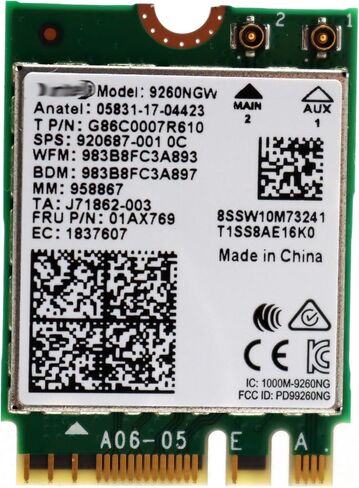

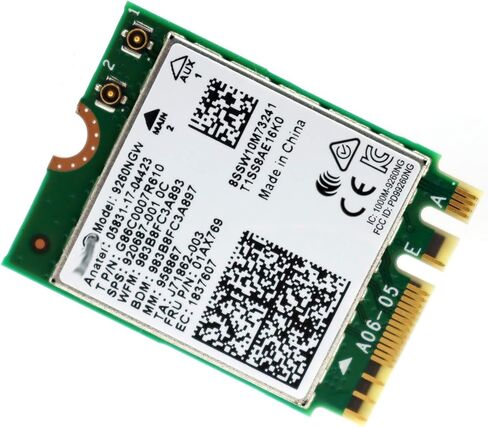

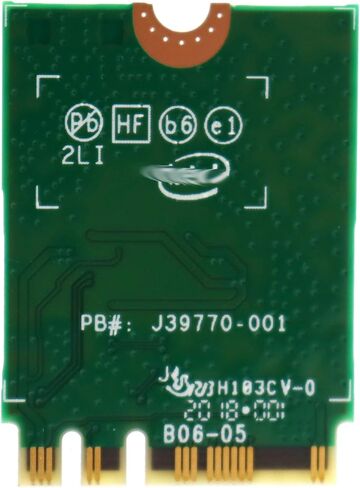

Model: 9260NGW
Connector interface: M.2 2230 or M.2 1216 (Not for (M2:CNVi))
System Interface Type: PCIe, USB
Antenna connector: IPEX 4 / iPX 4 Connector
Wireless data rate:
5GHz up to 1730Mbps (You router must support 160MHz)
2.4GHz up to 300Mbps
Streams: 2 x 2
Bluetooth: Bluetooth 5.0
Antenna Diversity: Supported
MU-MIMO: Yes
Frequency: Dual Band 2.4GHz / 5GHz
IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w, 802.11r, 802.11k, 802.11v
Operating Systems: Windows 10 32/64-bit (NOt support Windows 7/8/8.1)
Dimension (H x W x D): 22 x 30 x 2.4 mm

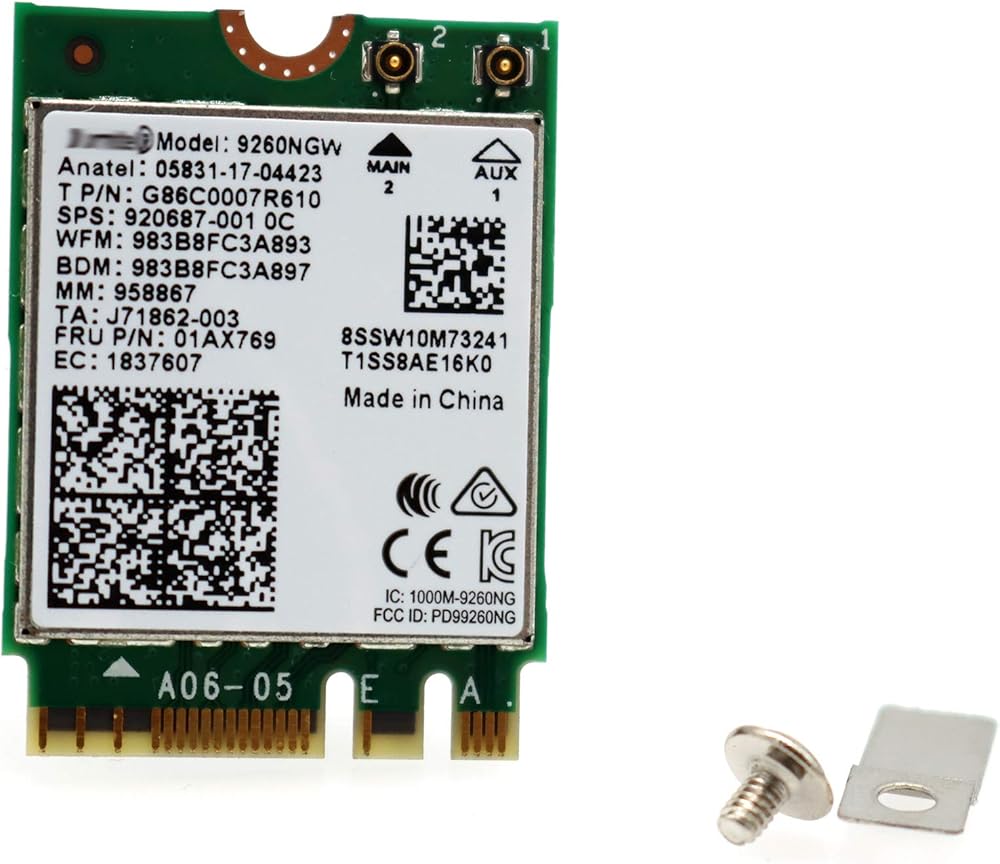

Package Includes:
1x 9260NGW M2 NGFF WLAN Card
1x Screws
1x Holder Bracket
