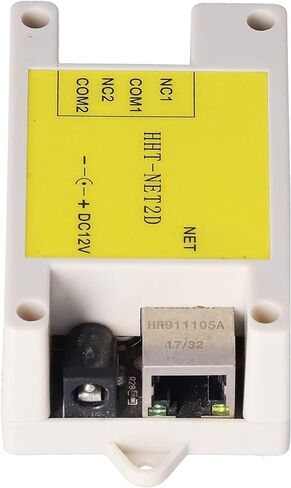

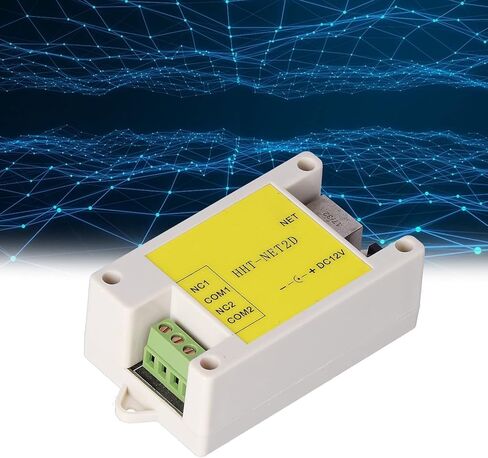

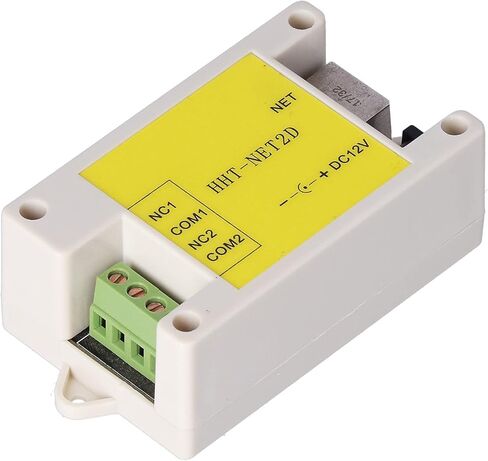

IP Network Relay Module Upgraded 2 Channel Internet Watchdog Remote Control Modules Network Controller HHT-NET2D DC12V -40 to +85 Degrees

KWD 12.500
Brand
Walfront
Weight
349 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

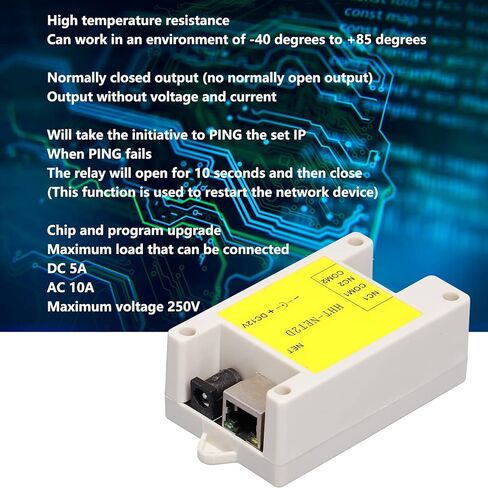

  • High Temperature Resistance: This network controller is high temperature resistant and can work in an environment of -40 degrees to +85 degrees.
  • Application: This is a network controller that can be used to monitor whether routers or other network devices are disconnected.
  • Normally Closed Output--2 channel IP network relay normally closed output (no normally open output), the output does not carry voltage or current.
  • Featured Function: The relay will actively the set IP. When the fails, the relay will be disconnected for 10 seconds and then closed (this function is used to restart network devices, such as routers).
  • Maximum Load Can be Connected: The network controller with chip and program upgrade can be connected to the maximum load, DC 5A, AC 10A, maximum voltage 250V.

Description

How to Use:

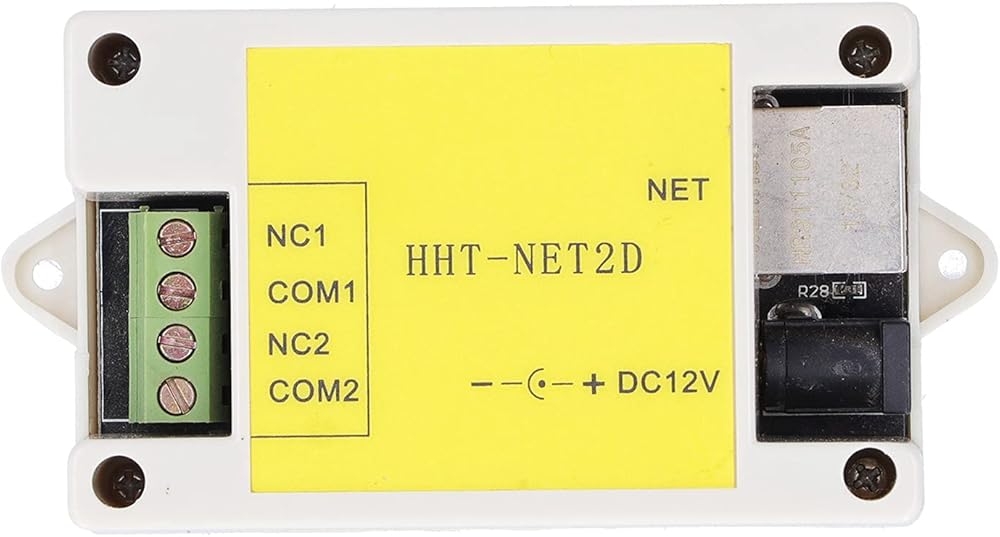

1. The power supply is 7‑24V, 12V is recommended. NC1 and COM1 are the first constant closing relay output, and NC2 and COM2 are the second relay output.
2. P5 is used to restore factory equipment. After removing the P5 jumper and powering on again, the factory device can be restored, and the factory device IP is restored to 192.168.0.105. The controller can work in TCP server, TCP client and UDP modes, which is easy to configure using configuration software. After configuration, the jumper wires should be bolted. Turn on the power again.
3. Run the configuration software, select the network card, and click search. After searching the device, double click the list on the left to read the device parameters.

Specification:
Item Type: IP Network Relay Module
Model: HHT-NET2D
Power Supply Voltage: DC12V
Industrial Grade Working Environment: -40 to +85 Degrees.
The Maximum Load That Can be Connected: DC 5A, AC 10A, Maximum Voltage 250V.
(Chip and Program Upgrade)

Package List:
1 x Network Watchdog
