Overview:
This USB Camera Module is equipped with the CMOS image sensor OV9726 produced by OmniVision Technologies.
The HD camera is onboard 1 Megapixel, onboard USB2.0 interface,
which can adjust the focusing distance of shooting and adopt the fixed focusing mode (manual focusing),

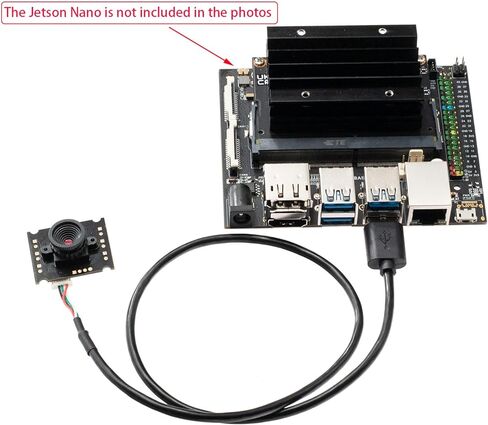

suitable for Win XP/Win7/Win8/vista/mac/Linux with uvc/Android4.0/Jetson Nano operating system.

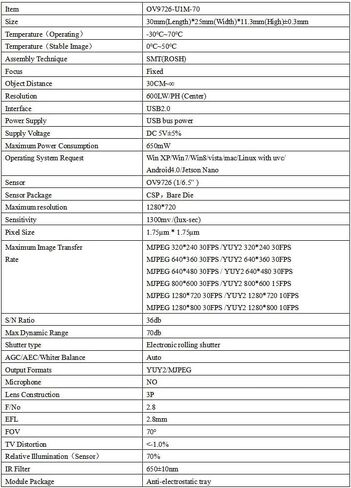

Specifications:

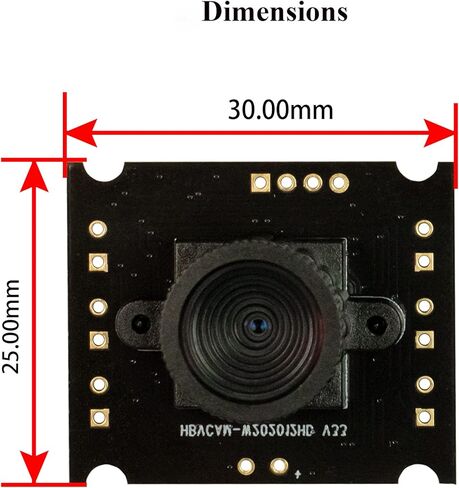

Size: 30mm(Length)*25mm(Width)*11.3mm(High)±0.3mm
Temperature (Operation): -30℃～70℃
Temperature(Stable Image): 0℃～50℃
Assembly Technique: SMT(ROSH)
Focus: Fixed
Object Distance: 30cm-infinity
Resolution: 600LW/PH(Center)
Interface: USB 2.0
Power Supply: USB bus power
Supply Voltage: DC 5V±5%
Maximum Power Consumption : 650mW
Operating System Request: Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano
Sensor: OV9726(1/6.5")
Sensor Package: CSP, Bare Die
Maximum resolution: 1280*720
Sensitivity: 1300mv/(lux-sec)
Pixel Size: 1.75µm * 1.75µm
S/N Ratio: 36db
Max Dynamic Range: 70db
Shutter type: Electronic rolling shutter
AGC/AEC/Whiter Balance: Auto
Output Formats: YUY2/MJPEG
Microphone: No
Lens Construction: 3P
F/No: 2.8
EFL: 2.8mm
FOV: 70°
TV Distortion: Relative Illumination(Sensor): 70%
IR Filter: 650±10nm
Package: Anti-electrostatic tray
Maximum Image Transfer Rate:
MJPEG 320x240 30FPS /YUY2 320x240 30FPS
MJPEG 640x360 30FPS /YUY2 640x360 30FPS
MJPEG 640x480 30FPS / YUY2 640x480 30FPS
MJPEG 800x600 30FPS /YUY2 800x600 15FPS
MJPEG 1280x720 30FPS /YUY2 1280x720 10FPS
MJPEG 1280x800 30FPS /YUY2 1280x800 10FPS

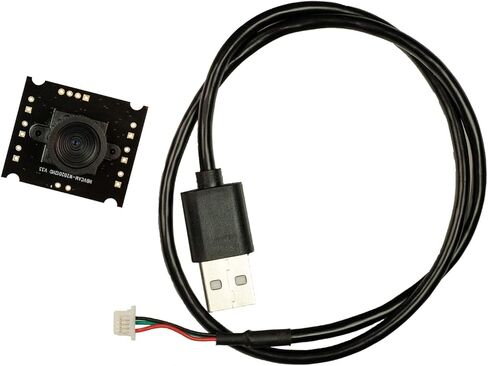

Package Contents:
1.OV9726-U1M-70 (fixed focus) x1
2.USB to HX1.25-5P connecting cable x1
