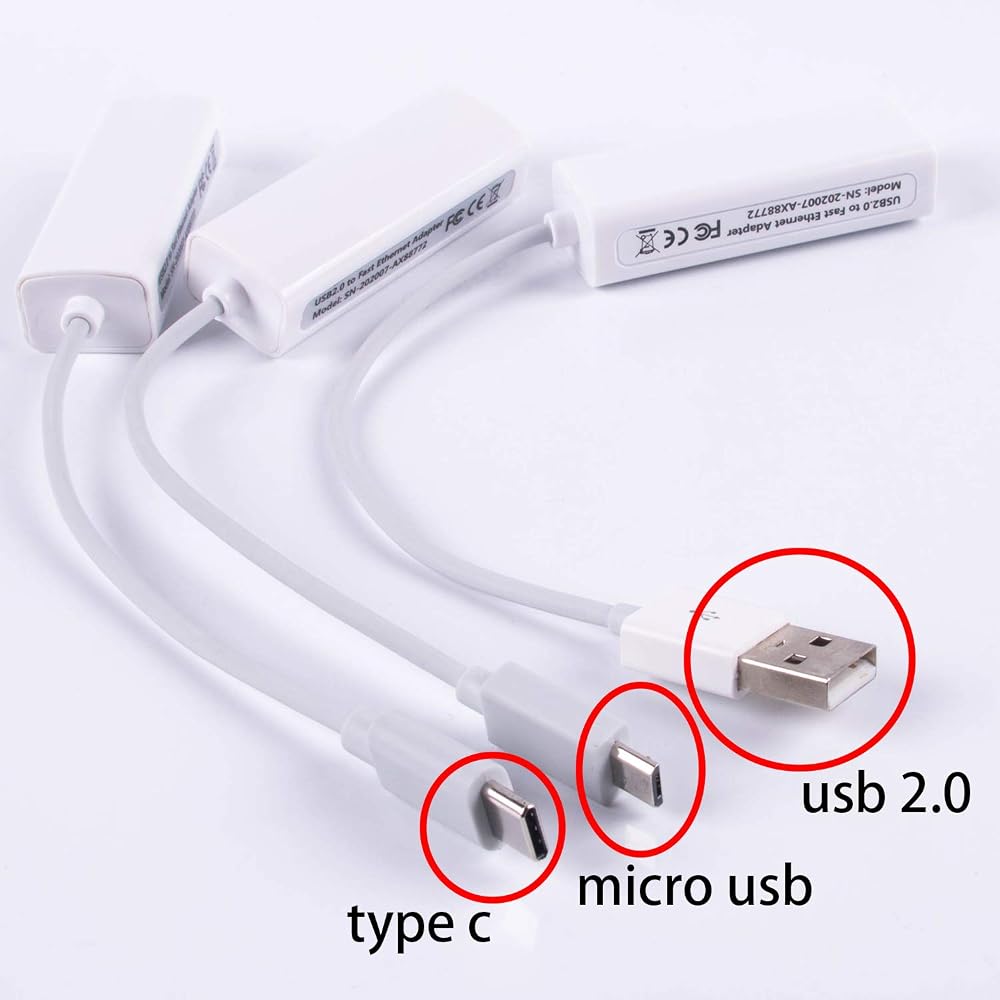

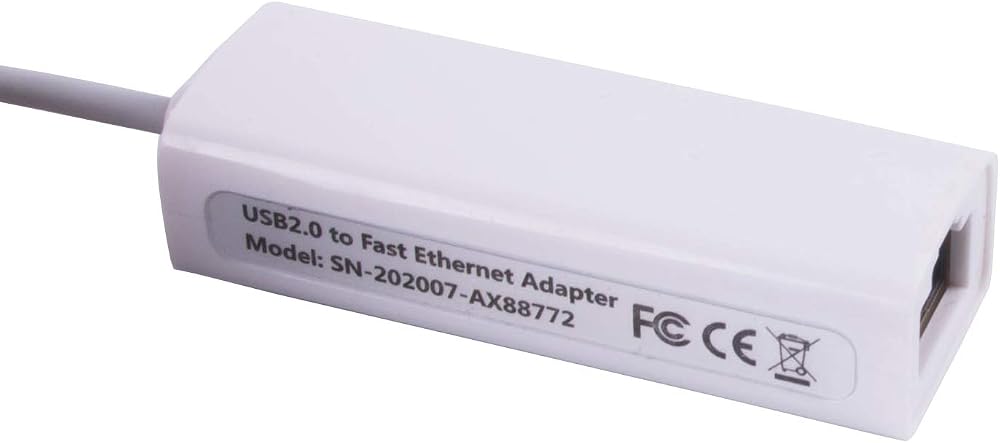

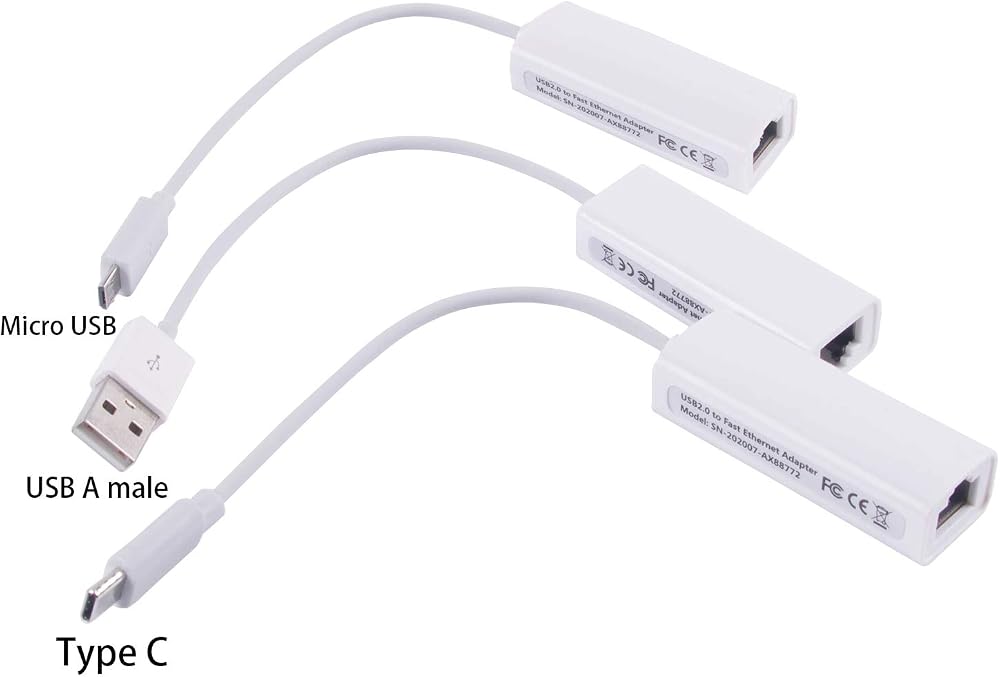

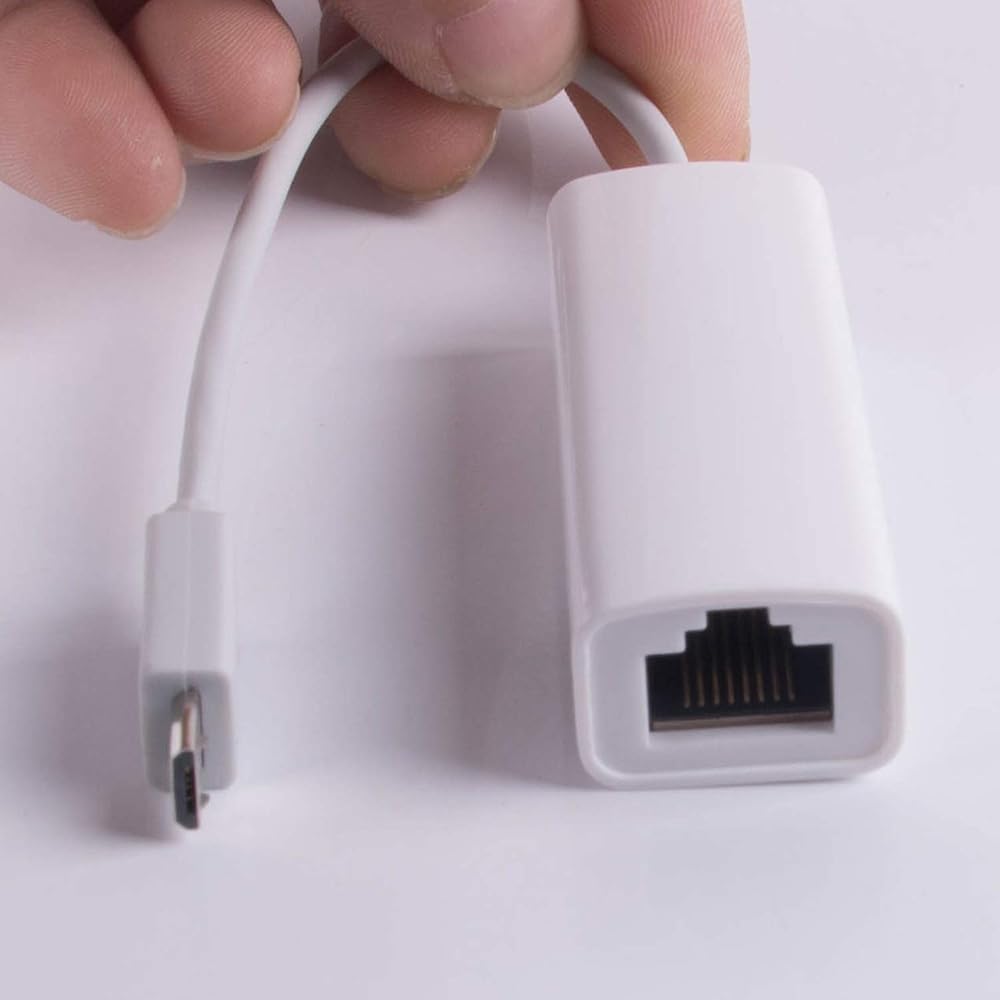

USB2.0 etherlan adapter
usb to rj45 lan converter
usb rs45 adapter, length:22cm
usb rj45 converter
USB2.0 high speed interface
Support10Mbps or 100Mbps speed
Support 10M/100M N-way protecal Support Linux, windows7, xp MAC OS X compatible
AX88782 -- Non-PCI 8/16-bit 2-Port 10/100M Fast Ethernet Controller The
AX88782 is a single-chip 2-port 10/100M Ethernet Switch controllers featuring a 3-port switching fabric with QoS priority management, three 10/100M MACs, two 10/100M PHYs, and 8/16-bit Non-PCI host interface. The AX88782 supports checksum offload engine and burst-mode access making it easy to provide a high performance 2-port Ethernet connectivity solution for any embedded MCU. The built-in switching fabric in the AX88782 supports non-blocking wire-speed forwarding and offers an advanced switch feature set that includes tag/port-based VLAN, spanning tree, rate control, port security, port mirroring, IGMP snooping, MIB counters and four priority queues for QoS functions including Port-Based, 802.1p VLAN, IPv4 TOS and IPv6 COS to prioritize voice, video, audio and data traffic delivery
The AX88782 have integrated a voltage regulator and provide support for programmable I/O voltage options of 3.3V/2.5V/1.8V to enable a highly optimized system design. As semiconductor designs migrate to advanced process geometries like 90nm, 65nm, 45nm and beyond, many of today's higher performance ASICs, SoCs and FPGAs require lower I/O voltages.
The AX88782 combine the benefits of high integration and small form factor making them ideal single-chip solutions for designing high performance, QoS-aware and cost effective 2-port Ethernet functions for embedded system applications such as VoIP phone/ATA adapters, surveillance IP cameras, next-generation IP-STB/IPTV, industrial controller/network sensors, port redundancy/port monitoring and Single Board Computers (SBC) .High Performance Non-PCI Interface ,Configurable 8/16-bit SRAM-like host interface
