Introduction:

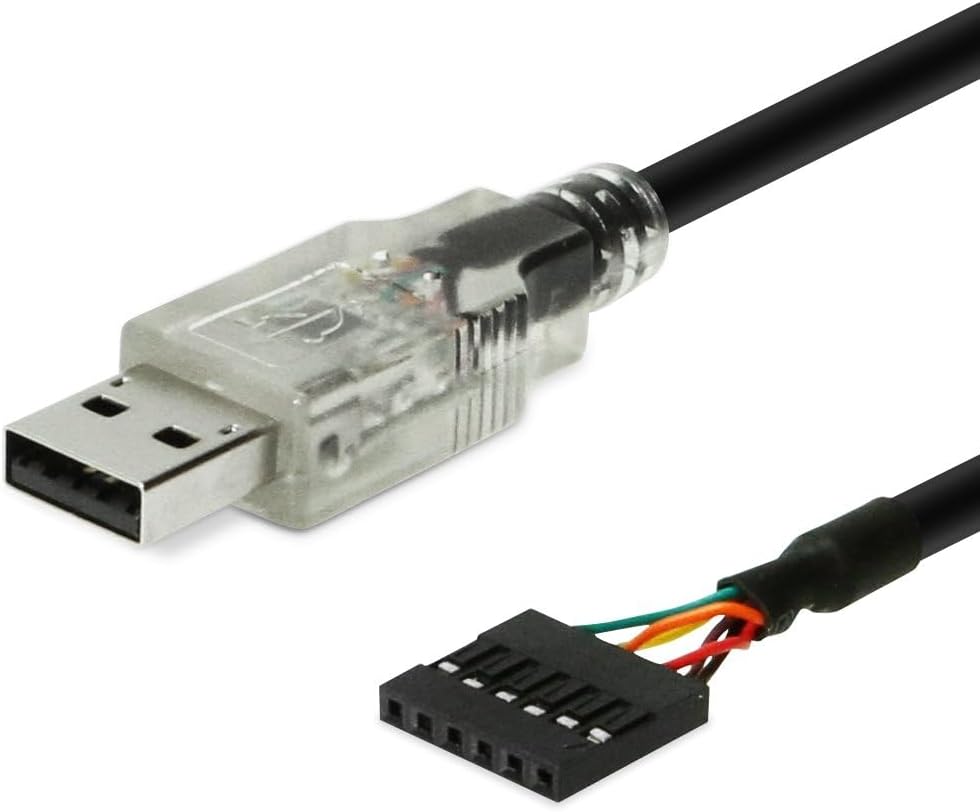

This USB to Serial UART (TTL level) adapter allows you to connect your computer through USB port and use it as a regular serial communication port. All USB protocol is handled within this adapter. There is no other device or programming required.
Product Details:
The adapter is perfect for embedded systems that require a serial connection to a computer. The board attaches directly to the USB bus via a standard type A receptacle connector. It shows up on any Windows computer as a standard serial COM port. Any applications that talk to this COM port is automatically convert to USB and back to UART to your target board.
Additional Features
The Cable provides a USB to TTL Serial interface to 6-pin header.
Single board USB to asynchronous serial data transfer interface
Entire USB protocol handled by the electronics in the cable USB
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
Transmit and receive LEDs
UHCI / OHCI / EHCI host controller compatible
Low USB bandwidth consumption.
6 Pin Header Pin Assignment
Pin 1 GND
Pin 2 CTS
Pin 3 VCC
Pin 4 TXD
Pin 5 RXD
Pin 6 RTS
OS Support:
Windows 98, Me, XP, 2000, 2003, CE, Vista, Windows 7,8, and 10
Linux and Mac OS 10.X
Package Contents:
USB to 3.3v TTL PIN Header Cable
Driver Disc
