Model :ELP-USBFHD06H serial
Sensor:IMX322/IMX323
Lens Size:1/2.9 inch
Pixel Size:12.8X11.6 mm
Image area:2000(H)X1121(V) approx. 2.24 M pixels

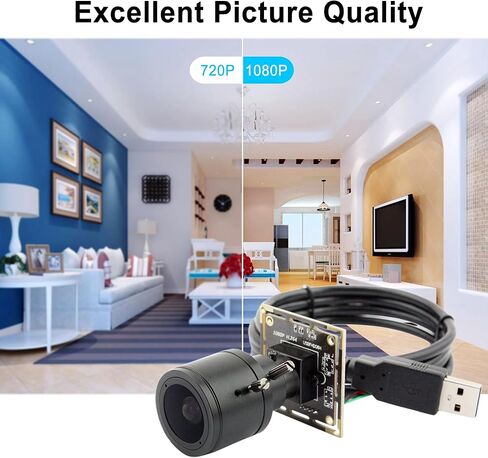

Max. Resolution 1080P
Compression format
H264 /MJPEG / YUV2（YUYV） Resolution & frame
H264：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio:42dB
Dynamic Range:86dB
Sensitivity:5.0V/lux-sec@550nm

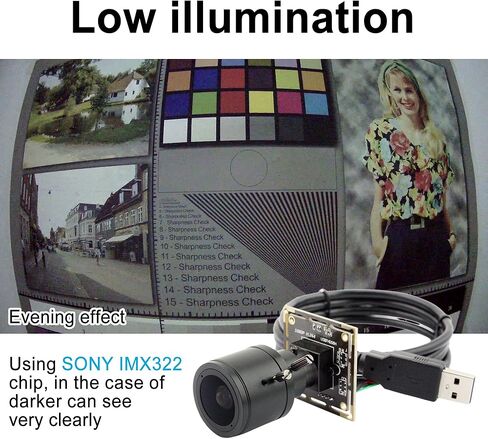

Mini illumination:0. 01 lux
Shutter Type:Electronic rolling shutter / Frame exposure

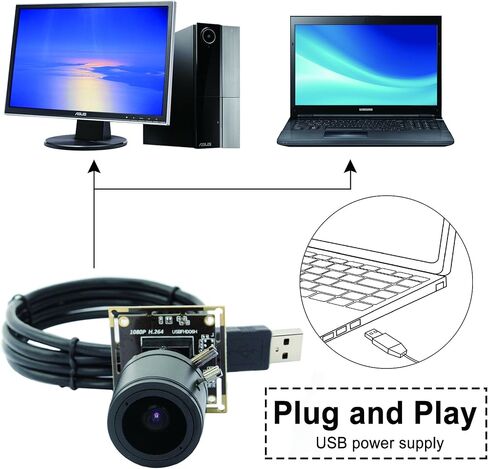

Connecting Port type:USB2.0 High Speed
Free Drive Protocol:USB Video Class（UVC）
Support OTG Protocol:USB2.0 OTG
AEC:Support
AEB:Support
AGC:Support

Adjustable parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure

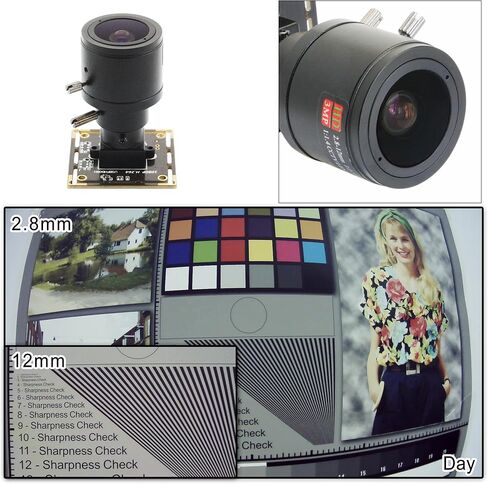

Lens Parameter Standard FOV(D)100 Degree , optional 2.1/2.8/3.7/6mm/FOV(D)170 /180 Degree

Digital audio High quality digital MIC, support single, dual channel
LED board power connector:Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Power supply:DC5V
Operating Voltage:140mA~190mA
Working current -10～70℃
Working temperature:-20～85℃

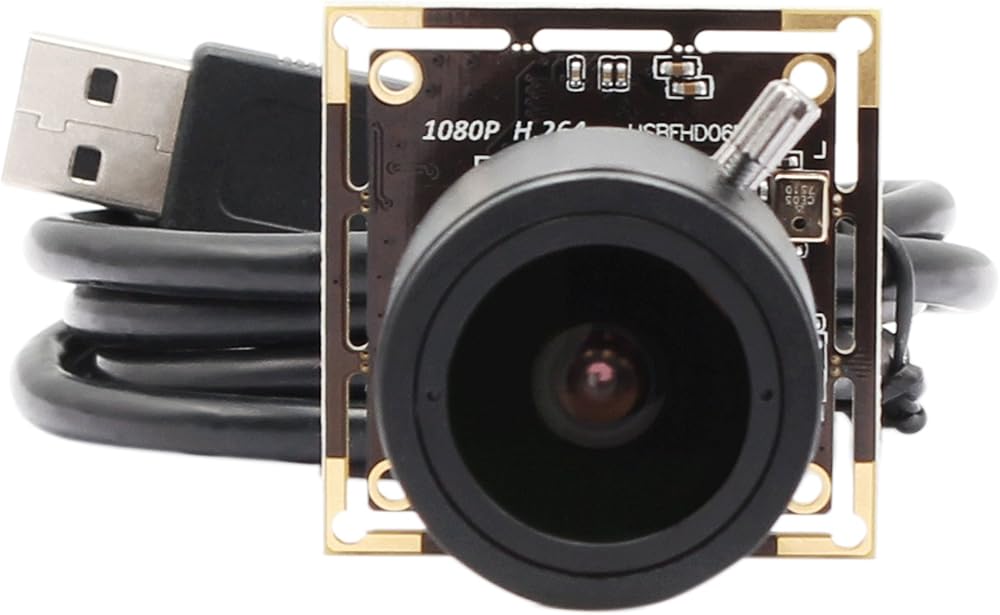

Board size /Weight:38X38mm（Compatible 32X32mm）/ about 30g
Cable Standard:1M / optional 2M,3M,5M

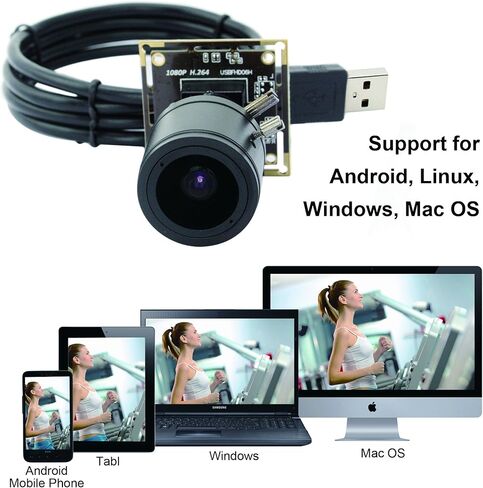

Operating system request:Win7,Win8,Linux 2.6 or above,Android 4.0 or above
