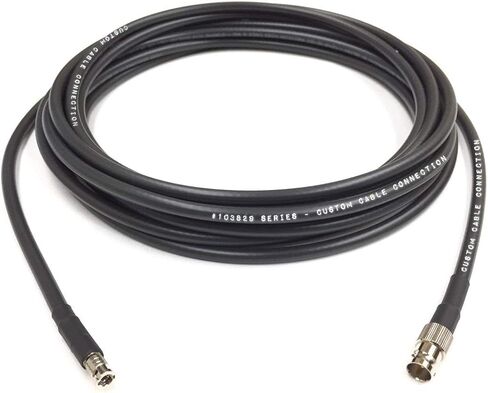

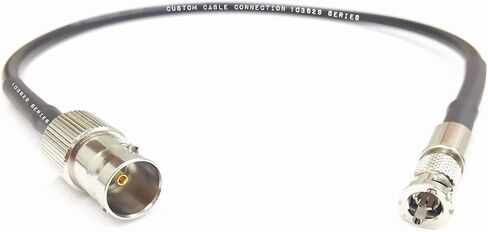

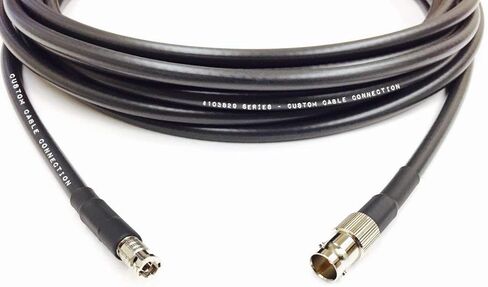

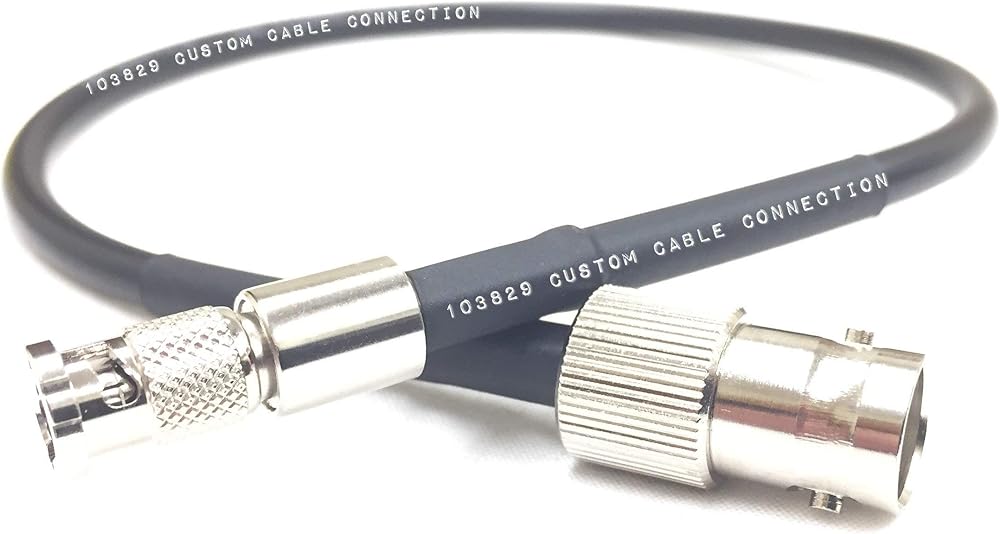

Standard BNC Female to High Density Micro BNC cables are designed for professional broadcast applications. Adapt your Standard BNC connections to High Density Micro BNC with this adapter cable. These cables feature dual copper braided shield for high flexibility, strength, and superb shielding against interference. The center conductor is made from true 75 Ohm 23 AWG solid copper. This cable is 100% sweep tested and is ready to meet today's requirements of 6 Gbps data transfer.

HD Micro BNC— Delivers true 75 Ohm performance in a footprint 51% smaller than traditional BNC connectors allowing four times the density

Clark Wire CD7523 Cable is made in the USA
Supports SMPTE 259M/292M/424M Standards
Connector A: True 75 Ohm Standard BNC Female
Connector B: True 75 Ohm High Density Micro BNC Male
Number of Coax: 1
RG Type: Mini RG59
AWG: 23
Stranding: Solid
Conductor Material: BC - Bare Copper
Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
Outer Shield Material Trade Name: Duofoil

Used with Blackmagic Design, Blackmagic HyperDeck Shuttle, Red One, Atomos, and many other patch panels, CCTV devices and cameras.

At Custom Cable Connection, we are dedicated to providing you with the best audio, video, network, and RF electrical cables in the industry for the best price.

Not seeing the length you need? Contact us on our website and we can have it custom made for you; we call ourselves Custom Cable Connection for a reason!
