this motherboards helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Processor
Intel Socket LGA1200 - Supports 11th generation Intel Core processors / 10th generation Intel Core , Pentium Gold and Celeron processors
Supports Intel 14nm processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Support for Intel Turbo Boost Max 3.0 technology varies depending on the type of processor.
Chipset
Z590
Memory
Memory channel
4DDR4 (Dual channel)
Dual-channel memory architecture
Support Intel Extreme Memory Profile (XMP)
OptiMem II, the second-generation memory optimization technology
Display function
Expansion slot
The 11th generation / 10th generation Intel processors
The 11th generation Intel processors support PCIe 4.0 x16 or x8/x4/x4 modes
The 10th generation Intel processors support PCIe 3.0 x16 or x8/x4/x4 modes
Intel Z590 chip
1 x PCIe 3.0 x4 slot
Support PCIe bandwidth branches to perform RAID on CPU functions.
Storage device slot
The 11th generation / 10th generation Intel processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
Intel Z590 chip
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supporting PCIe 3.0 x4 & SATA mode
M23 slot (Key M), type 2242/2260/2280/22110 (supporting PCIe 3.0 x4 & SATA mode
6 x SATA 6Gbs interface
When M.2_2 is running on SATA devices, SATA6G_2 will be turned off.
When M.2_3 is running on a SATA device, SATA6G_6 will be turned off.
USB

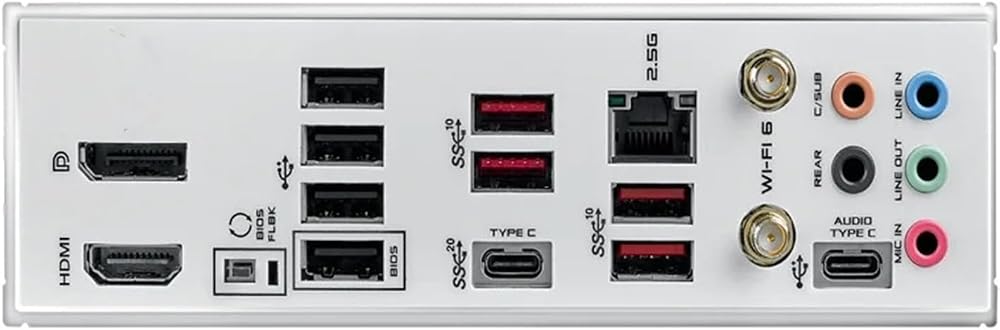

Rear side panel USB
There are a total of 10 ports
1 x USB 3.2 Gen 2x2 interface (1 x USB Type-C)
4 x USB 3.2 Gen 2 interface (4 x Type-A)
5 x USB 2.0 interface (4 x Type-A + 1 x USB Type-C)
Front side panel USB
There are a total of 7 ports
1 x USB 3.2 Gen 1 connection port (supports USB Type-C)
1 x USB 3.2 Gen 1 port can be expanded with 2 USB 3.2 Gen 1 interfaces
2 x USB 2.0 ports can be expanded with 4 USB 2.0 interfaces
1 x USB 3.2 Gen 2x2 interface (1 x USB Type-C)
4 x USB 3.2 Gen 2 interface (4 x Type-A)
5 x USB 2.0 interface (4 x Type-A, 1 x USB Type-C audio interface)
1 x HDMI interface
1 x DisplayPort
1 x Intel I225-V 2.5Gb network port
5x audio jack
4 x 4-pin chassis fan pin connection
1 x VRM heat sink fan pin connection
Storage-related
3 x M.2 slot (Key M)
6 x SATA 6Gb/s interface
USB
1 x USB 3.2 Gen 1 connection interface (supports USB Type-C)
The 1 x USB 3.2 Gen 1 pin can be expanded with 2 USB 3.2 Gen 1 interfaces
2 x USB 2.0 pins can be expanded with 4 USB 2.0 interfaces
3 x AURA second-generation programmable pins
1 x AURA RGB connector
1 x CMOS reset and pin connection
1 x Front Panel Audio Pin Connector (AAFP)
The 1 x 20-3 pin system panel pin connection supports the case opening warning function
Motherboard size
30.5cm x 24.4cm
==========
RAID Supported : No
Processor compatibility : 10th Intel Core i3,11th Intel Core i9,11th Intel Core i7,11th Intel Core i3,10th Intel Core i7,10th Intel Core i5,10th Intel Core i9,11th Intel Core i5
Usage Scenario : Gaming,Audio & Video,Office
Back I/O Ports : 1x RJ45,6 x USB 2.0,4x USB 3.2/3.1 Gen 2,USB Type-C,HDMI 2.0
Onboard LAN : 1x RJ45
Storage Interface Type : SATA 3,M.2 (NVMe)
Number of PCI : 3
PCI - E standards : PCI-E 4.0
Support Memory Type : DDR4
Maximum Ram Capacity : 128 GB
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Intel Z590
Application : Desktop
Socket Type : LGA1200
