مميزات خاصة

【Dual Type C Power Output】Unique dual Type C jack design provides two independent 12V/2-2.5A Max Type C power outputs, allowing simultaneous power supply for two different devices, the Type C only deliver power.
【Standard PoE Compatibility】Compliant with IEEE 802.3af and IEEE 802.3at PoE standards, supporting both 1/2(+),3/6(-) and 4/5(+),7/8(-) power supply modes.
【Easy Set up】Easy to power your device with plug and play function, Auto detect power from Power Sourcing Equipment. Auto deliver right power for terminal device.
【Multiple Protection】Support the isolation circuit protection, the short circuit protection, the overvoltage protection, can effectively protect your equipment.
【How to Use】Using IEEE802.3af/at PoE switch or PoE injector power the splitter, the PoE splitter will separate PoE into power and data via Type C and RJ45 port, provides power and data for Non-PoE terminal device like IP camera.

وصف

Specifications：
Supports IEEE 802.3af and IEEE 802.3at PoE power supply standards
Supports 10/100Mbps data transmission
RJ45 data output and dual-connector 12V Type C voltage output
Power supply method: Input terminals simultaneously support 1/2(+), 3/6(-); 4/5(+), 7/8(-)
Support the isolation circuit protection, can effectively protect electrical equipment.
Support the short circuit, overvoltage protection

Model: PD3009
Transfer Rate: 10/100Mbps
Power: Input 40V-57V
DC connector voltage output: 12V
DC connector current output: 2-2.5A (MAX)
Standard: IEEE802.3 af/IEEE802.3 at(30W)
TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)
Transmission Distance: 10 meters to 100 meters
Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 2 Type C output
Temperature: Work within -20~50°,Storage within -30~60°
Humidity: RH95% MAX (Non-condensation)
Dimension: 28 x 3.1 x 2.6cm
Weight: 72g

Package Content:
1 * POE Splitter (PD3009)

مرحبًا،

بحث

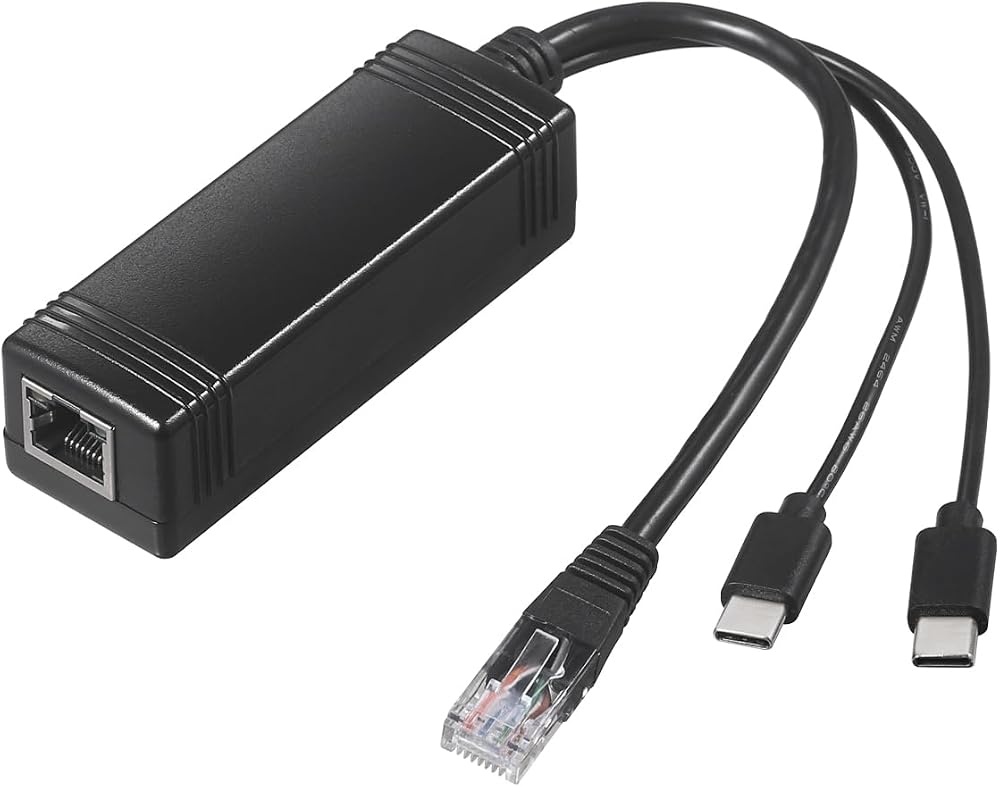

PoE Splitter with Dual Type C Output, Comply IEEE 802.3af/at, USB-C 12V 2.5A Max Output, Total 30W Output, 10/100Mbps, Plug and Play for IP Security Camera, Wireless AP (PD3009) 100Mbps (PD3009)
