Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

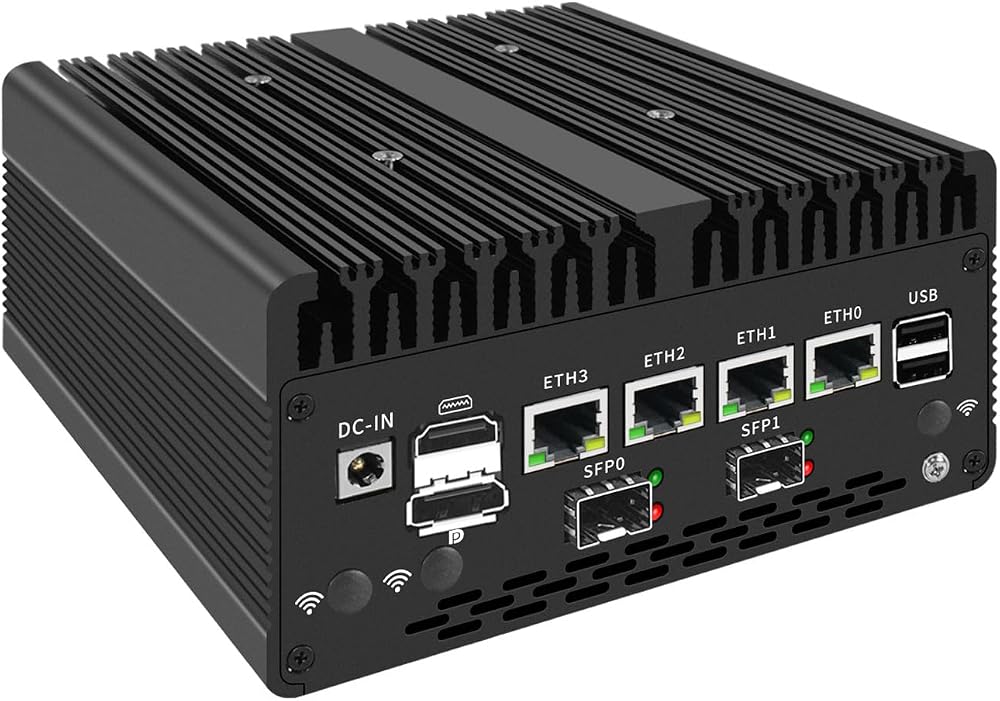

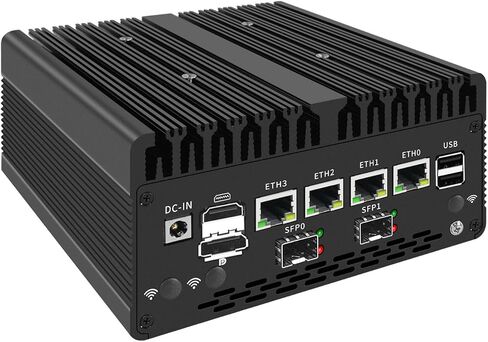

Model Number: ANDAQI RN06
Chassis: Aluminum
CPU: Pentium Gold Processor 8505 8M Cache, up to 4.40 GHz
Memory: 2 x SODIMM DDR5 4800 MT/s, MAX.96GB
Storage: 1 x M.2 2280 PCIE4.0 x4 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 4 x 2.5GbE I226-V LAN, 2 x 82599 10GbE SFP+ Optical Port
I/O Interface: 2 x USB3.0, Power ON/OFF, Type-C for USB2.0, 4pin 1.25mm 12V Fan Connector, SIM Slot, CONSOLE, DC_IN,
HDMI, DP, 4 x LAN, 2 x USB2.0, 2 x SFP+, Ground Screw
Expansion: 1 x PCI-E x8 slot for PCIE 3.0 x4 signal, 1 x M.2 3052 slot for PCIE 3.0/USB signal for 5G, 1 x M.2 2230 slot for
PCIe 3.0/USB/CNVI signal for WiFi, 1 x JTPM pin, 1 x JGPIO pin
Power: DC100-240V AC/50-60HZ, 12V
Working Environment: -0 to +50°C for commercial HDD, -20 to +50°C for industrial SSD, surface airflow
Relative Temperature: 5%~90% non-condensing
TDP: 15-55W
Cooling system: Fanless
Size: 150 x 143 x 84mm
Weight: 1.5kgs
Packing List: ANDAQI RN06 firewall appliance, power supply, power cord, warranty card
Function: Supports hardware auto power on enabled default, wake-up on LAN, PXE, Watchdog
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-24 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U/4U rackable, 9-19 Inch rackable, all are available in our shop,
Bookmark ANDAQI store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
