ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop in Kuwait ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop in Kuwait ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop in Kuwait ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop in Kuwait ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop in Kuwait ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop in Kuwait ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop in Kuwait

ELP 5mp 60fps Global Shutter USB3.0 Camera Module Wide Angle 120degree Webcam Board for Computer Mini UVC USB3.0/2.0 PC Camera High Speed Lightburn Cameras for Laser OG05B10 Webcamera for Laptop 120degree No Distortion Lens

KWD 68
Brand
ELP
Category
Webcams
Color120degree no distortion lens
– 1 +

Special Features

  • Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
  • FHD Resolution: 5MP 2592Hx1944V; Frame Rates: MJPEG 60fps@2592x1944/2560x1440, YUY2 35fps@2592x1944/2560x1440, fast frame for for high-speed moving objects shooting.
  • Wide Angle 120degree no distortion lens, HFOV about 126degree, mini usb camera board can be installed in most hidden and narrow position, can be used in machine visions for personal or industrial.
  • USB3.0 high speed USB camera for high speed system, USB3.0/2.0 compatible, high performance ISP.
  • Adopt high quality 1/2.5” OmniVision OG05B10 high quality sensor for sharp clear image.
  • USB3.0 Type C connector, equipped with 1.2m Type C USB 3.0 cable, Support OTG optional.

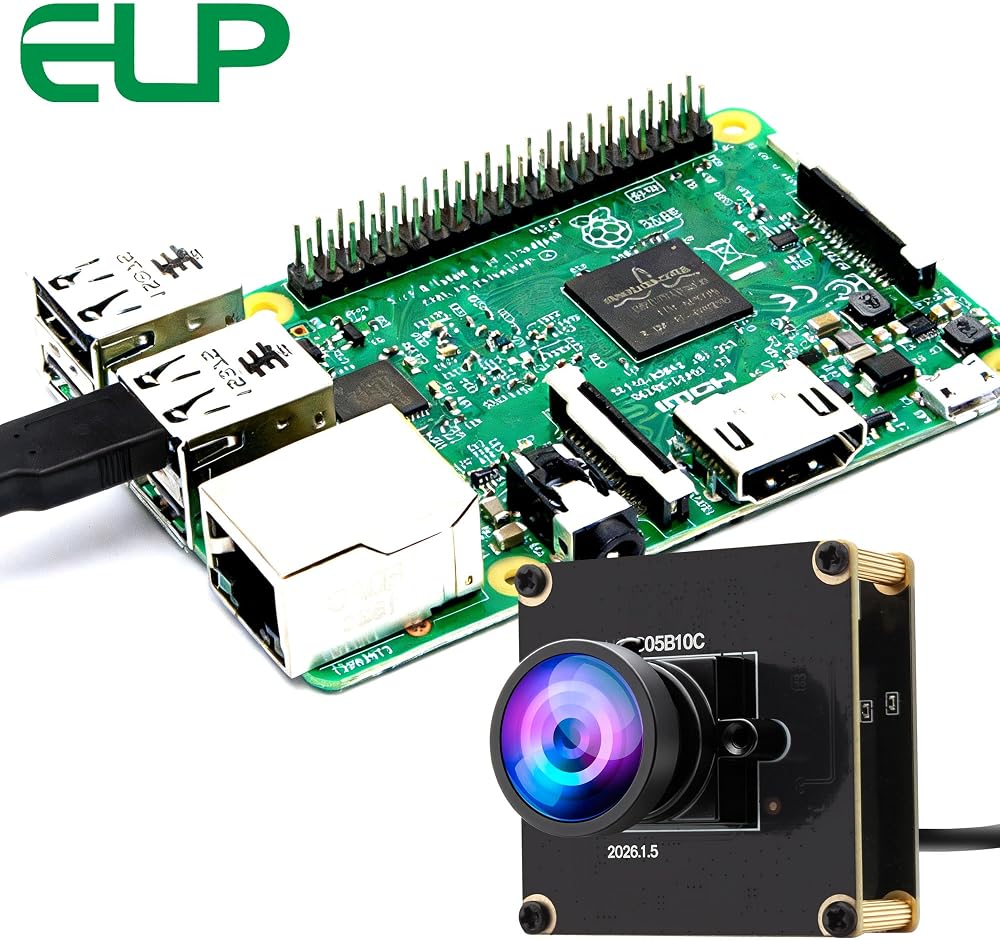

  • Camera with UVC for Windows,Linux,Mac,Raspberry Pi,etc.

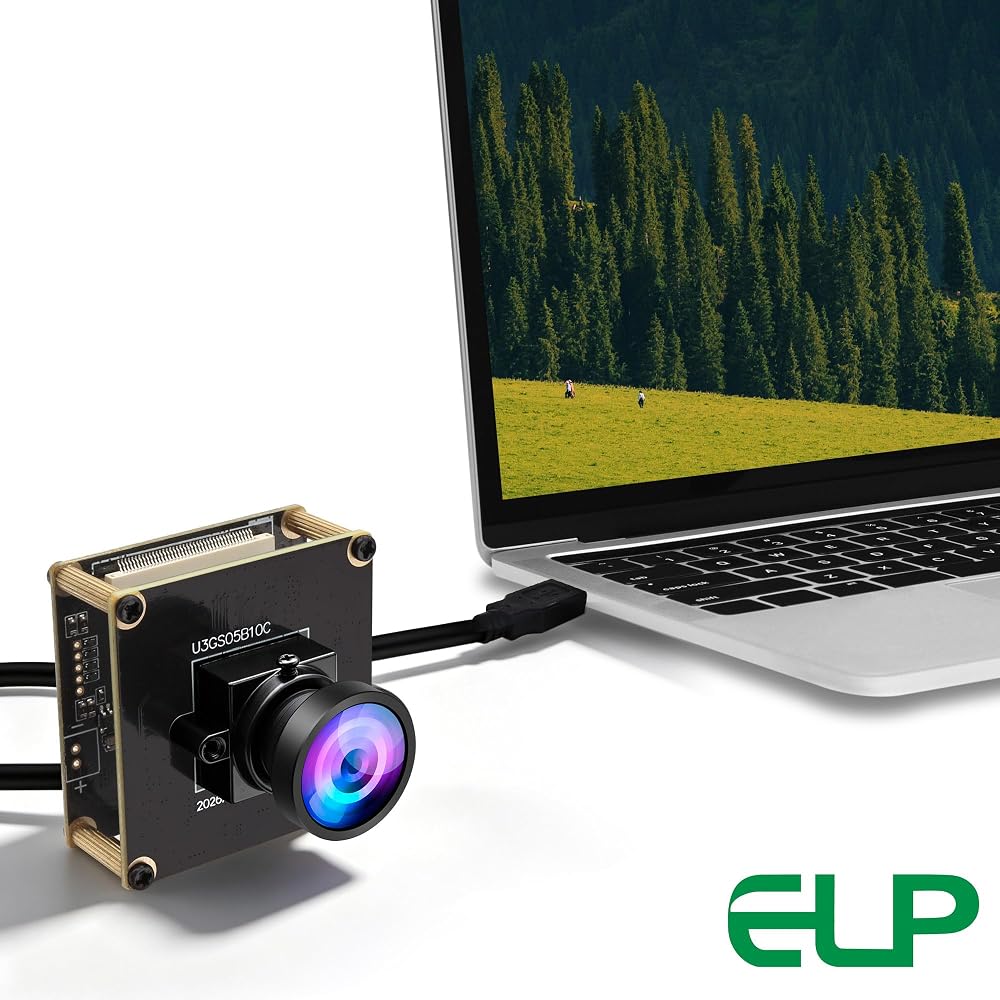

  • Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

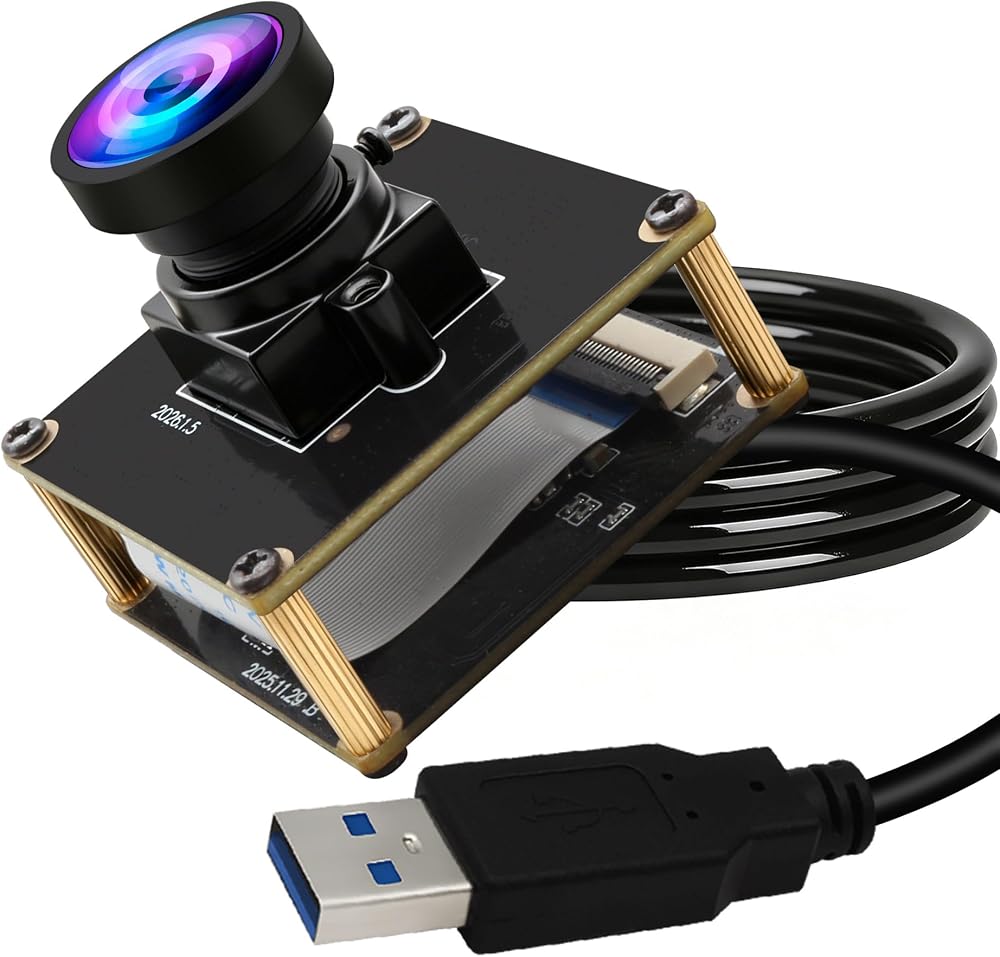

  • Mini size, light weight, small outline and thin profile for embedded machine vision.
  • Applications: wide angle fisheye lens usb camera module with global shutter high frame rates allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.

Description

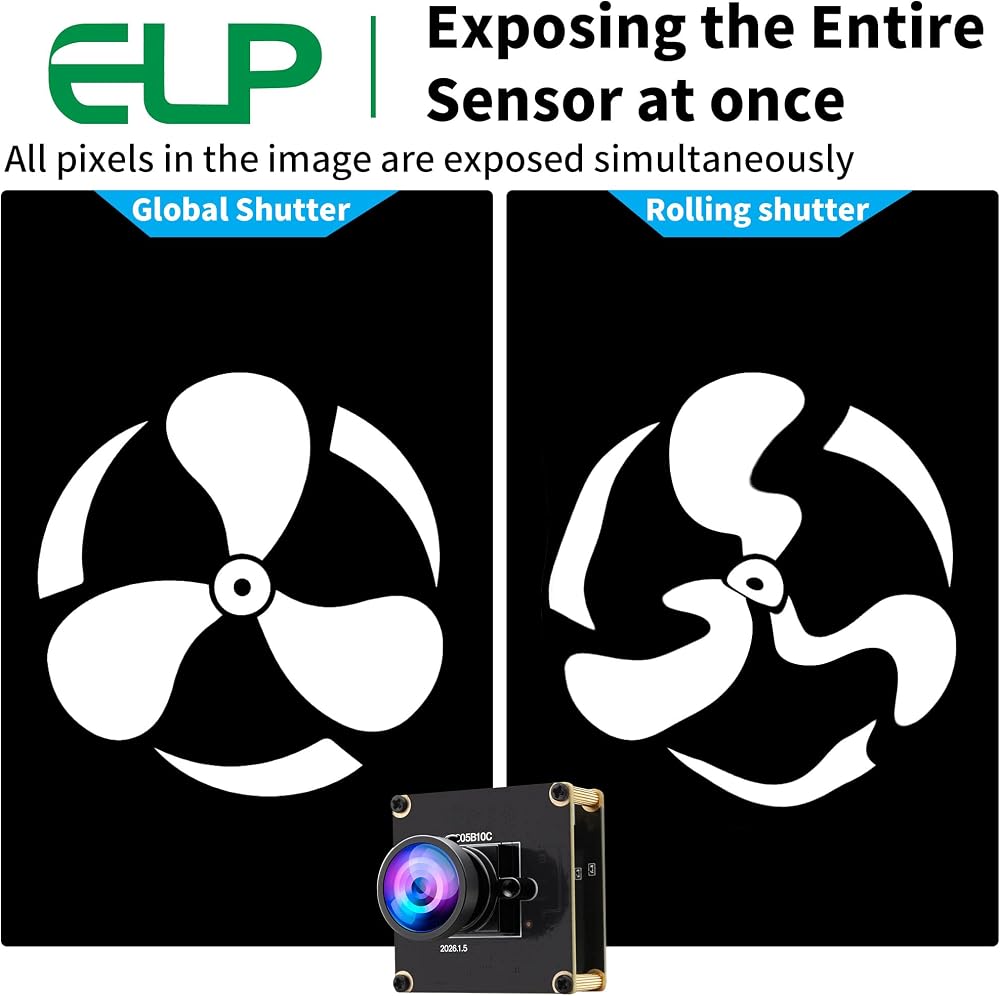

A global shutter camera can captures an image by exposing the entire sensor at once, rather than scanning the
sensor line-by-line as in a rolling shutter camera.
This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of
distortion caused by motion during exposure.It can avoid smearing when capturing high-speed motion.
Product Model: ELP-U3GS05B10C-H120
Product Name: 5MP Global Shutter 60FPS USB Zoom Camera
1. Main Specifications
Sensor: OmniVision OG05B10 (1/2.5”) Global Shutter
Max Resolution: 2592 (H) *1944 (V)
Sensor Size: 1/2.5 inch (4:3)
Image Array Area: 5737μm x4312μm
Pixel Size: 2.2μm x 2.2μm
Compression Format: MJPEG / YUV2 (YUYV)
Resolution & Frame rate: USB3.0
2592x1944 MJPEG 60fps/ YUY2 35fps
2560x1440 MJPEG 60fps/ YUY2 35fps
2048x1536 MJPEG 60fps/ YUY2 50fps
1600x1200 MJPEG 60fps/ YUY2 60fps
1920x1080 MJPEG 60fps/ YUY2 60fps
1280x960 MJPEG 60fps/ YUY2 60fps
1280x720 MJPEG 60fps/ YUY2 60fps
640x480 MJPEG 60fps/ YUY2 60fps
512x512 MJPEG 60fps/ YUY2 60fps
Resolution & Frame rate: USB2.0
2592x1944 MJPEG 60fps/ YUY2 1fps
2560x1440 MJPEG 60fps/ YUY2 1fps
2048x1536 MJPEG 60fps/ YUY2 1fps
1600x1200 MJPEG 60fps/ YUY2 1fps
1920x1080 MJPEG 60fps/ YUY2 1fps
1280x960 MJPEG 60fps/ YUY2 1fps
1280x720 MJPEG 60fps/ YUY2 1fps
640x480 MJPEG 60fps/ YUY2 30fps
512x512 MJPEG 60fps/ YUY2 10fps
Surface Mount Technology: SMT
Interface & Connector: USB 3.0 Type C Port (USB 3.0 20-Pin Connector optional)
Focus Fixed
Central Definition: 1000LW/PH (Center)
S/N Ratio: 38dB
Dynamic Range: 72dB
Sensitivity: 1.4V/lux-sec@550nm
Min Illumination: 0.1lux
Shutter: Global Shutter
Interface: USB 3.0 Interface
AEC/AWB/AGC: Support
Adjustable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Compensation, Exposure
Lens Parameters: f=3.24mm, No distortion, HFOV is approximately 85°.
Optional Lenses:
M12 No distortion: 51°/69°/ 86°/75°/ 98°/ 115°/ 125°
M12 Normal: 12°/ 21°/25°/43°/58°/89°/110°/115°/ 120°
M12 Fish-eye: 158°/ 195°
M12 Varifocal lens: 2.8-12mm
(For other viewing angles, please contact us directly.)
LED Board Power Connector: Support
2P-2.0mm socket: Power Supply
USB Type-C Power Supply
Operating Voltage: DC 5V
Working Current: 155mA- 195mA
Dimension: 38mm x 38mmx 48.5mm
Storage Temperature: -20°C to 80°C
Working Temperature: -10°C to 70°C
USB Cable: 1.2M (2M/3M/5M ... Optional )
Operating System Request
Win10/Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
