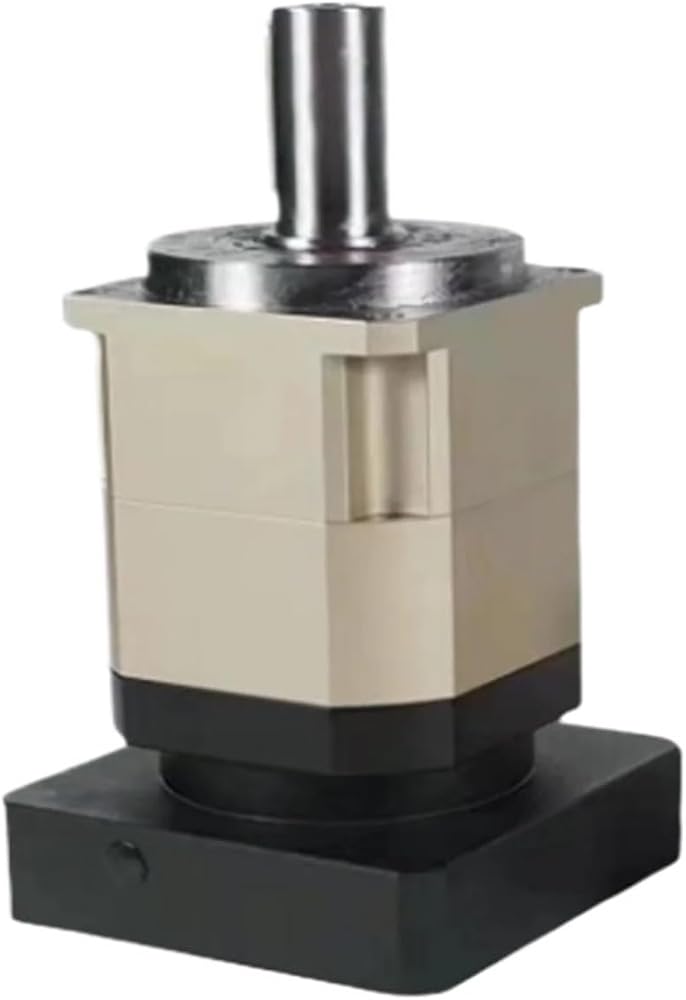

Planetary Gear Reducer PGH115 7 arc Minute helical Input 19 / 24mm Output 32mm 220-300N.m(L2-Ratio 60,Out 32-Input 19) in Kuwait Planetary Gear Reducer PGH115 7 arc Minute helical Input 19 / 24mm Output 32mm 220-300N.m(L2-Ratio 60,Out 32-Input 19) in Kuwait

Planetary Gear Reducer PGH115 7 arc Minute helical Input 19 / 24mm Output 32mm 220-300N.m(L2-Ratio 15,Out 32-Input 24) L2-ratio 60 Out 32-Input 19

KWD 280.500
ماركة
HCYIUWNPE
اللونL2-RATIO 60
مقاسمخرج 32-مدخل 19
– 1 +

مميزات خاصة

  • motor
  • High-efficiency transmission:All through the gear precision meshing to reduce energy loss; suitable for long-term high load operation
  • Compact structure:Space-saving design reduces the size of the reducer; suitable for narrow installation environments
  • Flexible transmission ratios:Wide range of single-stage ratios; higher ratios can be realized with multi-stage combinations; suitable for diverse needs
  • Stable operation and low noise:Iow continuous vibration; reduced impact; low noise

وصف

motor
Model: PGH115 (L2)
Speed ratio range: 15:1 20:1 25:1 30:1 40:1 50:1 60:1 70:1 100:1
Rated motor input speed: 4000rpm
Maximum input speed: 8000rpm
Output speed: 40rpm--533rpm
Input size: 19mm/24mm
Output size: 32mm
L1/L2 output torque: 220N.m--300N.m
Maximum radial force: 3420N
Maximum axial force: 2650N
