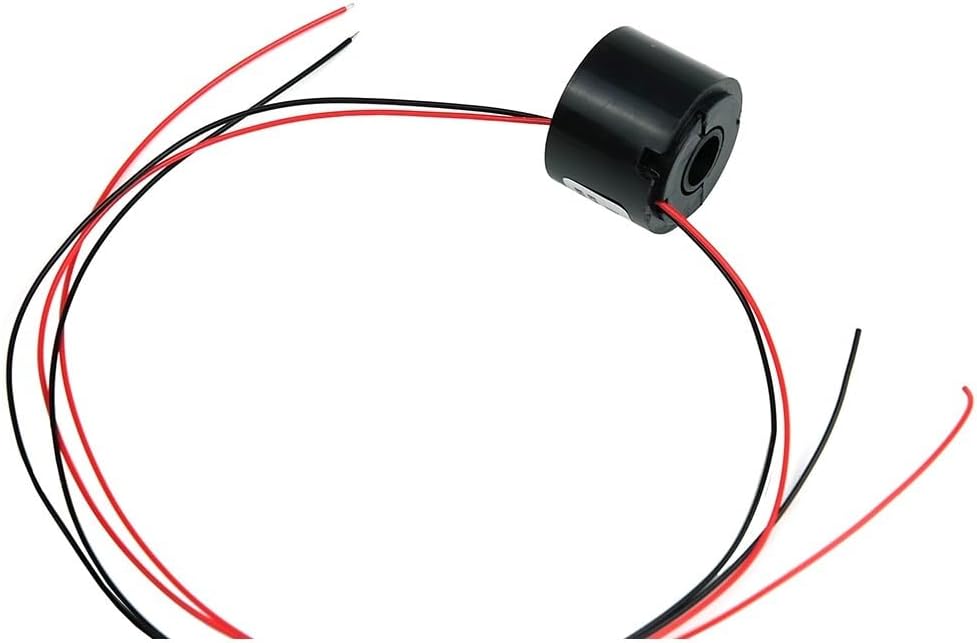

2/4/6 Channels/ Rings slipring with hole Dia.7mm 1.5A electric Slip Ring Hollow shaft
This listing is include multiple sales option, please option what you needing.
Item: Hollow Slip Ring
Outer diameter: 22mm
Hole Dia.:7mm
Channel: 2/4/6 (Wires)
Rotating speed: 300rpm max.
Suitable for camera gimbal, robot,Automation Equipment
Rated voltage: 380VAC/DC
Current Rating: 1.5A /Channel
Working temperature: -20C~+60C
Contact Material: Gold/Gold
Wire specification: AWG28 Silver Teflon UL
Cable length: Standard 300mm on each side
Compressive strength: 500V@50Hz between two channels
Insulation resistance: 1000mOhm /500VDC
Protection class: IP53
Housing material: Engineering plastics
Working life: 500 million Rotation (depending on the operating environment and speed)
x 1 Slip ring (2/4/6 Channels/Wires for option)
High-concerned chemical : None
Is Electric : No Battery
Quantity : 1 pcs
Is it battery/power supply : N
Is it charger/adapter : N
Is Batteries Included : No
Size : 2/4/6 CHANNELS 1.5A
Technical parameters : value 2
Plastic Type : PE
Model Number : Slip Ring
For Vehicle Type : Airplanes
Tool Supplies : other
Four-wheel Drive Attributes : other
Remote Control Peripherals/Devices : other
Upgrade Parts/Accessories : other
RC Parts & Accs : Speed Controllers
Material : Plastic
Origin : Mainland China
Recommend Age : 14+y
Use : Vehicles & Remote Control Toys
Certification : CE,FCC
