USB to TTL Serial Cable with FT232RL Chip for Raspberry Pi 3.3V in Kuwait USB to TTL Serial Cable with FT232RL Chip for Raspberry Pi 3.3V in Kuwait

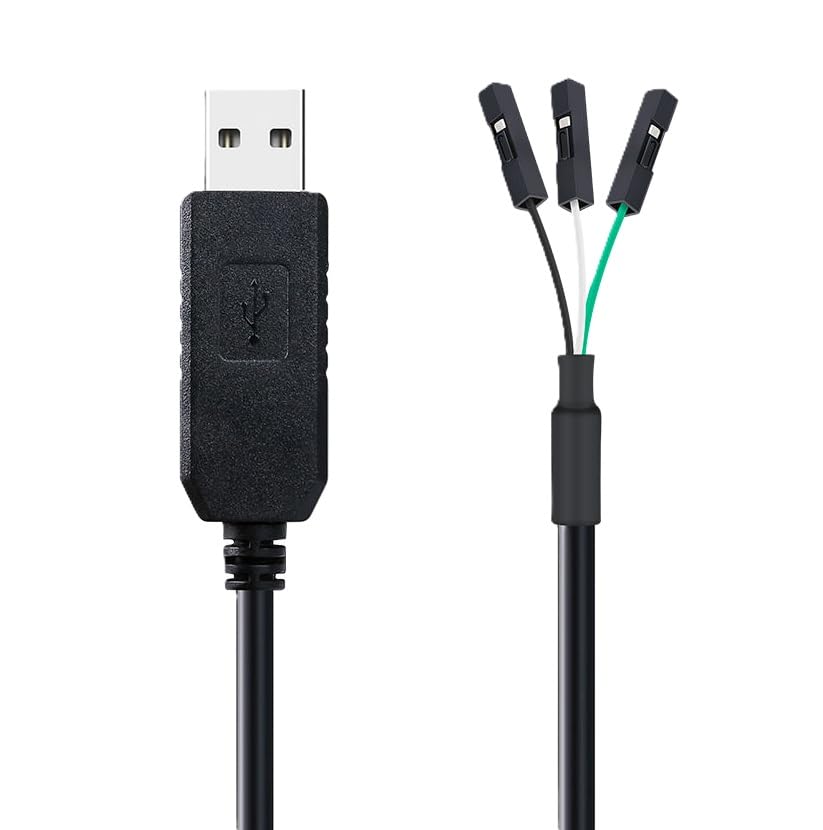

USB to TTL Serial Cable with FT232RL Chip for Raspberry Pi 3.3V

KWD 6.500
– 1 +

مميزات خاصة

  • ESSENTIAL KERNEL DEBUGGING TOOL: Engineered specifically for Raspberry Pi system administrators. This cable provides a direct serial console connection to monitor the Linux boot sequence, debug Kernel Panics, and recover "bricked" or headless systems when SSH or network access is unavailable
  • ZERO VCC OUTPUT (NO POWER): Unlike standard USB-TTL cables, this adapter omits the VCC pin to prevent catastrophic voltage conflicts. By providing only GND, TXD, and RXD, it eliminates the risk of back-feeding power into the Pi or your laptop, protecting your expensive development hardware from short circuits
  • PRECISION 3-PIN FEMALE HEADER: Features a compact 0.1" pitch (2.54mm) connector that fits perfectly onto the Raspberry Pi GPIO pins (Pin 6, 8, 10). No messy wires or breadboards required—simply plug it directly into the UART header for instant serial console access on Pi 5/4/3/Zero
  • HIGH-SPEED 3.3V TTL LEVEL: Utilizes a high-performance USB-to-UART bridge supporting up to 3 Mbps baud rates. The 3.3V logic level is perfectly matched to the Raspberry Pi GPIO, ensuring clean signal integrity without the need for external logic level shifters
  • BROAD OS COMPATIBILITY: Supports standard Virtual COM Port (VCP) drivers. Works seamlessly with Windows 11/10, macOS, Linux, and Android. No complicated configuration needed—recognized instantly for terminal access

وصف

Professional Serial Console Cable for Raspberry Pi
The Ultimate Rescue Tool for Developers
When your Raspberry Pi fails to boot or loses network connectivity, the Serial Console is your only lifeline. Our USB to TTL 3-Pin cable is designed for the specific task of Linux kernel debugging and system recovery.
Why "No VCC" Matters:
In professional embedded development, mixing power sources is a rookie mistake. Standard USB-TTL cables often include a 5V or 3.3V power pin. If you plug one of those into a Raspberry Pi that is already powered (via its own power supply), you risk creating a ground loop or voltage clash that can destroy the board.
Our cable is stripped down to the essentials: Ground, Transmit, and Receive. It establishes a pure data link, ensuring your hardware remains safe during critical debugging sessions.

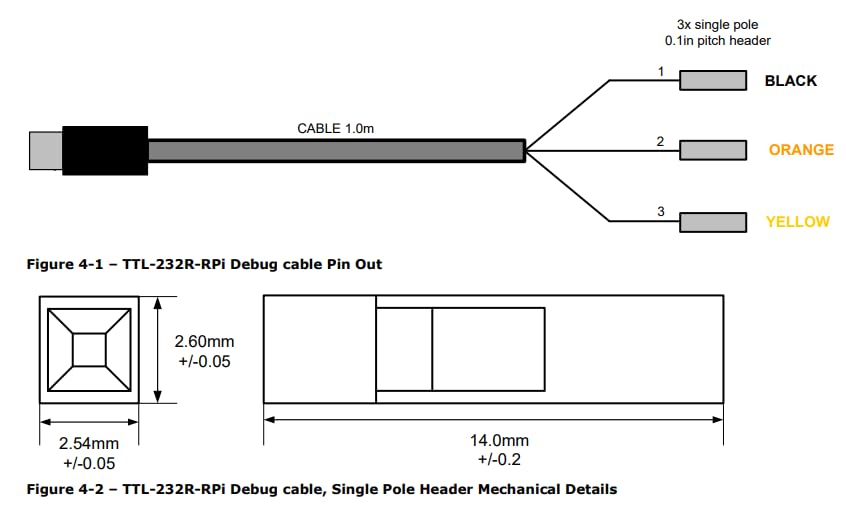

Technical Specifications:
Interface: USB 2.0 Full Speed to 3.3V TTL UART
Connector: 3-Pin 0.1" Pitch Female Header
Logic Level: 3.3V (Fixed, No Voltage Selection)
Power Source: Bus-powered via USB (No output to target)
Cable Length: 1.0m
Supported Devices: Raspberry Pi 5, 4, 3B+, Zero, and any embedded system requiring 3-wire serial debug.
