الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠.قد تحتاج إلى محول كهرباء
مميزات خاصة
Wi-Fi HaLow Standard: Complies with IEEE 802.11ah, operating in the 902–928 MHz band for superior wall and obstacle penetration.
Long-Range Coverage: Delivers connectivity up to 1 km, making it ideal for smart home, industrial, and large-scale IoT deployments.
High-Capacity Connections: Supports hundreds of simultaneous device connections to a single access point for scalable IoT networks.
Advanced Security: Features robust encryption with AES, SHA-256, SHA-384, SHA-512, and WPA3 for secure data transmission.
Mini-PCIe Form Factor: Industry-standard interface enables easy integration into embedded and industrial systems with minimal footprint.
وصف

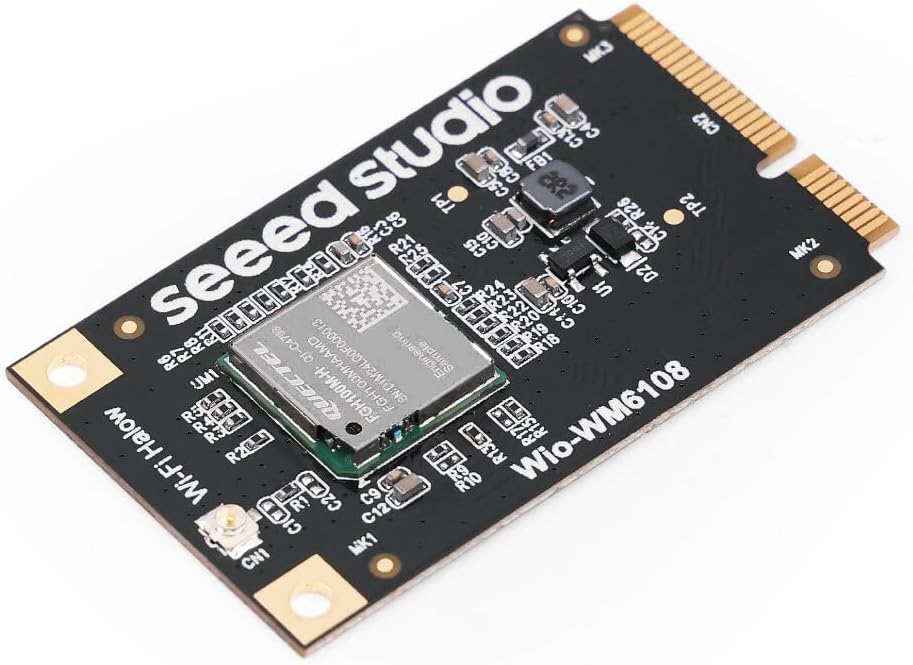

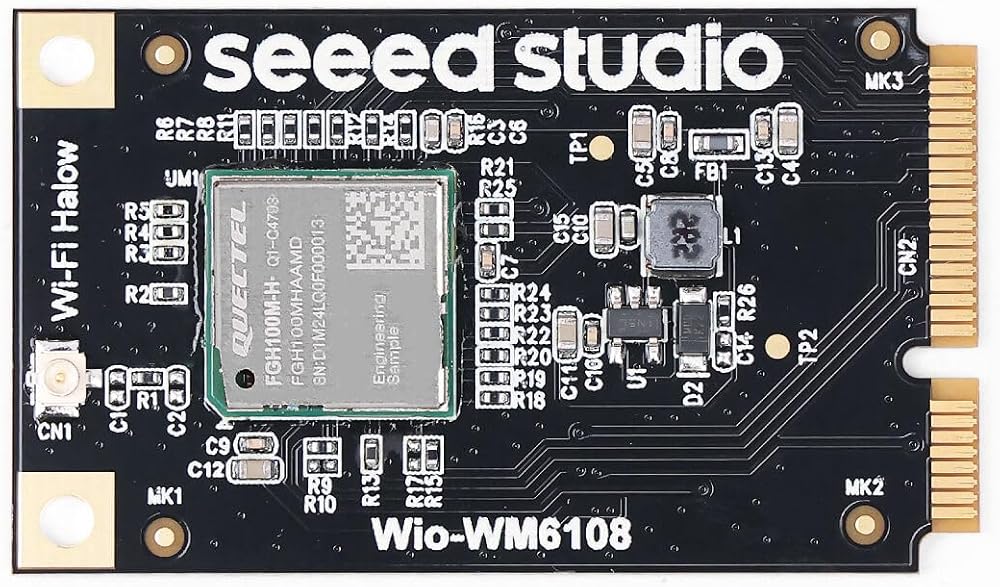

The Wio-WM6108 Wi-Fi HaLow Mini-PCIe Module is a long-range, low-power wireless connectivity solution built for demanding IoT and industrial applications. Powered by the Quectel FGH100M-H chipset, this module operates in the 902–928 MHz frequency band in compliance with the IEEE 802.11ah standard, delivering coverage of up to 1 km with outstanding signal penetration through walls and obstacles. It supports a maximum physical data rate of 32.5 Mbps and can handle hundreds of simultaneous device connections, making it well-suited for large-scale IoT deployments. Security is comprehensive, with support for AES, SHA-256, SHA-384, SHA-512, and WPA3 encryption protocols. The module features the industry-standard Mini-PCIe form factor, enabling straightforward integration into existing embedded systems and industrial hardware. It supports both AP and STA operating modes and uses OFDM, BPSK, QPSK, 16QAM, and 64QAM modulation. With an extended temperature range of -40°F to +185°F and an operating range of -22°F to +185°F, it performs reliably across challenging environments. Ideal for smart home systems, industrial automation, and large-scale wireless sensor networks.
