مميزات خاصة

Fills Intervals & Transfers Heat Efficiently: This silicone thermal conductivity pad is specifically designed to fill the between heat generating components and heat sinks, effectively transferring heat away from your CPU or GPU. It serves as a reliable filler, ensuring optimal thermal management for your electronics.
High Thermal Conductivity for Insulation: With a 1.5W/m-K thermal conductivity rating, this silicone thermal sheet provides excellent heat transfer while meeting the insulation requirements of most electronic products. It efficiently conducts heat from the heater to the dissipating component, ensuring safe and stable operation.
Self-Adhesive Surface for Easy Use: The thermally conductive pad features a naturally sticky surface that adheres to components without additional glue, making it simple to position and apply. This self-adhesive property ensures a secure fit and hassle-free installation for your cooling setup.
Durable & Elastic Material for Reliable Contact: Constructed from flexible silicone, this thermal mat offers low heat resistance and excellent elasticity, allowing it to conform to uneven surfaces. It maintains consistent contact between the chip and heatsink, improving overall heat dissipation performance over time.
Versatile for CPU, GPU & Electronics: Ideal for use with CPUs, GPUs, and various electronic components, this heat dissipation sheet provides thermal conductivity, insulation, and filling in one. It is perfect for DIY cooling upgrades or repairs, helping to extend the life of your devices.

وصف

Specification:
Item Type:Thermal Conductive Pad

Size:100 x 100 x 5mm / 3.94 x 3.94 x 0.2in

Color:Blue

Thickness Tolerance:0.2+-0.01

Continuous Using Temperature:-50~200℃

Conductivity Coefficient:1.5W/m-k

mass resistivity:10^12

Breakdown voltage:4.5KV

Hardness:30±5 Shore A

proportion:2.05

tensile strength:15 kg/cm㎡

Extension:48%

Flame Retardant Grade:90V-0-1

Users Manual:

1.Clean the surface, it will be glued or cleaned by the surface of the object to remove dust and oil.

2.Tear protective film

The left hand picks up the protective film on the side of the product with the right hand, and can not tear the protective film on both sides at the same time, reducing the number and area of direct contact with the silicone sheet to avoid damage to the viscosity and thermal conductivity of the product.

3.Fixed heat sink

Remove the protective film from the other side, apply a certain pressure to the heat sink after installation, and then fix it with screws.

Package List:
1 x Thermal Conductivity Pad

مرحبًا،

بحث

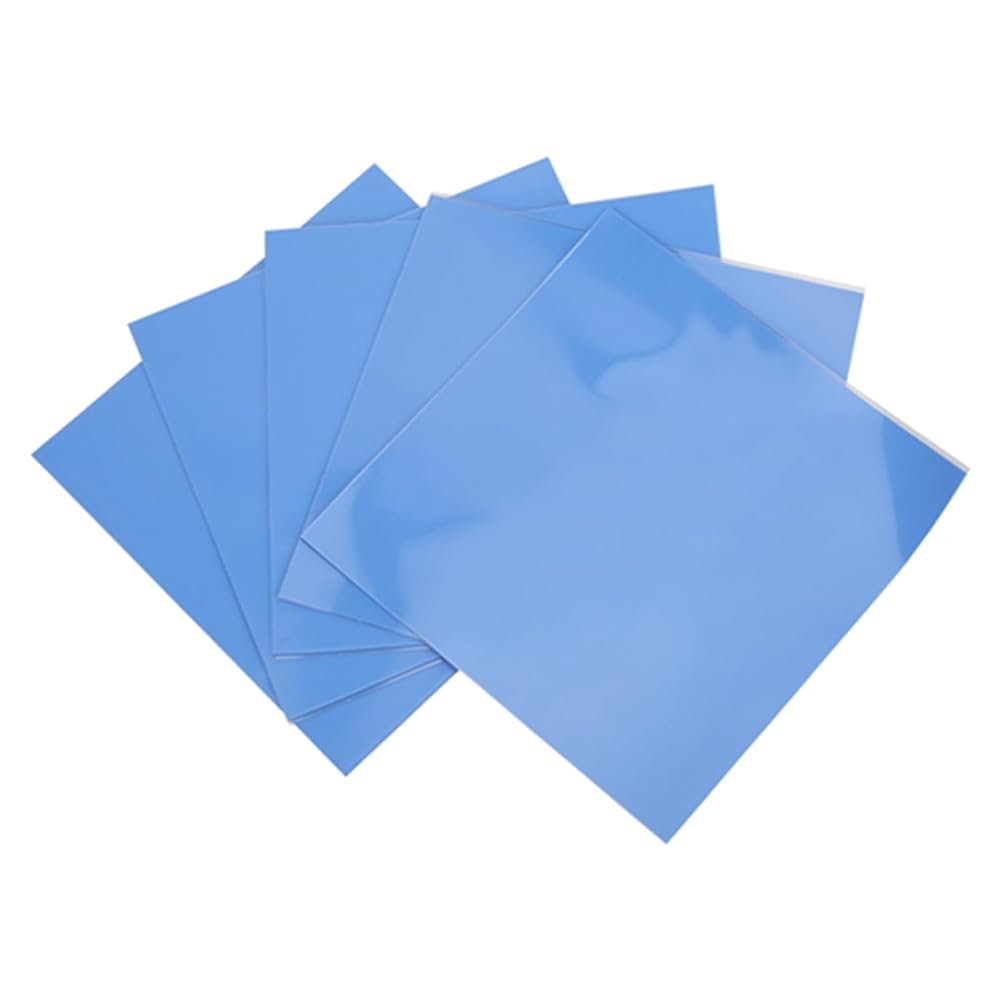

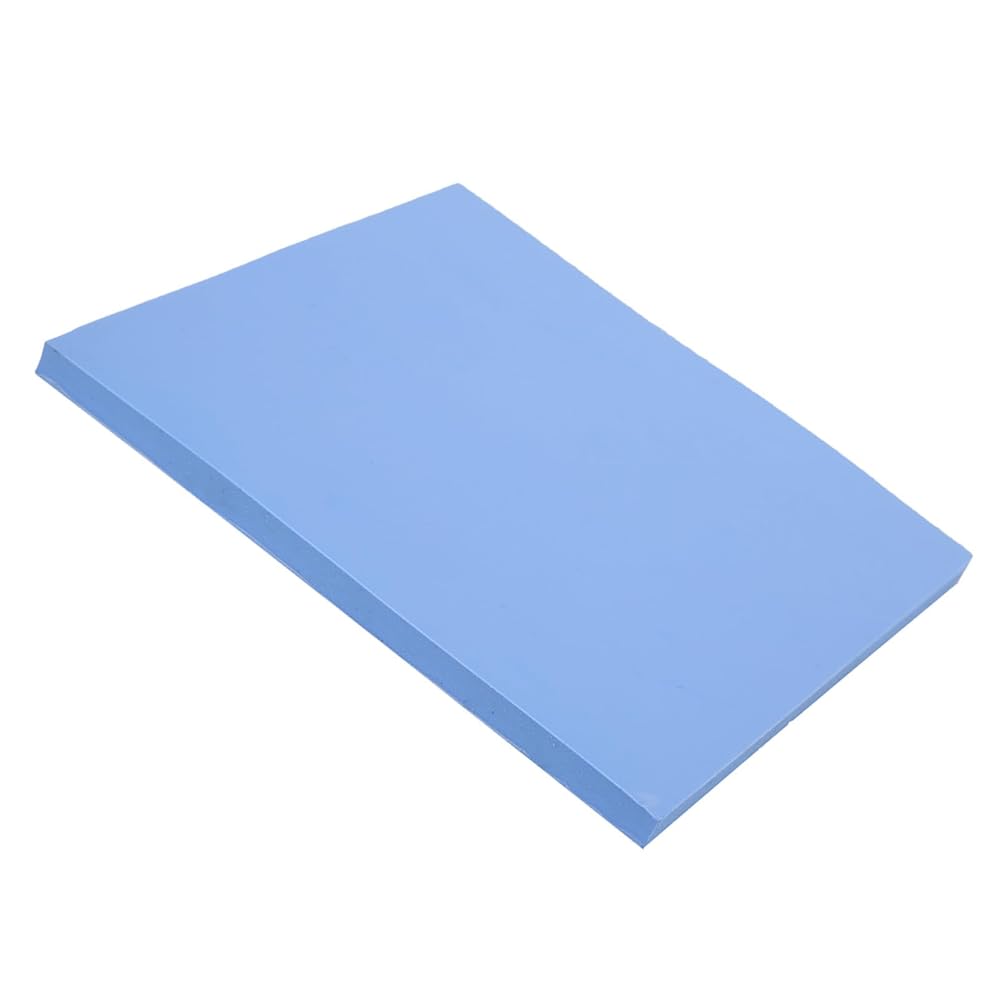

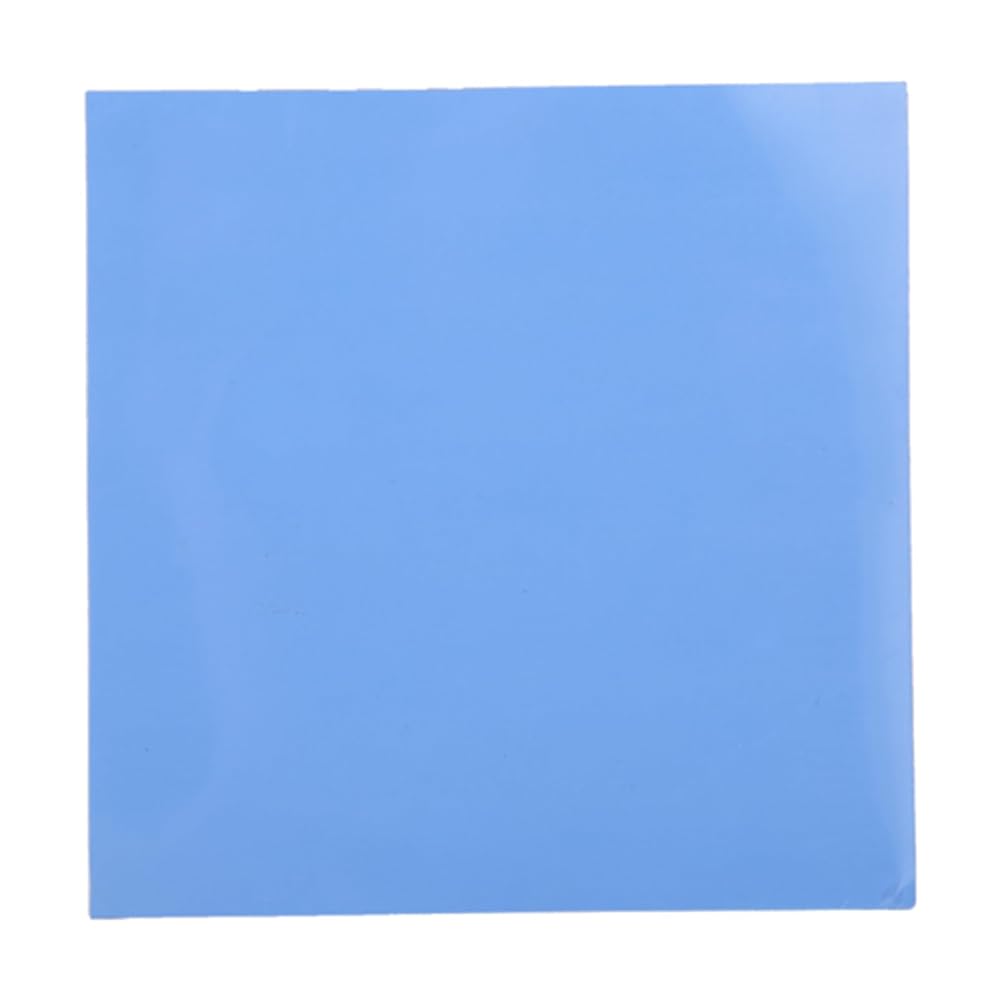

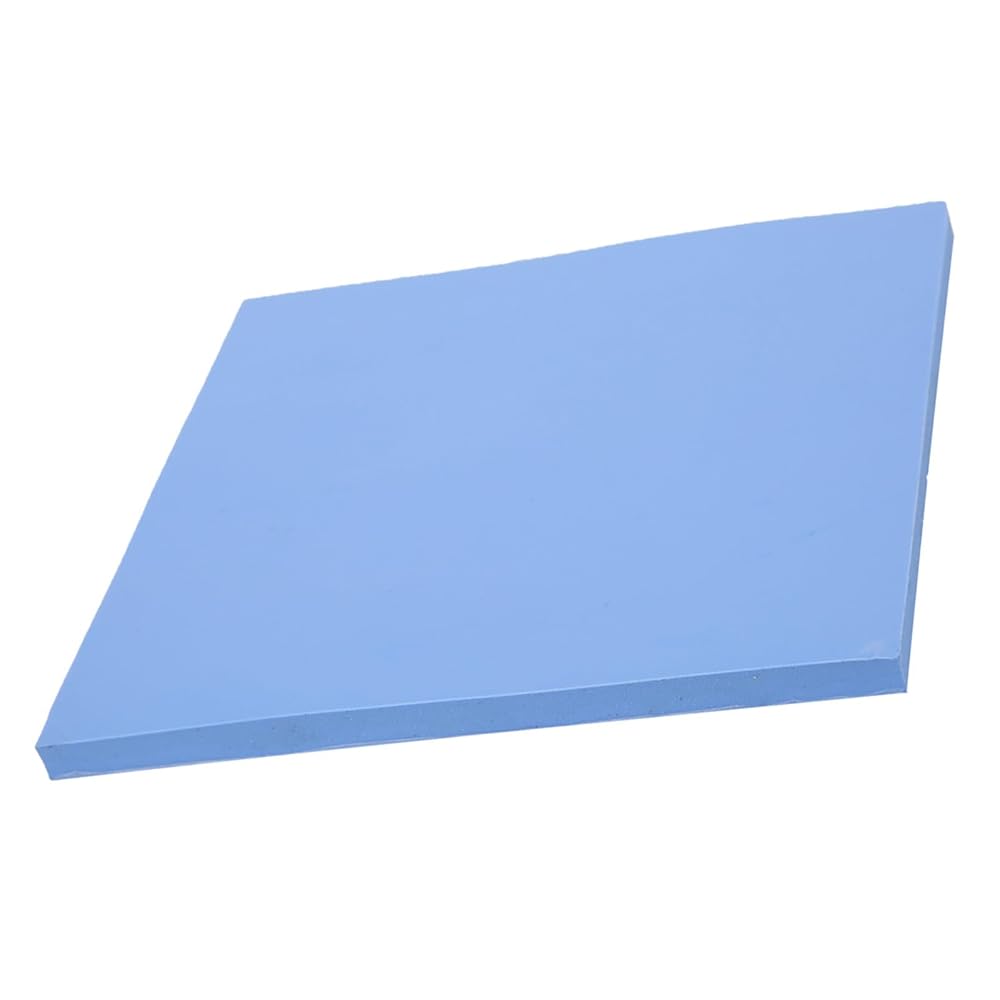

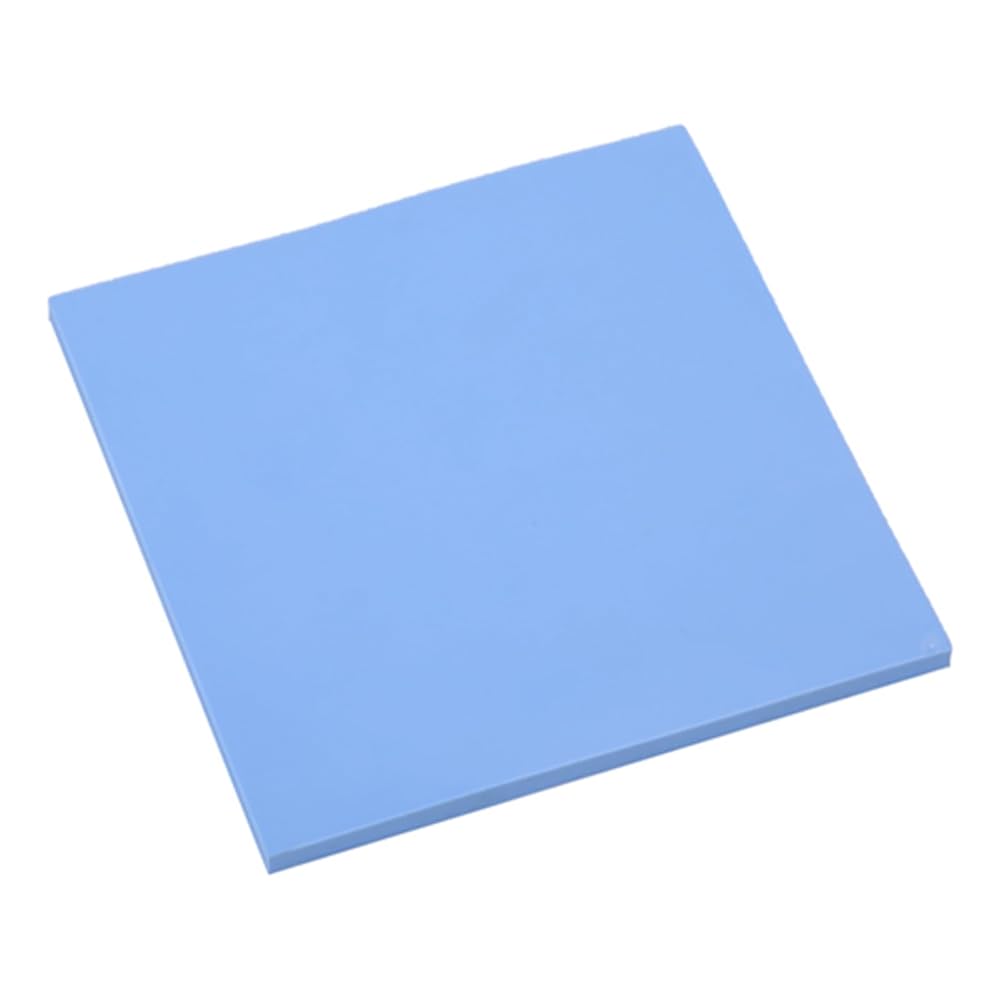

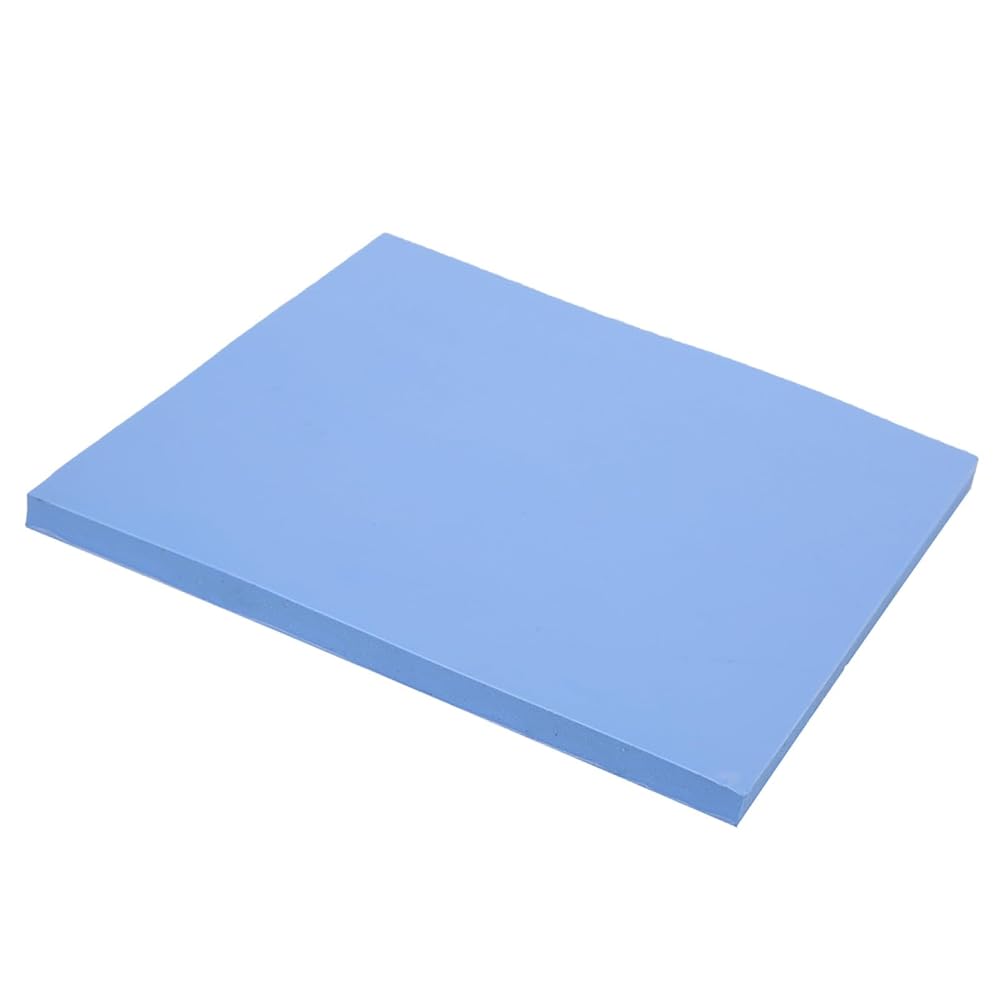

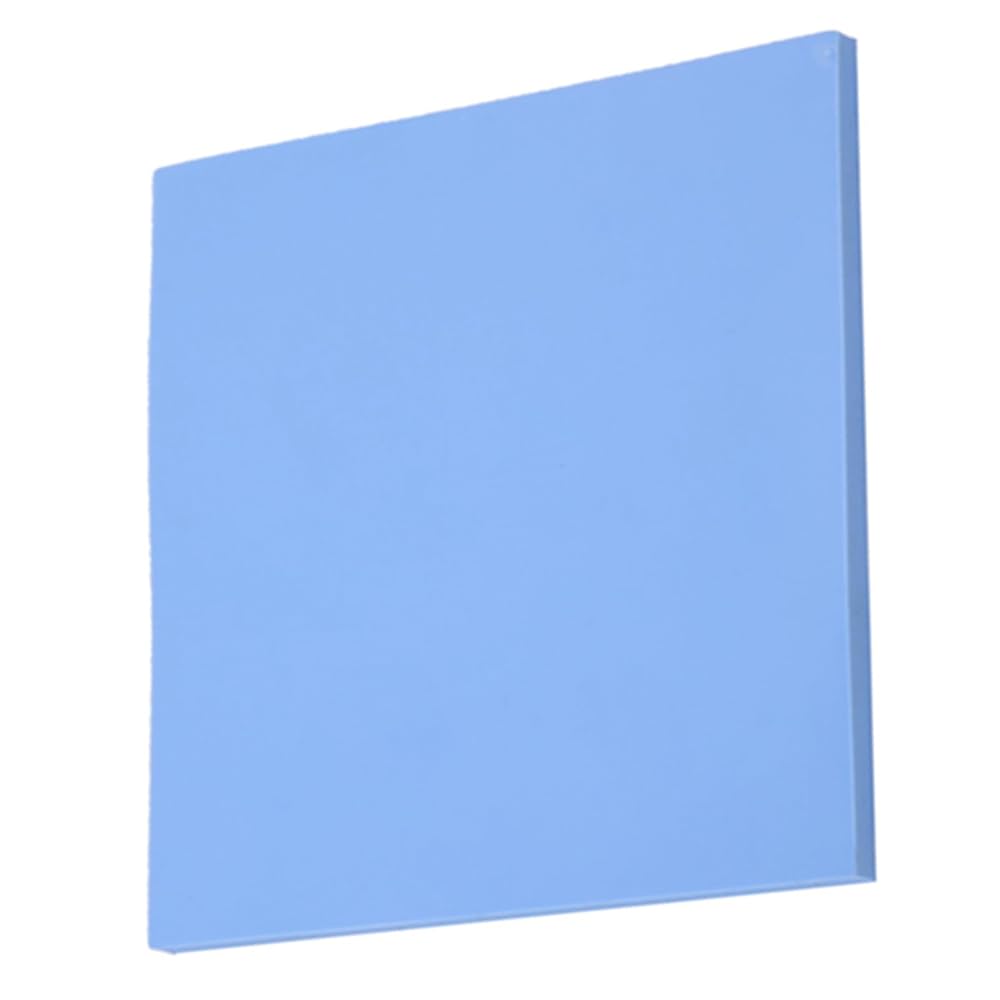

GOWENIC Silicone Thermal Conductivity Pad, 100x100x5mm Heat Dissipation Sheet, 1.5W Mk Thermal Pad for CPU GPU Heatsink
