Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

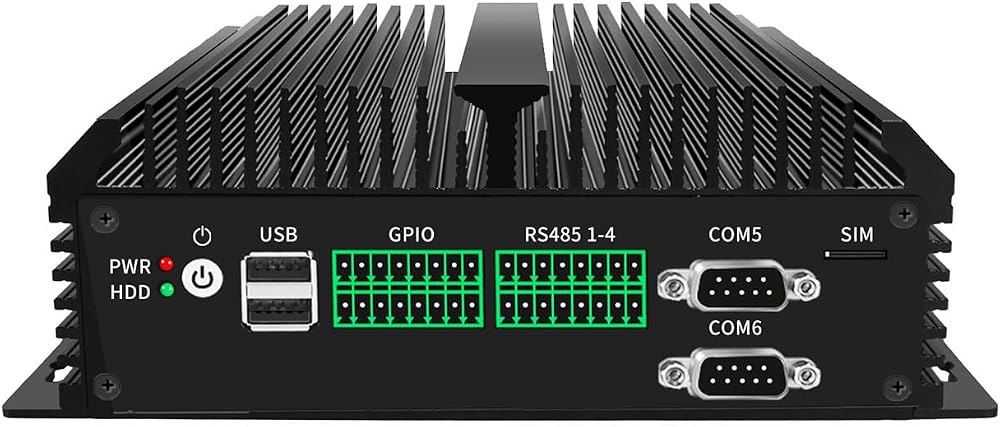

Model Number: ANDAQI RN02
Chassis: Aluminum
CPU: Atom Processor C3958 16M Cache, up to 2.0 GHz
AES-NI Supported: Yes
Memory: 2 x SODIMM DDR4 2400 MT/s, MAX.64GB RAM
Storage: 1 x M.2 2280 PCIE3.0 x4 NVEM SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: 4 x 2.5GbE I226-V, onboard 4 x SFP+ Optical, the SFP+ model is X553
I/O Interface: Power ON/OFF, 2 x USB2.0, 10-way GPIO Phoenix Terminal, COM1-4 Phoenix Terminal for RS485,
2 x COM, SIM Slot, 4 x SFP+, 4 x LAN, 2 x USB3.0, AST 2400 VGA, DC_IN
Expansion: 1 x Half size mini PCIE slot for WiFi/4G module
Power: DC100-240V AC/50-60hz, 12V10A
Operating Temperature: -0~+50°C commercial HDD, -20°C~+50°C industrial SSD, surface air flow
Ambient Temperature: 5%~90% non-condensing
TDP: 31W
Cooling system: Fanless
Size: 330 x 230 x 80mm
Weight: 2.5kgs
Packing List: ANDAQI RN02 firewall appliance, power supply, power cord, warranty card
Function: Supports hardware auto power on enabled default, Scheduled boot, Wake-up on LAN, PXE boot, Watchdog
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark ANDAQI store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
