Home / Tufgo / Microscopes
Achromatic Microscope Objective Lens Set 4X 20X 40X 60X 100X DIN 45Mm For 160Mm Tube Length Biological Lab Equipments(40X) in Kuwait Achromatic Microscope Objective Lens Set 4X 20X 40X 60X 100X DIN 45Mm For 160Mm Tube Length Biological Lab Equipments(40X) in Kuwait

Achromatic Microscope Objective Lens Set 4X 20X 40X 60X 100X DIN 45Mm For 160Mm Tube Length Biological Lab Equipments(4X) 4X

KWD 8.500
Brand
Tufgo
Category
Microscopes
Weight
70 g
Size4X
– 1 +

Special Features

  • [MULTIPLE MAGNIFICATIONS INCLUDED] This objective lens package features a comprehensive selection of magnifications 4X, , 20X, 40X, 60X, and an impressive 100X for diverse microscopy needs.
  • [SLIDE DAMAGE PREVENTION] The innovative spring-loaded design of the higher magnification lenses prevents damage to your slides during usage.
  • [ENHANCED VISUAL PERFORMANCE] Equipped with coated optical elements that provide superior and reduce reflections for optimal performance.
  • [PINE PITCH INNOVATION] The advanced design of the 100x objective lens enhances numerical aperture capabilities for imaging results.
  • [SIZING REMINDER] Always verify your size specifications to for ensure proper fit before making a purchase.

Description

Features:
*For use with corrected optics with 160mm focal length tubes, such as biological microscopes.
*Standard DIN 45mm focal length with coated optical parts.
*40x, 60x, 100x objectives are spring loaded to prevent slide damage.
*The 100x objective is equipped with pine pitch to achieve the design of numerical aperture.
*Corrected for chromatic aberration, spherical aberration, and paraxial coma in two bands.

Specifications:
Part Name:Objective Lens
Material: for copper core
Size:As shown
Color:Black
Magnification: 4X//20X/40X/60X/100X
Mounting size: 20.2mm
Tube length: 160mm

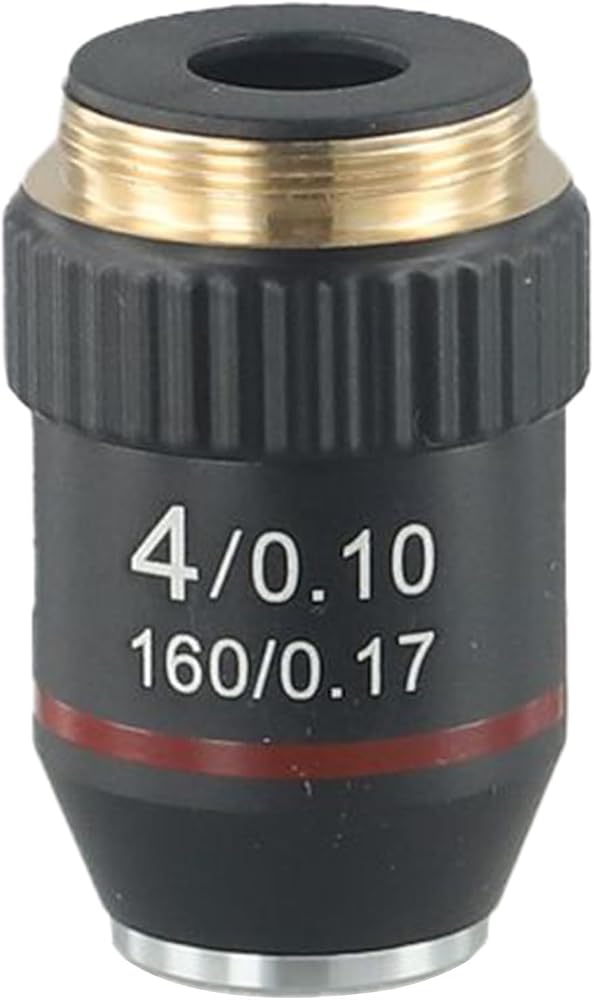

4X: Numerical aperture () 0.1; Working distance 18mm
: Numerical aperture () 0.25; Working distance 7mm
20x: Numerical aperture () 0.4; Working distance 0.55mm
40X: Numerical aperture () 0.65;
60X: Numerical aperture () 0.85; Working distance 0.18mm
100X: numerical aperture () 1.25; working distance 0.13 mm

Package Content:
1*Objective Lens
