Specification:
- Item name: video transmission mount/gimbal bracket/camera holder
- Process: 3D printed
- Material: PETG
- Weight: about 20g (excluding heatsink fan)/about 25.6g (including heatsink fan)
- Color: black

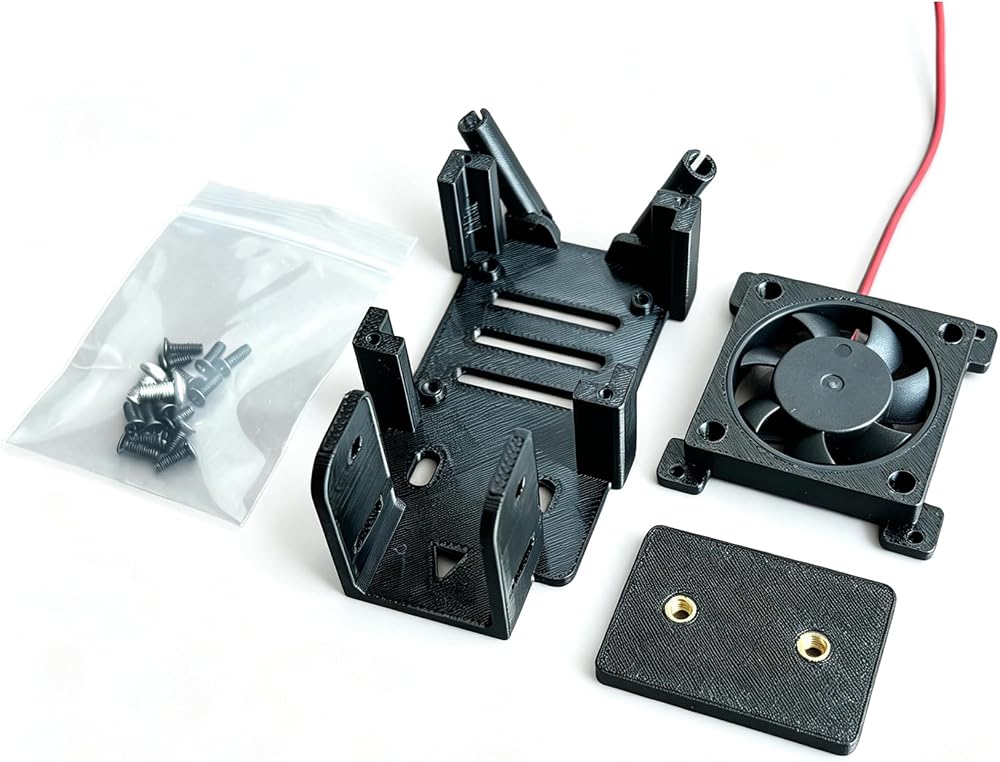

- Accessories list 2: 1pcs x bracket/1pcs x heatsink fan/1pcs x base/2pcs x M3 screws/4pcs x M2x5 screws/8pcs x M2x6 screws
- Size: shown in the picture
- Compatible with DJI O4 Pro, compatible with rc model cars/FPV drones

Heatsink Fan:
- Interface: Dupont 2P plug
- Cable length: 28-30cm
- Poles: Red connects to the positive pole, black connects to the negative pole
- Supported voltage: 5V/12V
- Current: 0.27A/0.14A
- Rotation speed: 14000 revolutions

Features:
- The gimbal base and bracket are detachable quickly, allowing one bracket to be transferred to several devices.
- The layout is simple, and the installation is convenient; only 8 screws are needed to fix the image transmission device and the fan on the bracket.
- Lightweight design, no burden.
- 3D printed, with good toughness and excellent strength.
- The image transmission device with the fan version can achieve good heat dissipation, ensuring that the image transmission device does not crash during operation.
- After installation, the fanless version of the image transmission device is hollow at the top and bottom, which is used for flying fixed-wing aircraft to facilitate heat dissipation.

Selection advice for the fan:
- If it is plugged into the receiver and flight controller servo port or the flight controller's 5V BEC port, just select 5V.
- If it is plugged into a 2-3s power supply or the flight controller's 9/12V BEC port, just select 12V.
- If the power supply is connected to a 5V step-down module, just select 5V.
- This fan has strong wind power and can achieve a good heat dissipation effect. Please select the voltage according to different usage environments.
- It is recommended to use it under a constant voltage (for example, choose the 5V version for 5V voltage) so that the fan efficiency is the highest.

Installation method:
- Fix the image transmitter with 4 screws of model M2x6, and fix the fan with 4 screws of model M2x6.
- Fix the camera with 4 screws of model M2x5.
- Fix the base on the device with glue, and fix the bracket on the base with M3 screws to achieve quick disassembly.
- The base is directly fixed on the fixed-wing aircraft or remote-controlled car with glue, and the pan-tilt bracket can be fixed on the base with screws.

Note:
- The video transmission, camera, and others in the picture shown will not be included.
- Size is a manual measurement; there are existing errors.
- 3D printing products may have some flaws on the surface; it is normal and will not affect their use. Kindly confirm your actual demand for this product in advance.

Package include:
1set x gimbal bracket
