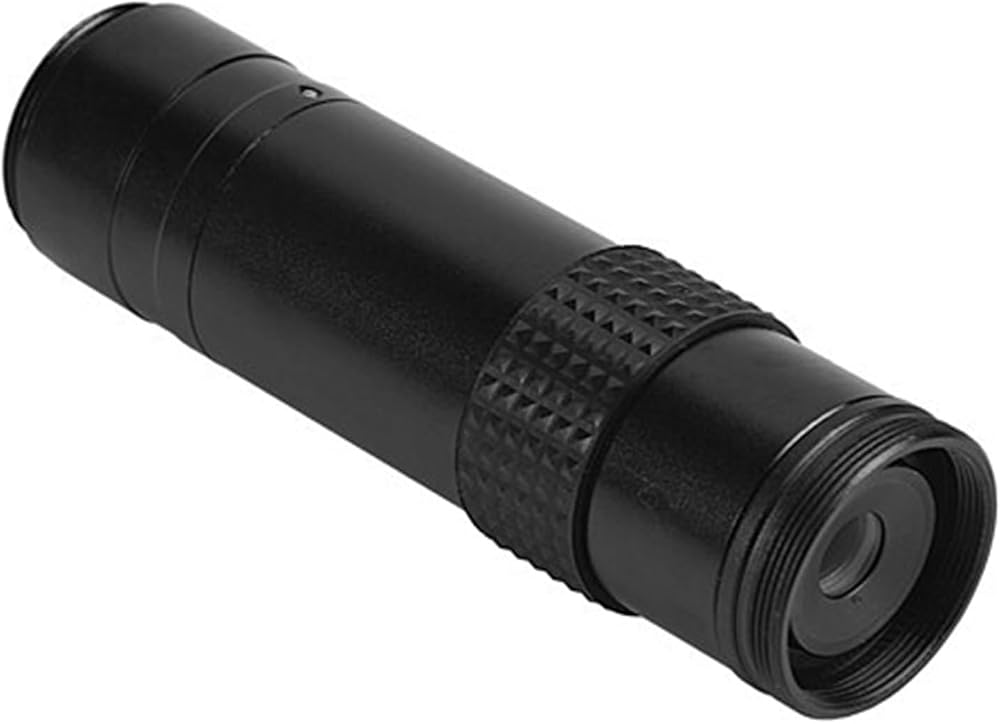

0.1X-2.0X 15:1 Zoom Microscope Lens,Low Dist Long Working Distance Optic | All-glass all-metal,-0.1% distortion,F3.5 aperture,large FOV,compact build,for industrial macro microscopic inspection in Kuwait 0.1X-2.0X 15:1 Zoom Microscope Lens,Low Dist Long Working Distance Optic | All-glass all-metal,-0.1% distortion,F3.5 aperture,large FOV,compact build,for industrial macro microscopic inspection in Kuwait 0.1X-2.0X 15:1 Zoom Microscope Lens,Low Dist Long Working Distance Optic | All-glass all-metal,-0.1% distortion,F3.5 aperture,large FOV,compact build,for industrial macro microscopic inspection in Kuwait 0.1X-2.0X 15:1 Zoom Microscope Lens,Low Dist Long Working Distance Optic | All-glass all-metal,-0.1% distortion,F3.5 aperture,large FOV,compact build,for industrial macro microscopic inspection in Kuwait

0.1X-2.0X 15:1 Zoom Microscope Lens,Low Dist Long Working Distance Optic | All-glass all-metal,-0.1% distortion,F3.5 aperture,large FOV,compact build,for industrial macro microscopic inspection 400–700nm

KWD 19.500
ماركة
Generic
مقاس400-700 نانومتر
– 1 +

مميزات خاصة

  • 15:1 zoom ratio,0.1X-2.0X adjustable magnification,support 2/3" image sensor for industrial vision collection;FCC exempt and suitable for North American market sales
  • Ultra low -0.1% distortion,50mm to infinity working distance,large field of view for macro precision observation
  • F3.5 aperture,400-700nm spectrum,2 groups 5 pieces all-glass all-metal optical construction
  • Standard C/CS mount,compact size,easy assembly and interchangeable with industrial cameras
  • Operating temperature -20°C~+60°C,matched 10MP resolution for microscopic machine vision tasks

وصف

Optical Power: 0.1X – 2.0X
Image Format: 2/3" (Φ11)
Aperture (D/f): F3.5
Distortion: -0.1%
IR Cut Filter: 400–700nm
Zoom Ratio: 15:1
Construction: 2 Groups 5 Elements
Installation: C/CS Mount
Object Distance: 1.8mm – Infinity
Working Distance: 50mm – Infinity
Resolving Power: 10MP

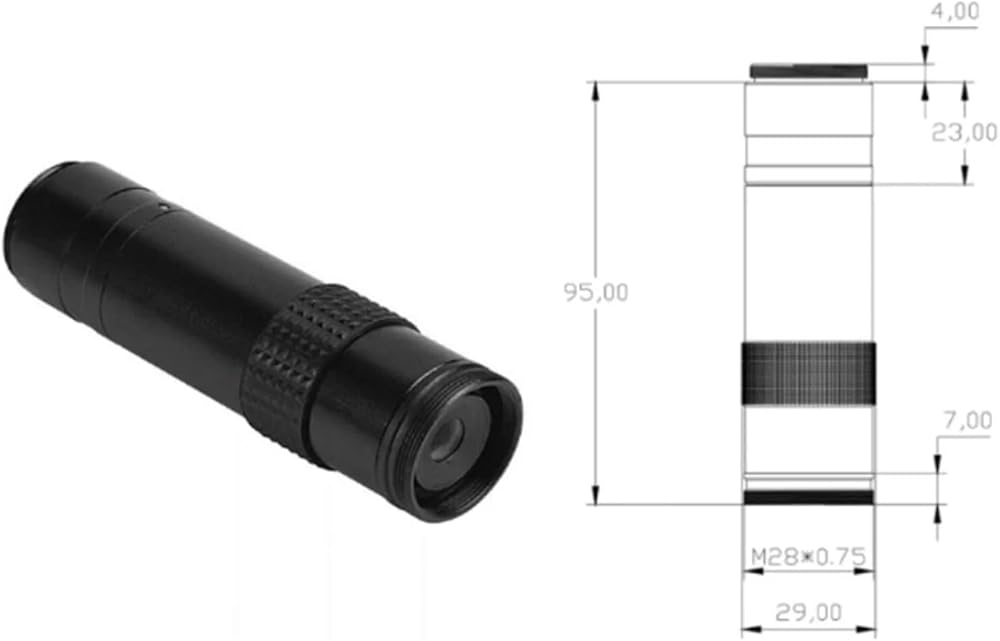

Dimensions: Φ28×99mm
Weight: —
Operating Temperature Range: -20°C ~ +60°C
Field of View
Sensor Size Object Distance 50mm Object Distance 100mm Object Distance 200mm Object Distance 290mm
1/3" 2.4×1.8mm 8.7×6.5mm 21×15mm 31×23mm
1/2" 3.2×2.4mm 12×8.7mm 28×21mm 41×31mm
2/3" 4.4×3.3mm 16×12mm 38×28mm 57.7×43mm
Remarks: All-glass & All-metal Components
