Microscope Head Feature:
7X - 45X Continuous Zoom Magnification Power

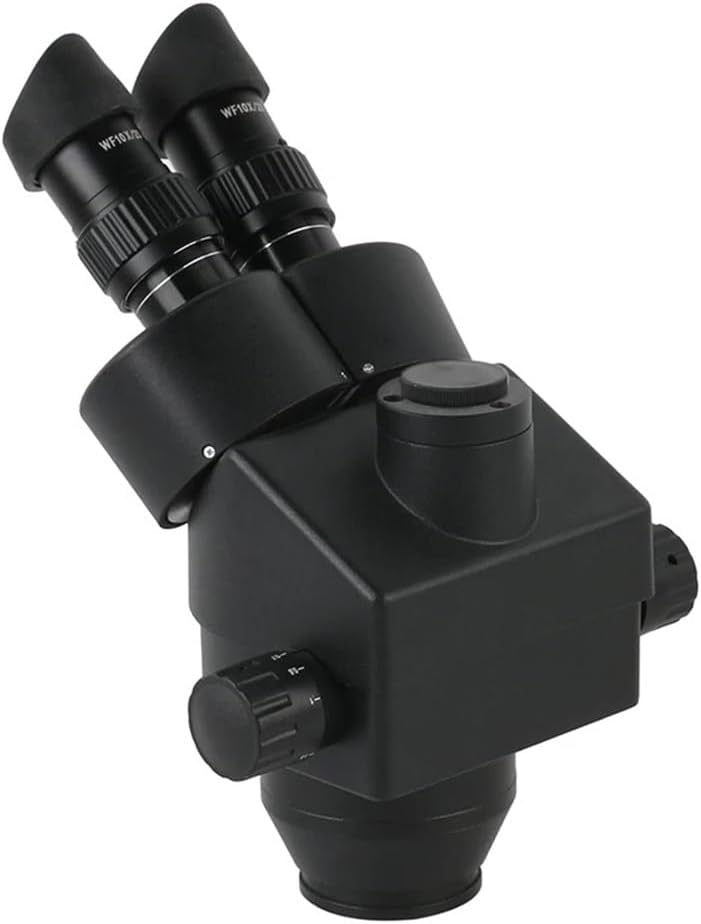

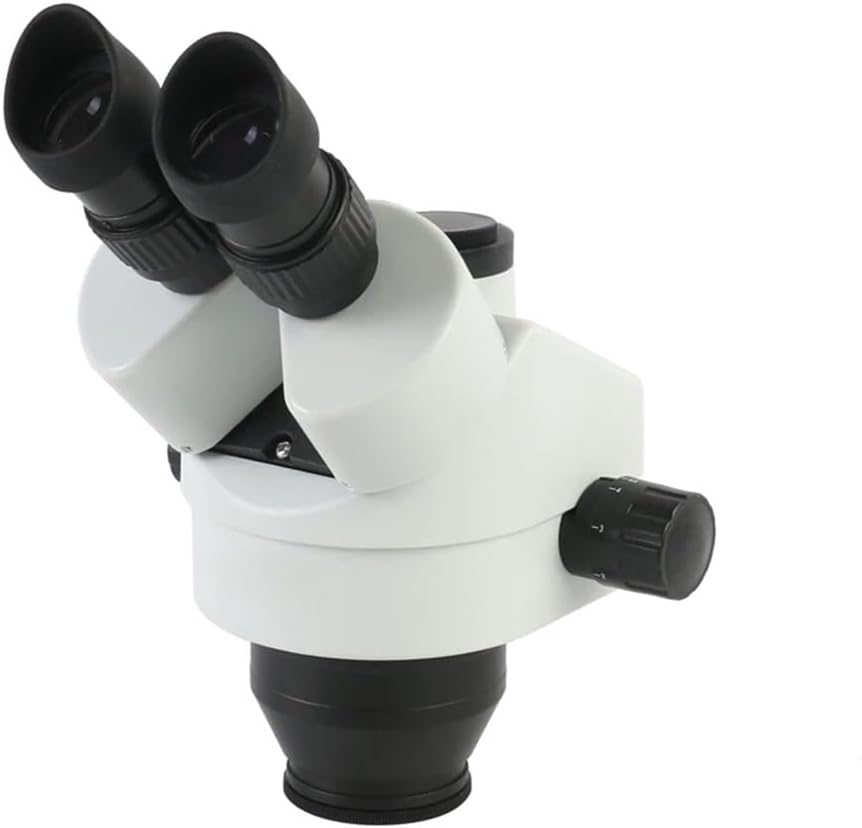

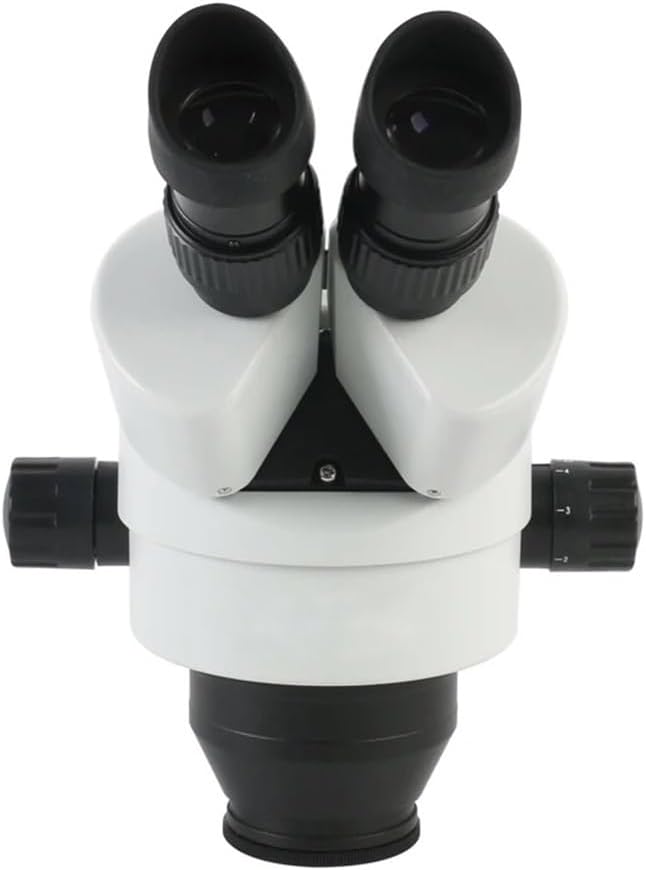

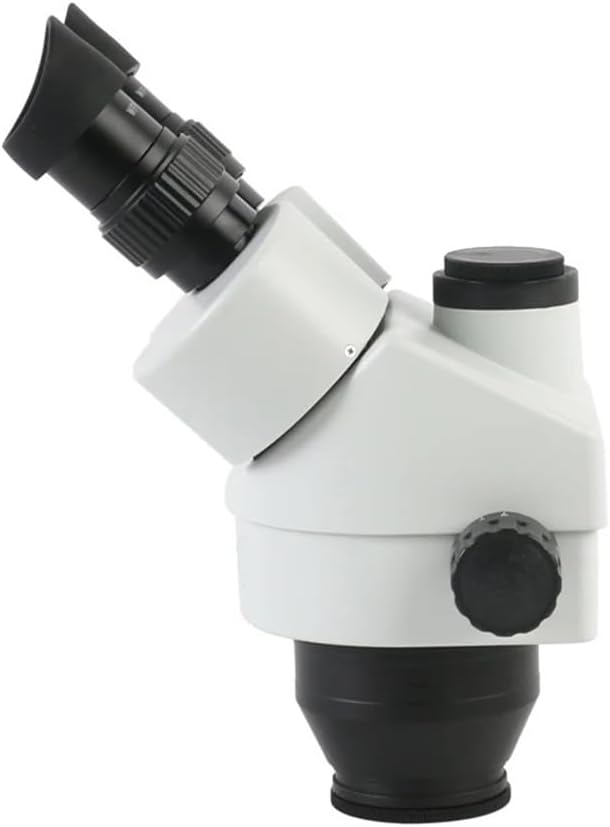

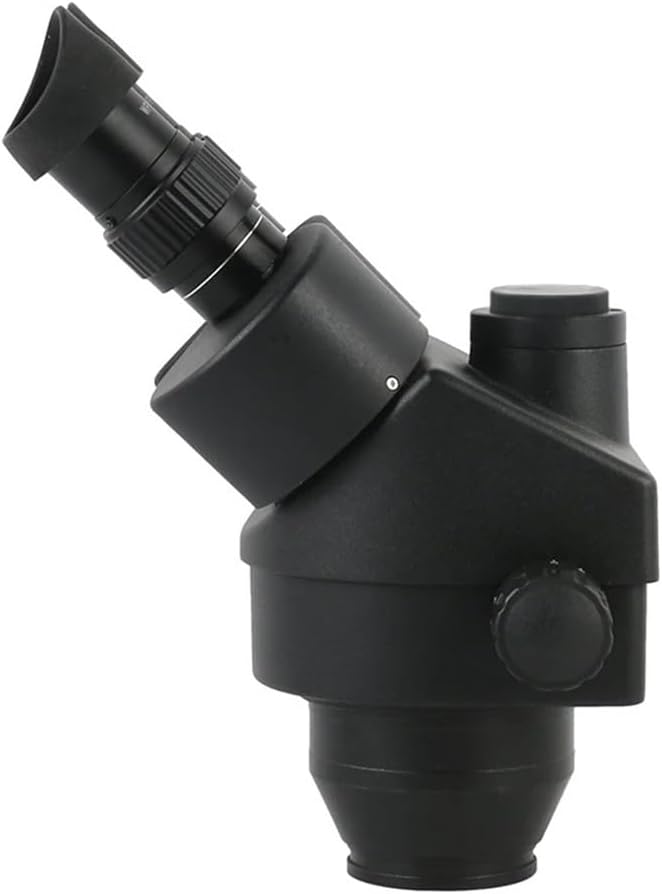

45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Full Optical Glass Elements
All Metal Mechanical Components
Adjustable Interpupillary Distance

Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

55MP 4K 2K HDMI USB Feature:
Picture Pixel: 9885X5560 55M Pixel 9280X5220 48M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: 1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃

HDMI VGA Type-c Feature:
Sensor type:1/2.8" Color CMOS
Effective pixels:1920H*1080V
Data bits: 16bit
Pixel size:2.9μm*2.9μm
Frame rate:60 frames per second (HDMI or VGA), 30 frames per second (UVC)
Definition:The maximum definition is above 1000TV lines
Scanning method:Progressive
Shutter Type:Electronic Shutter
Dynamic range:>90dB
Signal-to-noise ratio:55dB
Sensitivity:2.0 V/lux-sec (550nm)
Exposure mode:manual/automatic
White balance:automatic/manual
Lens interface:C/CS
Video interface:GA, HDMI and Type-C UVC synchronous output
Output resolution: 1920*1080(16:9) / 1920*1080(16:10) / 1280*720 / 1024*768 (4:3)
Power supply:Type-C power supply, DC 5-12V/1A
Language:Chinese, English, Japanese, Korean, Portuguese, Spanish, Russian, Italian, German!
Menu function:1, crosshairs:1-30 groups, optional color, adjustable size.
2. Scale bar, center cursor, center line

48MP 4K 2K HDMI USB touch screen
Model: Camera with HDMI USB2.0 two output
Keys: Touch keys
Frame rate: 60F/S @ HDMI output
Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply: 5V 1A Type-c Power Supply

48MP 4K HDMI TYPE-C
Sensor: 1/2.8 sensor
Pixel size: 2.9μm × 2.9μm
HDMI output: 1920*1080 60 frames
TYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual/one key exposure
Exposure Compensation: Support
White balance: automatic/manual/one-key white balance, support RGB adjustable
Storage: maximum support 64GB
Input v: DC 5V
Parallel lines: support 16 straight/vertical lines, adjustable in color, thickness and position
Centerline: support
Menu language: English/Chinese/Traditional Chinese
Remote control: support remote control operation
Net weight: 150g
Product size: 68*68*47mm

76mm Microscope Stand Features:
Vertical Height : 260mm
Horizontal Distance:400mm
Fix: Screw
Applicable: 32mm or 25mm focusing
Maximum working distance: 400mm
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Heads with Diameter of 50mm or 76mm
50mm apply monocular lens
76mm apply stereo microscope

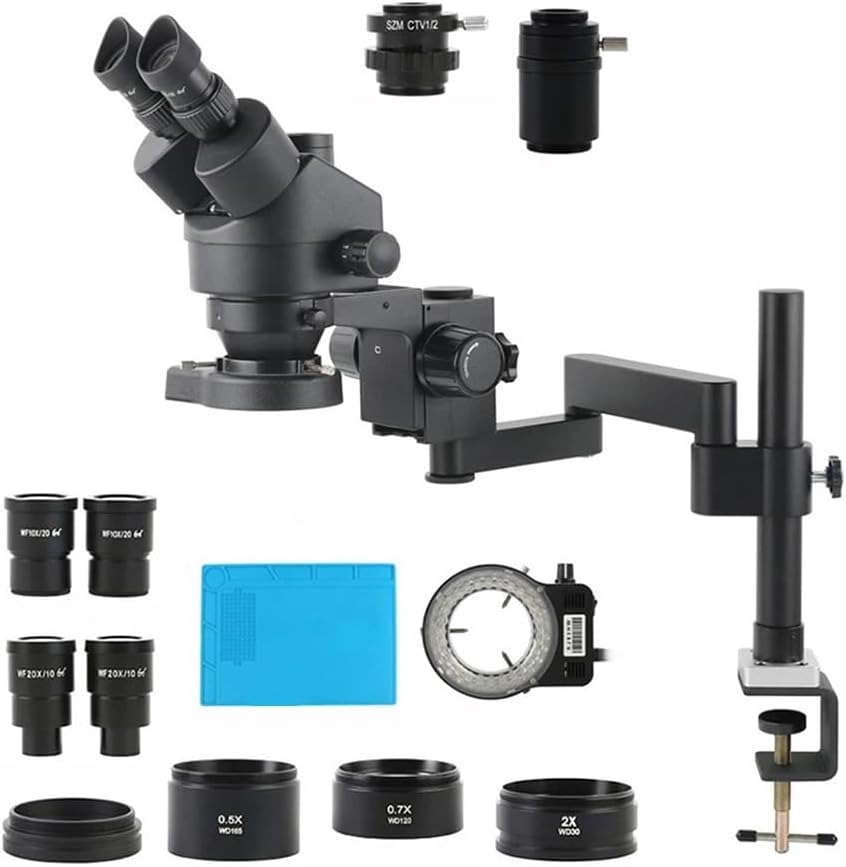

Package Including:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X22MM Eyepieces
1 x Pair of Super Widefield 20X10MM Eyepieces
1 x Pair of Eye-Guards
1 x Dust Cover
1 x C-mount Adapter
1 x 56-LED Ring Light with Adapter
1 x High Temperature Insulation Pad
1 x Articulating Arm Set
1 x 0.5X C-mount Adapter
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)
1 x 0.7X Microscope Auxiliary Objective Lens(Working Distance 120 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
(Optional)
1 x Microscope Camera
1 x 12V Power Adapter
1 x HDMI Cable
