0.5 Inch Filter Wheel, 6 Bitcage Type Filter Wheel Holder, The Diameter is 12.7 Mm, 16mm Coaxial Filter Mount, Threaded Interface, for Observing Planets, Satellites and Nebulae.

KWD 62
ماركة
JYSWDZ
– 1 +

مميزات خاصة

  • 【Cage-type Filter Wheel】: This six-position filter wheel holder offers a 12.7 mm diameter, perfectly compatible with 0.5-inch filters. It is suitable for various sizes, fully meeting the needs of diverse optical experimental applications.

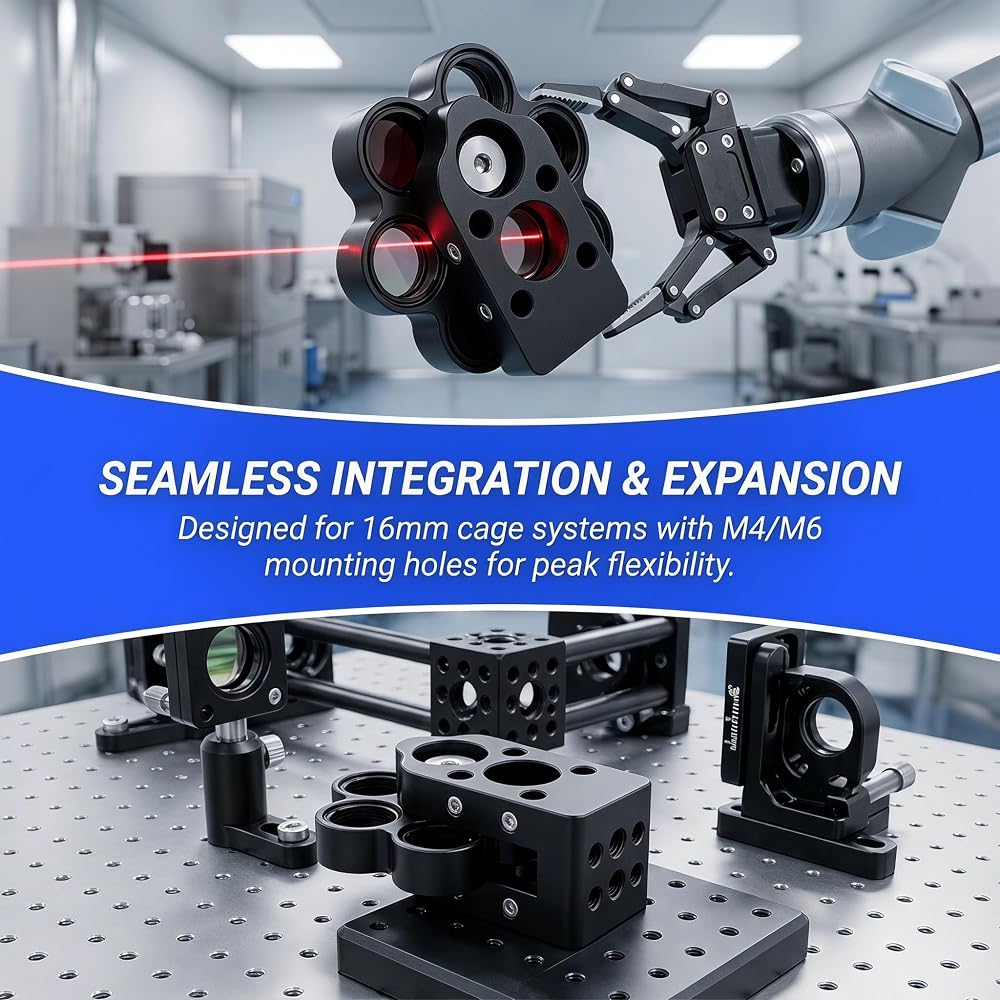

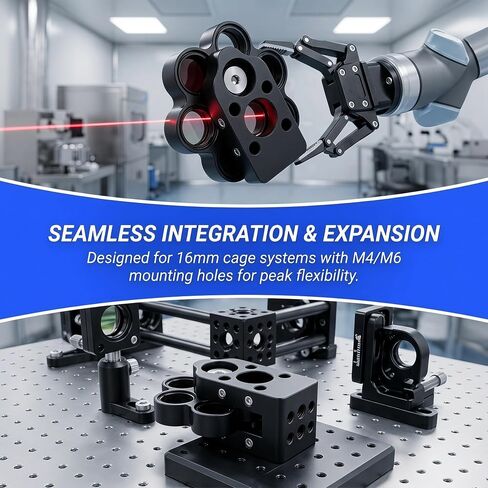

  • 【16 mm Cage Mount】: Optimized for 16 mm cage mounts, it features four M4 threaded mounting holes and two M6 threaded mounting holes, allowing for quick assembly into a compact structure and enabling fast and convenient filter switching.
  • 【Aluminum Alloy Construction】: Constructed from high-strength aluminum alloy, it offers excellent rigidity and structural stability. It can be used reliably in the laboratory for extended periods, supporting filters up to 6 mm thick, broadening its application range.
  • 【Flexible Mounting】: The base incorporates M4 and M6 threaded mounting holes, compatible with most optomechanical components. It supports flexible mounting methods, facilitating system expansion and adapting to different optical setups.

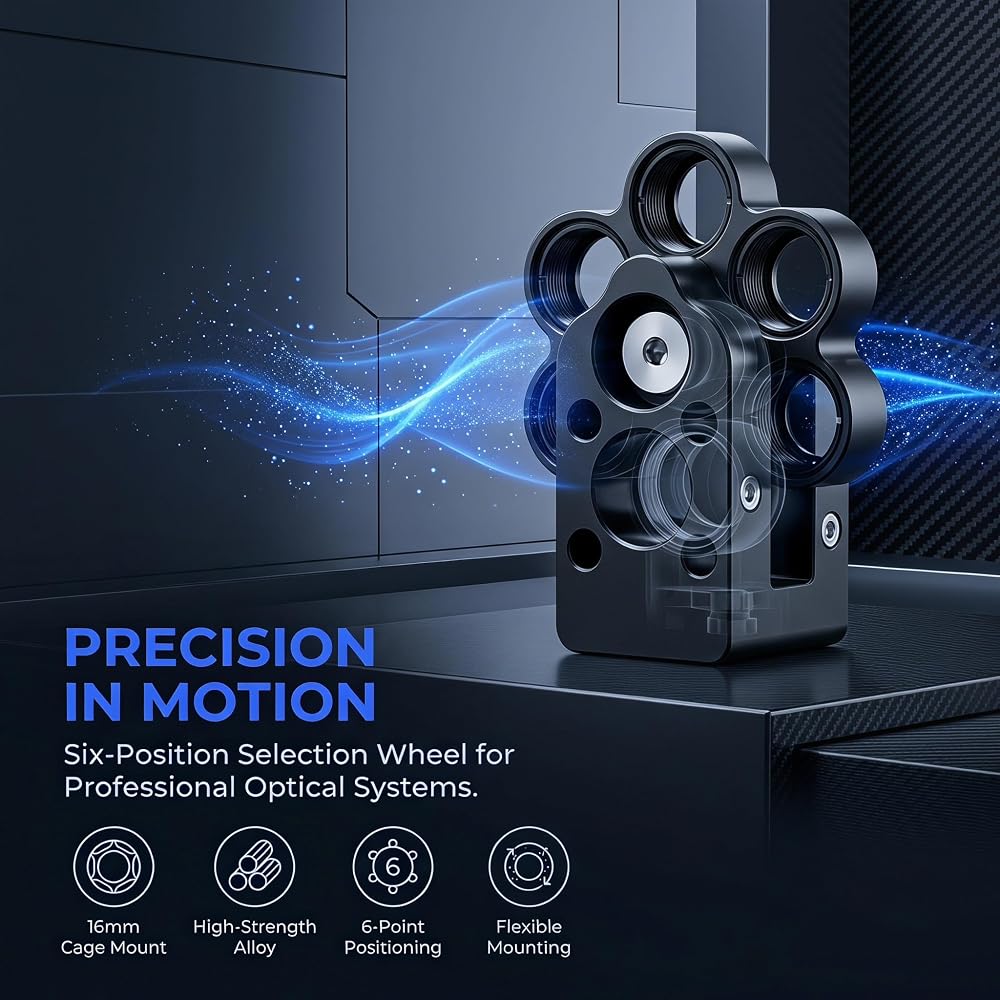

  • 【Precise Positioning】: The rotating wheel employs a six-point coaxial positioning structure, automatically centering the filter position. It provides excellent positioning accuracy and outstanding repeatability for professional optical experiments.

وصف

Product Specifications:

Product Name: Filter Roller
Material: Aluminum Alloy
Dimensions: 45.50*12.70*10.20 mm
Mounting Hole Diameter: 6-position (0.535"-40") internal thread, with retaining ring
Compatible Components: 0.5-inch optical components, thickness ≤ 6mm
Screw Hole Type: M4, M6

Product Includes: Filter Roller *1
