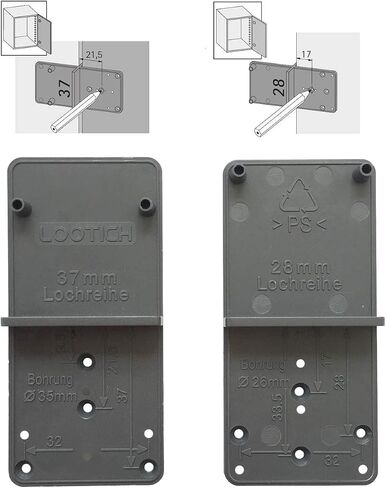

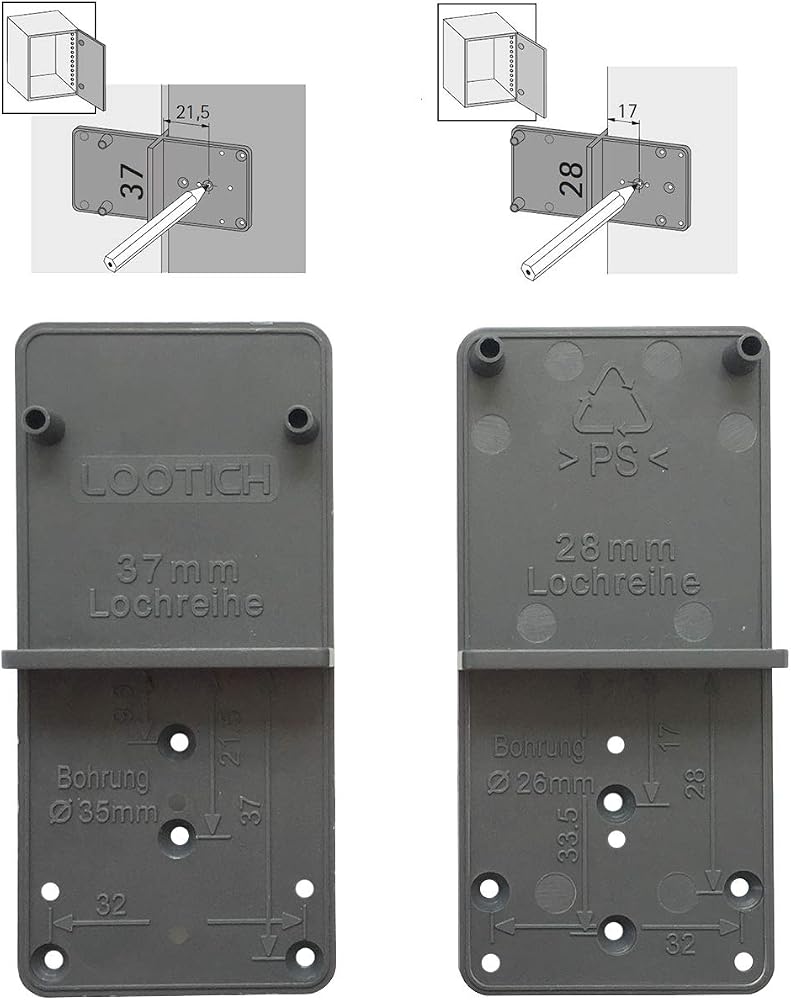

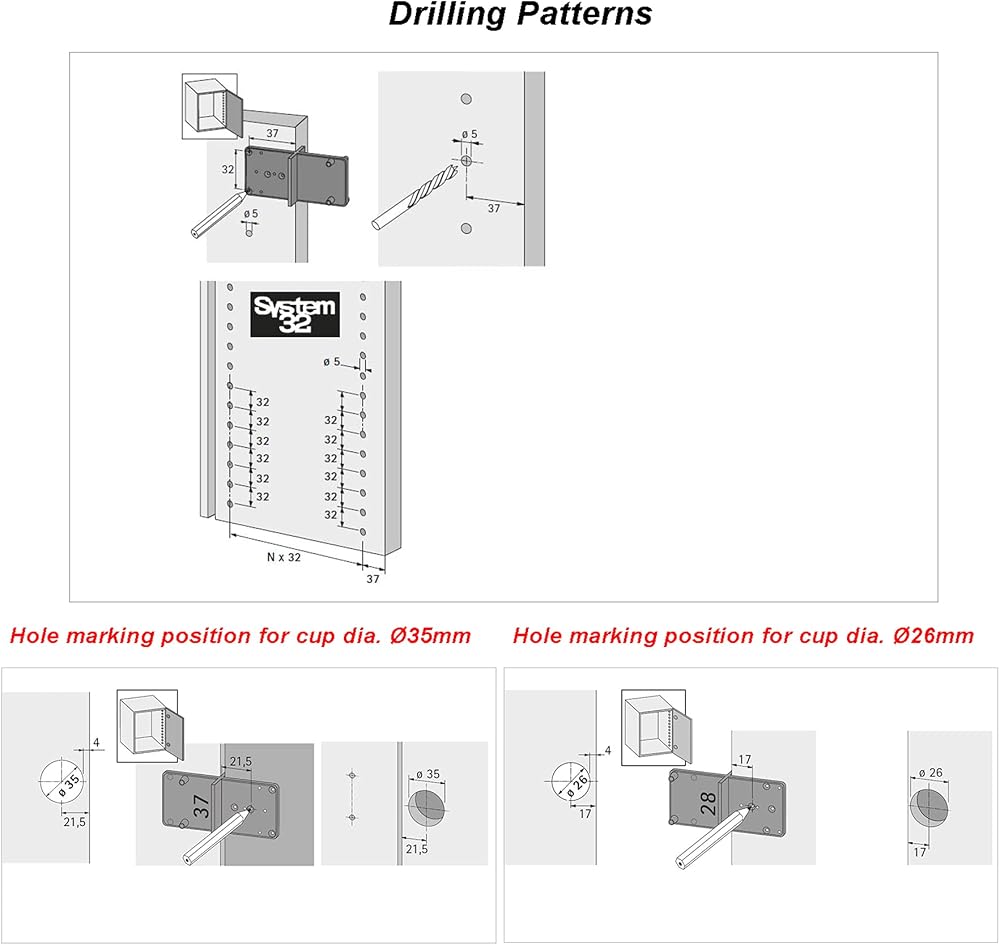

>With this LOOTICH marking-off template, a hole line inside of the cabinet or the drill holes for a mounting plate (at a distance of 32mm) can be marked in the easiest way.

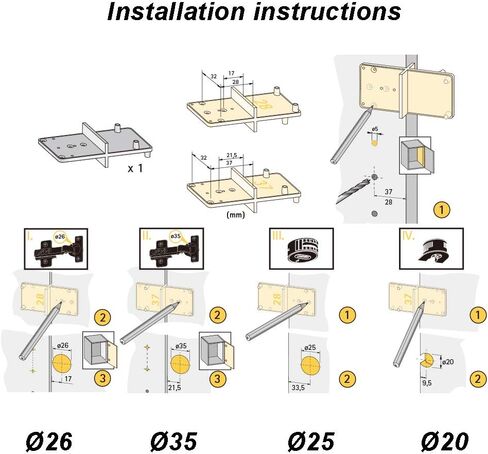

>Once the hole line has been drilled, the template can be turned and the two pins are inserted into the hole grid and the cabinet door is positioned.
>The bar on the template keeps the appropriate distance between cabinet side and door edge. Now the exact position for the cup drilling can be marked.

Product Details
>LOOTICH Drilling Template, Drilling Jig 351
>Material: ABS Plastic
>Colour: Dark Grey

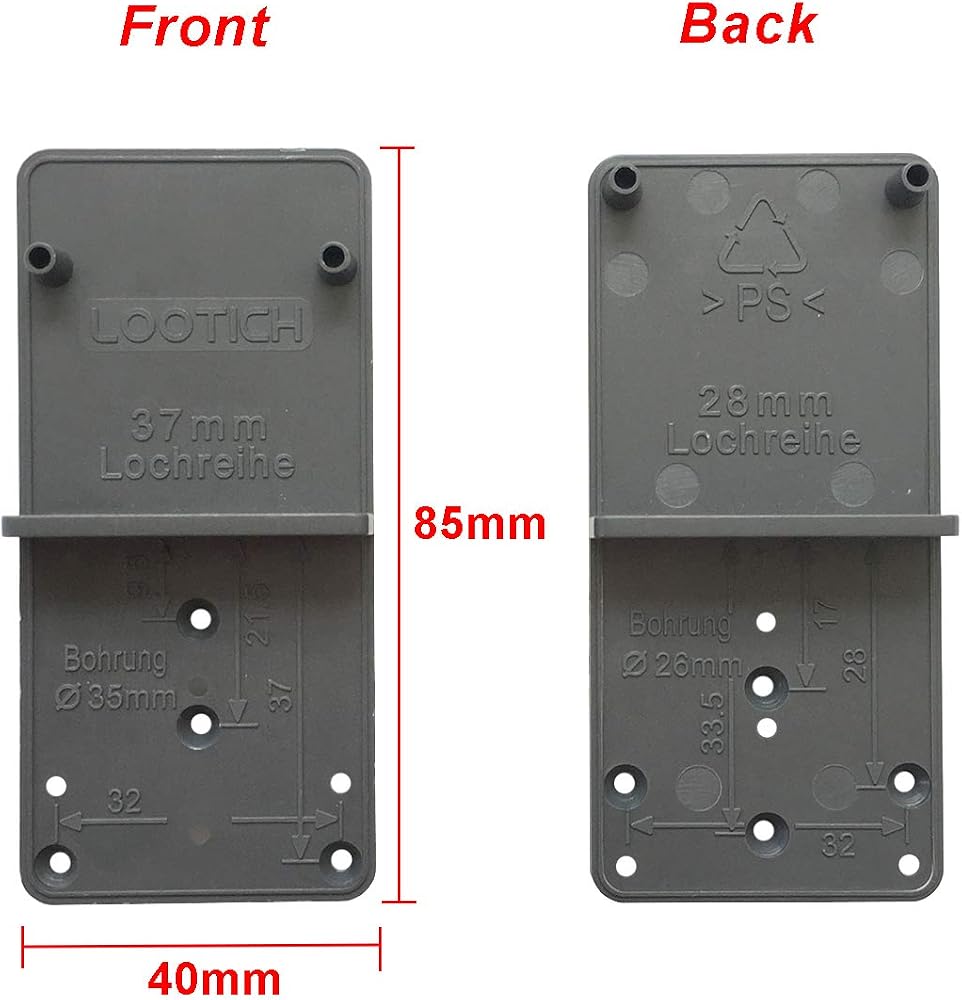

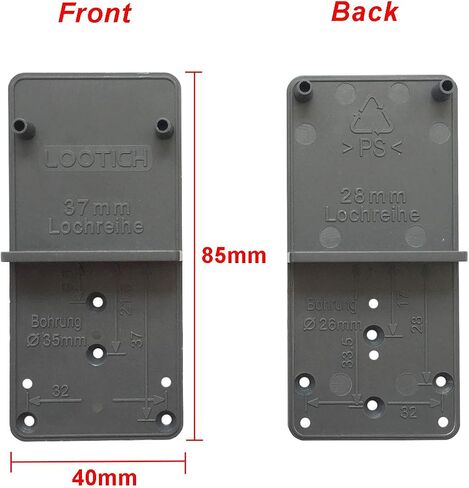

>Size: 85x40x22mm
>Easy marking template: The ideal aid for on-site assembly when one or more fittings need to be professionally mounted without the use of big machinery
>Practical, compact and multifunctional all in one

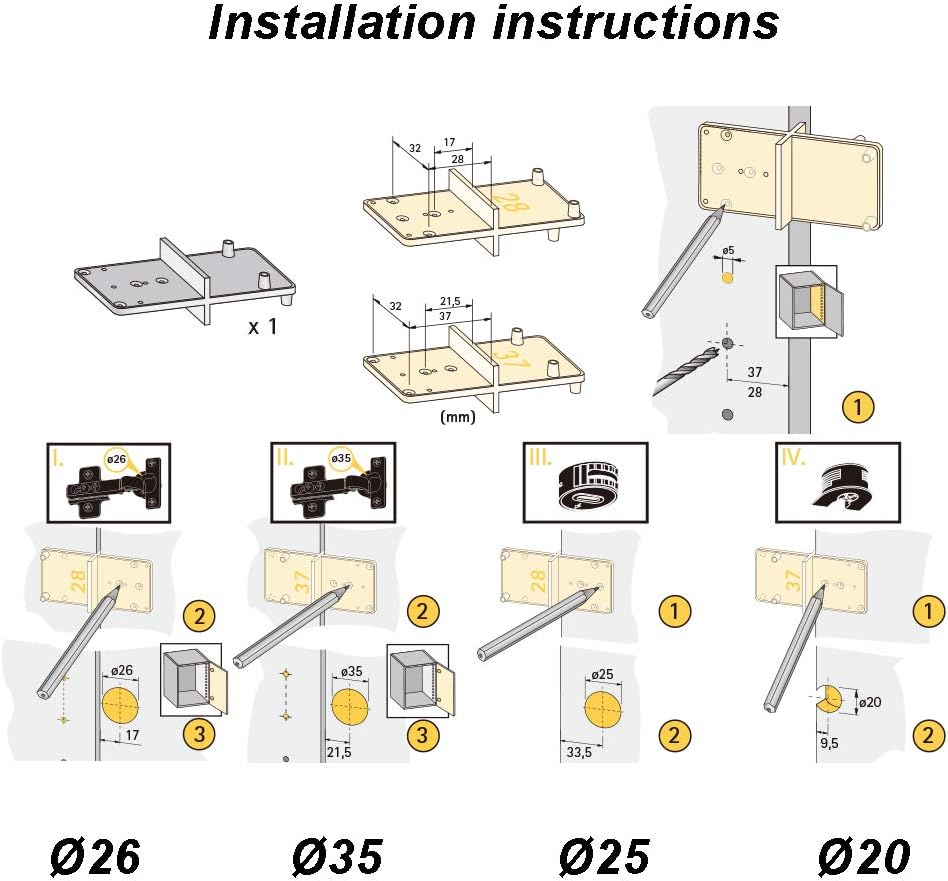

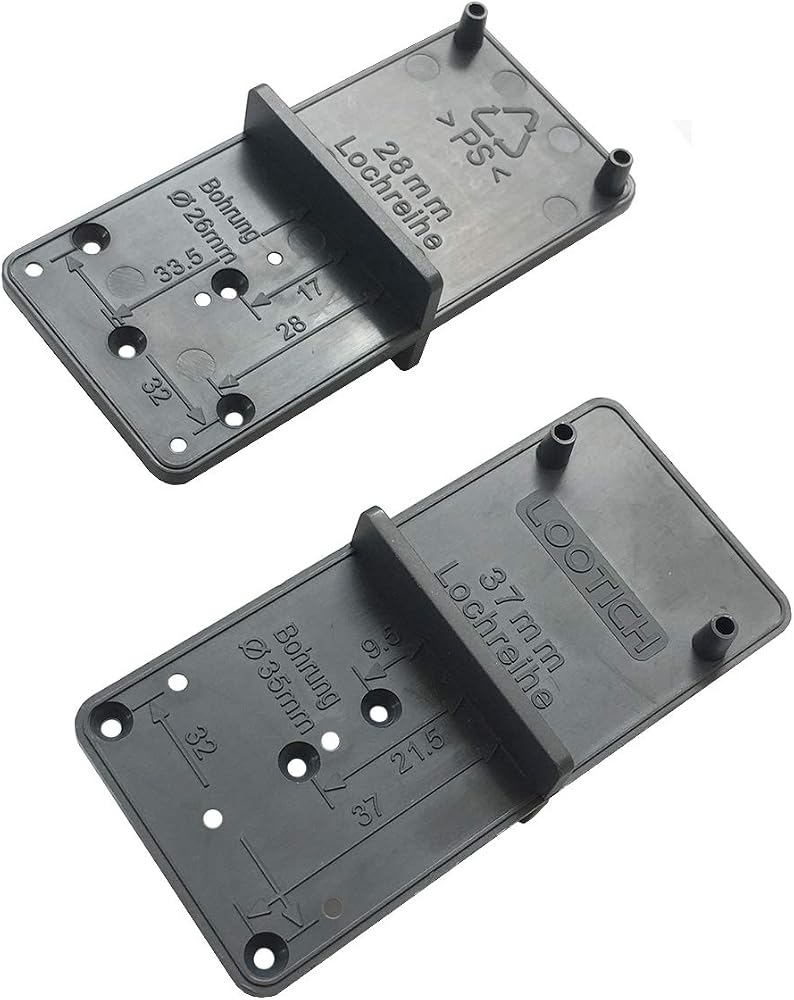

>The double sided hole marking stencil allows the punch marking of:
-System drill holes in a 32 grid for mounting plates, dowels, anchors, and shelf supports

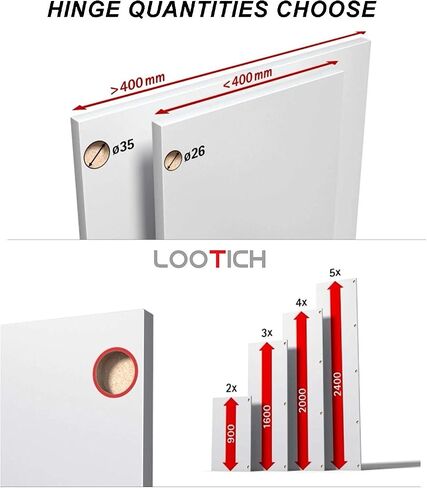

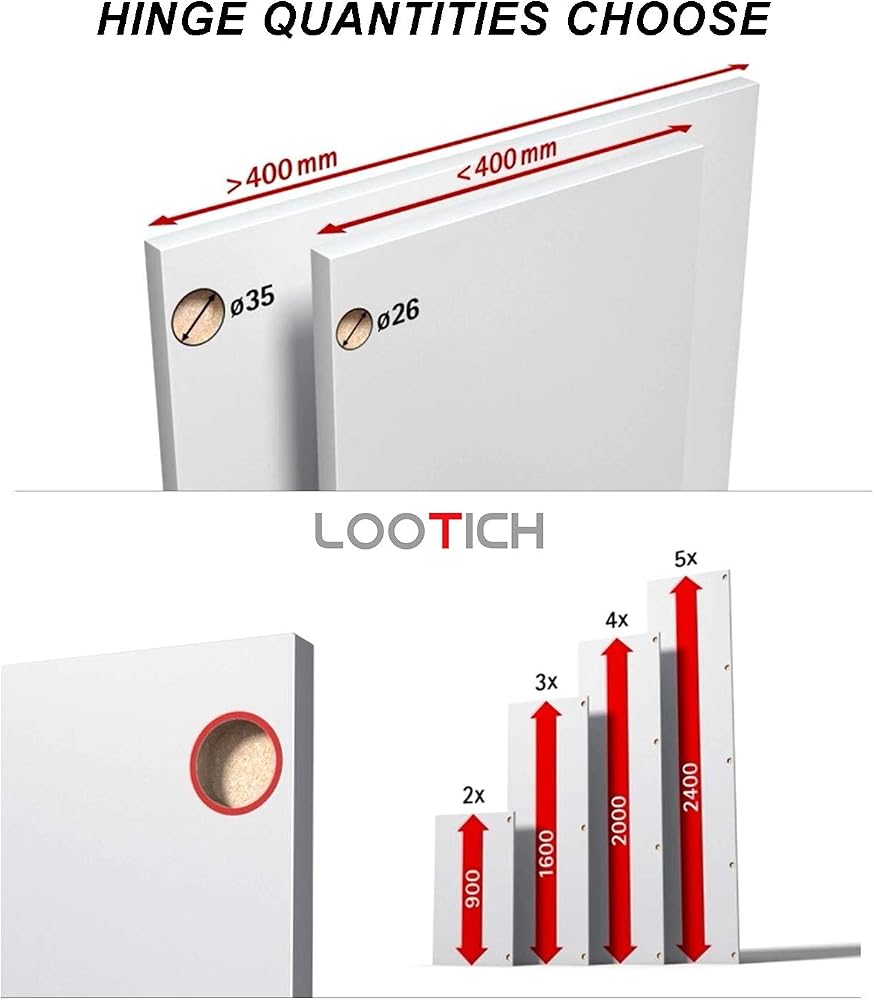

-Ø35mm and Ø26mm cup hole diameter with a 4mm cup distance for hinges
-Ø25mm drill holes for Rastex 25 Eccentric connecting fittings
-Ø20mm drill holes for VB 35 and VB 135 Eccentric connecting fittings

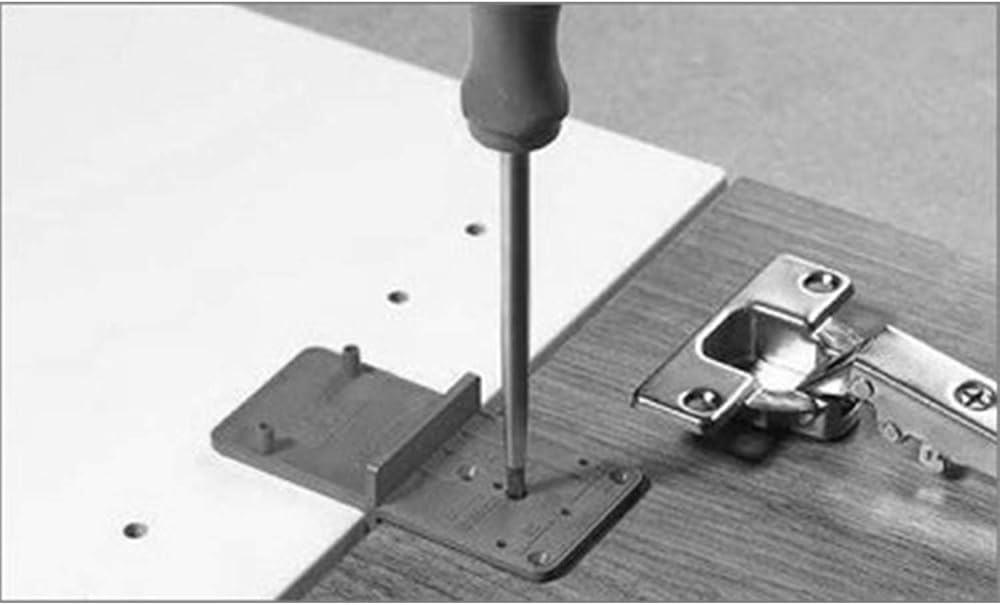

>The stencil is essential for quick and accurate hinge locating for kitchen cabinet doors and shelving.With this part, each hole sits exactly where it needs to go
>Anyone who wants to attach hinged doors to a cupboard is well advised with this LOOTICH template

Package Contents
>Drilling jig: Pack of 2
>No paper introduction is included in the pack. If you need the PDF introduction, please contact the seller of RAINMAKER Ltd

Note
-We recommend using at least two marking-off templates for an exact positioning. This ensures that the distance between door and cabinet side is really parallel.
