1. [UNIVERSAL SIGNAL COMPATIBILITY] Works with HD-TVI, HD-AHD signals for broad compatibility.
2. VIDEO] Supports , PAL, and SECAM video formats for and detailed footage.
3. [ PERFORMANCE] Provides 60db crosstalk and noise immunity for reliable security monitoring.
4. [SIMPLE INSTALLATION] Compact size and easy setup for hassle-free installation.
5. [COST-SAVING] Saves 30%-50% on cable costs, offering an economical solution.

Spec:
Description:

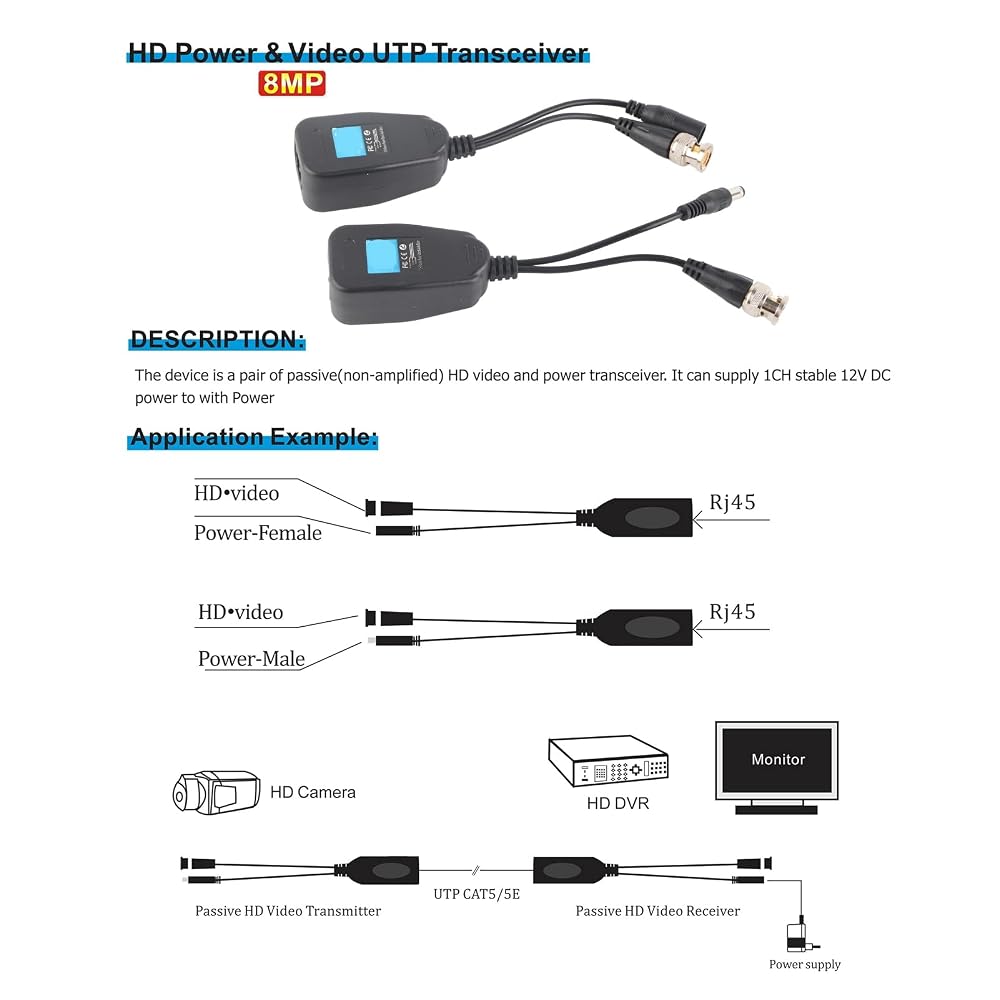

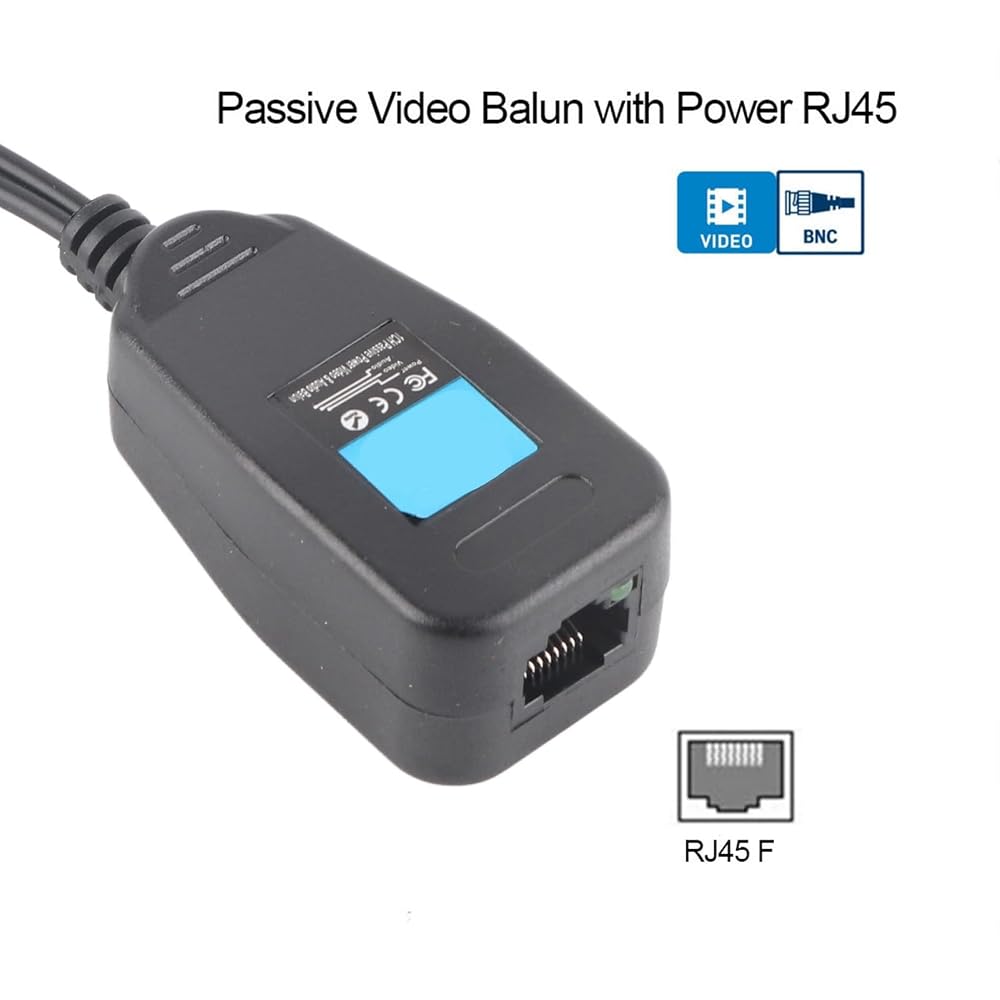

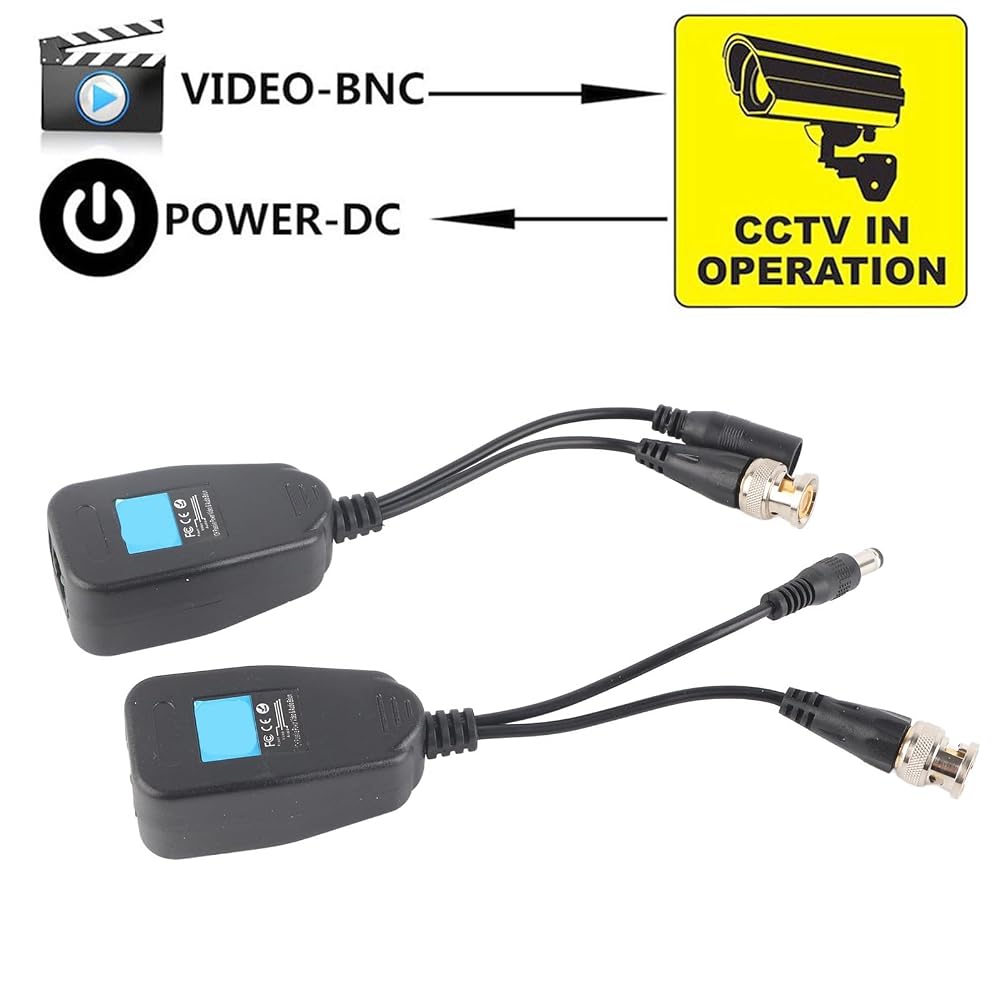

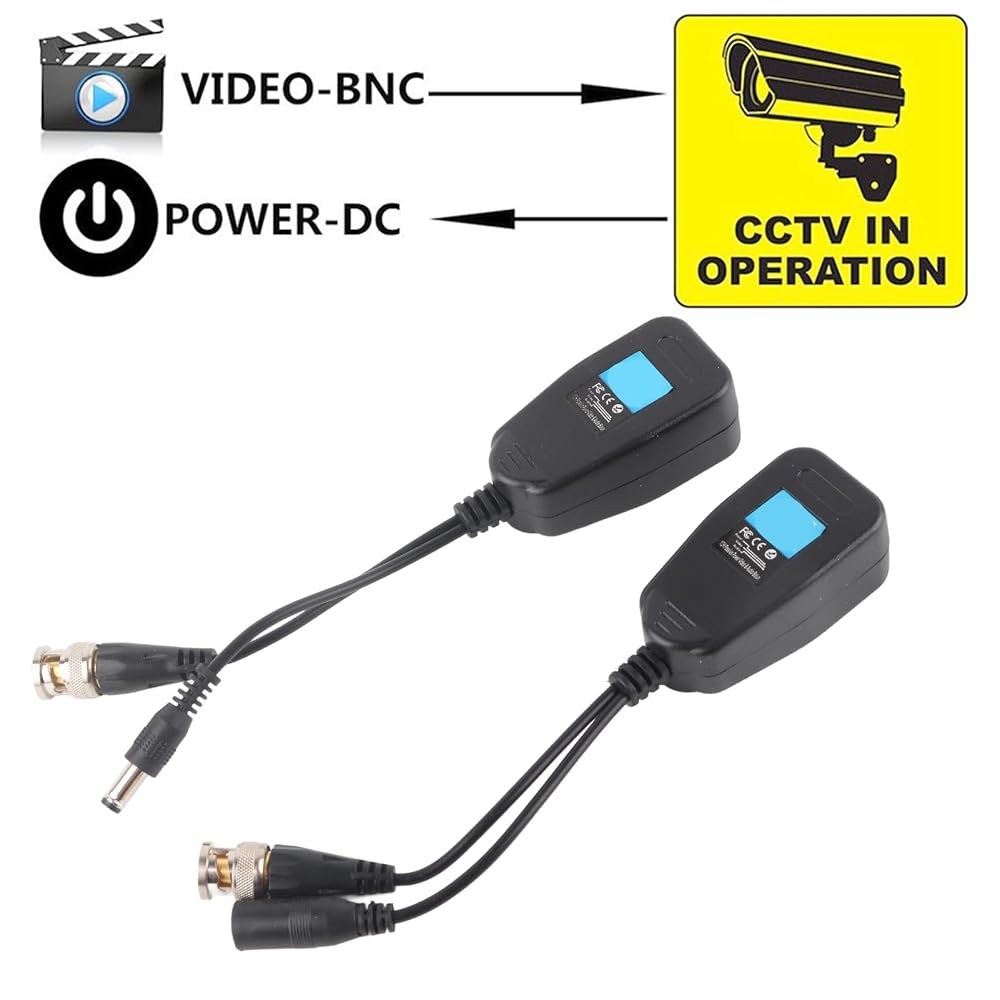

This Video Transceiver with Power is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted Pair (UTP) telephone wire. Power and Video are routed via UTP and RJ45 connections. Its unparalleled interference rejection and low emissions allows video signals to co-exist in the same wire bundle as telephone, , or low-voltage power circuits.
Features:
Compatible with HD-TVI, HD-AHD signals.
, PAL, and SECAM video formats.
60 db crosstalk and noise immunity.
Compact size and easy installation.
Save cable cost 30%-50%.
Specifications:
Frequency response: DC-60MHZ
Attenuation: 0.5bd type
CMRR(common mode rejection ratio): 60bd
Impedance: BNC: 75Ω; RJ45: 100Ω
Transmission distance: Up to 450m for 720P CVI cameras; Up to 250m for 1080P CVI cameras; Up to 250m for 1080P / 720P TVI cameras; Up to 320m for 720P AHD cameras
Working temperature: -10℃ to + 70℃
Storage temperature: -30℃ to + 70℃
Humidity: 0 to 95%
Dimension: 55x30x25 with 12cm cable
Material: ABS plastic
Package weight: 87g
Quantity: 1 pair (2 pcs)
Package Included:

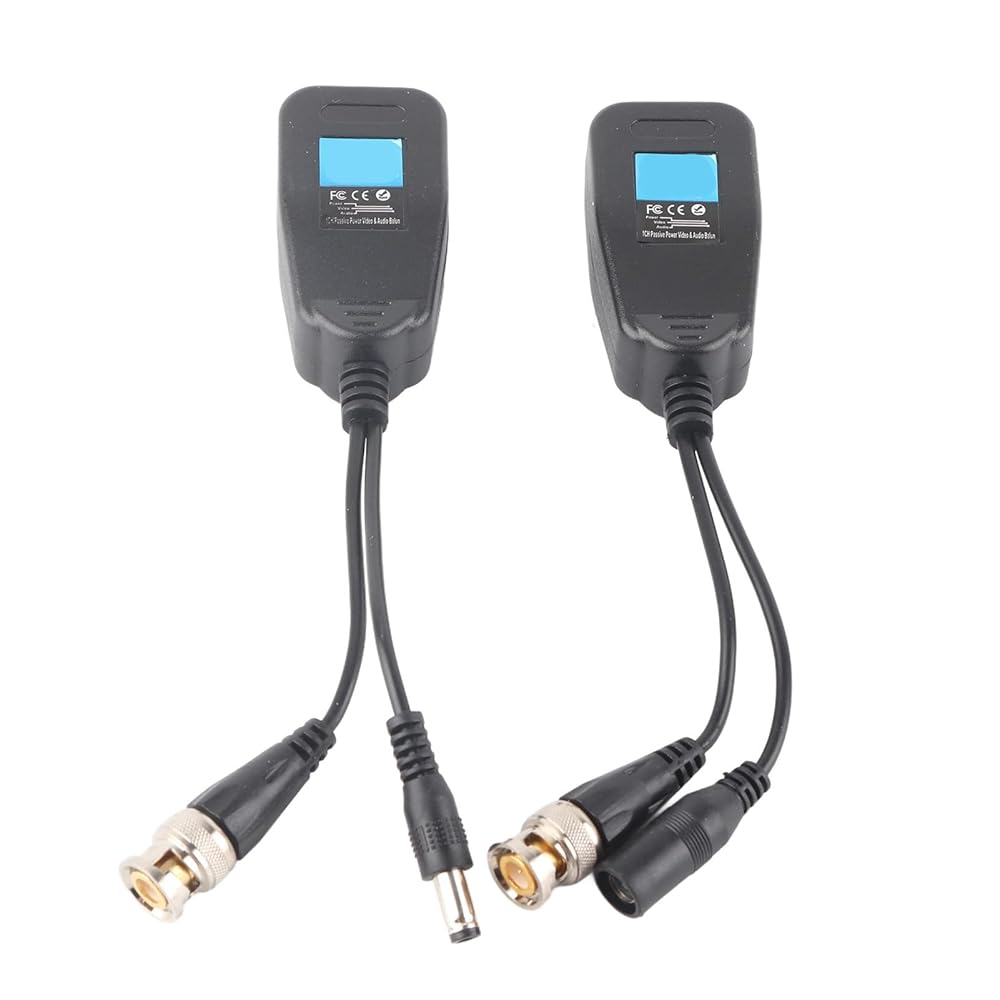

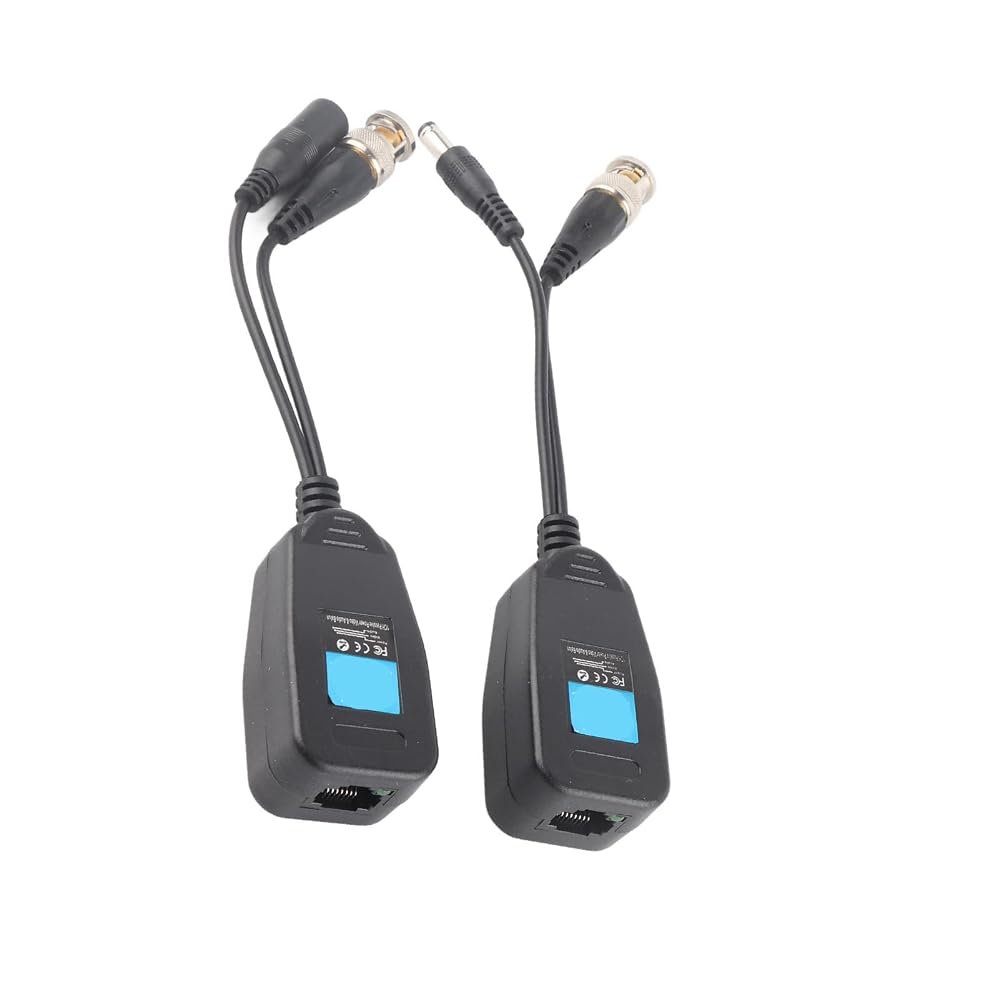

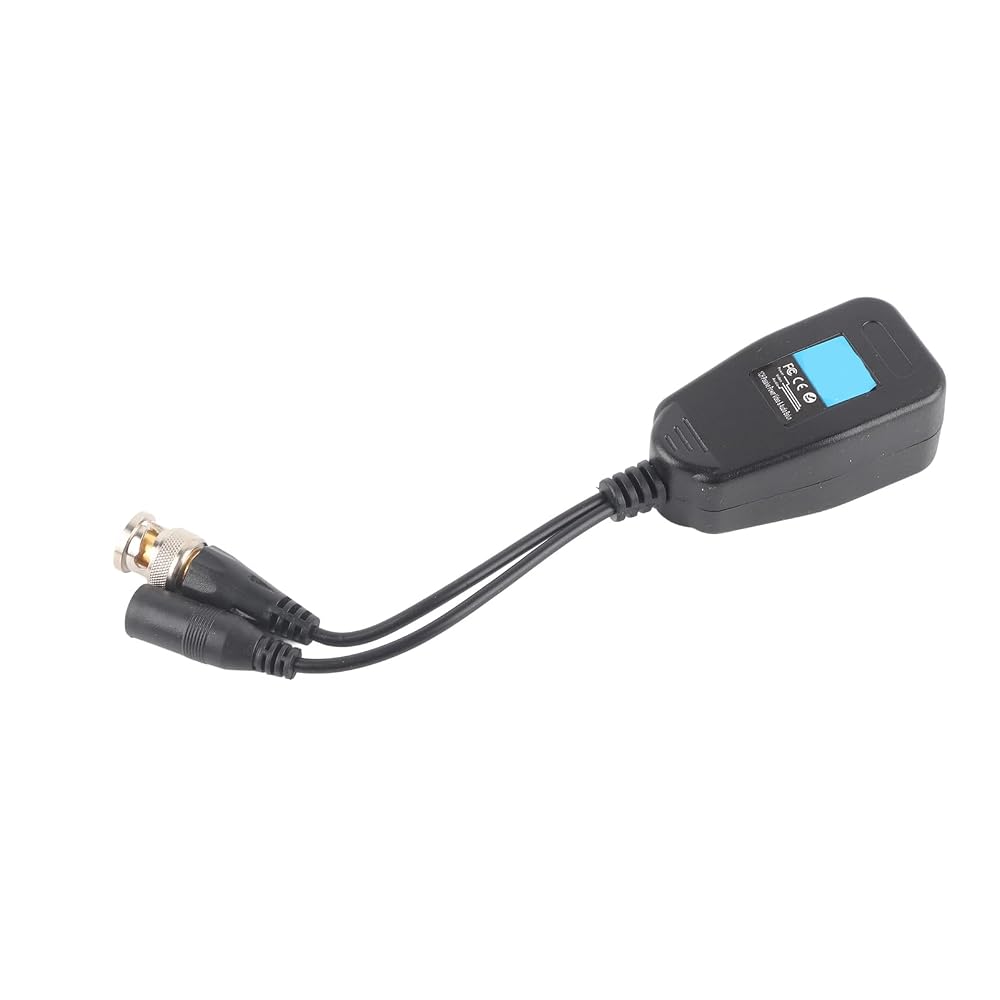

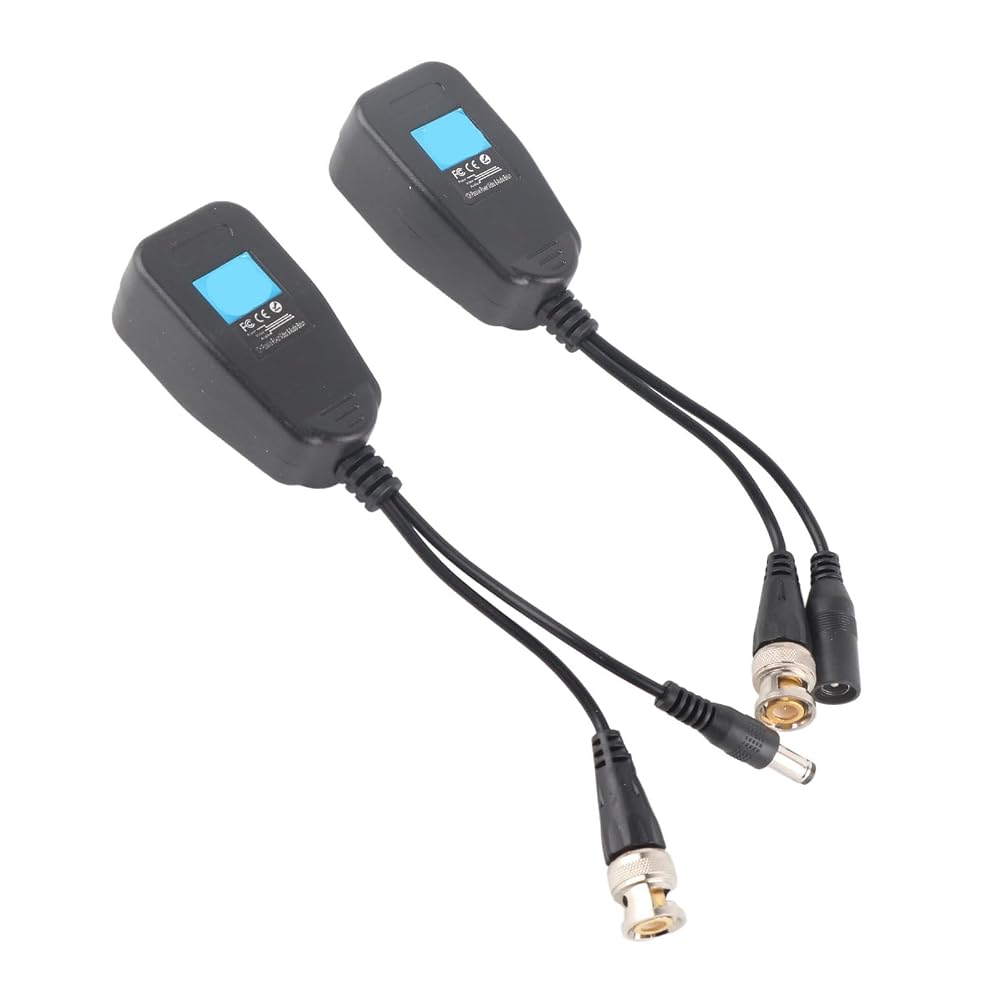

2Pcs x BNC Video Power Balun
