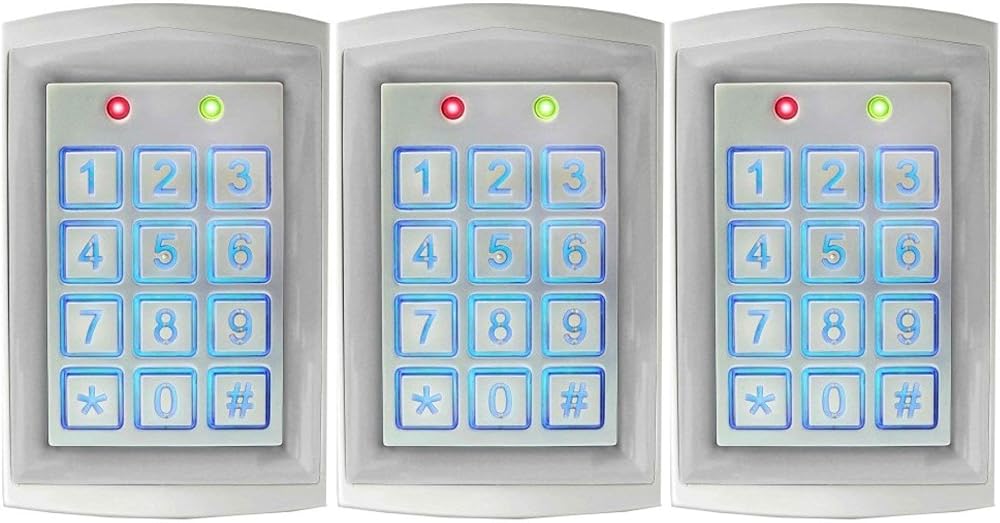

The Seco-Larm Weatherproof Outdoor Digital Access Keypad is standalone. All keypad features are programmed directly from the keypad and it is able to mount to a single-gang back box. It is designed with backlit keys for easy night time use.
12~15 VDC operation.
1,010 Users (Output #1: 1,000 users, Output #2: 10 users).
2 Form C relays, each rated 1 Amp @ 30VDC.
Each relay has programmable output time from 1~99 seconds or toggle.
Output #2 can be programmed for use with a doorbell.
2 Egress inputs and 1 door sensor input.
Two multi-colored status LEDs.
All features are programmed directly from the keypad – no need for an external programmer.
EEPROM memory protects programmed information in case of power loss.
Optical tamper for added security.
Circuitry is potted with epoxy for outdoor use.
IP65 weatherproof rating, rugged aluminum construction.
MPN: SK-1323-SDQ
UPC: 676544011088
Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
Number of user codes: Up to 1,010
Operating voltage: 12~15 VDC
Current drain:
Stand-by: 40mA@12VDC
Active: 70mA@12VDC
Relay outputs (2): 1A@30VDC, Form C, NO/COM/NC

Egress inputs: 2, N.O. Ground
Door sensor input: N.C. Ground
Tamper sensor: Optical
Operating temperature: -4°~122° F (-20°~50° C)
Keypad LED life: 60,000 hours (over 6.8 years)
Dimensions: 6"x1-3/4"x15/16" (152x44x24 mm)
