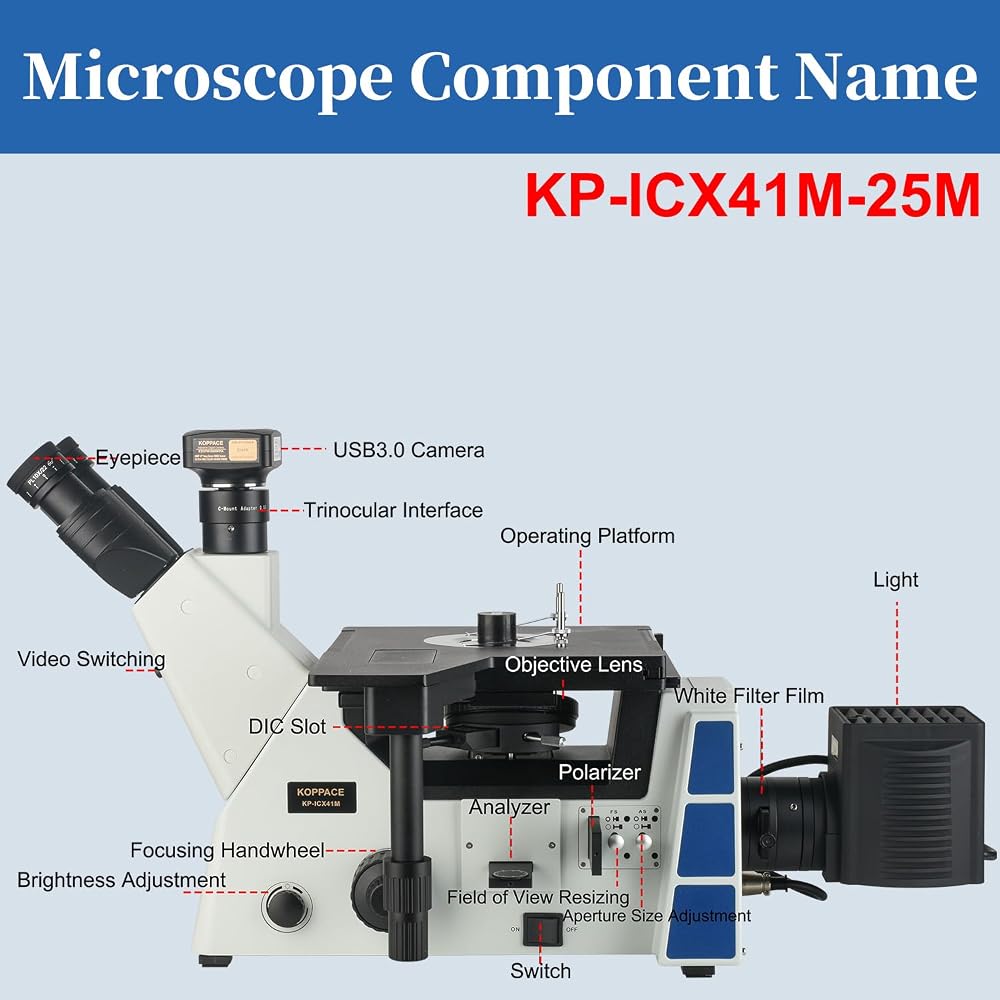

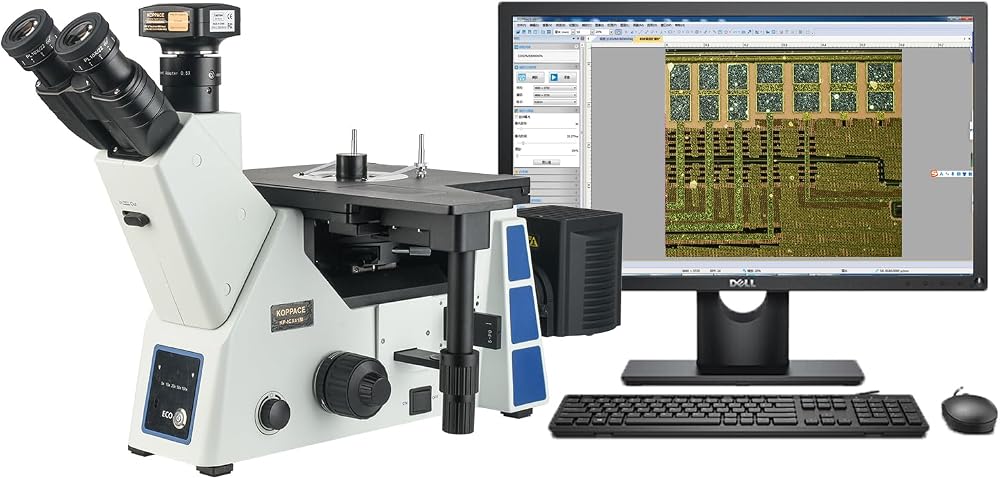

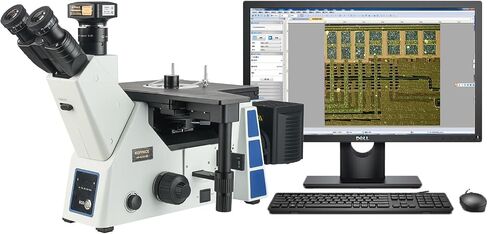

Model KP-ICX41M-25M
Optical Magnification 50X,100X,200X,500X
Electronic Amplification 177X-1772X
Optical System Infinity Chromatic Aberration Correction Optical System
Eyepiece High Eye Point large Field of View flat Field Eyepiece PL10X22mm

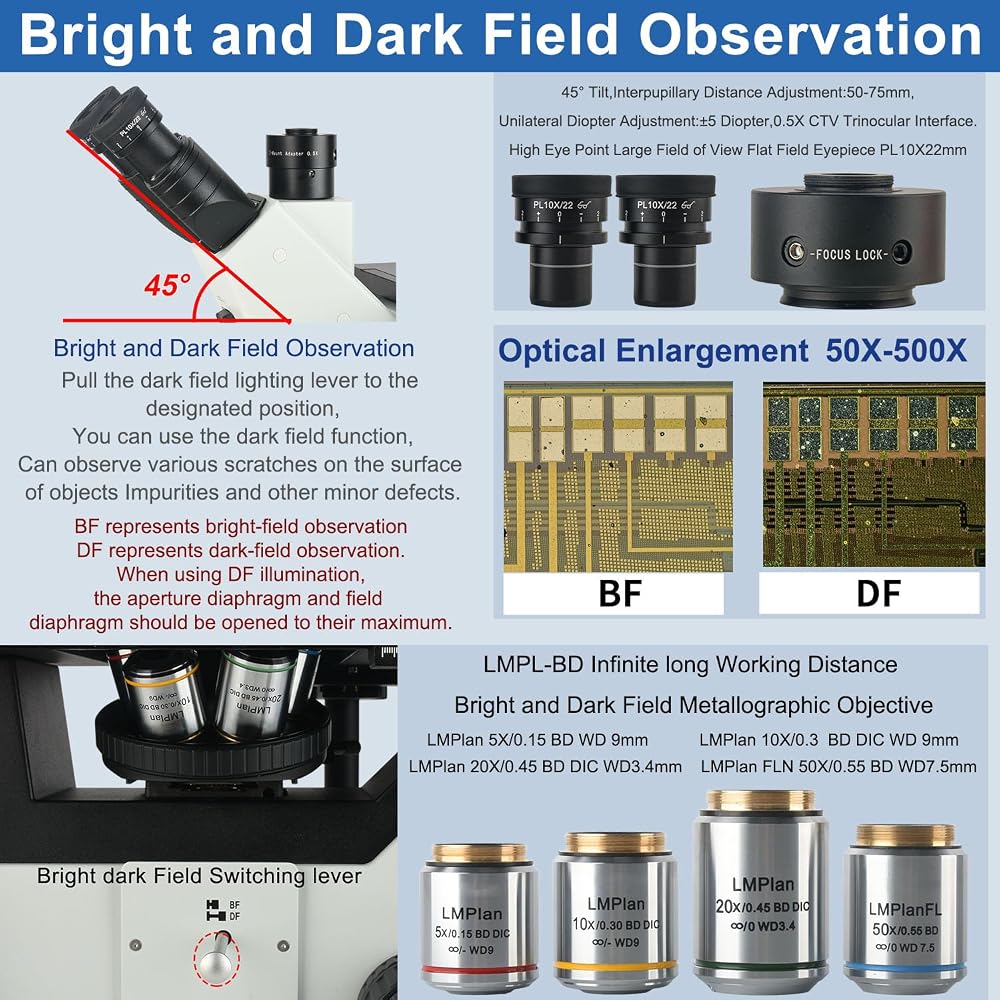

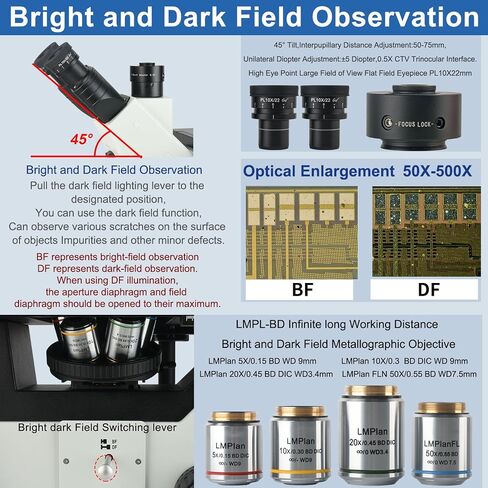

Objective Lens LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective
LMPlan 5X/0.15 BD WD 9mm
LMPlan 10X/0.3 BD DIC WD 9mm
LMPlan 20X/0.45 BD DIC WD 3.4mm
LMPlan FLN 50X/0.55 BD WD 7.5mm
Observation Tube Three-eye Viewing Tube, 45° Tilt,Hinge Group can be 360° Rotation,Fixed Eyepiece Tube,Pupil Distance Adjustment Range of 50-75mm
Converter Bright and Dark Field Five-Hole Converter With DIC Slot

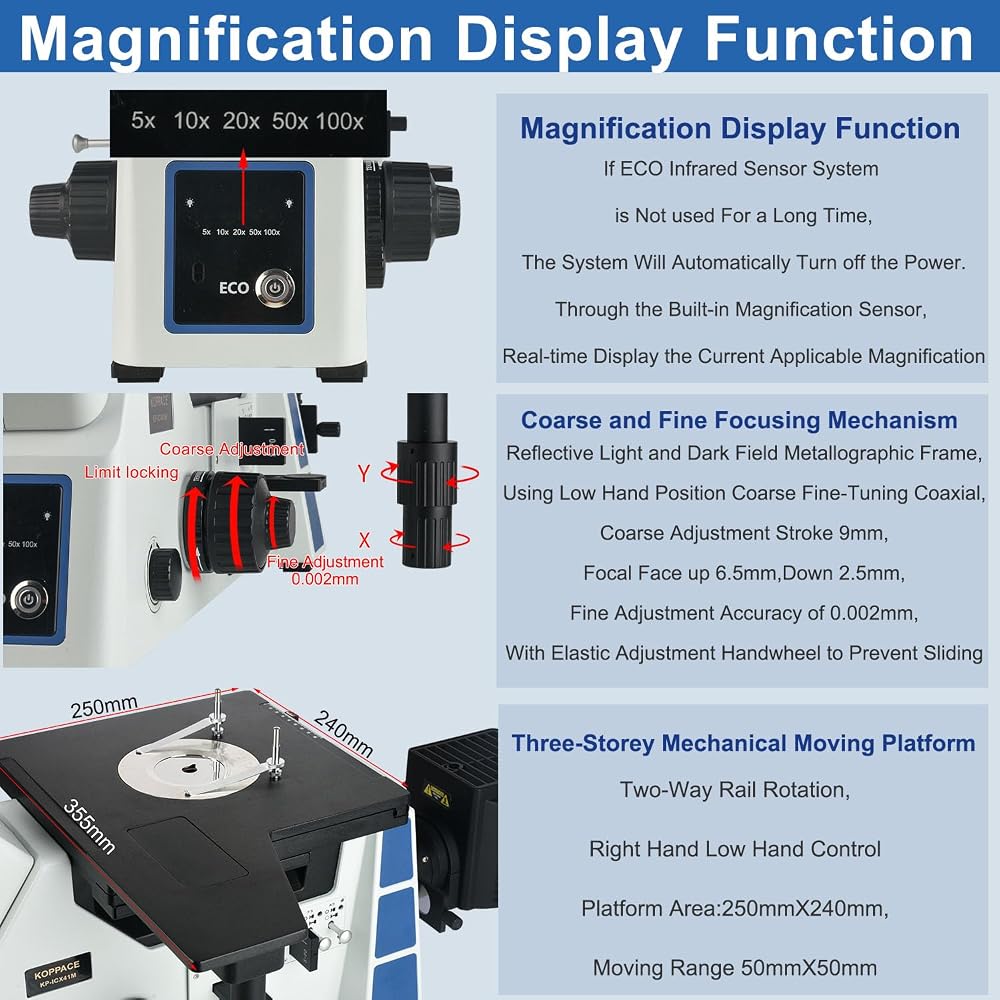

Coarse and Fine Focusing Mechanism Reflection Light and Dark Field Metallographic Frame,Using Low Hand Position Coaxial Coarse Fine Adjustment,Coarse Adjustment Stroke 9mm, The Focus Facing up 6.5mm,Down 2.5mm,Fine Adjustment Precision 0.002mm,With an Elastic Adjustment Handwheel to Prevent Sliding
Operating Platform Three-layer Mechanical Moving Platform,Platform Size:240 (W) X 250 (L),Moving Range of 50X50mm,Two-Way Wire Rail Drive,Right Hand Low Hand Control
Lighting System Light and Shade Field Reflector With Variable Field of View Aperture,Aperture Aperture,the Center is Adjustable;With Light and Shade Field Switching Device,With Filter Slot and Polarizing Device slot;12V100W Halogen Light Box (Reserved Center),Light Source Brightness Continuously Adjustable,With Light Source Brightness Indicator Bar,With Infrared Induction Function;Adopt External Wide Voltage Transformer,Input 100-240v,Output 15V13.4A

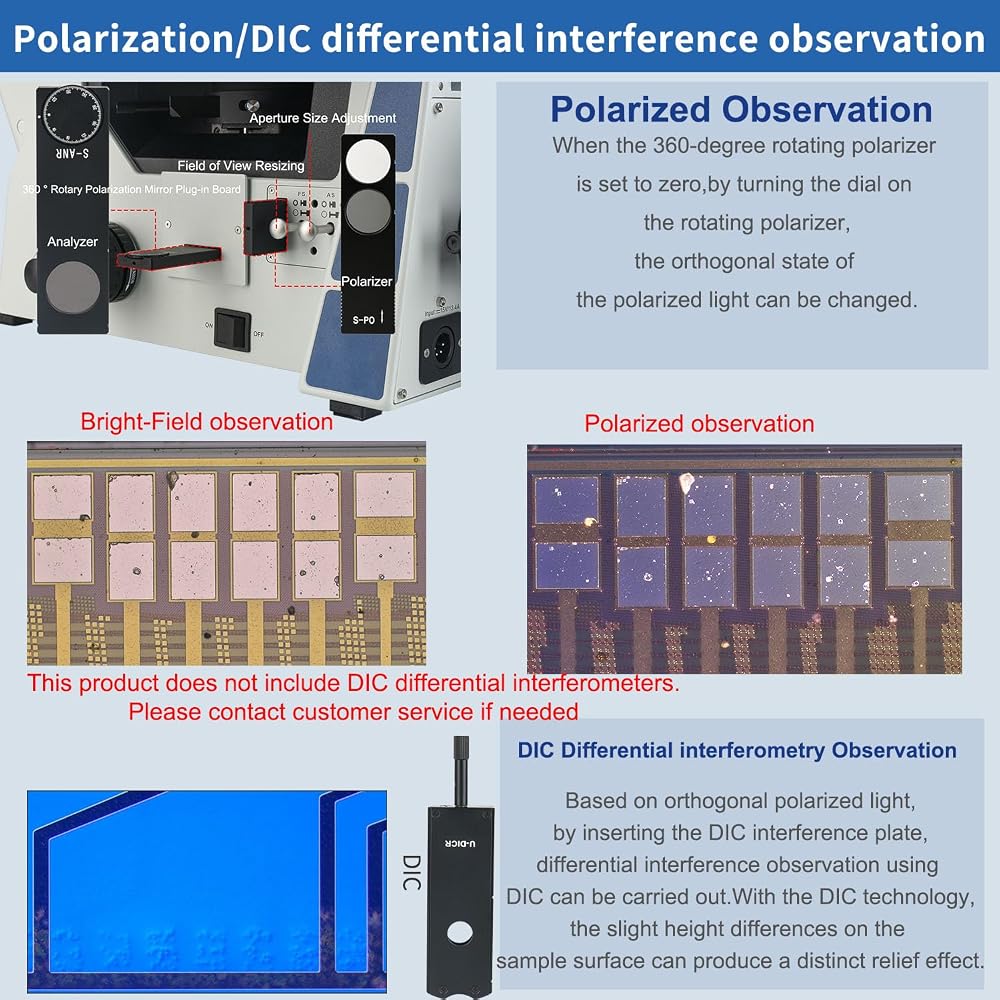

Polarizer Polarizer Insert Plate,360°Rotating Analyzer Insert Plate
Trinocular Interface 0.5X C-mount Interface,Adjustable Focus
Pixel 25 Million Pixels
Output Method USB3.0
Sensor 25M/ IMX511(C)
Sensor Size 1/2.3" (5.519x5.519)
Pixel Size 1.12μmx1.12μm
Resolution Frame Rate 12@4928x4928，46@2464x2464，100@1648x1648
Exposure Time 0.013ms~15s
White Balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc);
Operating System Microsoft Windows /Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X),Linux
File Save Can Set File Name,Save Pictures With Time Format,Save Path Selection
Image Adjustment Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale
Shooting Mode Images and Videos

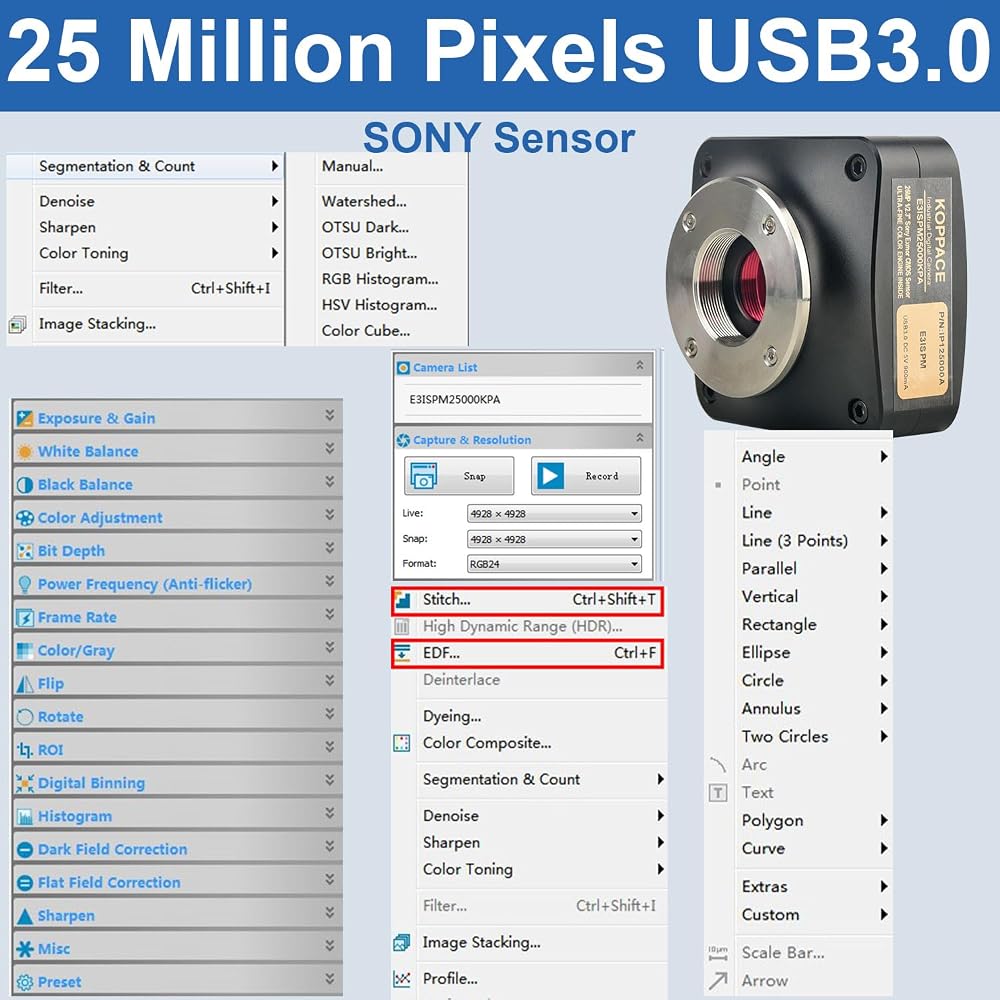

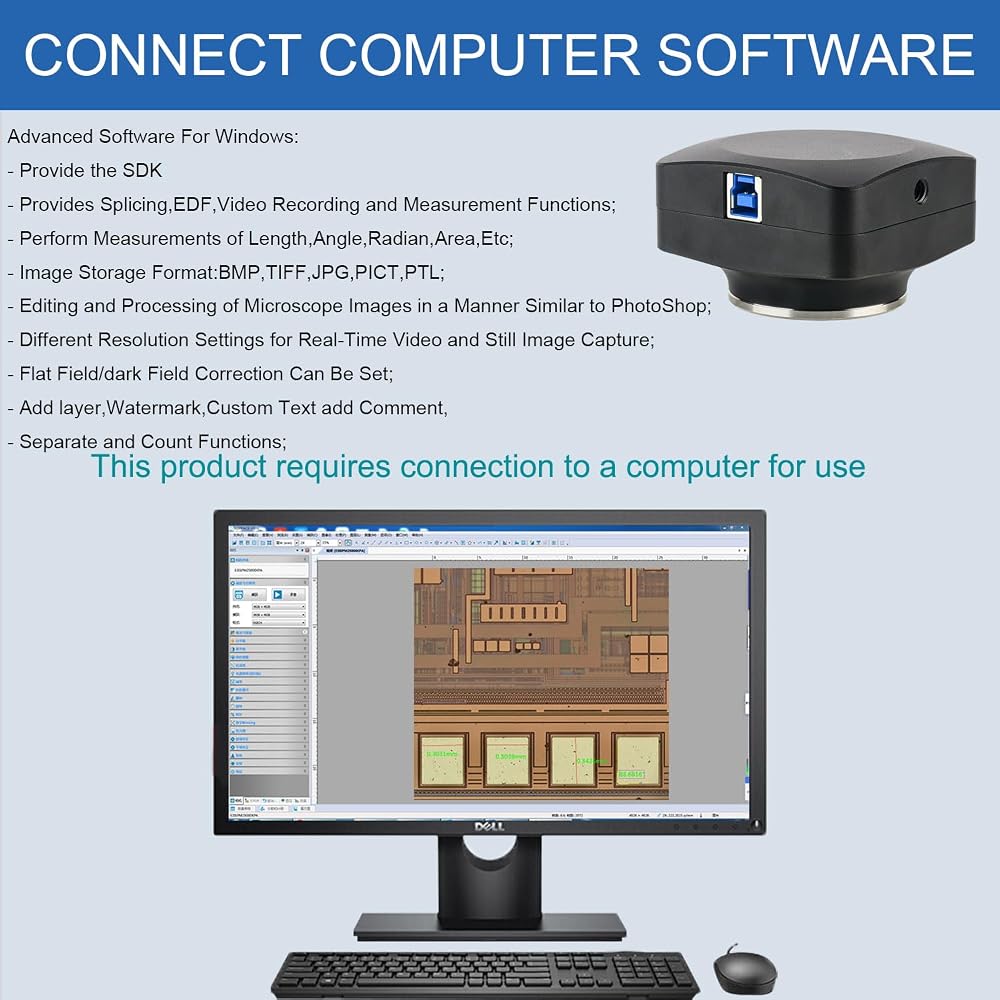

Camera Function Advanced software for Windows:
- SDK Available

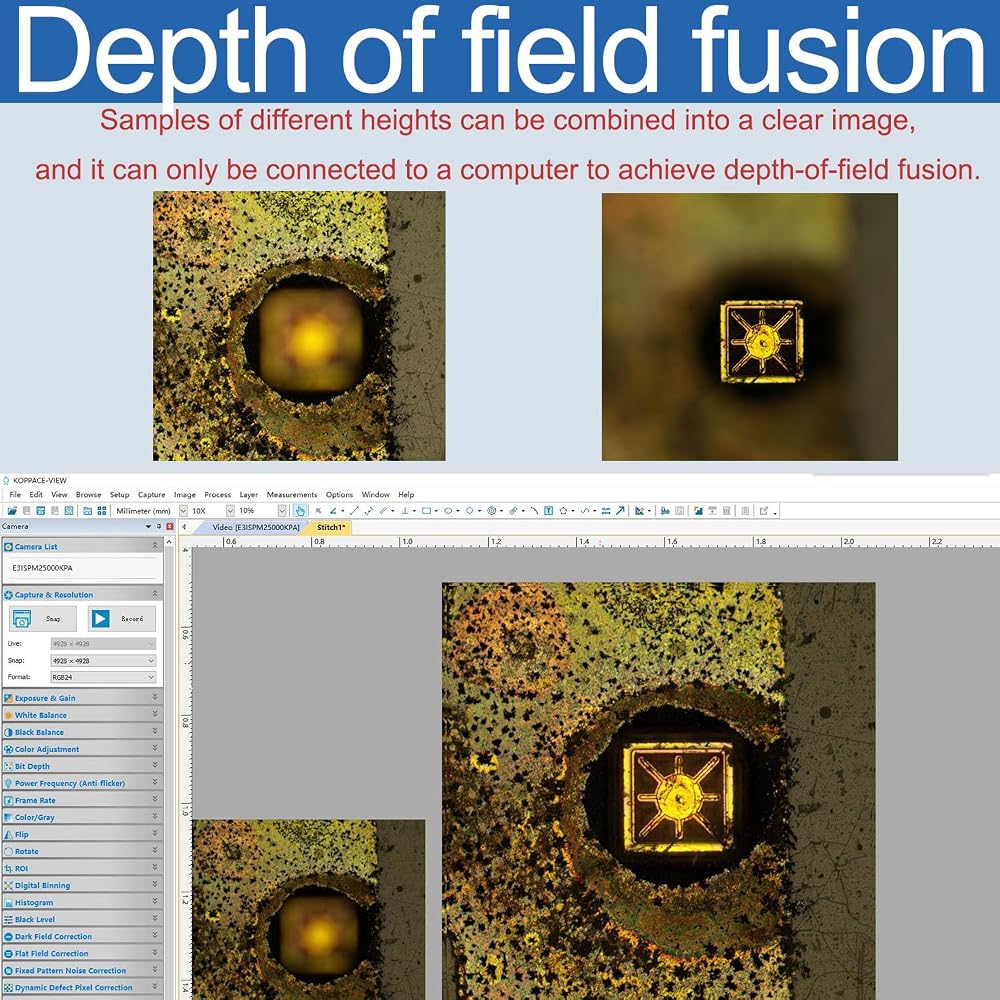

- Provides Stitching,EDF,Video Recording and Measurement Functions
- Measurement of Length,Angle,Radian,area,etc.
- Save Still Images in BMP,TIFF,JPG,PICT,PTL or other Formats
- Edit and Process microscope images in a manner similar to PhotoShop

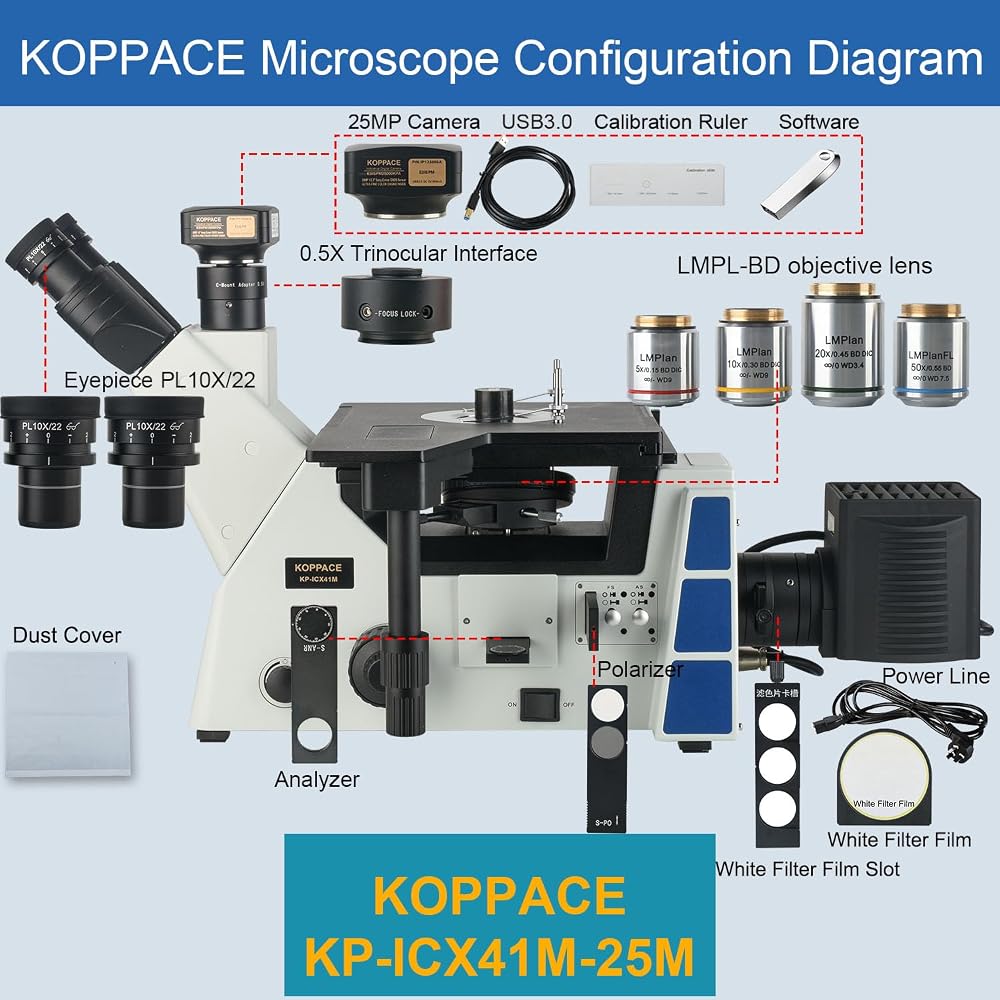

Packing List:
1、A pair of Eyepieces PL10X/22mm
2、0.5X Trinocular Interface *1
3、Objective Lens LMPlan 5X/0.15 BD WD 9mm *1
4、Objective Lens LMPlan 10X/0.3 BD DIC WD 9mm *1
5、Objective Lens LMPlan 20X/0.45 BD DIC WD3.4mm *1
6、Objective Lens LMPlan FLN 50X/0.55 BD WD7.5mm *1
7、Microscope Body *1
8、Light Box Power Cord *1
9、Analyzer *1
10、Polarizer *1
11、Platform *1
12、Filter Film *1
13、Dust Cover *1
14、25MP Camera *1
15、1.8m USB Cable *1
16、CD Software *1
17、Calibrating Ruler *1
