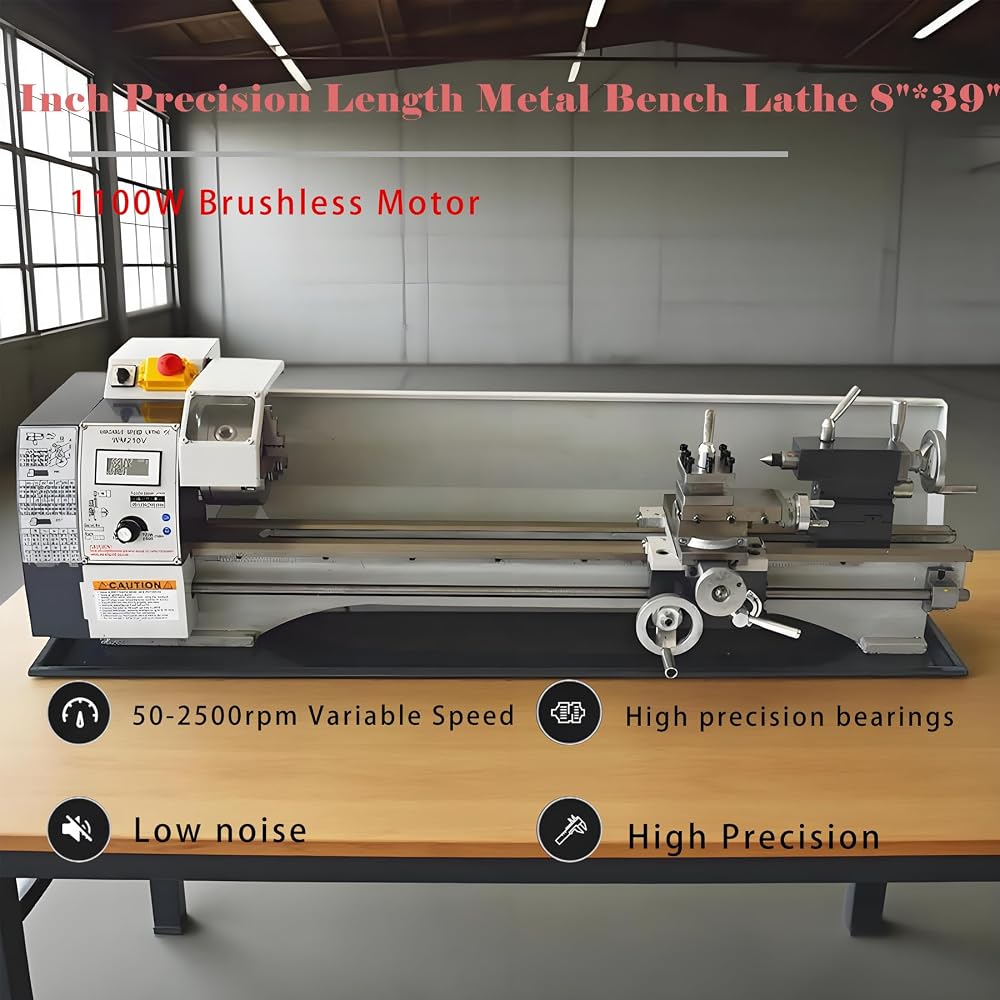

[Adjustable Speed Control]: This WM210V Metal Bench Lathe is powered by a 1100W 110V brushless motor, offering infinitely variable speeds from 50 - 2500 RPM. Ideal for both fine woodworking and various metalworking tasks, the digital RPM display enables precise speed adjustments for accurate machining.
[Efficient Tool Management]: The metal lathe features a horizontal four - station knife rest for quick tool changes, enhancing productivity. The high precision 4.92 inch (125mm) diameter three - jaw chuck firmly secures round and square materials. The MT5 spindle taper and 1.26" (32mm) spindle bore can handle a wide variety of workpiece sizes. With a rotary diameter of the tool rest of 5.51" (140mm) and a swing over bed of 8.27" (210mm), it's adaptable for different machining jobs.
[Precision Engineering]: Equipped with precision dials on relevant components for millimeter - level control. With a spindle accuracy of 0.01mm and an automatic feed range of 0.1 - 0.2mm, it can accurately machine parts. The concentricity tolerance of 0.03 - 0.05mm further attests to its precision.

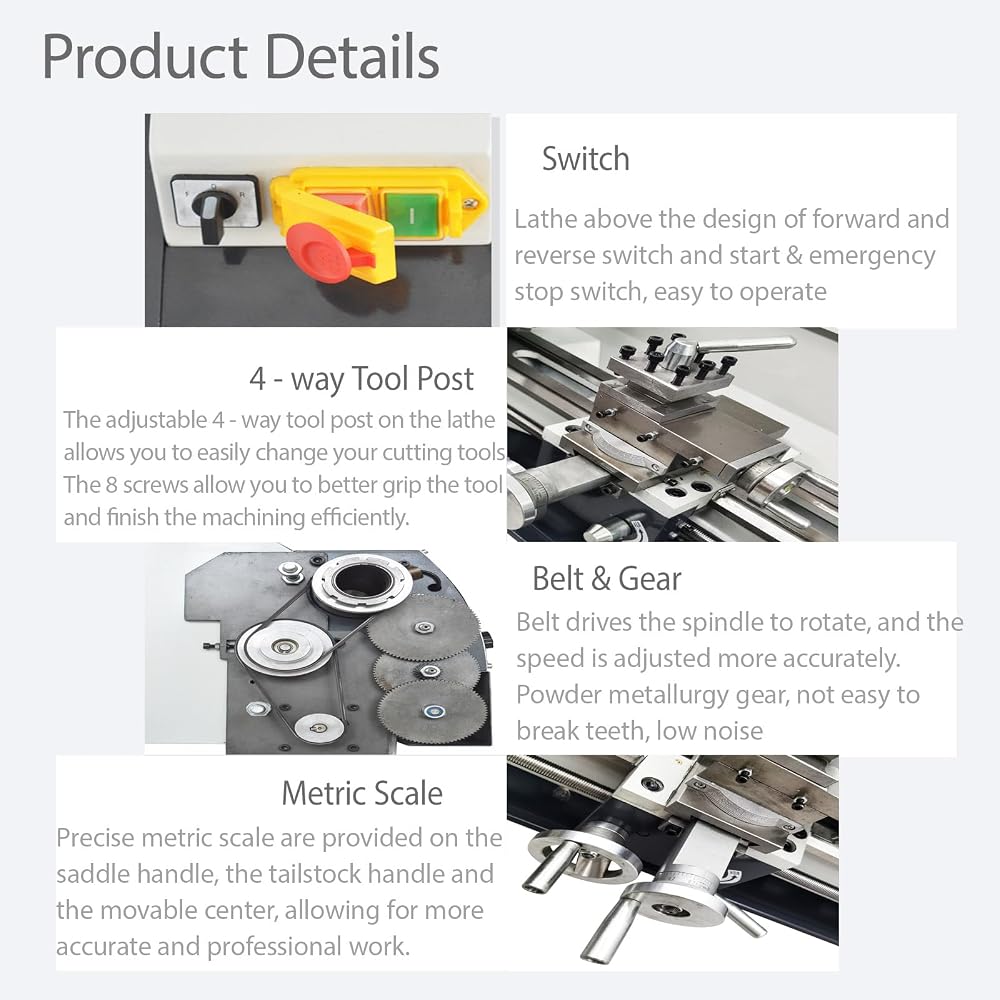

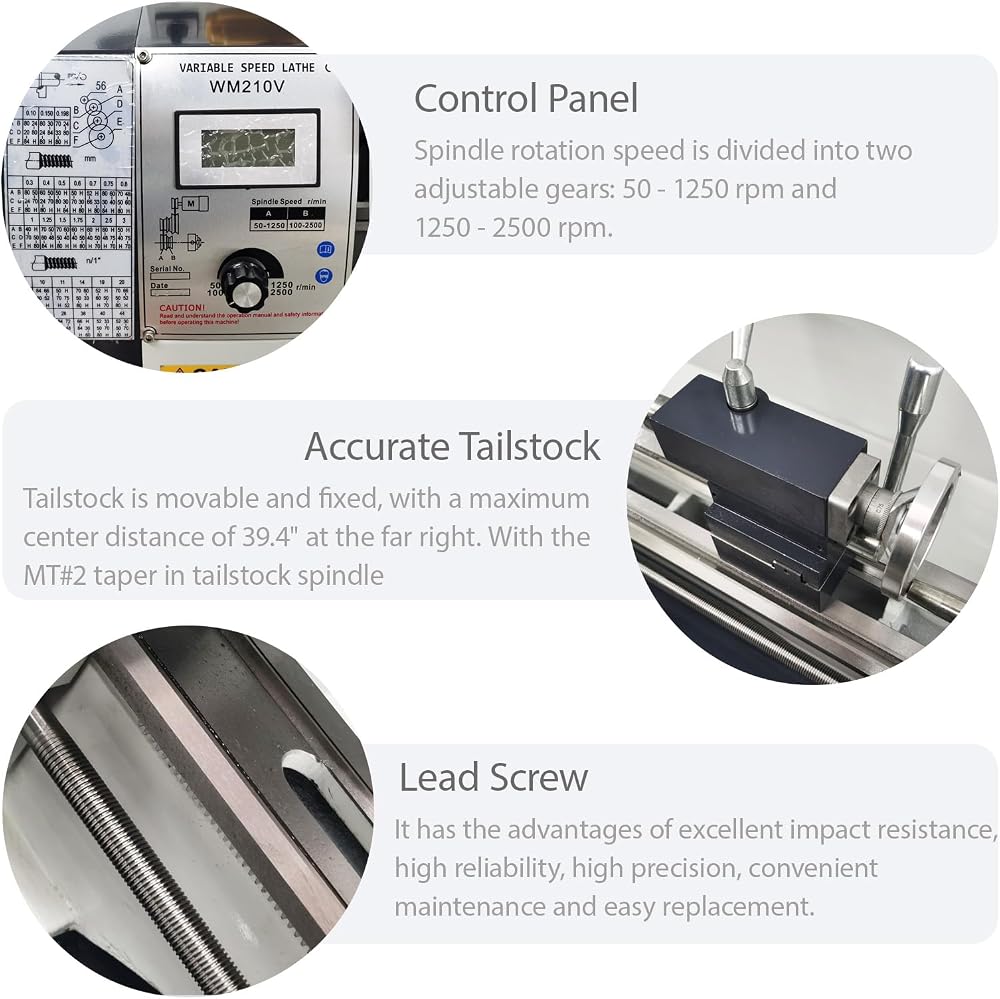

[Safety Design]: Protective covers and emergency stop switches are installed to ensure operator safety during operation. The intuitive layout, including forward and reverse switches and feed levers, simplifies setup.

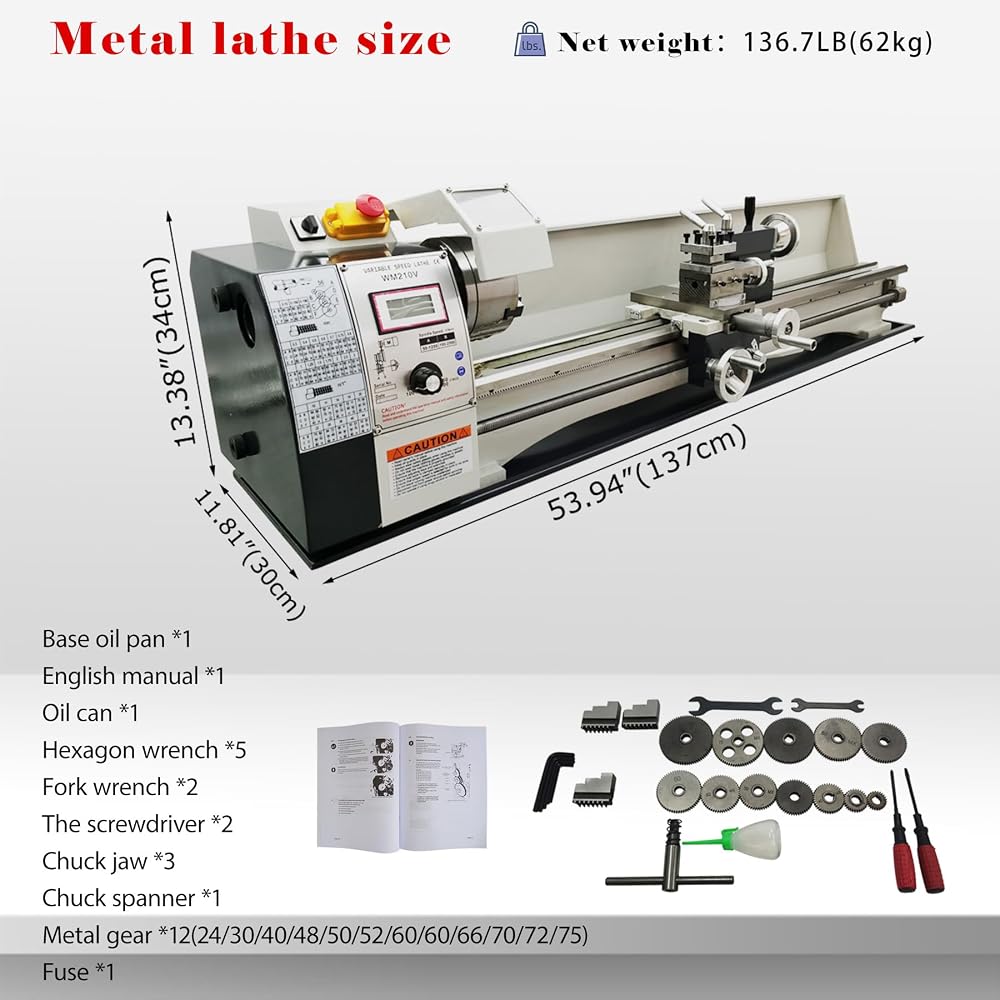

[Compact and Sturdy]: Measuring 57.9"*18.5"*20.1" (147*47*51cm) and weighing 178.6LB (81kg) net, The metal milling machine's cast iron bed, treated with high - frequency quenching and precision grinding, along with durable components and a robust frame, ensures reliable performance.

وصف

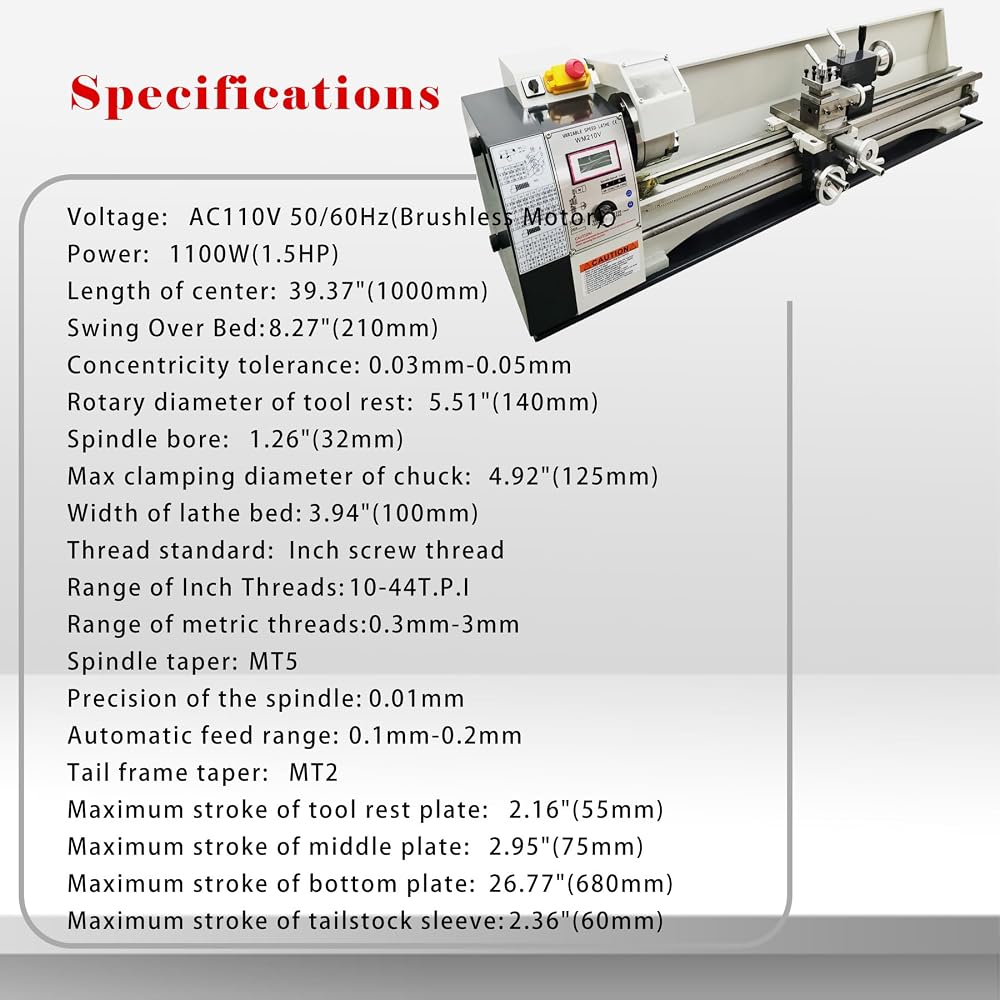

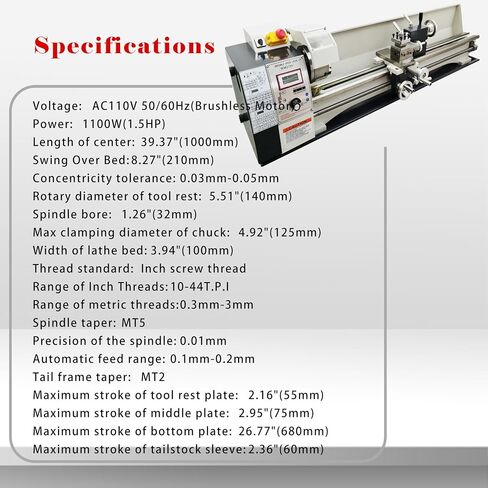

Product parameter:
Model: WM210V
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 39.37"(1000mm)
Swing Over Bed: 8.27"(210mm)
Concentricity tolerance: 0.03mm-0.05mm
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.26"(32mm)
Max clamping diameter of chuck: 4.92"(125mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Inch screw thread
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.3mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.1mm-0.2mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 57.9"*18.5"*20.1"(147cm*47cm*51cm)
Net weight/Gross weight: 178.6LB(81kg)/238.1LB(108kg)
