Optical system: Infinity chromatic aberration correction optical system
Observation tube: 30° inclined, infinity hinged trinocular 5:5 spectroscopic observation head, interpupillary distance adjustment: 54mm-75mm, unilateral diopter adjustment: ±5 curvature
Eyepiece: High Far Point WF10X20mm Eyepiece
Objective: Infinity long working distance plan achromatic metallurgical objective 5X, 10X, 20X, 50X
Nosepiece: Internally positioned 4-hole converter
Coarse and fine focusing mechanism: 1. Reflective frame, equipped with metal stage plate, low hand position coarse and fine coaxial focusing mechanism, coarse adjustment stroke 23mm, fine adjustment accuracy 0.002mm. With slack adjuster to prevent the stage from sliding down
2. Transflective frame, equipped with transflective glass stage plate, low hand position coarse and fine coaxial focusing mechanism, coarse adjustment stroke 23mm, fine adjustment accuracy 0.002mm. With slack adjuster to prevent the stage from sliding down
Stage: Double-layer mechanical moving platform, low-hand position X, Y direction coaxial adjustment; platform size 145mm × 132mm, moving range 76mm × 50mm, can be equipped with reflective metal stage plate, transflective dual-purpose glass carrier Platen
Epi-illumination system: single high-power 5WLED, reflector lamp room, warm white light, Kola illumination, with field diaphragm and aperture diaphragm, the center of diaphragm is adjustable, external wide v adapter, input 100V-240V-AC50 /60Hz, output DC12V2A
Transmission lighting system: single high-power 3WLED lamp, white light

Packing List:
1 x Microscope Body

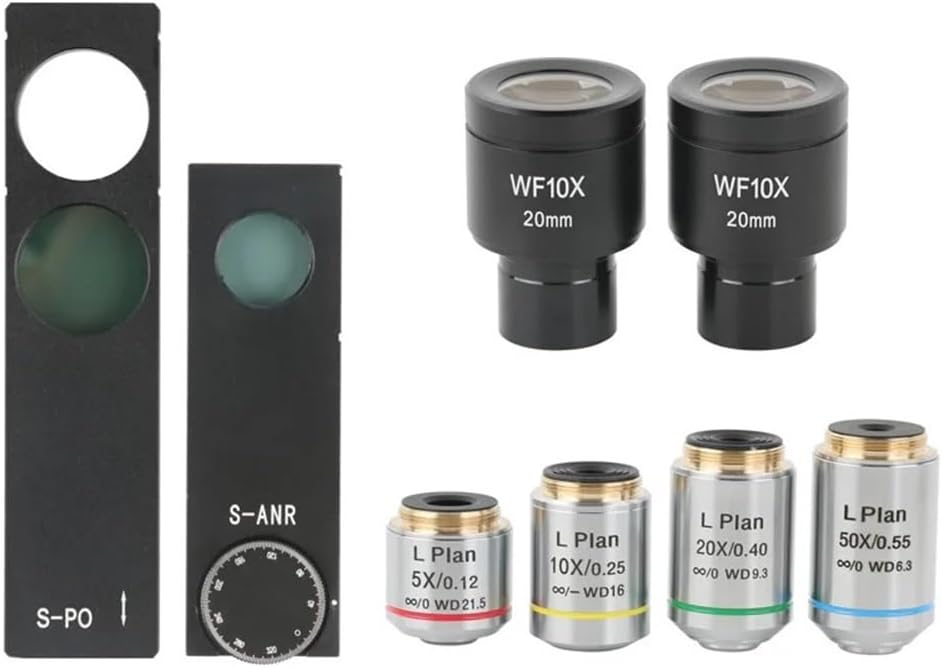

1 x 5X / 10X / 20X / 50X Objective
1 x WF10X/20mm Eyepiece(Mounting:23.2mm)
1 x Polarizer
1 x Power Adapter
1 x 0.5X C-mount Adapter
1 x Lamp

Optional accessories:

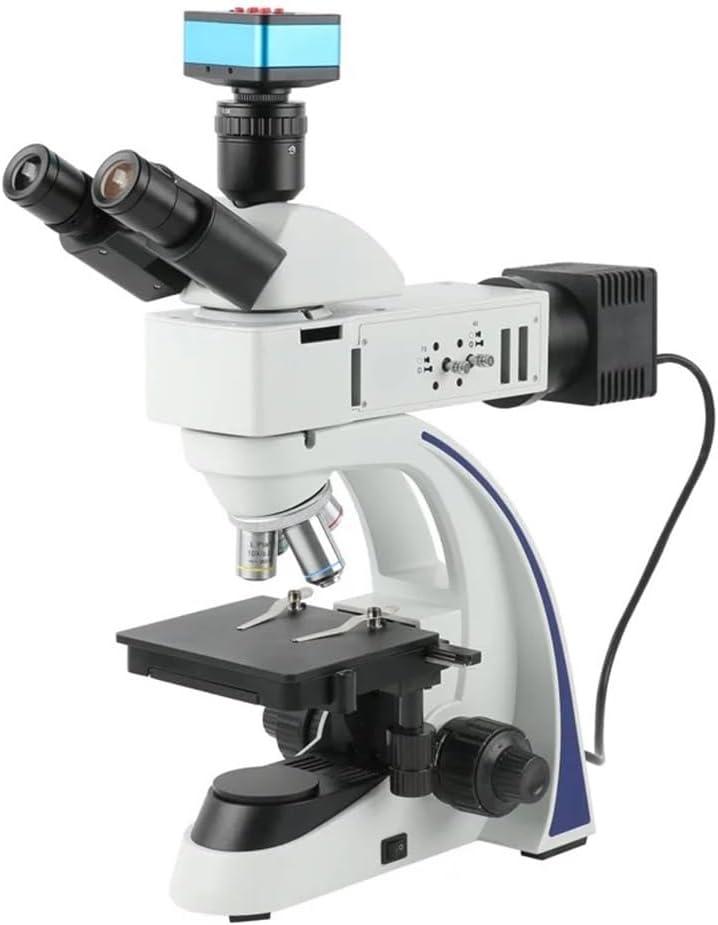

1 x Camera(according to your choice).
