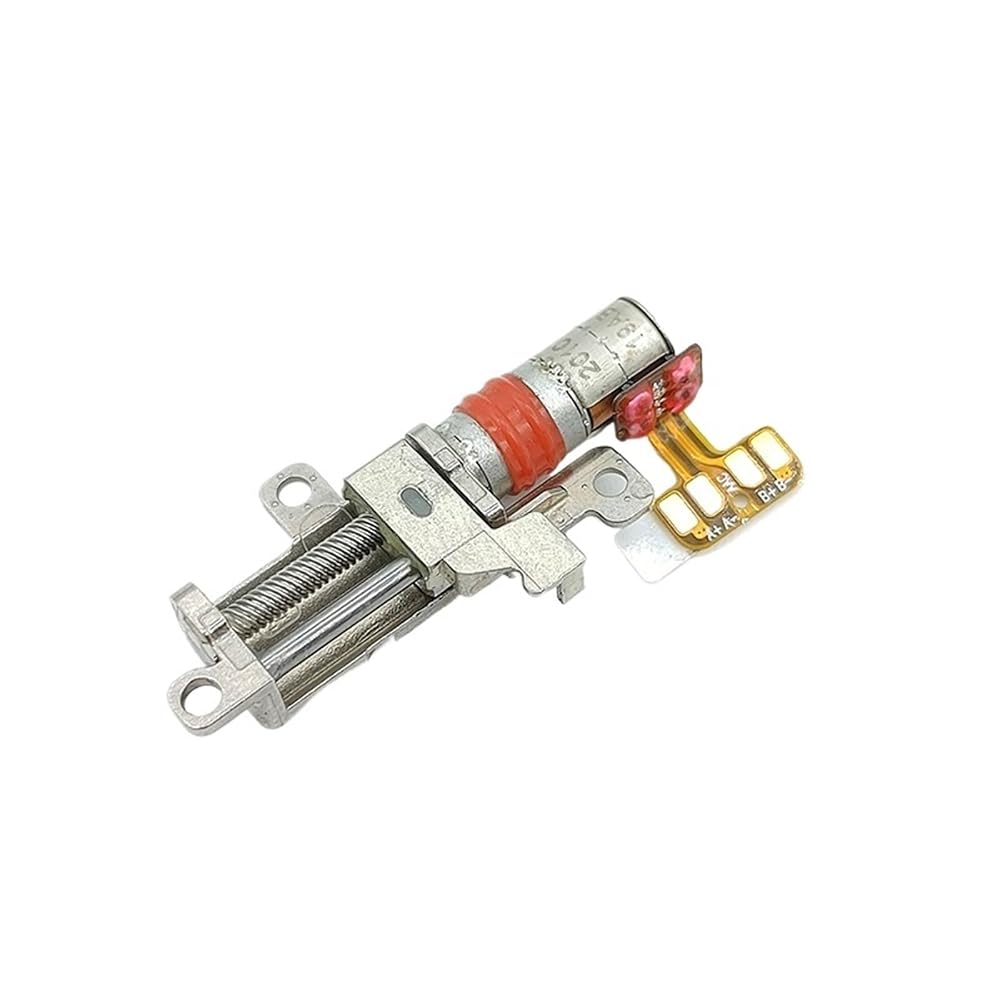

Industrial Motors
Parameters:
1.Stepper motor diameter: 5mm
2.Gear motor length: 12.1mm
3.Nut stroke: about 8.5mm
4.Total length: 30.4mm(motor+slider)
5.Total width: 15.2mm
6.Planetary gearbox: Secondary metal planetary gear
7.Gear ratio: 1:20
8.Phase resistance: 14 ohms (Parameters on the test report)
9. Working voltage: DC 5V
10.Output torque: 300g (Parameters on the test report)
11.Weight: about 3.5g
1.Moving block stroke: about 11.5mm
2.Motor phase resistance: about 10.2 ohms
3.Motor type: 2-Phase 4-Wire Stepper Motor (Requires additional stepper motor driver)
4.Weight: 5.3g
============================
Package List:
Mini Stepper Motor x 1PCS
Model Number : Mini 5mm Gear Stepper Motor
Protect Feature : Explosion-proof
Type : Micro Motor
Stepper motor diameter : 5mm
Gear ratio : 1:20
Type : 2-Phase 4-Wire
Phase resistance : 14 ohms
