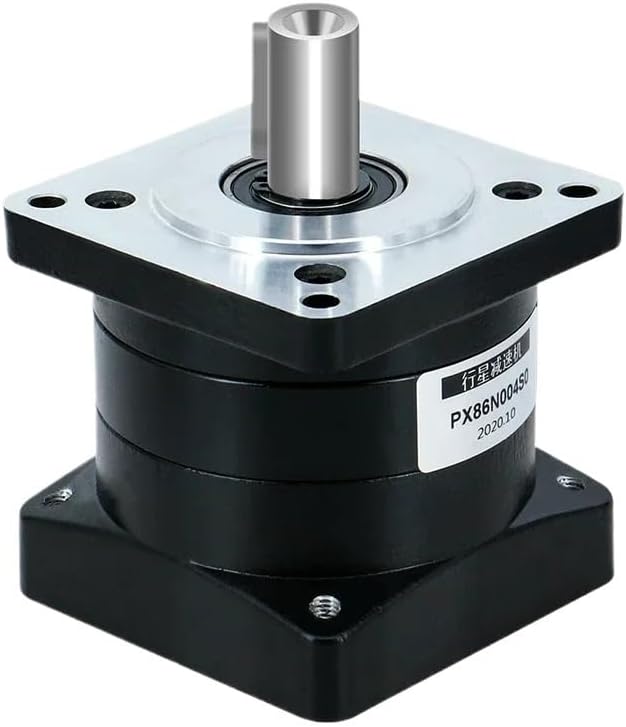

Planetary Gear Reducer PX86 Planetary Reducer Speed Ratio 52/64/96/100/120/150/144/180/216 Maximum 60N.m Input 14mm(100 to 1) in Kuwait Planetary Gear Reducer PX86 Planetary Reducer Speed Ratio 52/64/96/100/120/150/144/180/216 Maximum 60N.m Input 14mm(100 to 1) in Kuwait

Planetary Gear Reducer PX86 Planetary Reducer Speed Ratio 52/64/96/100/120/150/144/180/216 Maximum 60N.m Input 14mm(180 to 1) 100 to 1

KWD 152.500
ماركة
XOXISQHY
وزن
349 g
مقاس100 إلى 1
– 1 +

مميزات خاصة

  • Motors
  • High-efficiency transmission:All through the gear precision meshing to reduce energy loss; suitable for long-term high load operation
  • Compact structure:Space-saving design reduces the size of the reducer; suitable for narrow installation environments
  • Flexible transmission ratios:Wide range of single-stage ratios; higher ratios can be realized with multi-stage combinations; suitable for diverse needs
  • Stable operation and low noise:Iow continuous vibration; reduced impact; low noise

وصف

Motors
Torque: 60-100N.m
Model: PX86
Reduction ratio: 52/64/96/100/120/150/144/180/216
Body length: 109 mm
Return gap: 35
Input speed: 3000rpm
Protection level: IP65
Lifespan: 20000H
Input shaft: 14mm with 5mm keyway
Output shaft: 16mm with 5mm keyway
