Specification:

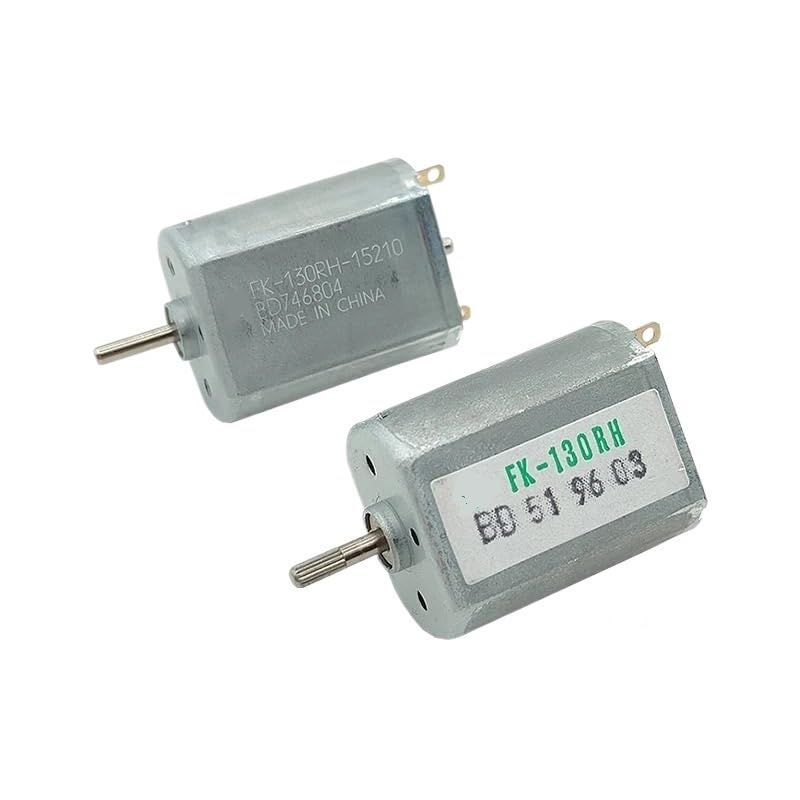

Model A: FK-130RH-09490
2.Model: FK-130RH-09490
3.Motor size: 20.25mm*15.4mm
4.Motor height: 25mm
5.Output shaft diameter: 2.0mm / 2.1mm(Knurled shaft)
6.Output shaft length: 8mm (not include step height)
7.Weight: 25g
8.Voltage range: DC 3.0V-24.0V
9.Test data:
Voltage:3.0V No-load speed:1800RPM No-load current:25mA
Voltage:6.0V No-load speed:4200RPM No-load current:27mA
Voltage:12.0V No-load speed:9000RPM No-load current:27mA
Voltage:18.0V No-load speed:13000RPM No-load current:38mA
Voltage:24.0V No-load speed:17500RPM No-load current:55mA
=====================
Model B: FK-130RH-15210
2.Model: FK-130RH-15210
3.Motor size: 20.3mm*15.4mm
4.Motor height: 25.2mm
5.Output shaft diameter: 2.0mm
6.Output shaft length: 7.9mm (not include step height)
7.Weight: 25g
8.Voltage range: DC 3V-12V
9.Test data:
Voltage:3.0V No-load speed:5500RPM No-load current:65mA
Voltage:6.0V No-load speed:11500RPM No-load current:75mA
Voltage:9.0V No-load speed:17500RPM No-load current:85mA
Voltage:12.0V No-load speed:23500RPM No-load current:99mA
=====================
Package List:
Motor x 1PCS
==========
Usage : Home Appliance
Model Number : 130 Motor
Construction : Permanent Magnet
Commutation : Brush
Efficiency : IE 1
Origin : China
Certification : ce
Model Number : FK-130RH
