8"*39" Precision Metal Bench Lathe RC-210E Electronic Pulse Lathe 50-2500rpm Variable Speed Metric/Imperial Thread 110V 1100W in Kuwait 8"*39" Precision Metal Bench Lathe RC-210E Electronic Pulse Lathe 50-2500rpm Variable Speed Metric/Imperial Thread 110V 1100W in Kuwait 8"*39" Precision Metal Bench Lathe RC-210E Electronic Pulse Lathe 50-2500rpm Variable Speed Metric/Imperial Thread 110V 1100W in Kuwait 8"*39" Precision Metal Bench Lathe RC-210E Electronic Pulse Lathe 50-2500rpm Variable Speed Metric/Imperial Thread 110V 1100W in Kuwait 8"*39" Precision Metal Bench Lathe RC-210E Electronic Pulse Lathe 50-2500rpm Variable Speed Metric/Imperial Thread 110V 1100W in Kuwait

8"*39" Precision Metal Bench Lathe RC-210E Electronic Pulse Lathe 50-2500rpm Variable Speed Metric/Imperial Thread 110V 1100W

KWD 816
ماركة
Banfluxion
فئة
مخارط
وزن
107.5 kg
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Inch/Metric Thread Switch: This metal lathe can switch between metric and inch thread automatically. Users can operate just through the panel without the need of changing gears, which is more convenient
  • Automatic Feed: This metal lathe can achieve automatic feed in the X axis direction. The self-acting feed speed can be set through the panel, and the automatic feed range is 0.01mm-0.4mm
  • Precision Processing: Precise metric are provided on the saddle handle, the tailstock handle and the movable center, allowing for more accurate and professional work. The metal lathe uses high-precision three-jaw chucks with 125mm clamping diameter to clamp square and round materials firmly

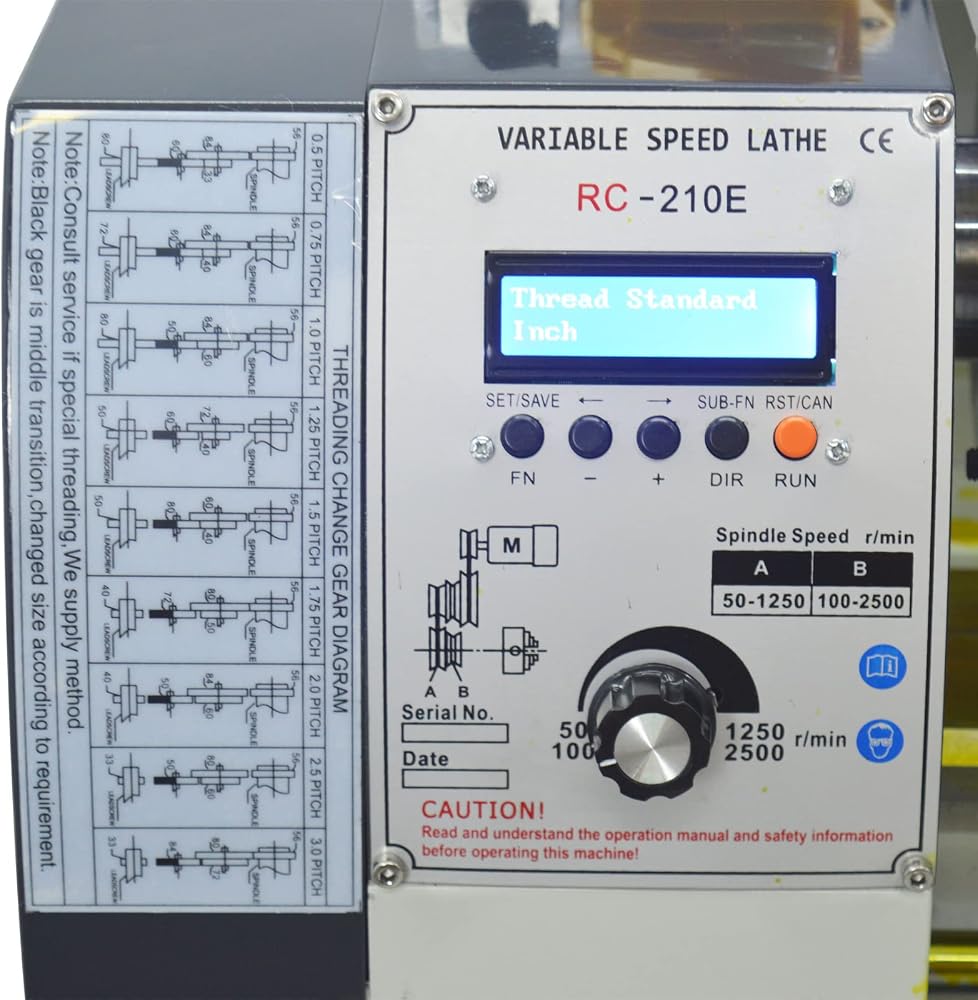

  • Adjustable Spindle Rotation Speed: The spindle rotation speed is divided into two adjustable gears: 50-1250 rpm and 1250-2500rpm, which can be displayed on the control panel in real time
  • Wide Application: This metal lathe can be applied for turning end face, internal and external thread, Buddha beads, as well as drilling, chamfering, cutting and other processing, which can meet most of your DIY processing needs

وصف

Product Parameters
Model: RC-210E
Voltage: AC110V 50/60Hz(Brushless Motor)
Power: 1100W(1.5HP)
Length of center: 39.37"(1000mm)
Swing Over Bed: 8.27"(210mm)
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: 1.50"(38mm)
Diameter of chuck: 4.92"(125mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 10-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)
Package size: 57.9"*18.5"*20.1"(147cm*47cm*51cm)
Net weight/Gross weight: 172.0LB(78kg)/238.1LB(108kg)
