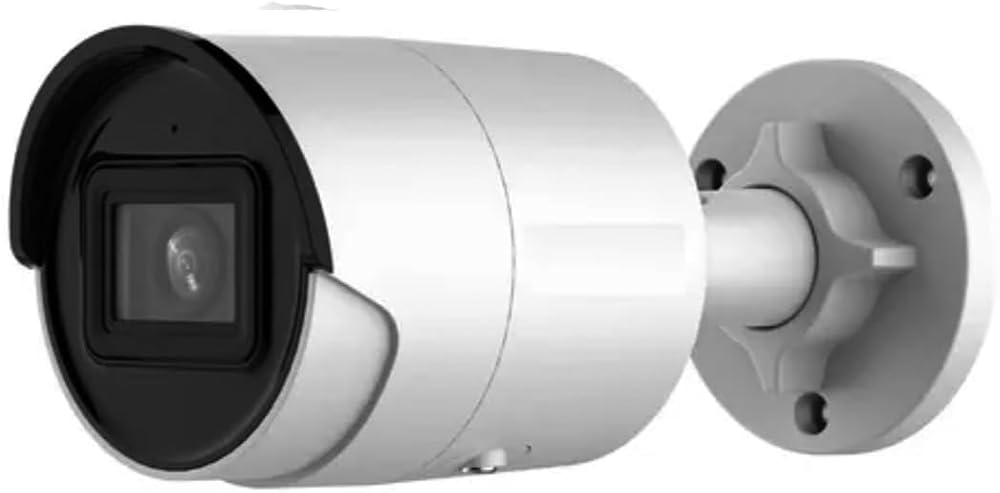

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens: 2.8 mm @F1.6: horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 256Kbps~16Mbps
Triple Streams: Yes
Max. Image Resolution: 3840 × 2160
Frame Rate: 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Camera: Φ 70 × 155.03 mm (Φ 2.8" × 6.1")
Weight: Camera 0.9 lb
