### YT1020 940nm & 1400nm Infrared Transmittance Tester
**High-precision portable optical transmittance meter, fast and accurate measurement of transparent material transmittance**

YT1020 uses four light sources for measurement, which can detect **visible light (380nm-760nm), infrared light (940nm & 1400nm peak), infrared full band**, suitable for transmittance analysis of transparent materials such as glass and film. The sensor uses **silicon photodiode**, combined with professional algorithm calibration to ensure measurement speed, accuracy, stability and consistency.

The device automatically calibrates when it starts, and the measurement data can be obtained within **0.5 seconds** after the test material is placed in the measuring slot. It is widely used in **glass, film, optical material** transmittance and shading coefficient analysis.
#### Specifications
**Model**: YT1020

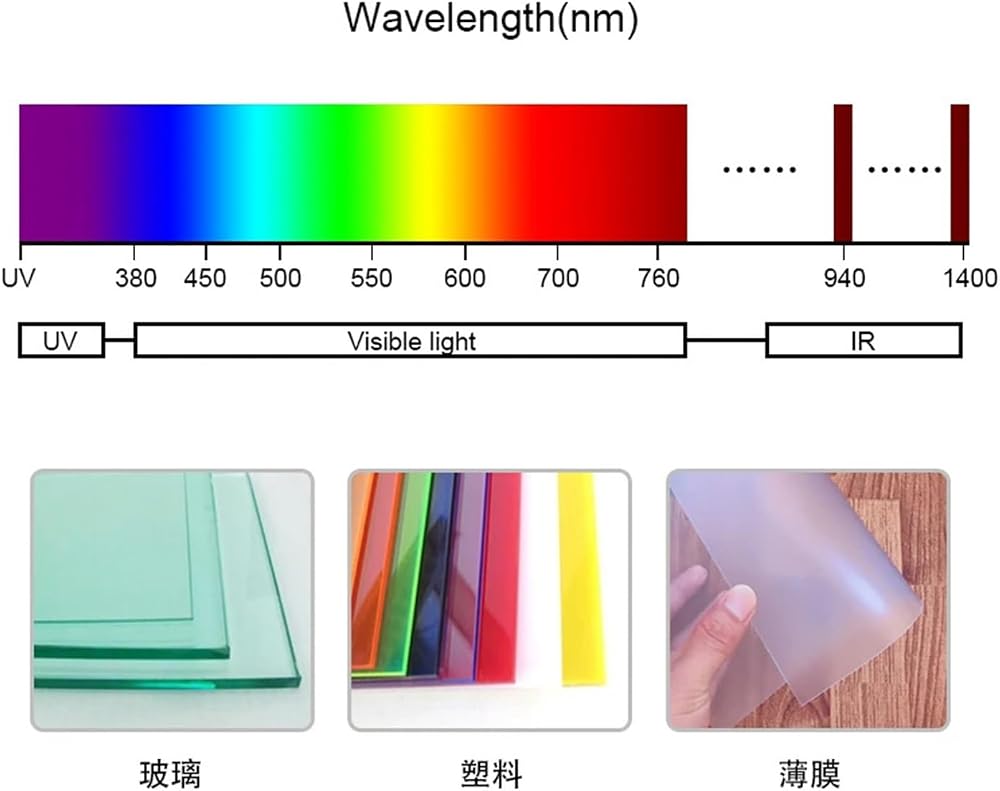

**Measurement wavelength range**: visible light **380nm-760nm**, infrared light **940nm, 1400nm, full infrared band**
**Measurement accuracy**: better than **±1.5%** (uniform transparent material), standard sample test can reach **±1%**
**Resolution**: **0.10%**
**Measurement time**: **About 0.5 seconds**

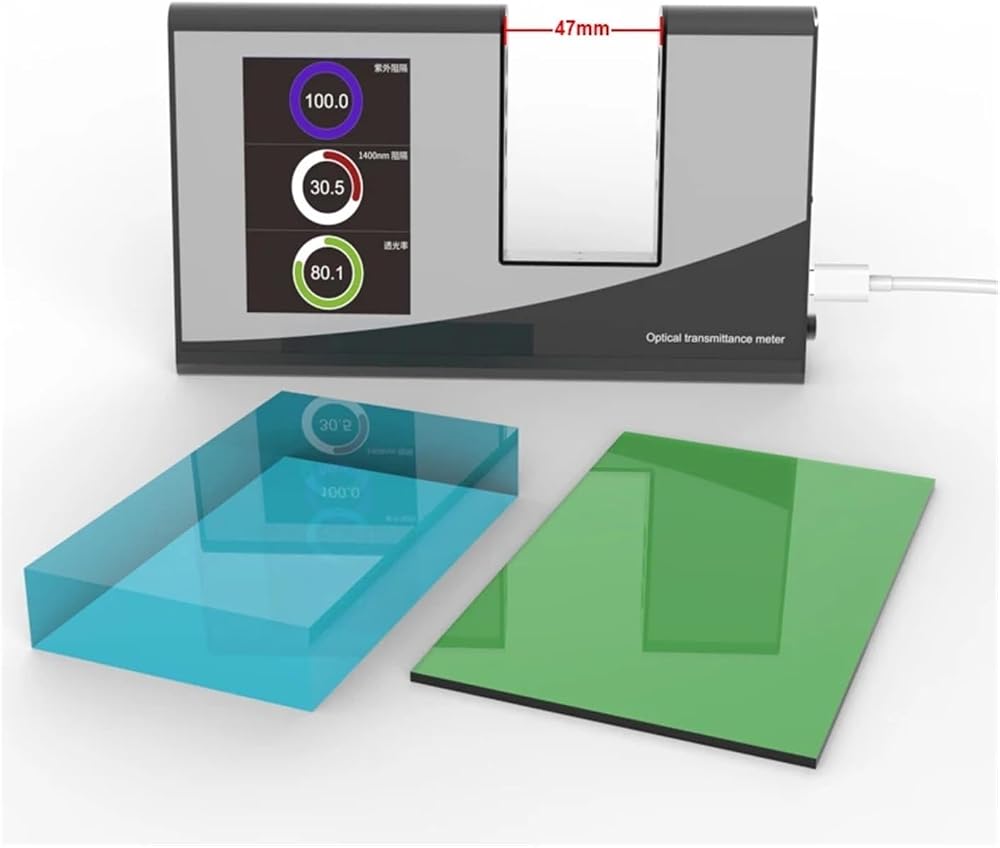

**Sample thickness limit**: **≤47mm**
**Power supply**: **5V DC (Type-C)**
**Light source life**: **≥5 years, supports 3 million+ measurements**

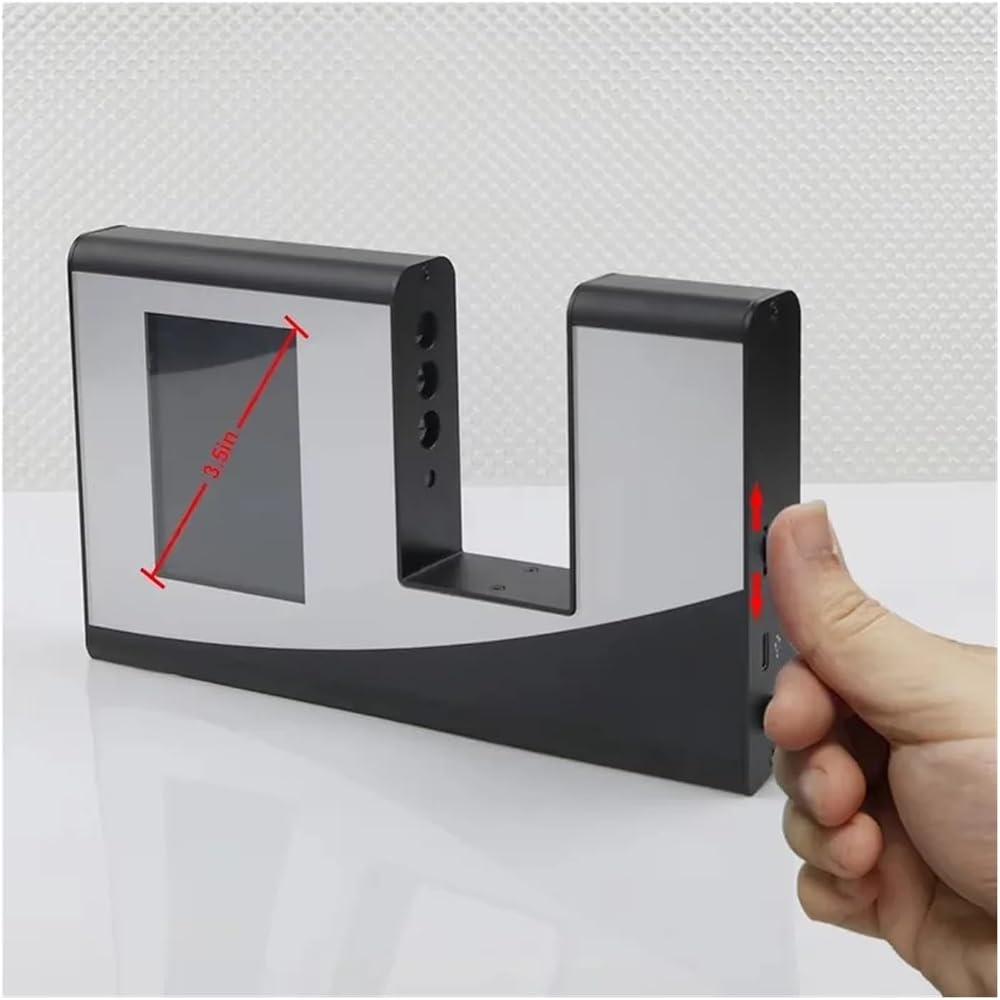

**Display**: **3.5-inch TFT true color display**

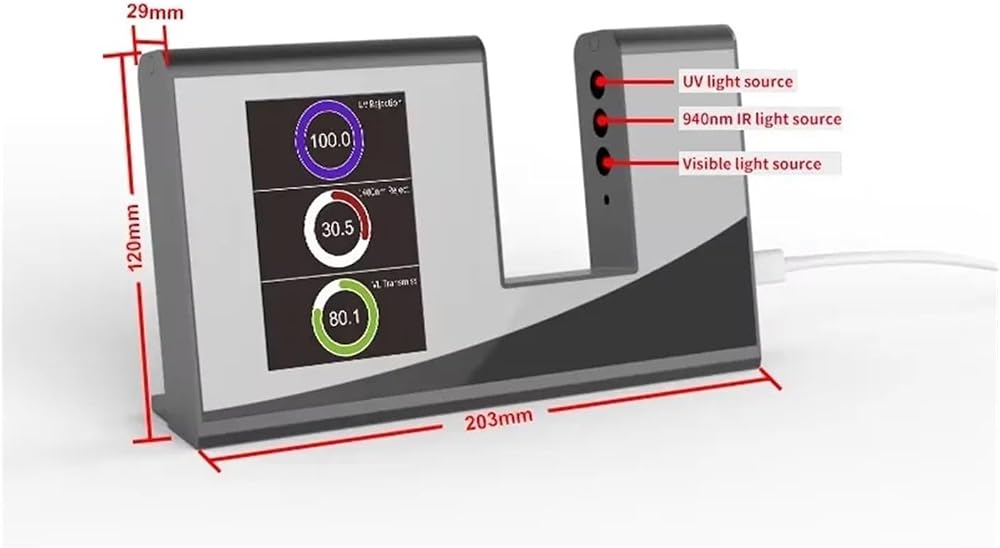

**Device size**: **203 × 120 × 29mm**
**Device weight**: **515g**
**Interface**: **USB**
**Supported languages**: **Simplified Chinese/English**
**Working environment**: **0~40℃, humidity ≤85%RH (no condensation), altitude ≤2000m**
**Storage environment**: **-20~50℃, humidity ≤85%RH (no condensation)**

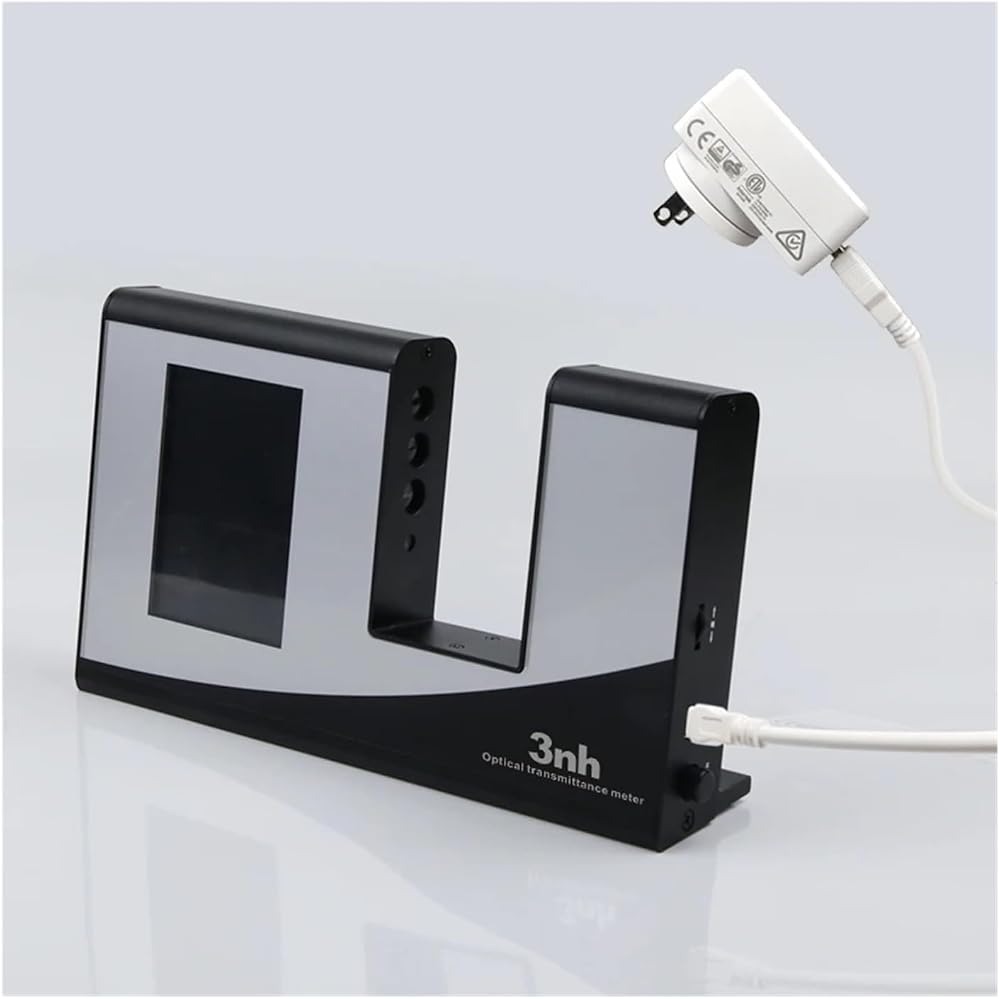

**Standard accessories**: **Power adapter, data cable, manual**

#### Application scenarios
- **Glass & film transmittance detection**
- **UV curing & equipment analysis**
- **Architectural glass & car window film measurement**
- **Optical coating research & shading coefficient analysis**
- **Sunlight & infrared transmission characteristics detection**

**Technical parameters are for reference only, please refer to the actual product. **
