Tydeey 35mm Concealed Hinge Jig for Cabinet Doors, Aluminum Hinge Drilling Guide with Depth Adjustment, 3–4 Inch Edge Distance Arm, Dust Port & Toggle Clamp

KWD 25
Brand
Tydeey
Category
Jig Accessories
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

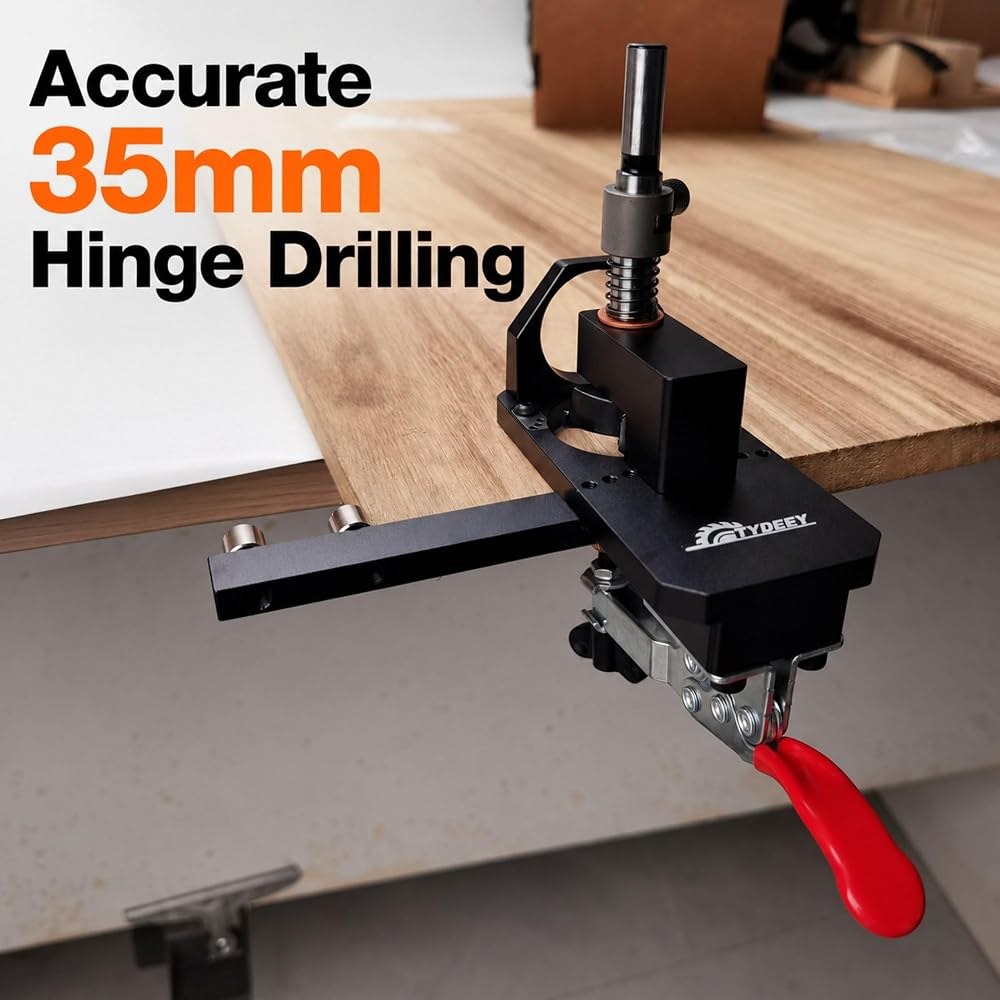

  • Accurate 35mm Hinge Drilling – This concealed hinge jig helps you drill clean and consistent 35mm hinge cup holes for cabinet doors, kitchen cabinets, wardrobes, and furniture projects.

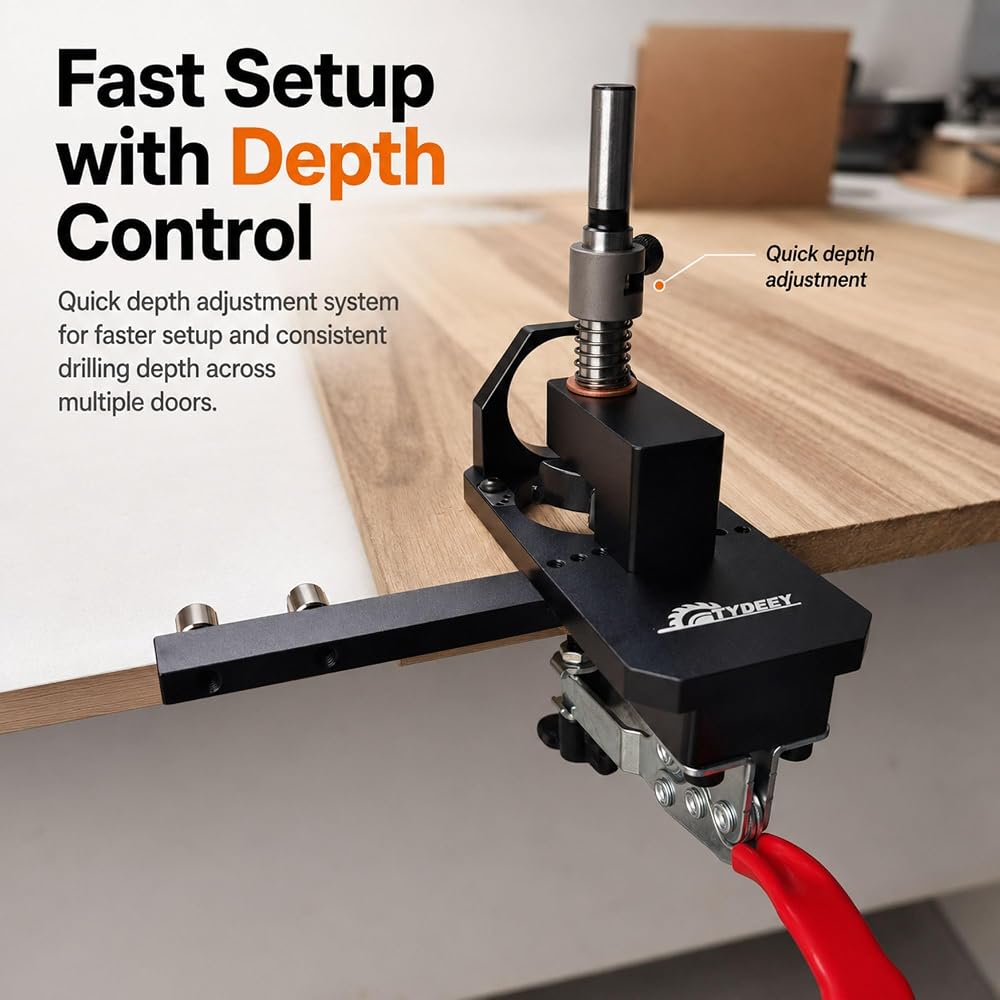

  • Fast Setup with Depth Control – The hinge drilling guide includes a quick depth adjustment system, helping you set the drilling depth faster and keep the same result across multiple doors.

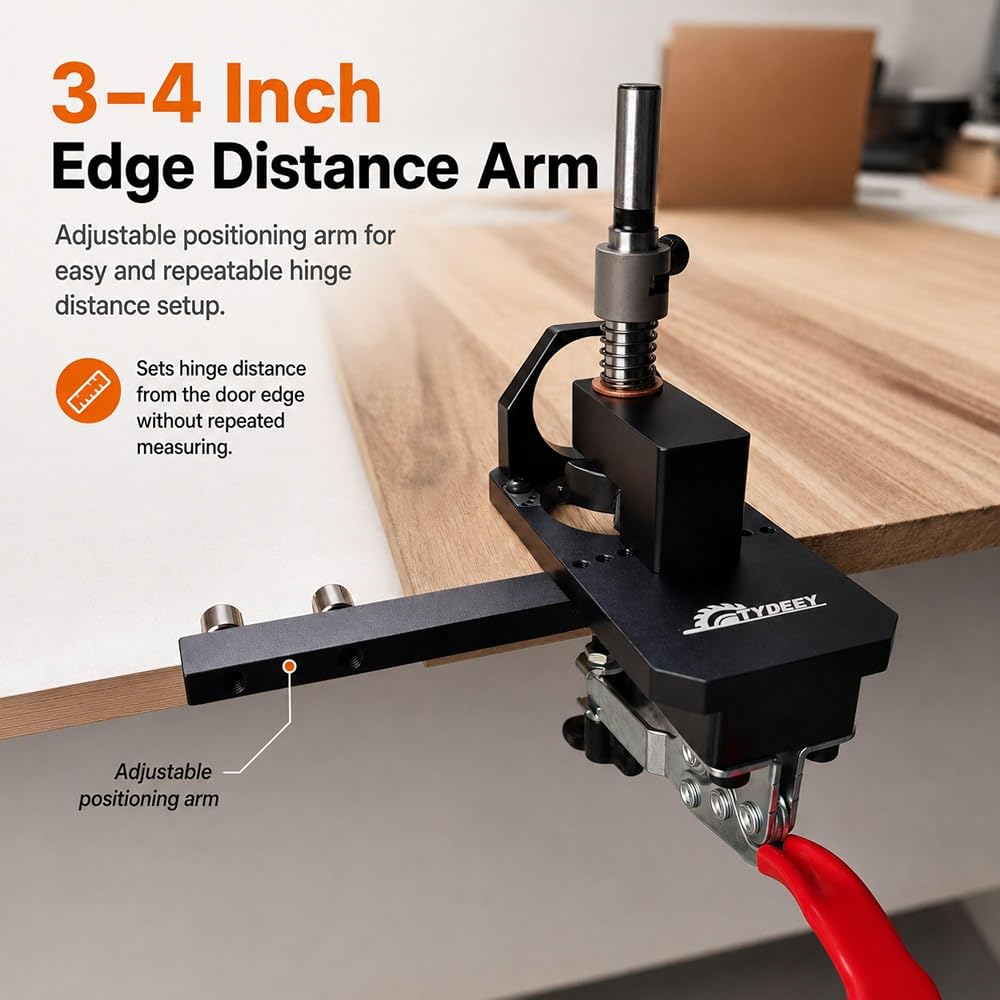

  • 3–4 Inch Edge Distance Arm – The adjustable positioning arm helps you set the hinge distance from the door edge without repeated measuring, making cabinet hinge installation easier and more repeatable.
  • Dust Extraction Port Design – The rear circular opening allows connection to a dust suction tube or vacuum hose, helping collect wood chips while drilling and keeping the work area cleaner.
  • Stable Clamp for Better Control – The built-in toggle clamp helps hold the cabinet door hinge jig firmly in place while drilling, reducing movement and helping improve drilling accuracy.

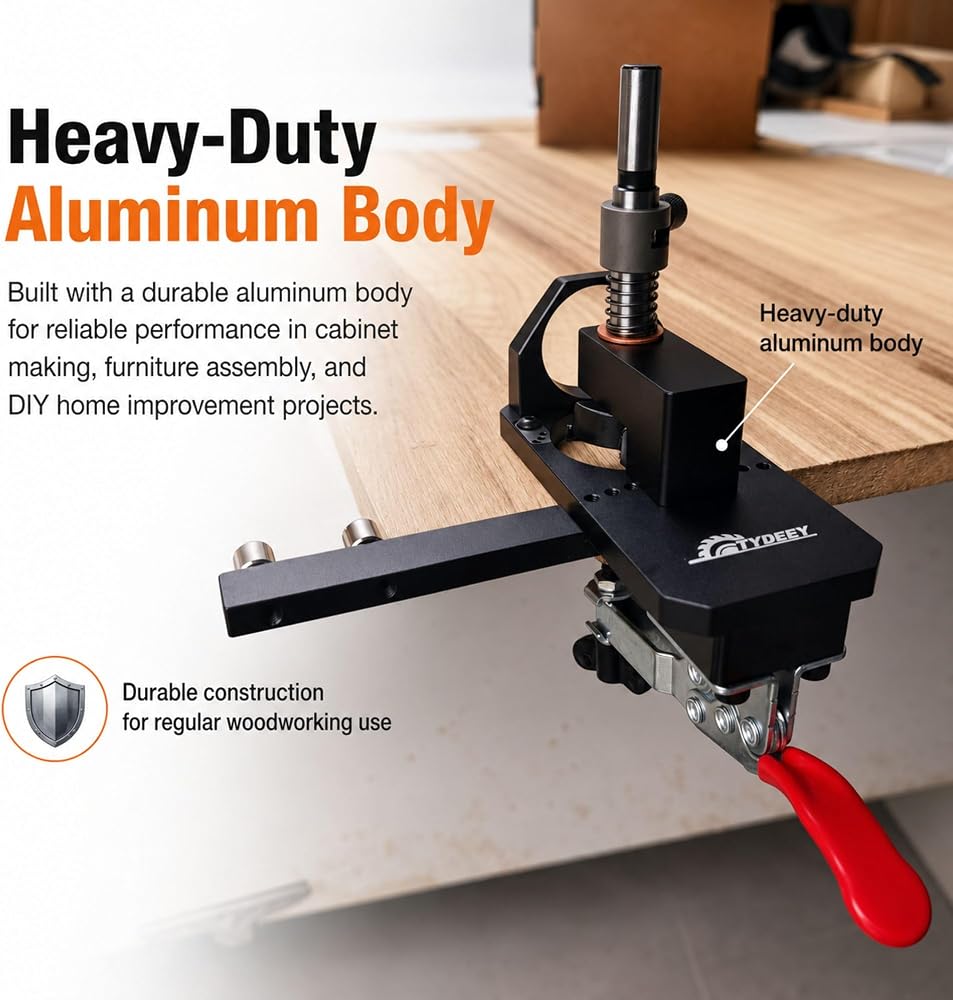

  • Heavy-Duty Aluminum Body – Made with a durable aluminum body, this woodworking hinge jig is built for regular use in cabinet making, furniture assembly, and DIY home improvement projects.

Description

Tydeey 35mm Concealed Hinge Jig
The Tydeey 35mm Concealed Hinge Jig is designed to help you drill accurate hinge cup holes for cabinet doors, kitchen cabinets, wardrobes, and furniture projects.

Accurate 35mm Hinge Drilling
This cabinet hinge jig helps you position and drill standard 35mm concealed hinge holes with better control and repeatable results. It is useful for professional woodworkers, cabinet installers, and DIY users who want cleaner hinge installation without measuring every door again and again.

Quick Depth Adjustment
The built-in depth adjustment system helps you control drilling depth for more consistent hinge holes. This makes it easier to get repeatable results when installing multiple cabinet door hinges.

Adjustable 3–4 Inch Edge Distance Arm
The positioning arm helps set the correct distance from the cabinet door edge. This reduces repeated measuring and helps improve alignment during concealed hinge installation.

Dust Extraction Port
The rear circular dust port allows connection to a dust suction tube or vacuum hose while drilling. This helps collect wood chips and dust during use, keeping the work area cleaner and making hinge drilling more convenient.

Stable Toggle Clamp
The built-in toggle clamp helps secure the jig firmly on the workpiece. This reduces movement while drilling and gives you better control during cabinet door hinge installation.

Heavy-Duty Aluminum Construction
Made with a durable aluminum body, this woodworking hinge jig is built for regular use in cabinet making, furniture assembly, woodworking projects, and home improvement work.

Suitable Applications
This concealed hinge drilling jig is suitable for cabinet doors, kitchen cabinet hinges, wardrobe doors, furniture assembly, general woodworking, and DIY cabinet projects. It can be used as a 35mm hinge drill guide, cabinet hinge installation tool, concealed hinge jig, hinge boring jig, woodworking drill guide, and cabinet door hinge drilling template.

Key Features
35mm concealed hinge drilling
Quick drilling depth adjustment
3–4 inch adjustable edge distance positioning
Rear dust suction port for cleaner drilling
Heavy-duty aluminum body
Stable toggle clamp
Repeatable setup for multiple cabinet doors
