SM-210E Precision Benchtop Metal Lathe 8.27 x 15.75 in | 1100W 110V, Variable Speed 50-2500rpm, Metric/Imperial Threading, Auto Feed & Electronic Gear Change for DIY Hobby Workshop in Kuwait

SM-210E مخرطة معدنية دقيقة توضع على الطاولة مقاس 8.27 × 15.75 بوصة | 1100 وات 110 فولت، سرعة متغيرة 50-2500 دورة في الدقيقة، خيوط مترية/إمبراطورية، تغذية تلقائية وتغيير تروس إلكتروني لورشة الهوايات التي يمكنك صنعها بنفسك

KWD 764

ماركة
DINENOVATE: فئة
مخارط: وزن
82 kg

الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء

مميزات خاصة

Automatic switching between metric and inch systems: The lathe switches between metric and inch measurement systems without changing gears, meeting processing needs across various scenarios
X-axis auto feed: X-axis provides automatic feed without manual operation, reducing errors. Auto feed speed is adjustable from 0.01mm to 0.4mm
Three start modes: The lathe offers three start modes: manual start, automatic start, and delayed automatic start, adapting to different processing scenarios and operating habits

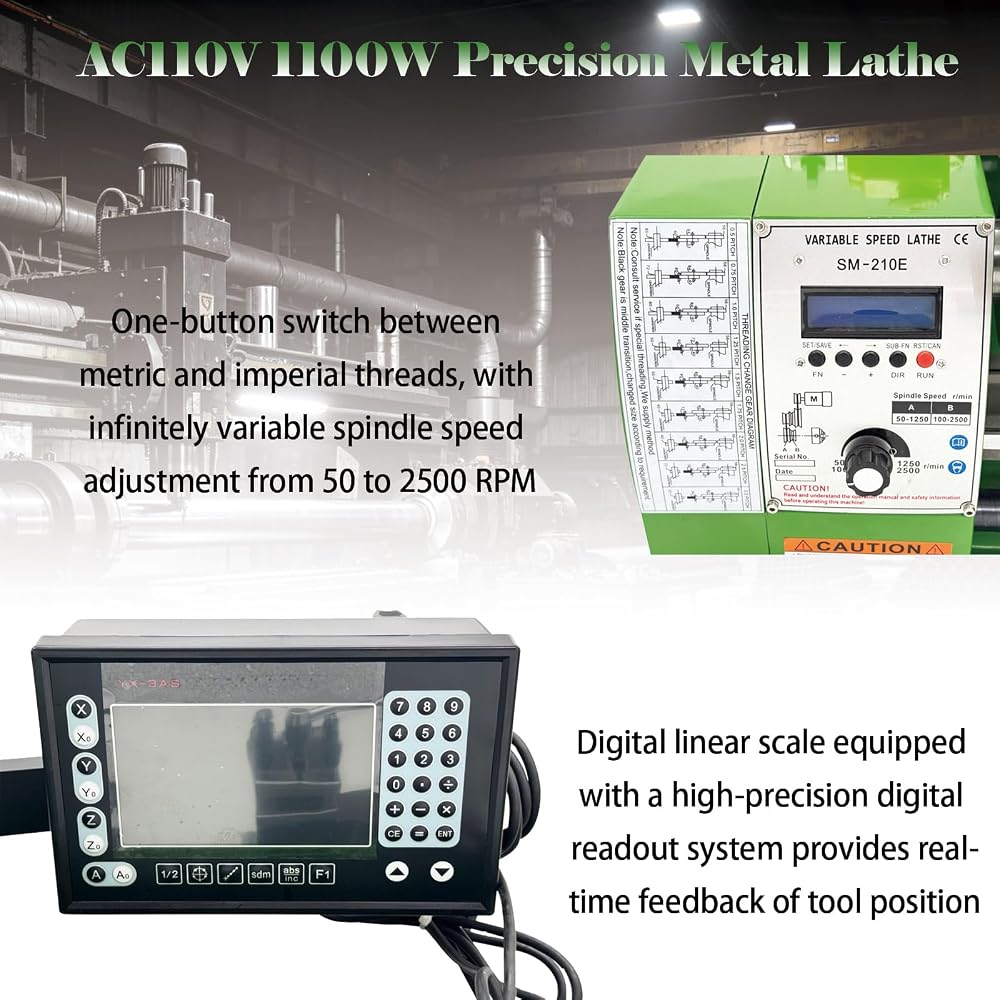

High expandability: The unit is additionally equipped with a 0.005mm digital grating scale, providing reliable support for high-precision measurement and positioning. It provides real-time feedback on machining dimensions for accurate monitoring of the machining process
Wide application: A professional bench lathe with high rigidity, reliable precision machining, and good safety. Suitable for practical teaching in education and innovation fields, batch production in small workshops, precision repair in repair shops, and creative projects for DIY hobbyists, providing a professional-level machining solution for different user groups

وصف

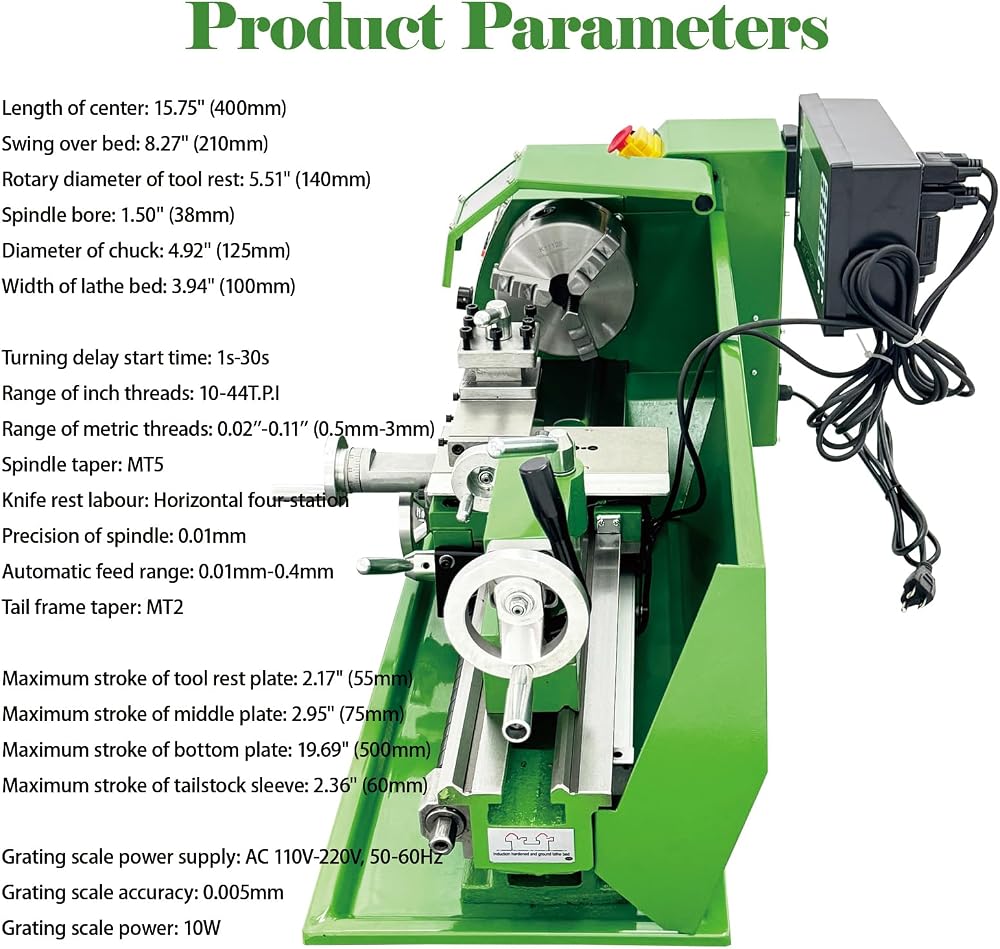

Product Parameters:
Voltage: AC110V
Power: 1100W
Length of center: 15.75" (400mm)
Swing over bed: 8.27" (210mm)
Rotary diameter of tool rest: 5.51" (140mm)
Spindle bore: 1.50" (38mm)
Diameter of chuck: 4.92" (125mm)
Width of lathe bed: 3.94" (100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of spindle speeds: Infinitely variable speeds
Range of inch threads: 10-44T.P.I
Range of metric threads: 0.02''-0.11'' (0.5mm-3mm)
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.17" (55mm)
Maximum stroke of middle plate: 2.95" (75mm)
Maximum stroke of bottom plate: 19.69" (500mm)
Maximum stroke of tailstock sleeve: 2.36" (60mm)
Grating scale power supply: AC 110V-220V, 50-60Hz
Grating scale accuracy: 0.005mm
Grating scale power: 10W

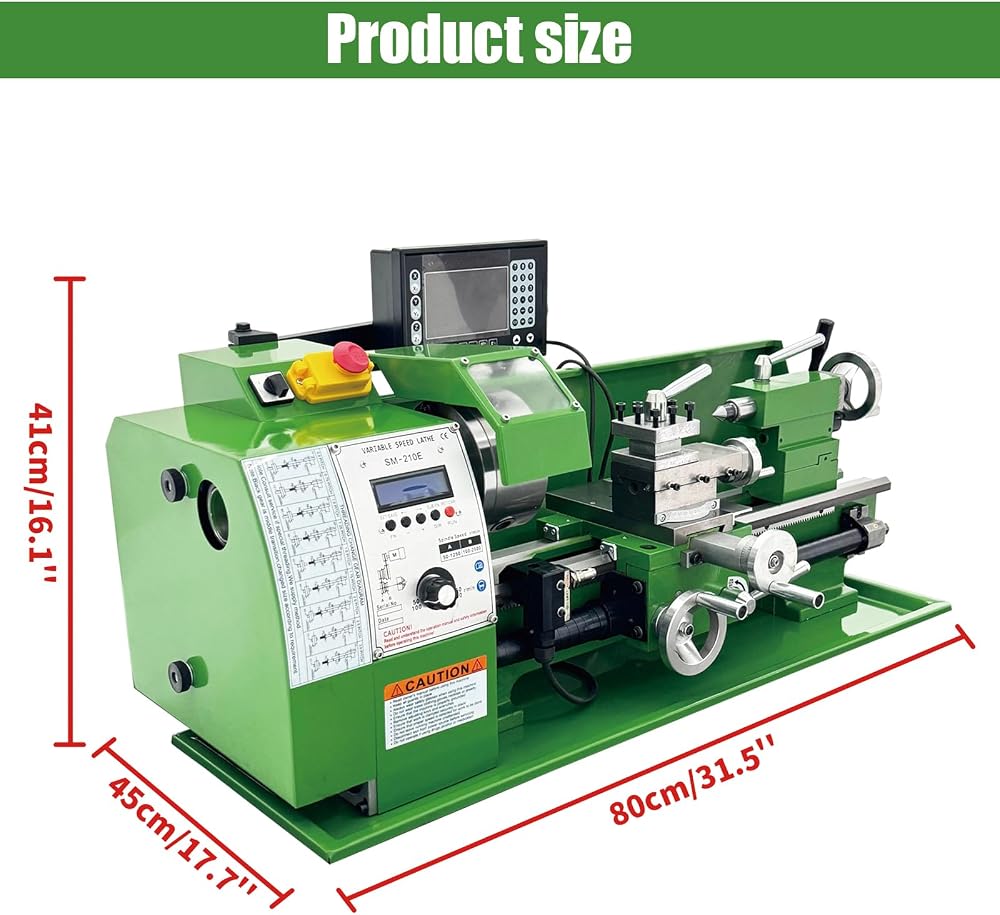

Packing dimension: 35.83*18.50*17.32 inches (91*47*44cm)
Total net weight / Total gross weight: 153.2LB (69.5kg) / 180.8LB (82kg)

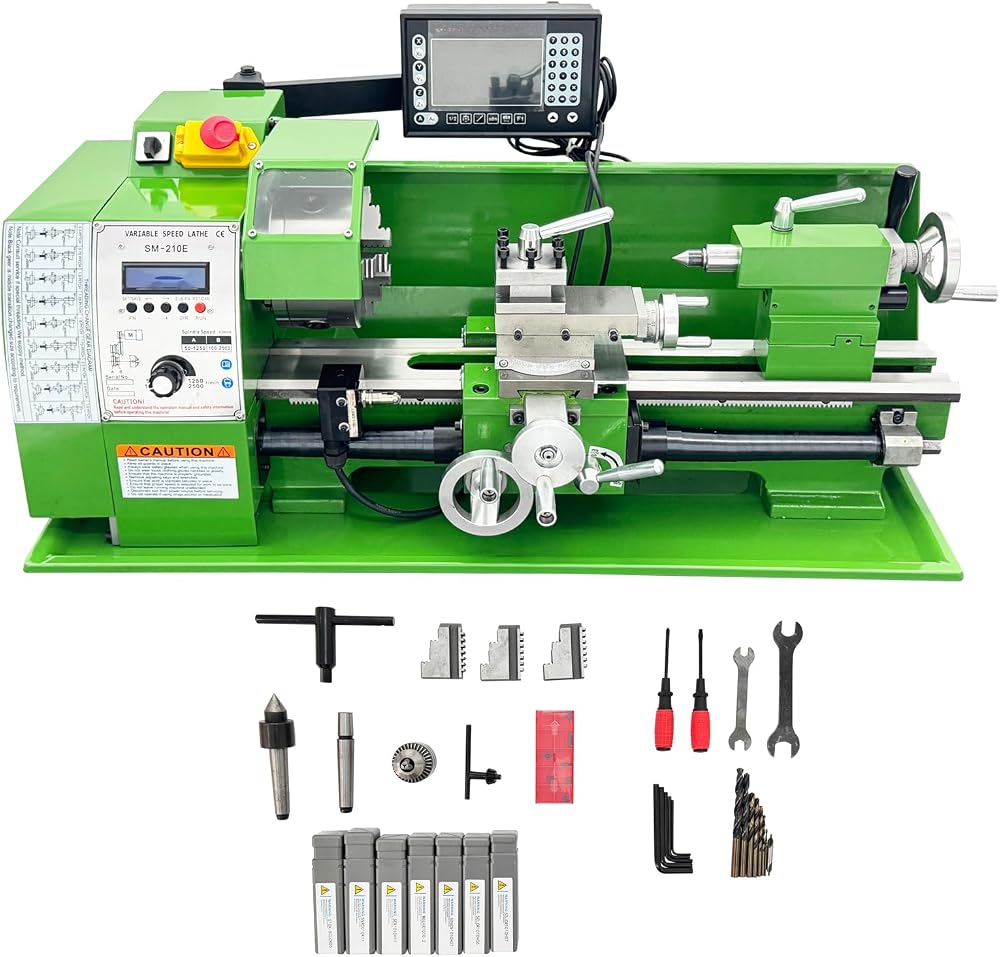

Item Included (028234)
Precision Instrument Metal Lathe 110V*1
