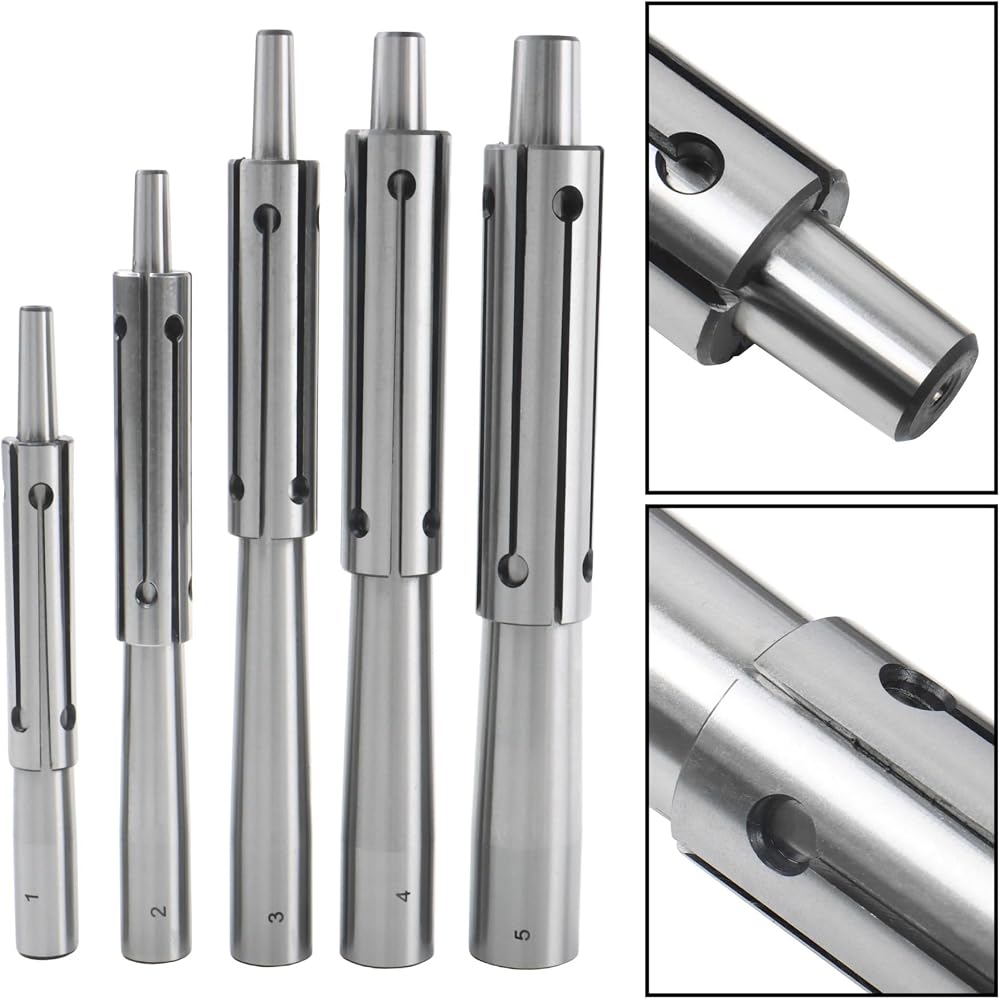

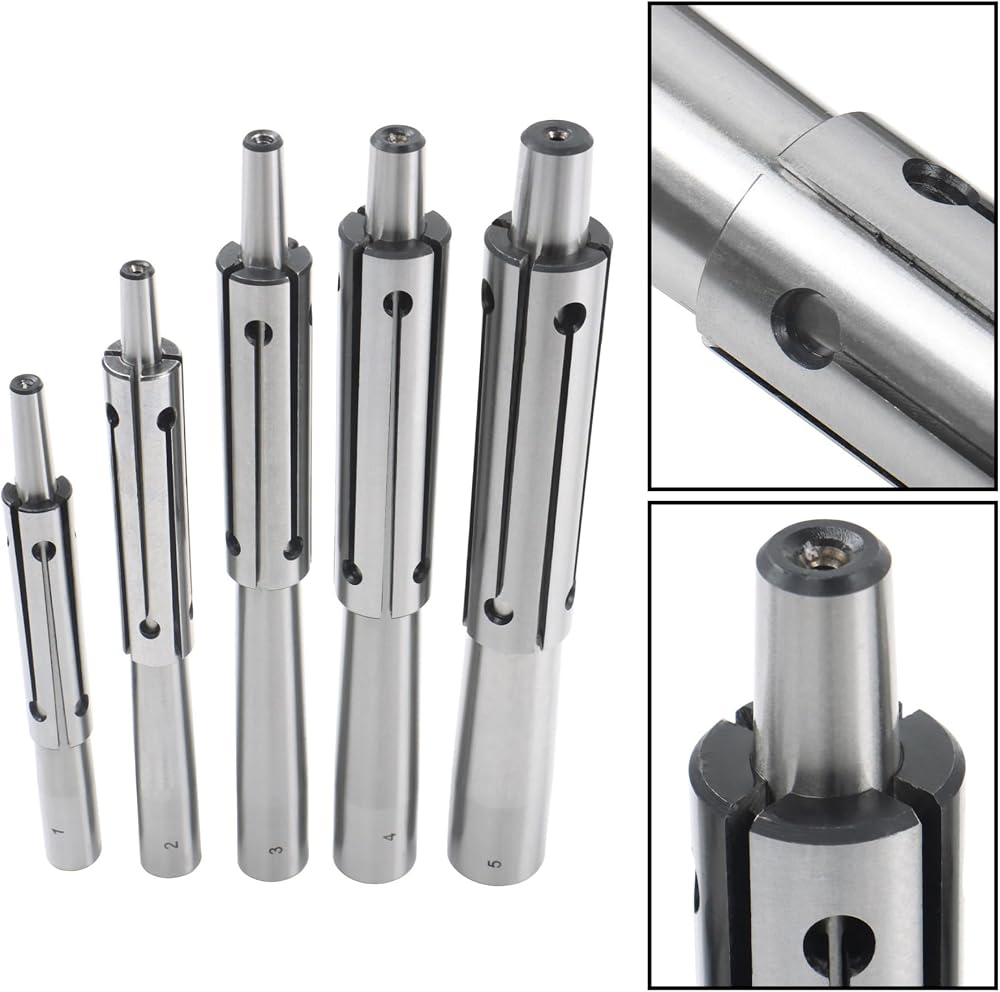

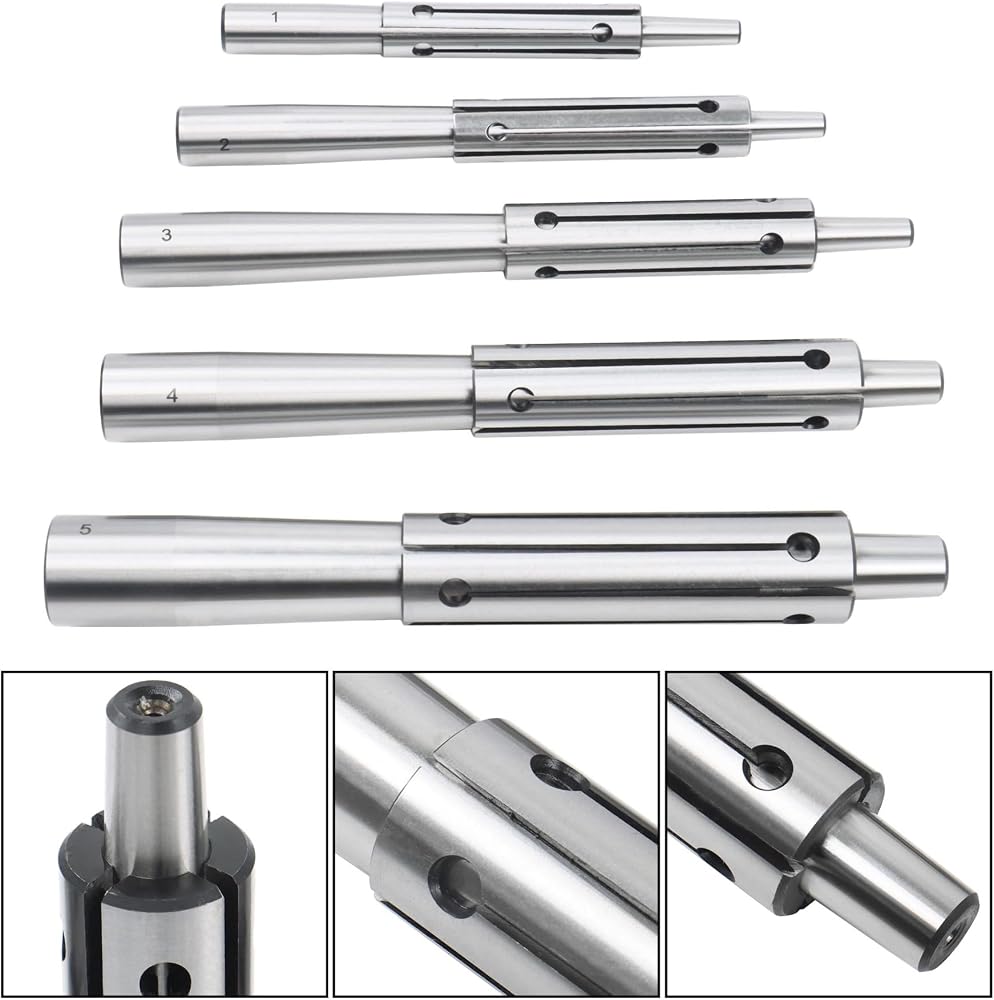

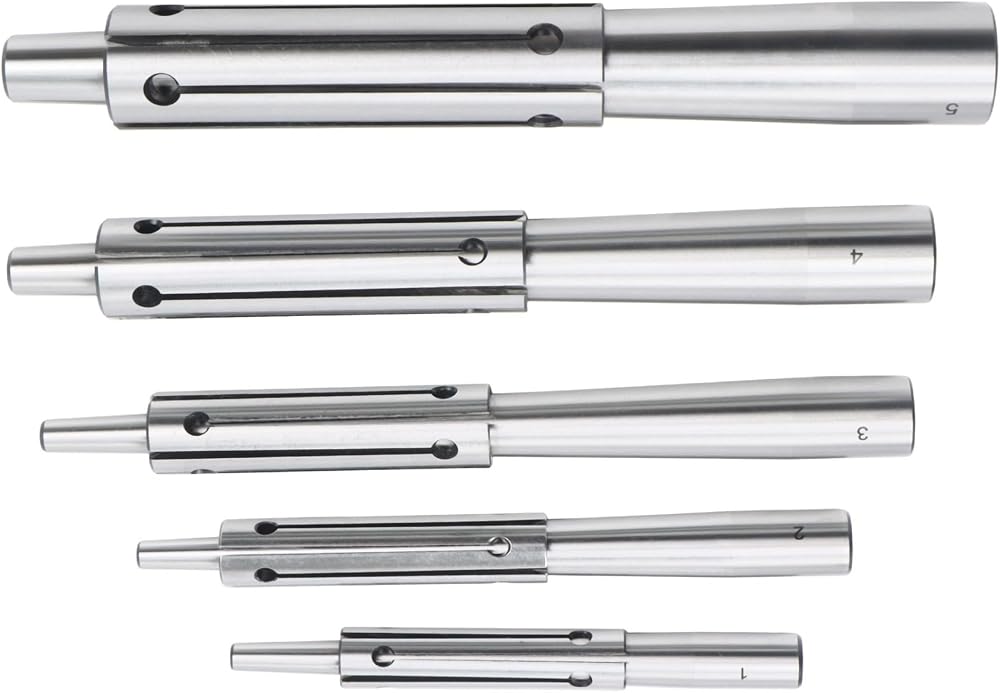

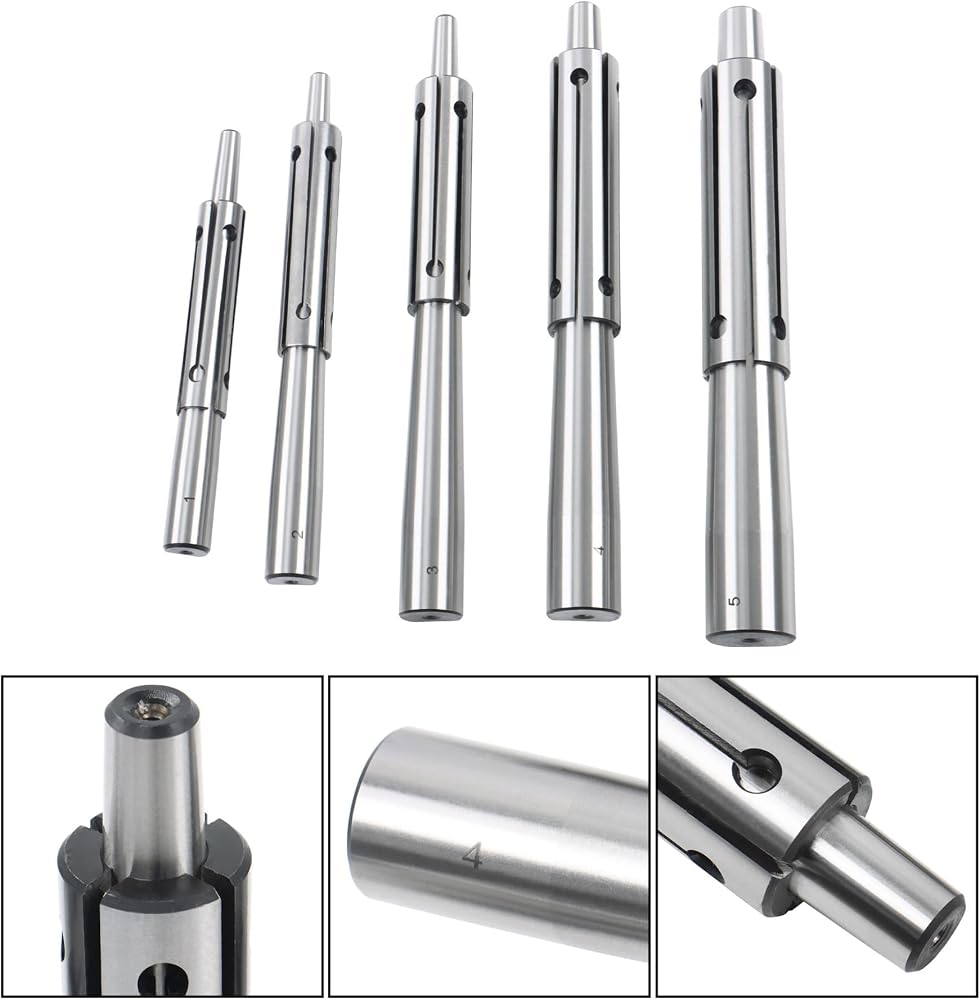

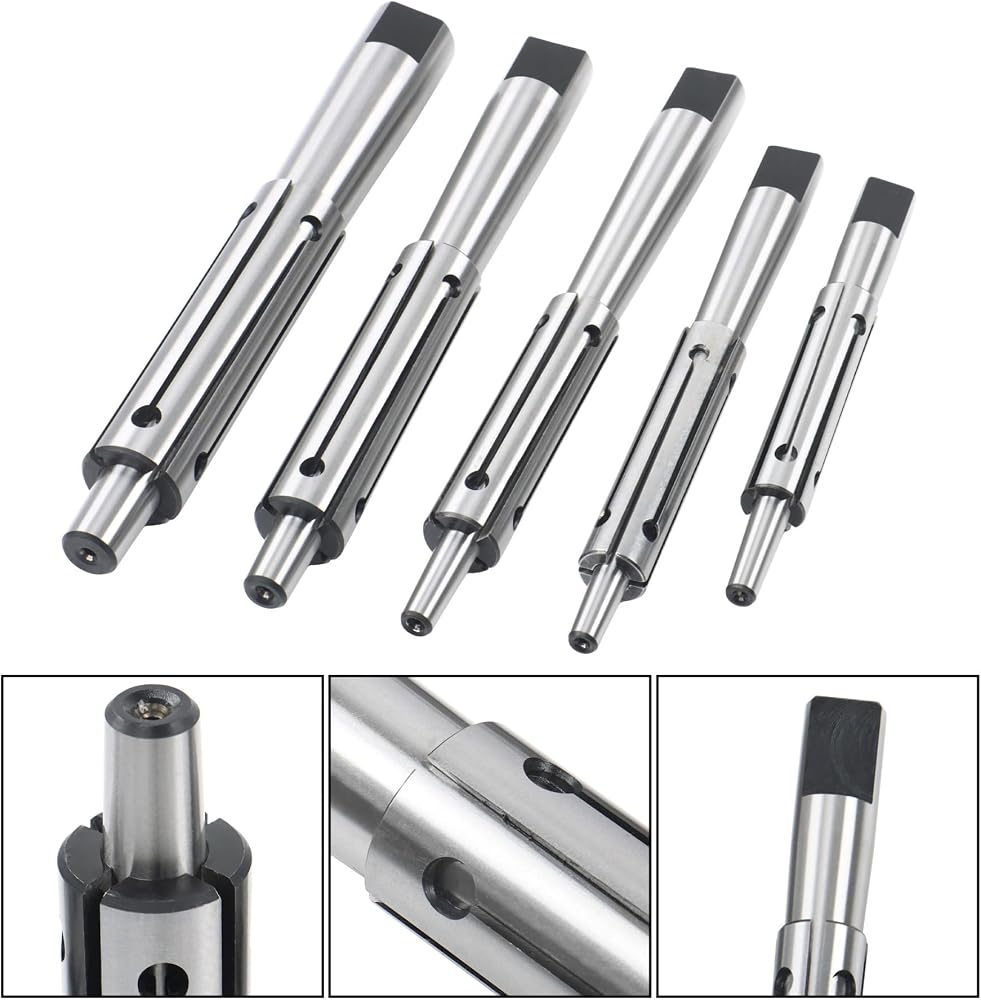

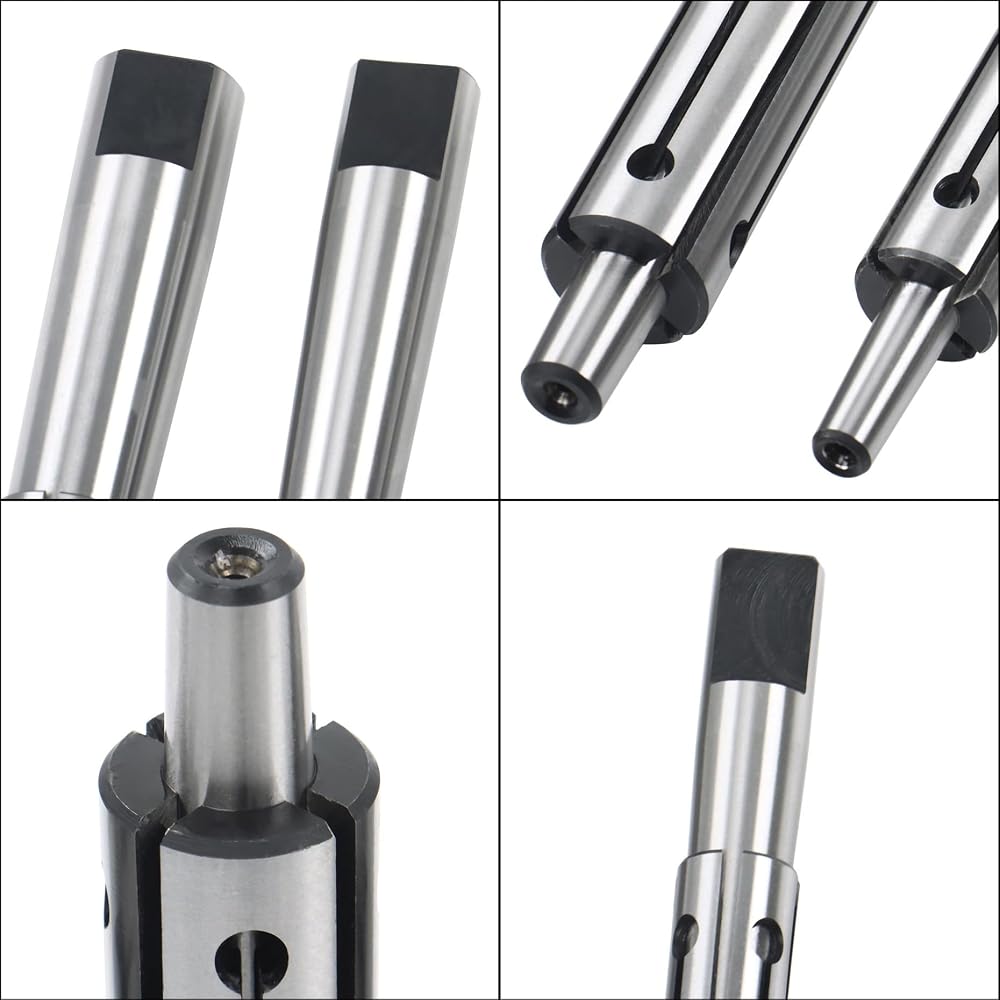

kimllier 5 Pieces Expanding Mandrel Set, 1/2-1 Inch Mandrels and Sleeves | for Lathe, Self Expanding in Kuwait kimllier 5 Pieces Expanding Mandrel Set, 1/2-1 Inch Mandrels and Sleeves | for Lathe, Self Expanding in Kuwait kimllier 5 Pieces Expanding Mandrel Set, 1/2-1 Inch Mandrels and Sleeves | for Lathe, Self Expanding in Kuwait kimllier 5 Pieces Expanding Mandrel Set, 1/2-1 Inch Mandrels and Sleeves | for Lathe, Self Expanding in Kuwait kimllier 5 Pieces Expanding Mandrel Set, 1/2-1 Inch Mandrels and Sleeves | for Lathe, Self Expanding in Kuwait kimllier 5 Pieces Expanding Mandrel Set, 1/2-1 Inch Mandrels and Sleeves | for Lathe, Self Expanding in Kuwait kimllier 5 Pieces Expanding Mandrel Set, 1/2-1 Inch Mandrels and Sleeves | for Lathe, Self Expanding in Kuwait

مجموعة مغزل قابلة للتوسيع من كيمليير، 5 قطع، مغزل وأكمام 1/2-1 بوصة | للمخرطة، التوسع الذاتي

KWD 41
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Complete Mandrel Set- No extra components to buy, ready to use right out of the box. The total working range spans from 1/2 inch up to 1 inch, making it suitable for a wide variety of small to medium sized workpieces
  • High Strength- Every mandrel, sleeve, and arbor is machined from tool steel. This material choice delivers exceptional hardness under clamping pressure, and long service life in daily production environments, maintaining accuracy over repeated use
  • Accuracy- To achieve high concentricity and reliable holding power, all components undergo a thorough heat treatment process. The heat treatment reduces internal stresses and increases surface hardness, while the grinding ensures that each mandrel runs true with minimal runout
  • Smooth Operation- Both ends of each arbor feature center holes produces an ultrasmooth surface finish and improves geometric accuracy. As a result, the mandrel rotates between lathe centers with reduced friction and vibration, leading to better surface finishes on your workpiece
  • Self Expanding- A key advantage of these mandrels is their automatic expansion capability. This works for any hole diameter within the mandrel's designated range, no need for separate custom mandrels

وصف

5 Pieces Expanding Mandrel Set, 1/2-1 Inch Mandrels and Sleeves, for Lathe

Specification:
Range: 1/2 - 1 Inch
Sizes:
1/2-9/16 Inch
9/16-21/32 Inch
21/32-3/4 Inch
3/4-7/8 Inch
7/8-1 Inch

Package Includes:
5 x Expanding Mandrel Se

Features:
1.The set is divided into five specific, non-overlapping bore ranges, ensuring a perfect fit for nearly any job within the overall capacity.

2.Each mandrel is clearly marked, so you can quickly select the correct tool without guesswork.

3.The arbor is machined with a accurate taper, while the sleeve is split and flexible. By sliding the sleeve up or down the tapered arbor, you continuously adjust the effective outside diameter.

4.Each of the five mandrels has a unique overall length to match its diameter range and provide adequate support for deeper bores.
