Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread.

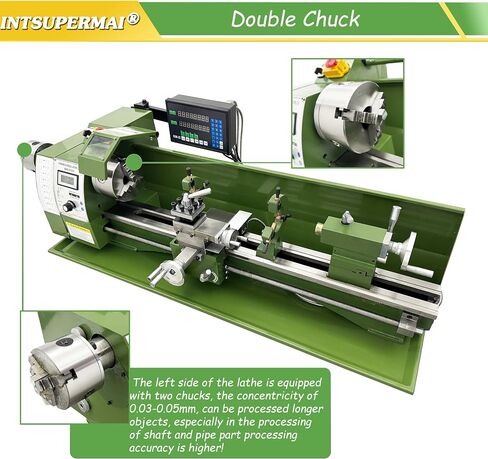

High precision concentricity can help you better complete the shaft and tube processing.

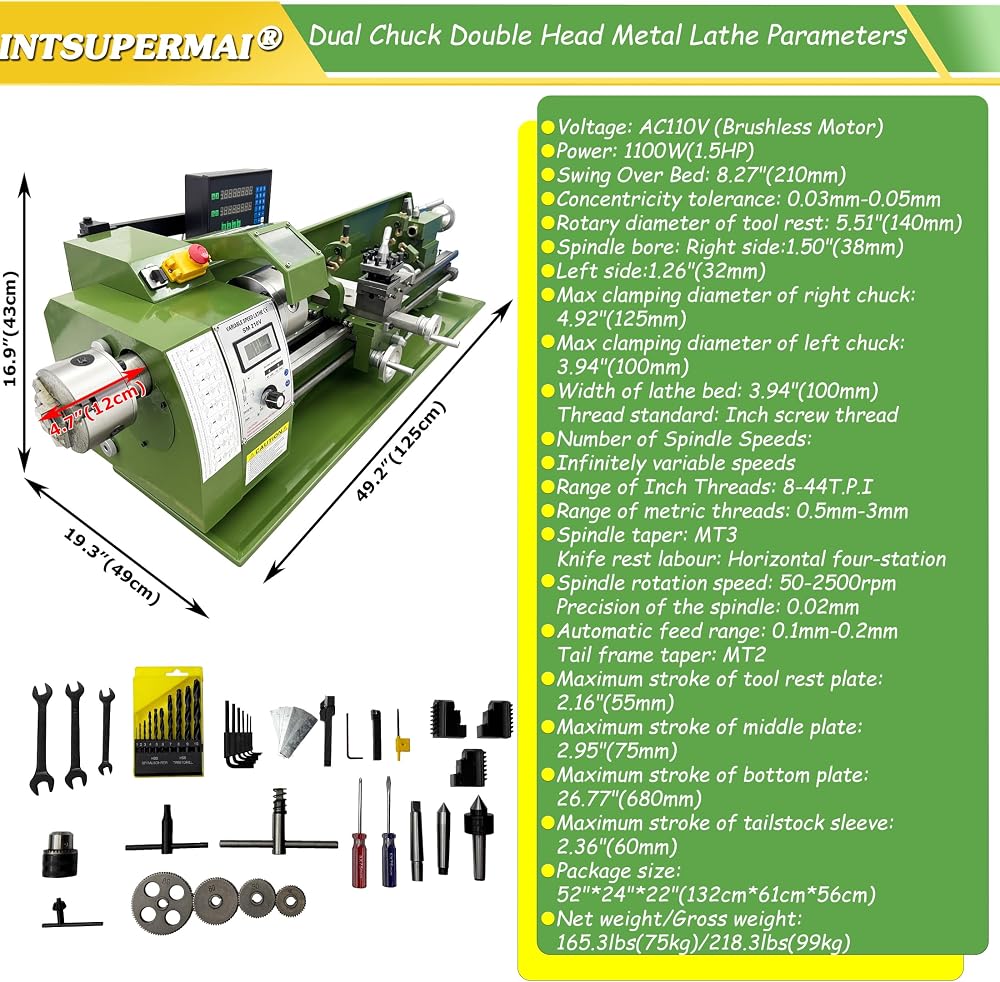

Product Parameters

Voltage: AC110V (Brushless Motor)

Power: 1100W(1.5HP)

Swing Over Bed: 8.27"(210mm)

Concentricity tolerance: 0.03mm-0.05mm

Rotary diameter of tool rest: 5.51"(140mm)

Spindle bore: Right side:1.50"(38mm)

Left side:1.26"(32mm)

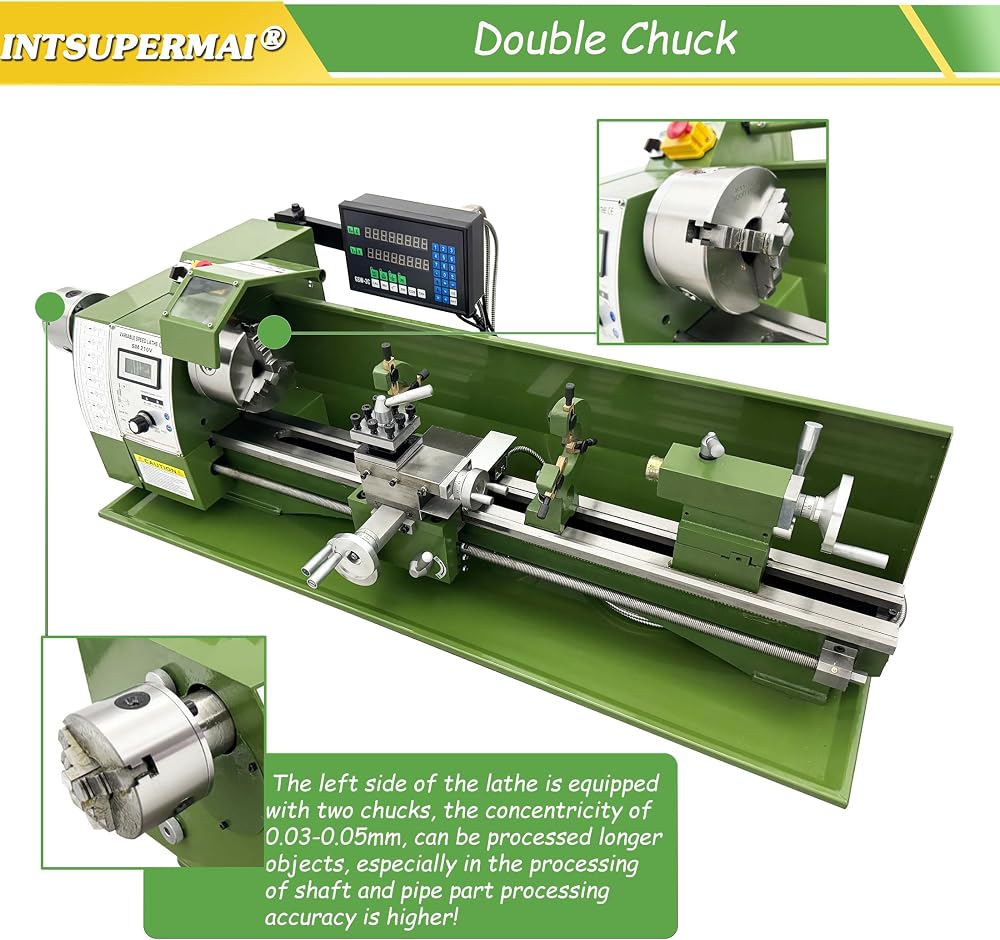

Max clamping diameter of right chuck: 4.92"(125mm)

Max clamping diameter of left chuck: 3.94"(100mm)

Width of lathe bed: 3.94"(100mm)

Thread standard: Inch screw thread

Number of Spindle Speeds: Infinitely variable speeds

Range of Inch Threads: 8-44T.P.I

Range of metric threads: 0.5mm-3mm

Spindle taper: MT3

Knife rest labour: Horizontal four-station

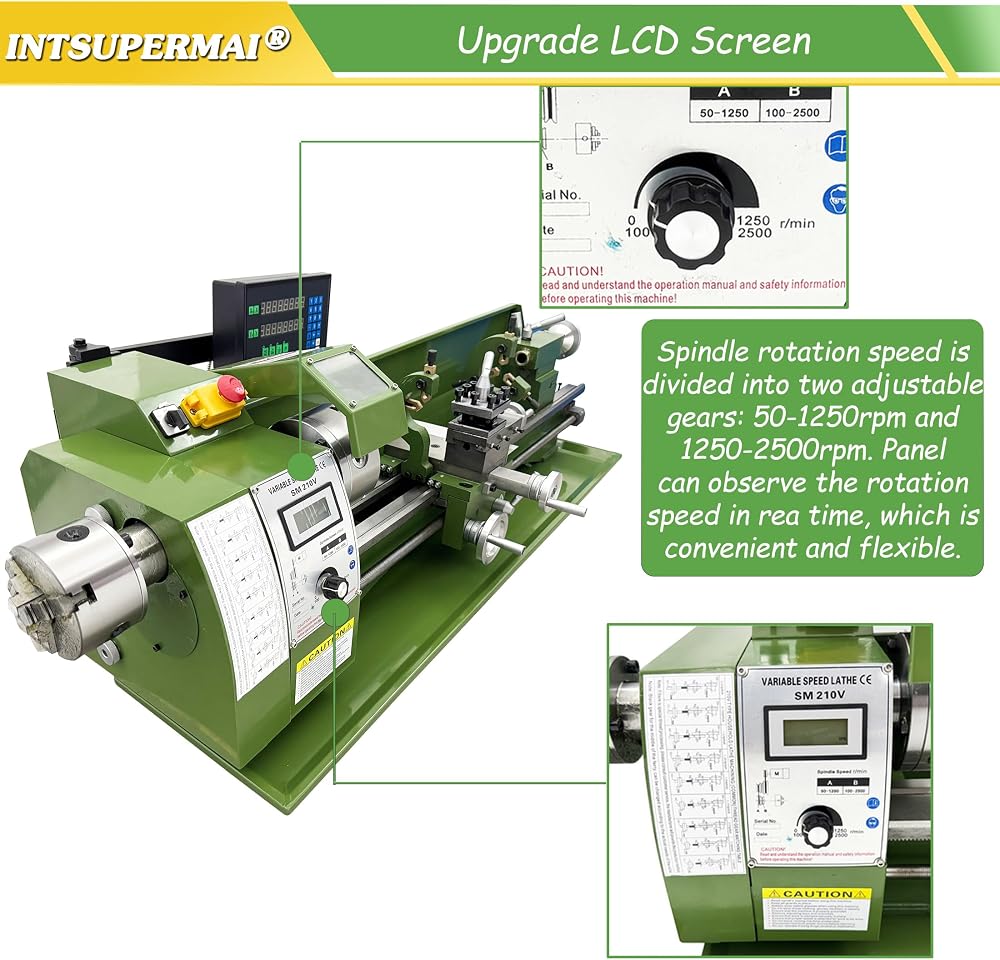

Spindle rotation speed: 50-2500rpm

Precision of the spindle: 0.02mm

Automatic feed range: 0.1mm-0.2mm

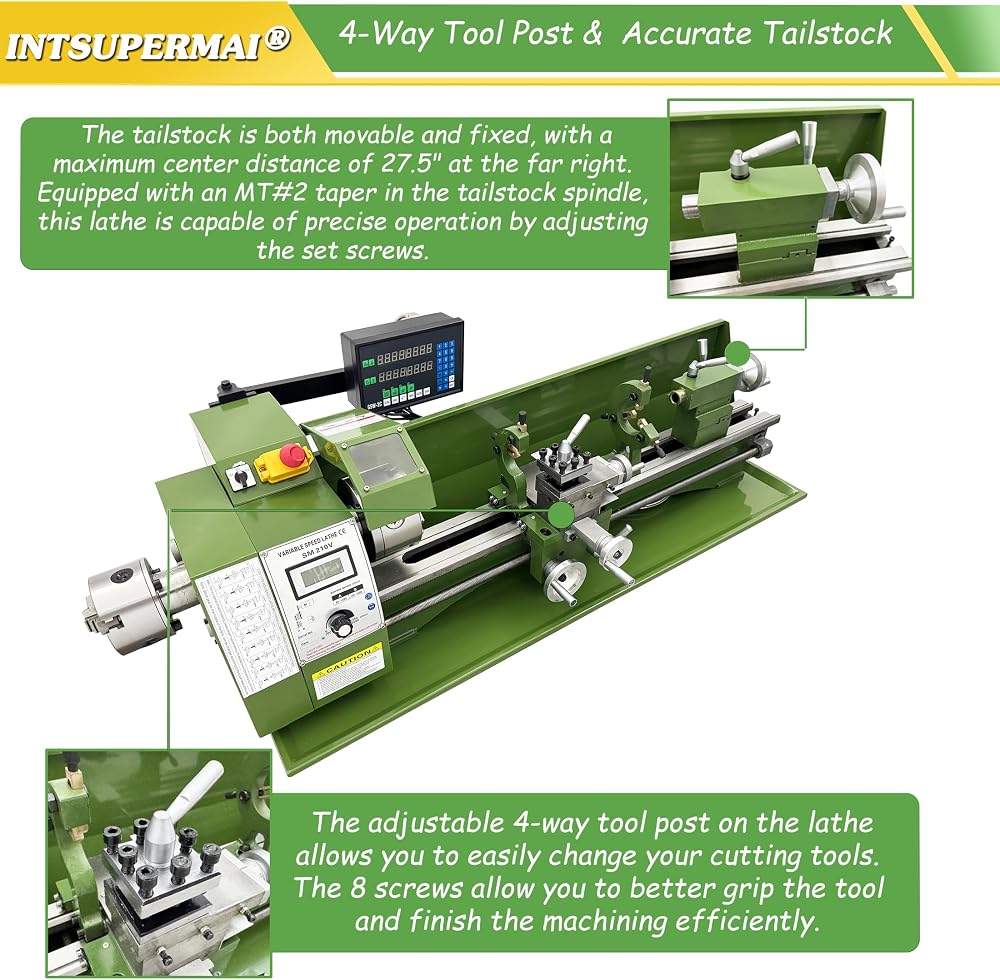

Tail frame taper: MT2

Maximum stroke of tool rest plate: 2.16"(55mm)

Maximum stroke of middle plate: 2.95"(75mm)

Maximum stroke of bottom plate: 26.77"(680mm)

Maximum stroke of tailstock sleeve: 2.36"(60mm)

Package size: 52"*24"*22"(132cm*61cm*56cm)

Net weight/Gross weight: 165.3lbs(75kg)/218.3lbs(99kg)
