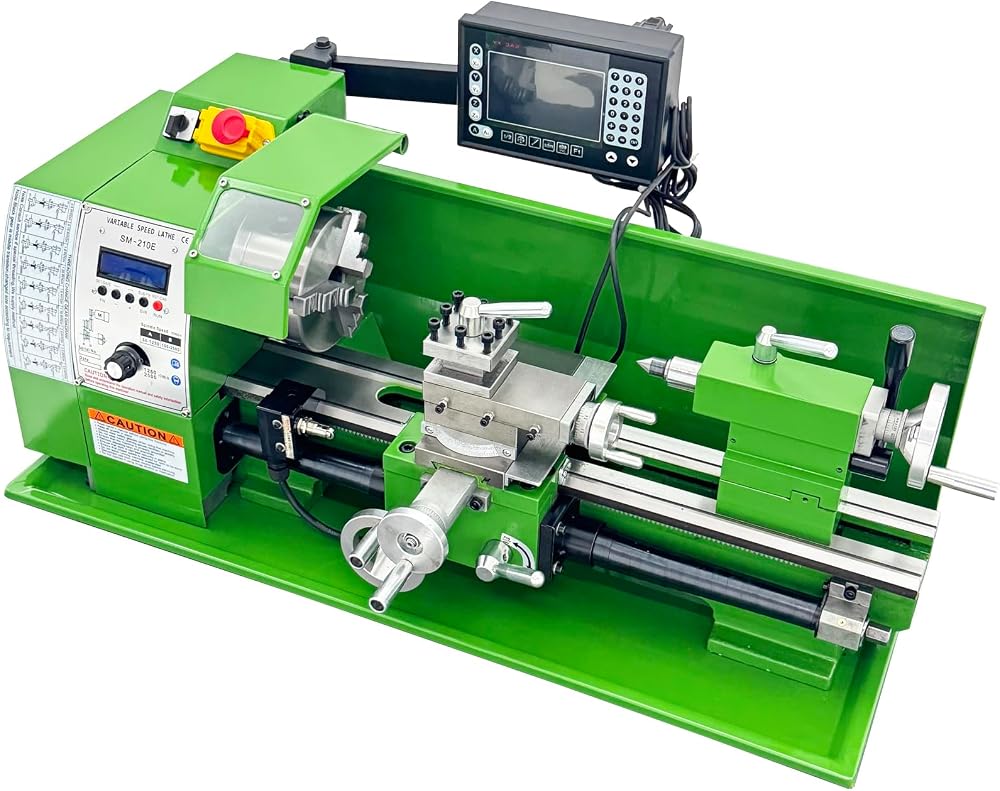

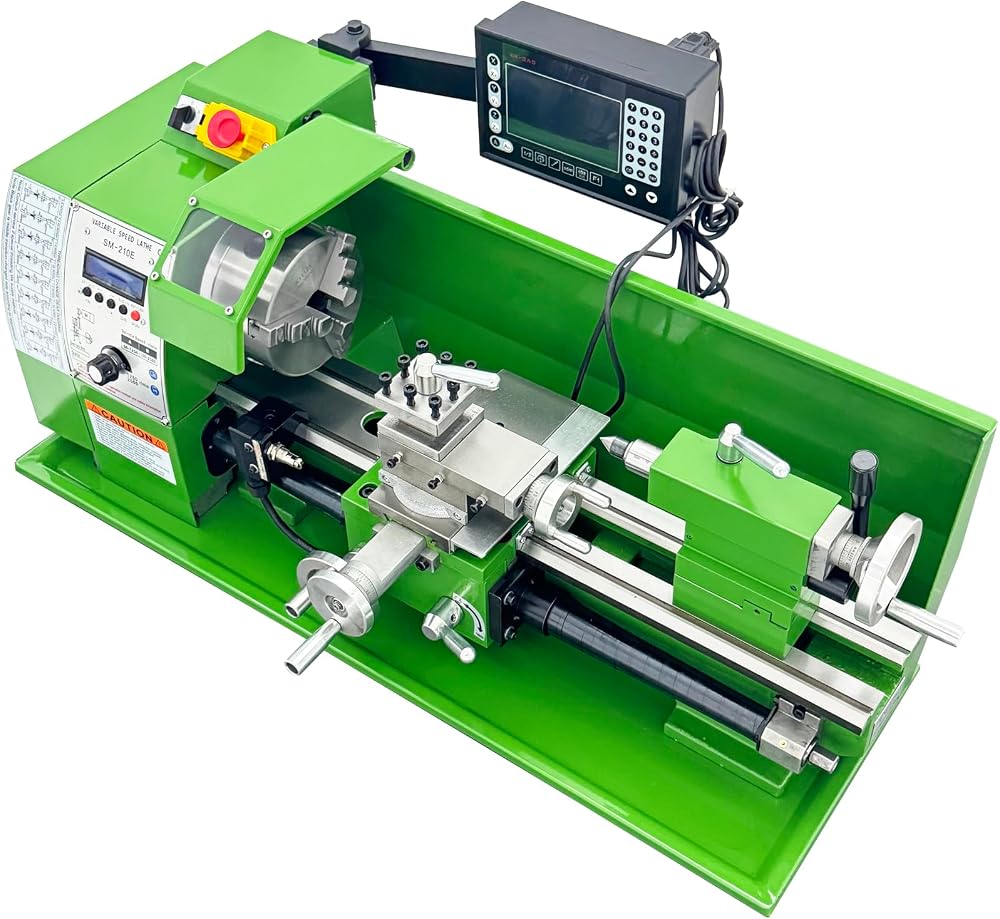

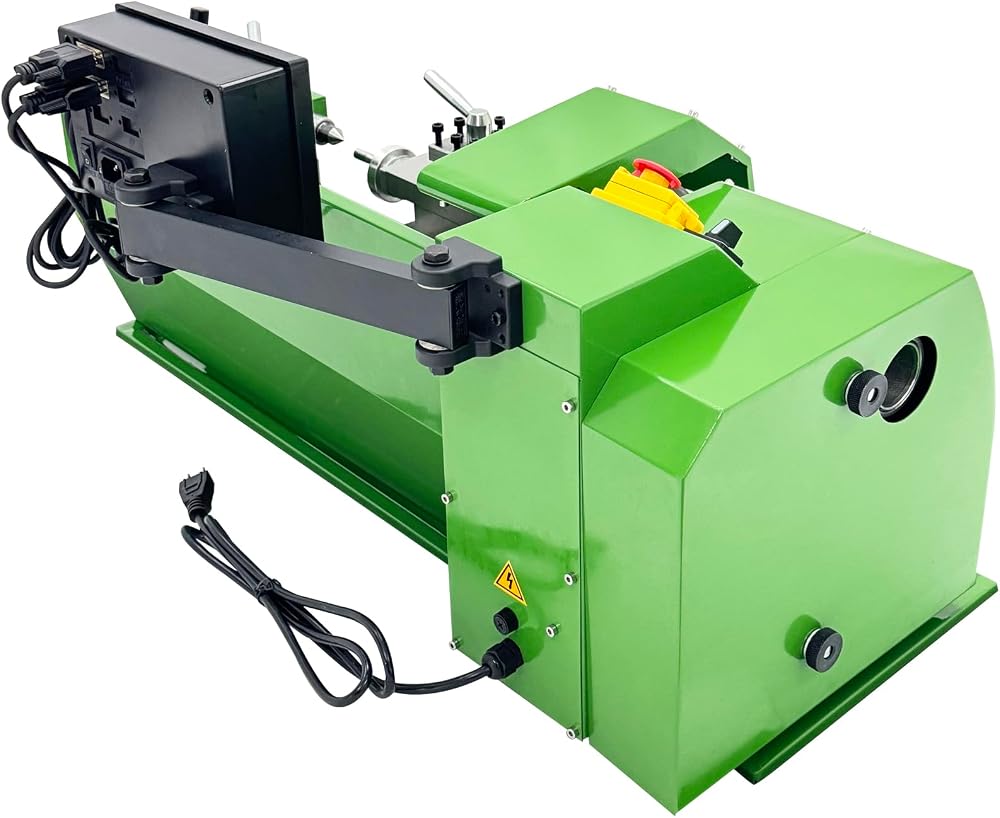

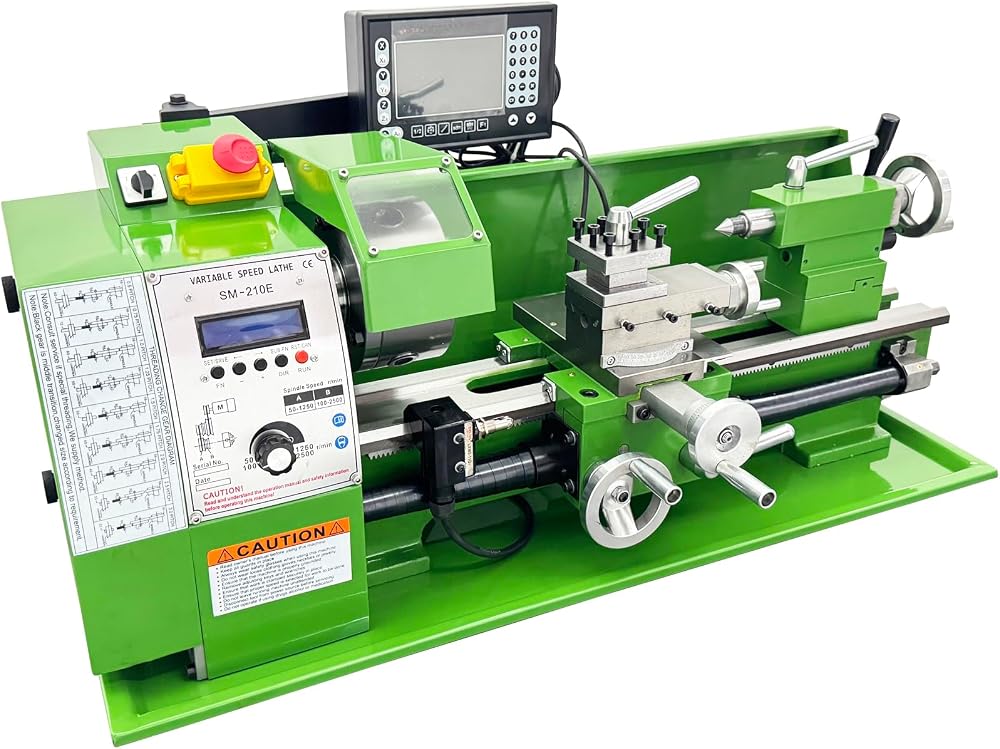

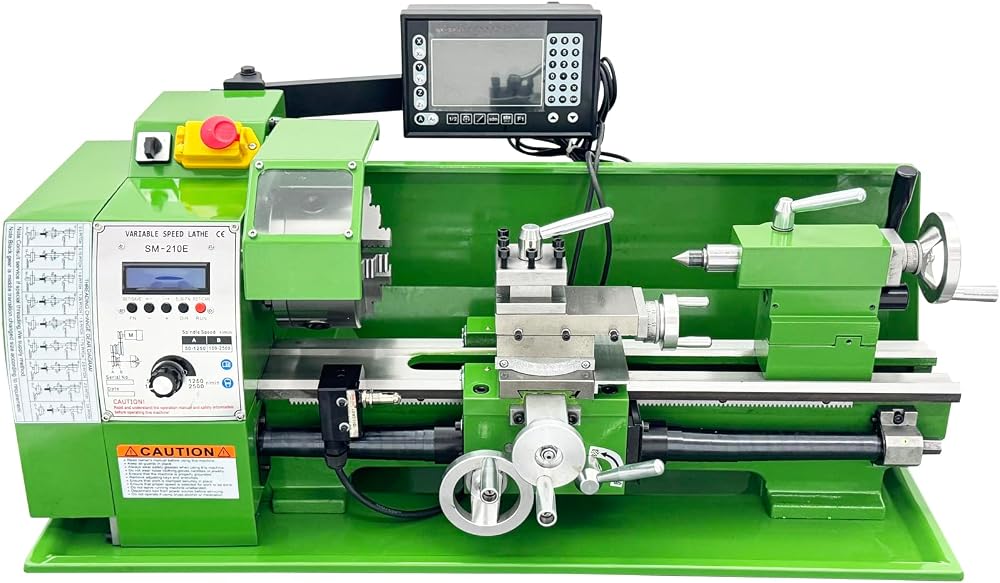

8"x16" Metal Lathe 1100W with Digital Readout, 50-2500rpm Variable Speed, 0.01mm Auto Feed 110V in Kuwait 8"x16" Metal Lathe 1100W with Digital Readout, 50-2500rpm Variable Speed, 0.01mm Auto Feed 110V in Kuwait 8"x16" Metal Lathe 1100W with Digital Readout, 50-2500rpm Variable Speed, 0.01mm Auto Feed 110V in Kuwait 8"x16" Metal Lathe 1100W with Digital Readout, 50-2500rpm Variable Speed, 0.01mm Auto Feed 110V in Kuwait 8"x16" Metal Lathe 1100W with Digital Readout, 50-2500rpm Variable Speed, 0.01mm Auto Feed 110V in Kuwait 8"x16" Metal Lathe 1100W with Digital Readout, 50-2500rpm Variable Speed, 0.01mm Auto Feed 110V in Kuwait 8"x16" Metal Lathe 1100W with Digital Readout, 50-2500rpm Variable Speed, 0.01mm Auto Feed 110V in Kuwait

مخرطة معدنية 8 × 16 بوصة، 1100 وات مع قراءات رقمية، سرعة متغيرة 50-2500 دورة في الدقيقة، تغذية تلقائية 0.01 مم، 110 فولت

KWD 750.500
ماركة
HayWHNKN
فئة
مخارط
وزن
82.1 kg
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • The precision instrument metal lathe is a professional bench lathe designed for processing precision parts. It is equipped with a 1100W high-quality motor and an electronic gear change system, fulfills the functions of precise digital display and intelligent control, and can efficiently accomplish multiple working procedures.
  • It features high rigidity, good precision machining performance, high safety and so on, can be widely applied to teaching and scientific innovation, small workshops, repair shops, DIY, etc.
  • The lathe can automatically switch between metric and inch systems without changing gears.
  • In the X-axis direction, automatic feed can be achieved, and no manual operation is required. The automatic feed speed can be adjusted and reaches 0.01mm-0.4mm!
  • High expandability: The 0.005mm digital grating scale is additionally designed for high-precision measurement and positioning, and the special mounting base is stable and practical. The anti-collision power-off function is precisely fulfilled, and the lead screw protective cover can well protect the lead screw and prolong the service life.

وصف

Product Parameters
Voltage: AC110V
Power: 1100W
Length of center: 15.75" (400mm)
Swing over bed: 8.27" (210mm)
Rotary diameter of tool rest: 5.51" (140mm)
Spindle bore: 1.50" (38mm)
Diameter of chuck: 4.92" (125mm)
Width of lathe bed: 3.94" (100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of spindle speeds: Infinitely variable speeds
Range of inch threads: 10-44T.P.I
Range of metric threads: 0.02''-0.11'' (0.5mm-3mm)
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.17" (55mm)
Maximum stroke of middle plate: 2.95" (75mm)
Maximum stroke of bottom plate: 19.69" (500mm)
Maximum stroke of tailstock sleeve: 2.36" (60mm)
Grating scale power supply: AC 110V-220V, 50-60Hz
Grating scale accuracy: 0.005mm
Grating scale power: 10W

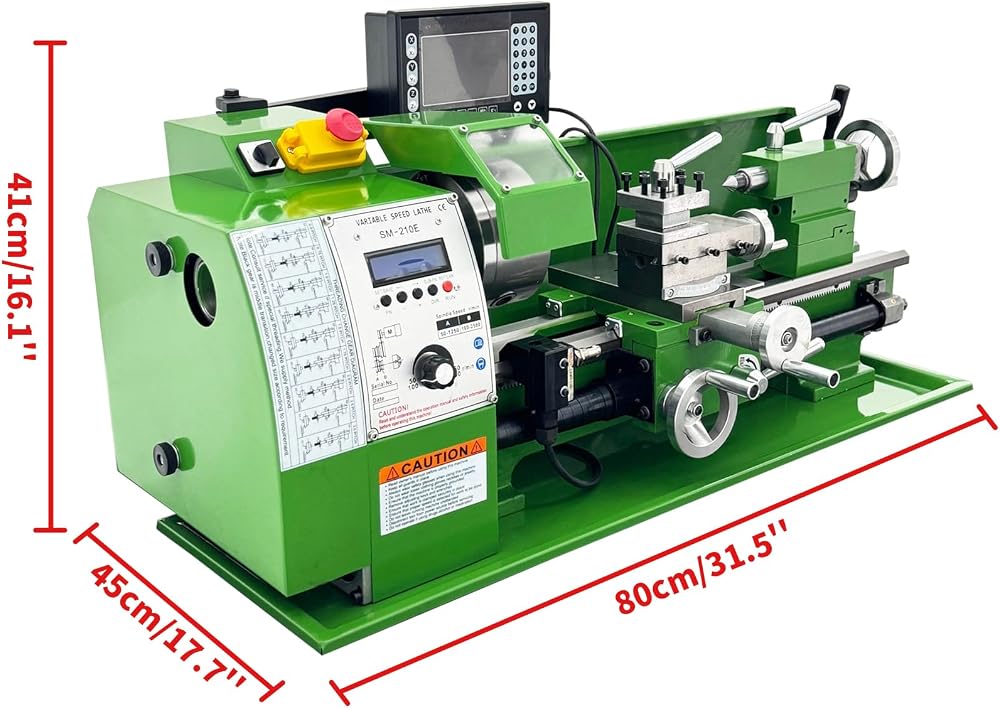

Packing dimension: 35.83*18.50*17.32 inches (91*47*44cm) Total net weight / Total gross weight: 153.2LB (69.5kg) / 180.8LB (82kg)
