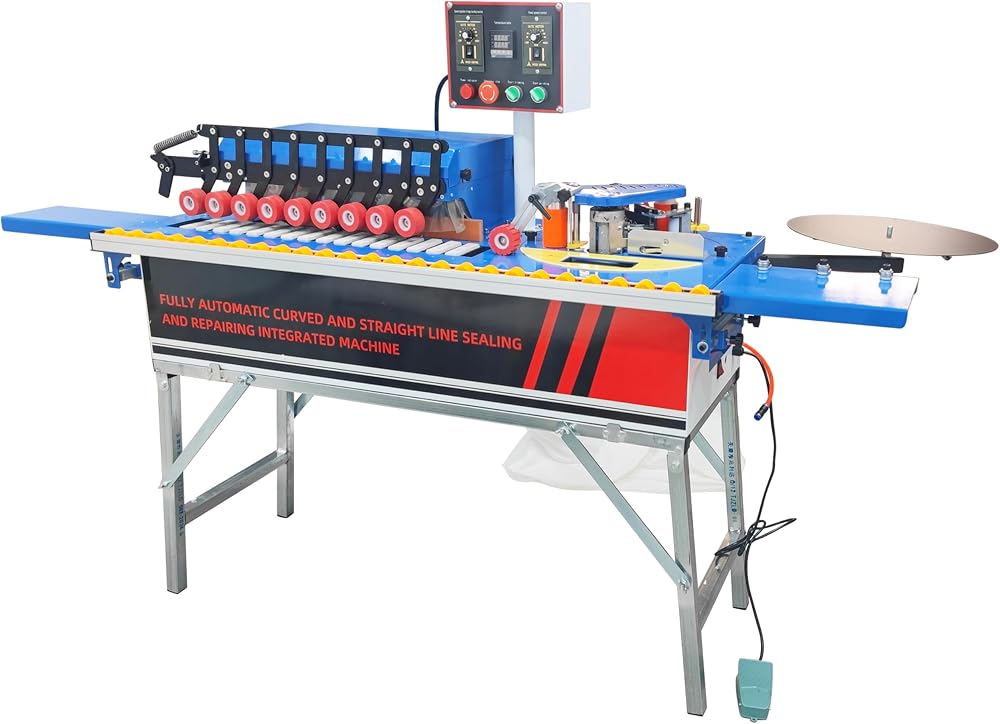

Edge Bander Automatic Curved & Straight Edge Banding Machine Double-Sided Gluing Polishing for Furniture Factories Woodworking Shops Edge Speed 0-6 m/min Dust Extraction in Kuwait Edge Bander Automatic Curved & Straight Edge Banding Machine Double-Sided Gluing Polishing for Furniture Factories Woodworking Shops Edge Speed 0-6 m/min Dust Extraction in Kuwait Edge Bander Automatic Curved & Straight Edge Banding Machine Double-Sided Gluing Polishing for Furniture Factories Woodworking Shops Edge Speed 0-6 m/min Dust Extraction in Kuwait Edge Bander Automatic Curved & Straight Edge Banding Machine Double-Sided Gluing Polishing for Furniture Factories Woodworking Shops Edge Speed 0-6 m/min Dust Extraction in Kuwait Edge Bander Automatic Curved & Straight Edge Banding Machine Double-Sided Gluing Polishing for Furniture Factories Woodworking Shops Edge Speed 0-6 m/min Dust Extraction in Kuwait Edge Bander Automatic Curved & Straight Edge Banding Machine Double-Sided Gluing Polishing for Furniture Factories Woodworking Shops Edge Speed 0-6 m/min Dust Extraction in Kuwait Edge Bander Automatic Curved & Straight Edge Banding Machine Double-Sided Gluing Polishing for Furniture Factories Woodworking Shops Edge Speed 0-6 m/min Dust Extraction in Kuwait

ماكينة ربط الحواف المنحنية والمستقيمة الأوتوماتيكية للصق الحواف وتلميعها على الوجهين لمصانع الأثاث ومحلات الأعمال الخشبية سرعة الحافة 0-6 م/دقيقة استخلاص الغبار

KWD 425
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

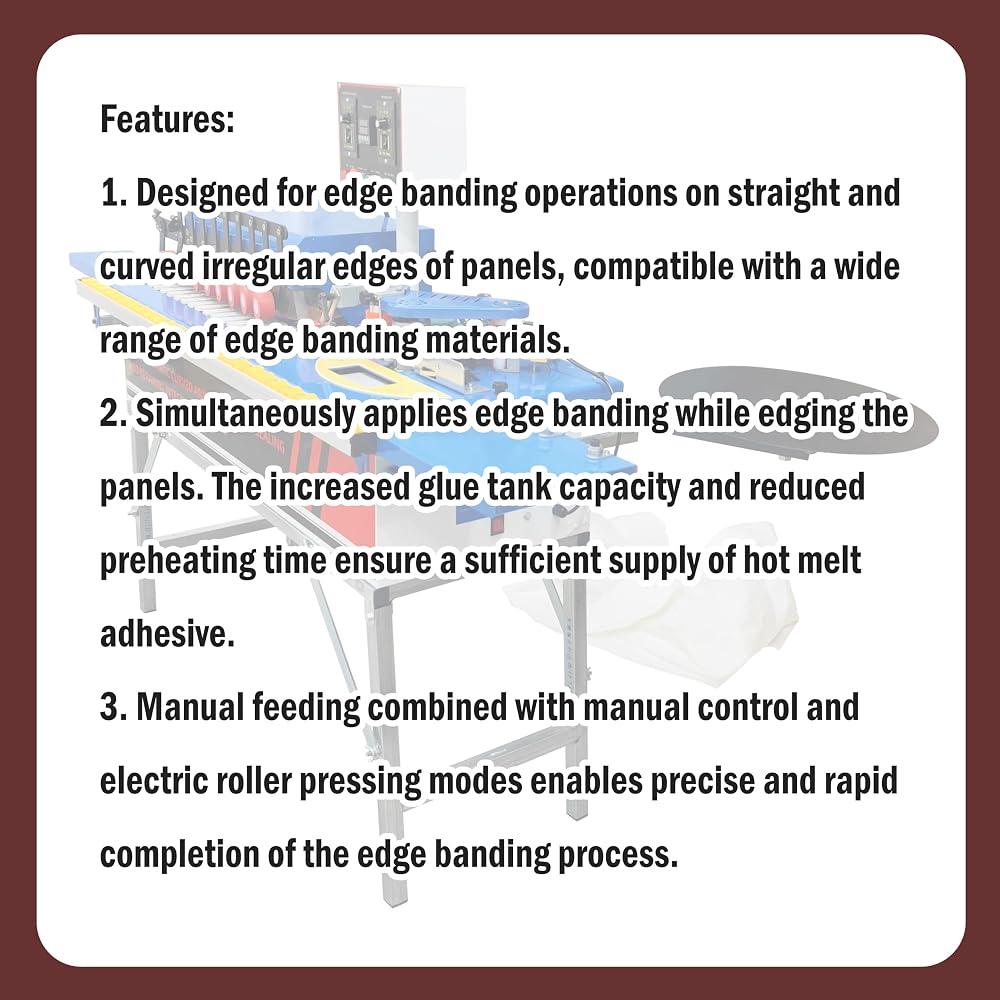

  • [Curved & Straight Edge Sealing All-in-One] This desktop edge bander handles both straight and curved board edges with ease. Integrates curved edge sealing, double-sided gluing, automatic tape breaking, manual head/tail trimming, automatic plate feeding, upper & lower trimming, and double-sided polishing. Top control panel for easy operation. Dust extraction. Perfect for furniture and woodworking workshops.
  • [Manual Head/Tail Trimming + Automatic Plate Feeding] The machine automatically feeds the board for continuous operation, while head and tail trimming is manually controlled for precise alignment according to your needs. Edge speed: 0-19.7 ft/min (0-6 m/min). Edge thickness: 0.03-0.05in (0.8-1.5mm); edge height: 0.4-1.4in (10-36mm). Motor powers: self-propelled 60W, conveyor 25W, edge cutting 650W.
  • [Double-Sided Gluing, Trimming & Polishing] Double-sided adhesive coating ensures firm, even bonding with no degumming or glue overflow. Double-sided trimming and double-sided polishing (180W×2 polishing motors) deliver clean, burr-free, professional edges. Intelligent temperature control maintains optimal glue viscosity.
  • [0.16Gal Glue Pot & Fast Heating] 600ml (0.16Gal) adhesive capacity with only 5-15 min preheating ensures sufficient melted glue for continuous work. Heating takes about 10 minutes to reach 170°C (338°F). Double-sided gluing provides a strong, durable seal.

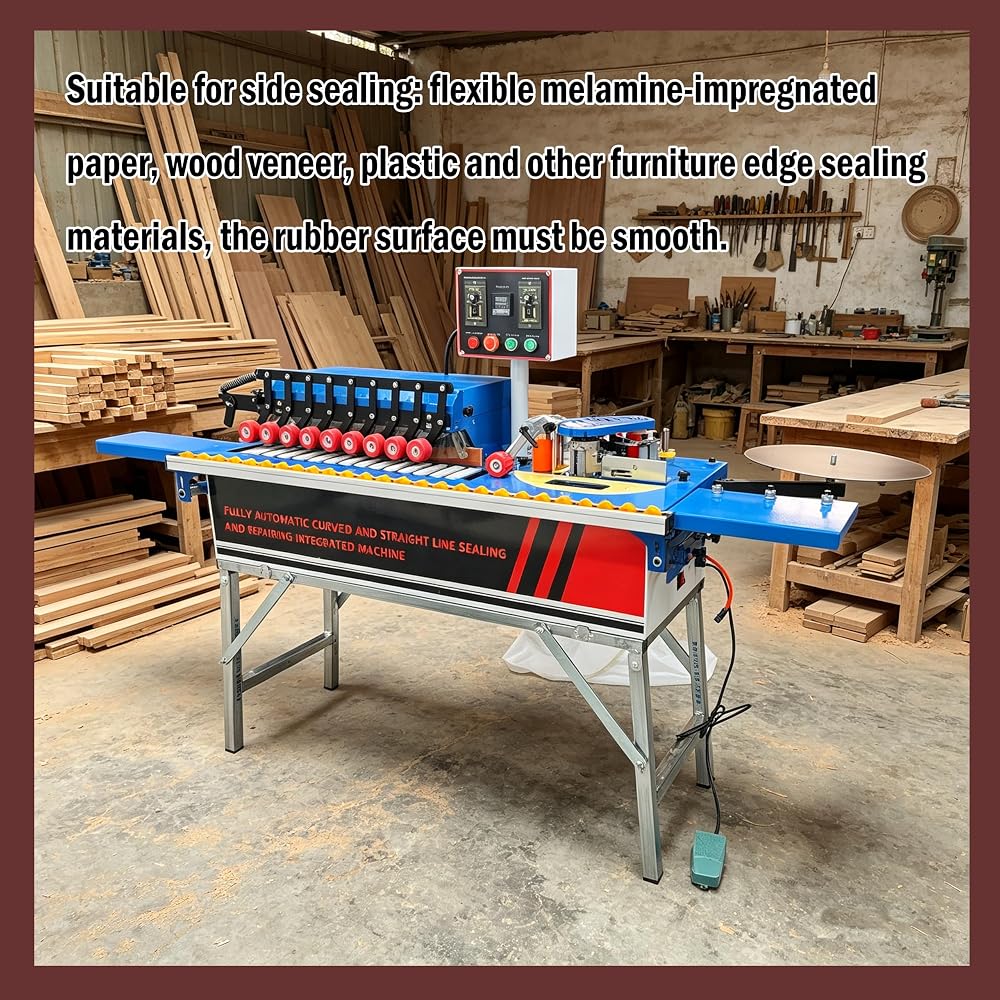

  • [Material Compatibility & Safety Tips] Suitable for flexible melamine-impregnated paper, wood veneer, plastic edge tapes (glue surface must be smooth). Usage: Connect power; adjust edge banding inlet height and speed; start after reaching set temperature. Safety: Start edge banding only after temperature reaches set value. Do not put hands into edge strip groove during heating. Do not set speed too fast or too slow. Disconnect power before cleaning or maintenance.

وصف

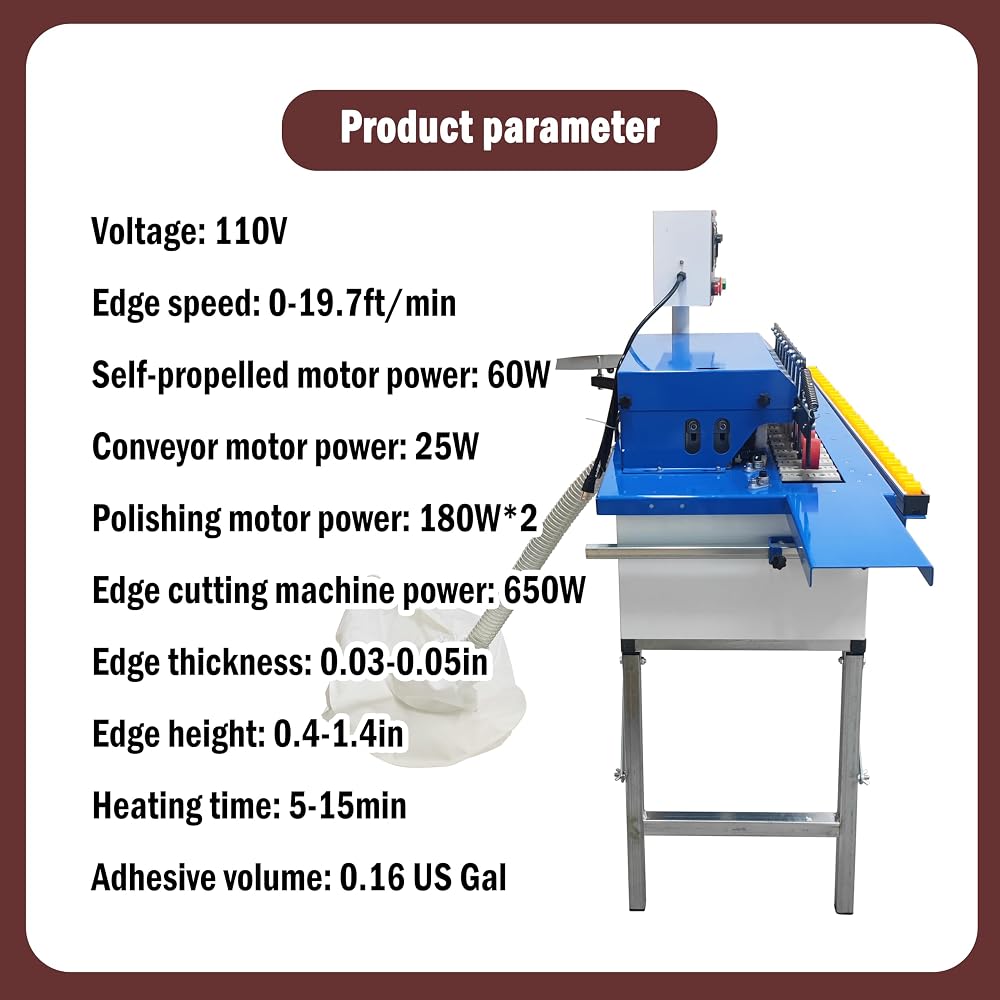

Parameter
Voltage: 110V
Edge speed:0-19.7ft/min（ 0-6m/min）
Self-propelled motor power: 60W
Conveyor motor power: 25W
Polishing motor power: 180W*2
Edge cutting machine power: 650W
Edge thickness: 0.03-0.05in （0.8-1.5mm）
Edge height: 0.4-1.4in（10-36mm）
Heating time: 5-15min
Adhesive volume: 0.16Gal （600ml）

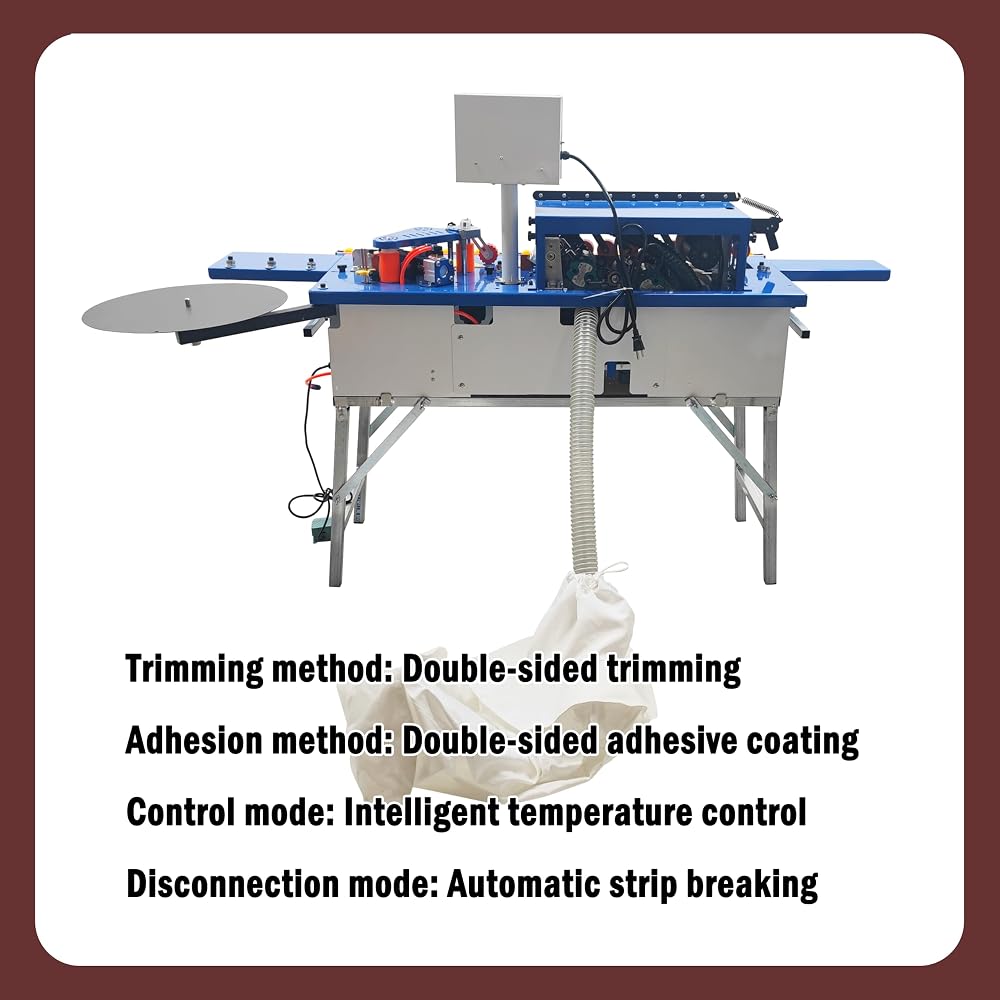

Trimming method: Double-sided trimming
Adhesion method: Double-sided adhesive coating
Control mode: Intelligent temperature control
Disconnection mode: Automatic strip breaking
