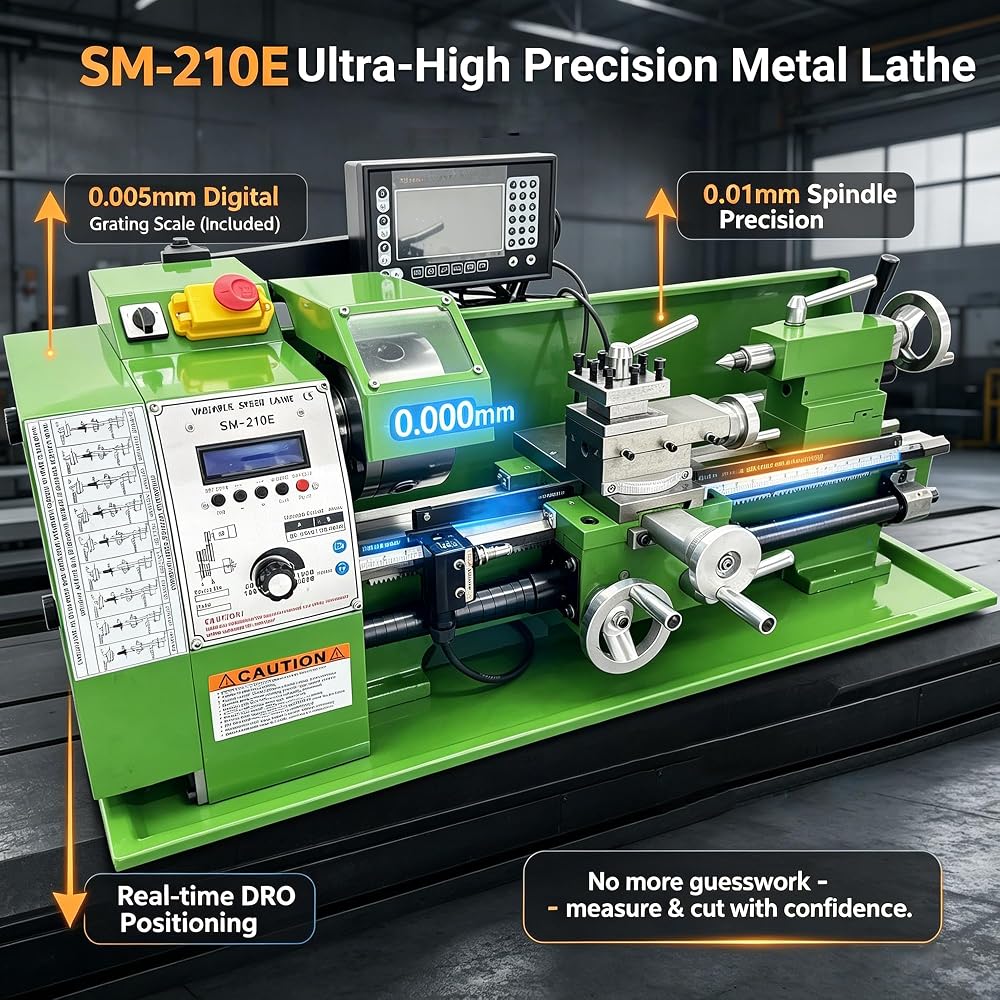

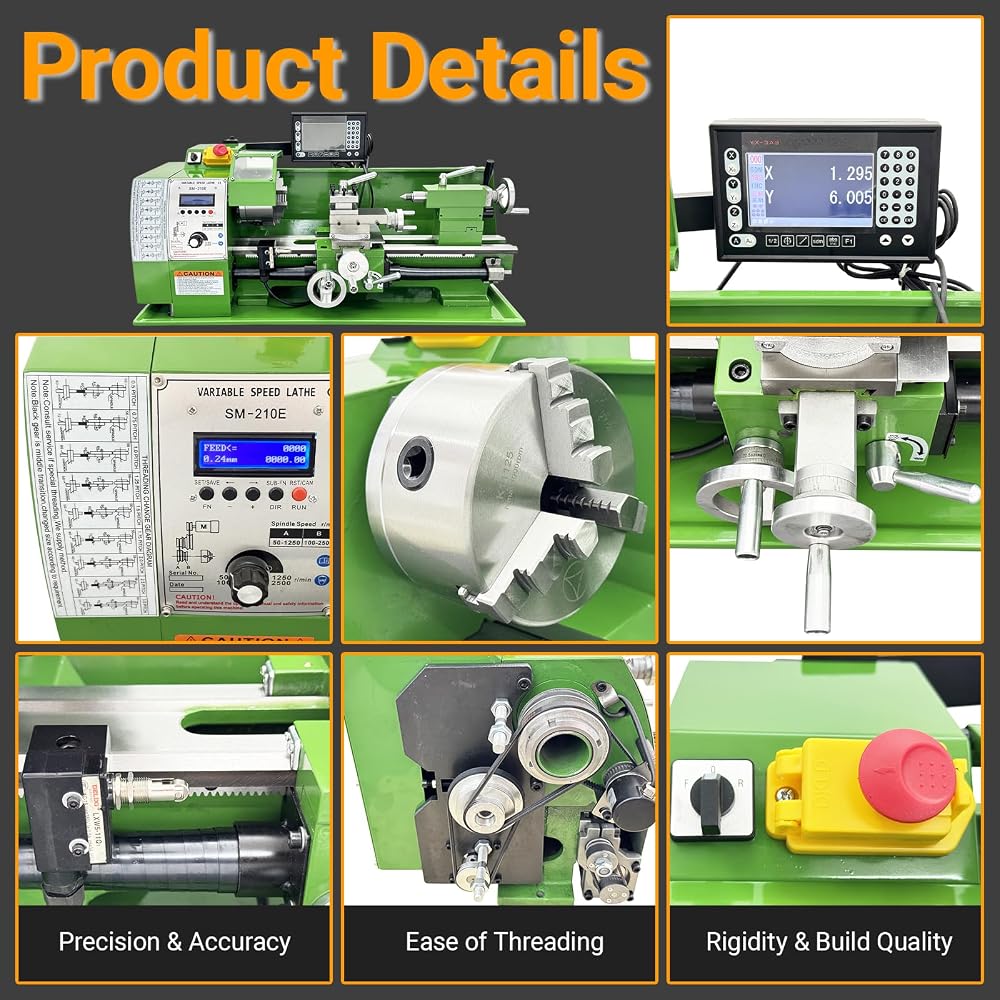

High-Precision Machining with Digital Readout: Achieve 0.005mm grating scale accuracy and 0.01mm spindle precision on this metal lathe for precision parts. The built-in DRO allows accurate positioning and repeatability – perfect for small metal lathe work in teaching, R&D, and repair shops

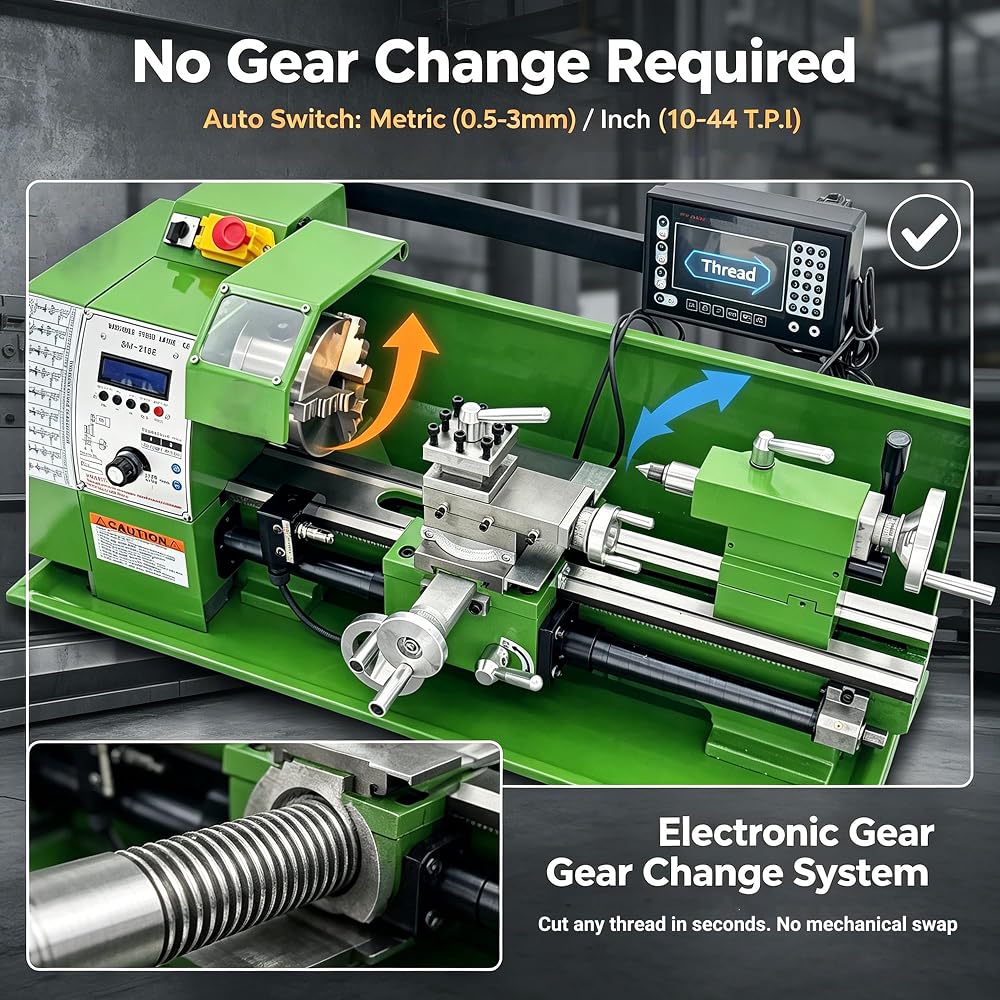

No Gear Change for Threading – Metric/Imperial Auto Switch: Easily cut inch (10-44 T.P.I.) and metric 0.02''-0.11'' (0.5-3mm) threads without changing gears. The electronic gear change lathe saves setup time, making it ideal for hobbyists and professionals who need quick thread cutting on a mini lathe

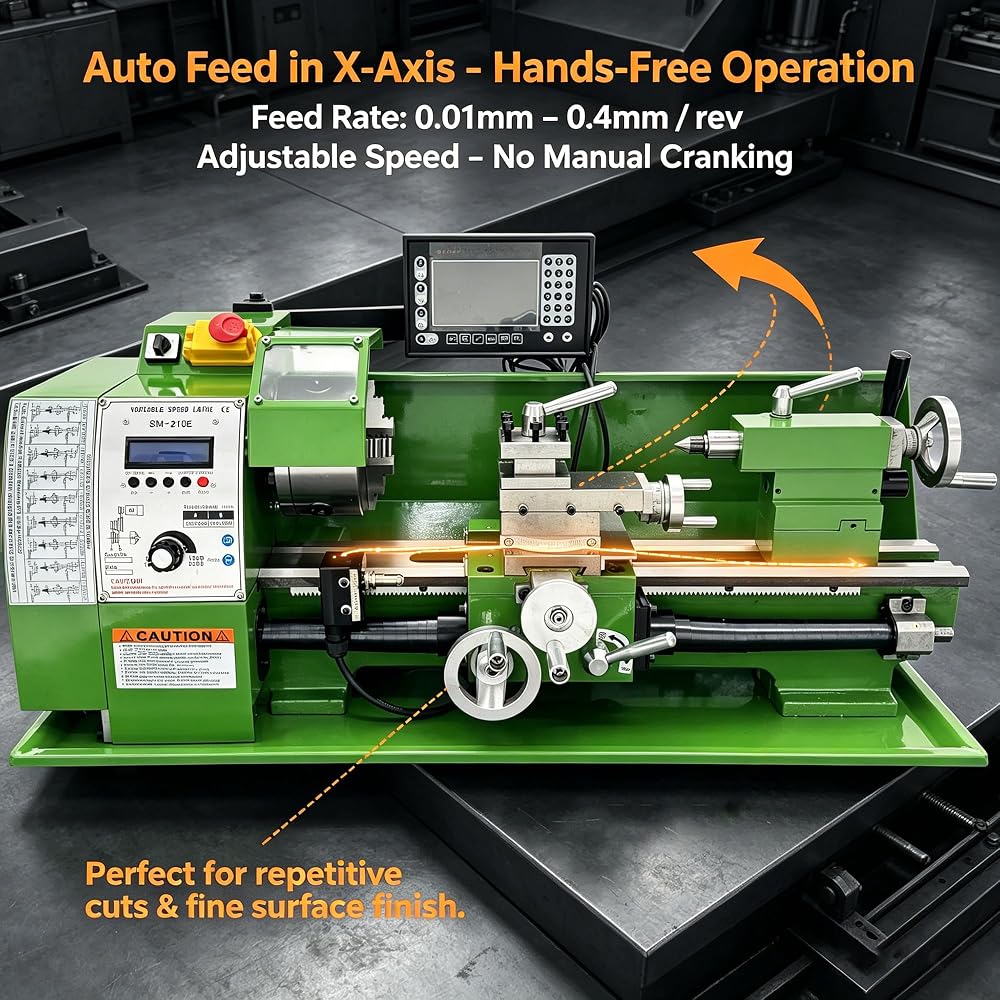

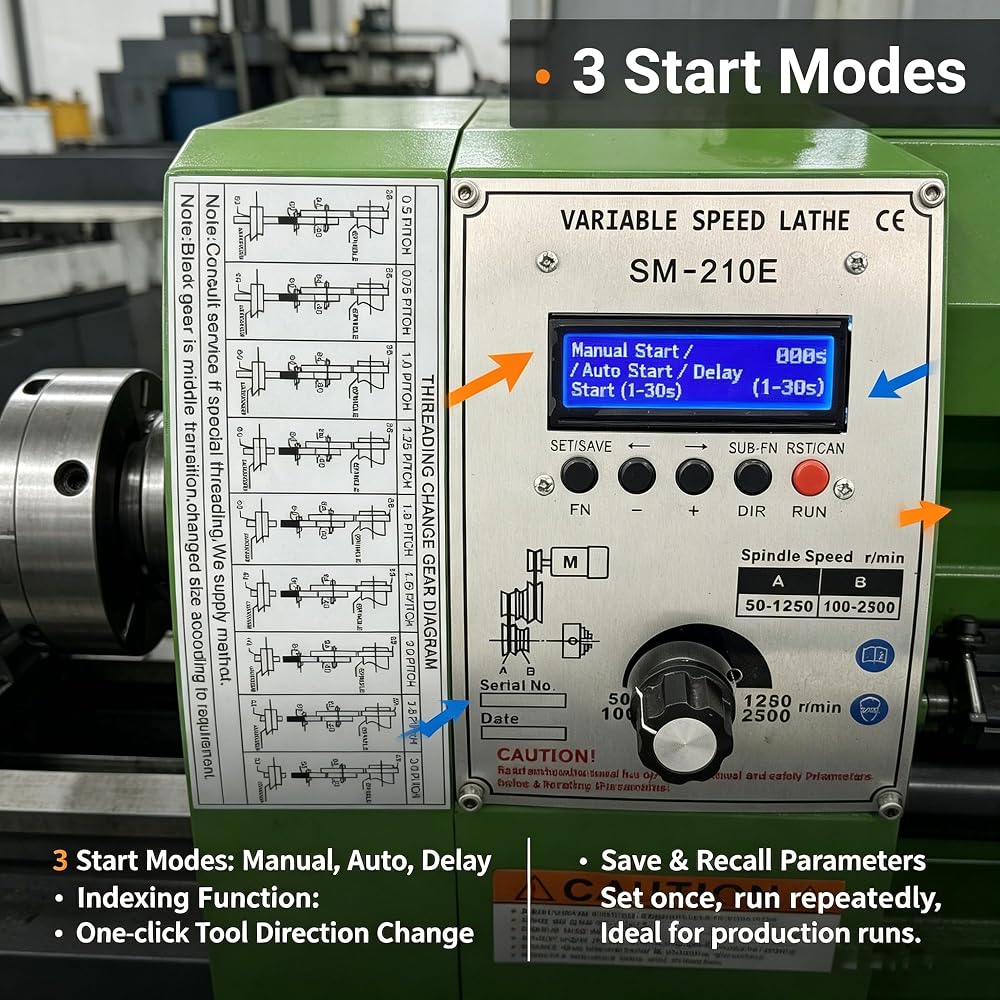

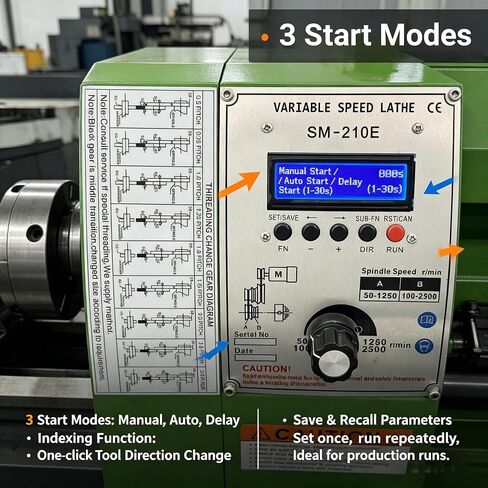

Automatic X-Axis Feed with Adjustable Speed: Enable auto feed metal lathe operation from 0.01mm to 0.4mm per revolution – no manual handwheel turning. Three start modes (manual, auto, delay) plus reciprocating turning function enhance efficiency for repetitive benchtop lathe tasks

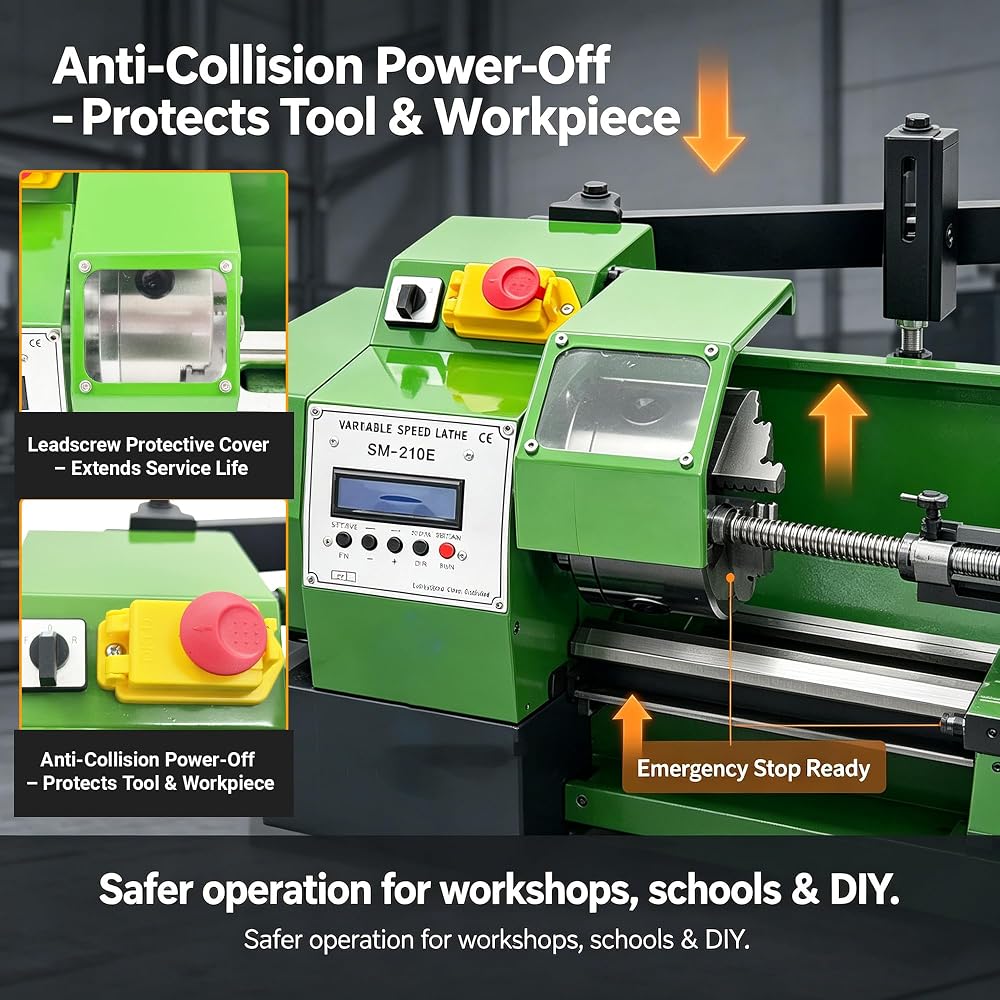

Safety & Smart Control Features: Anti-collision power-off protects your workpiece and tooling. The leadscrew cover extends lifespan. Control panel saves parameters, and the indexing function lets you switch tool direction with one click – a safe metal lathe for home workshops

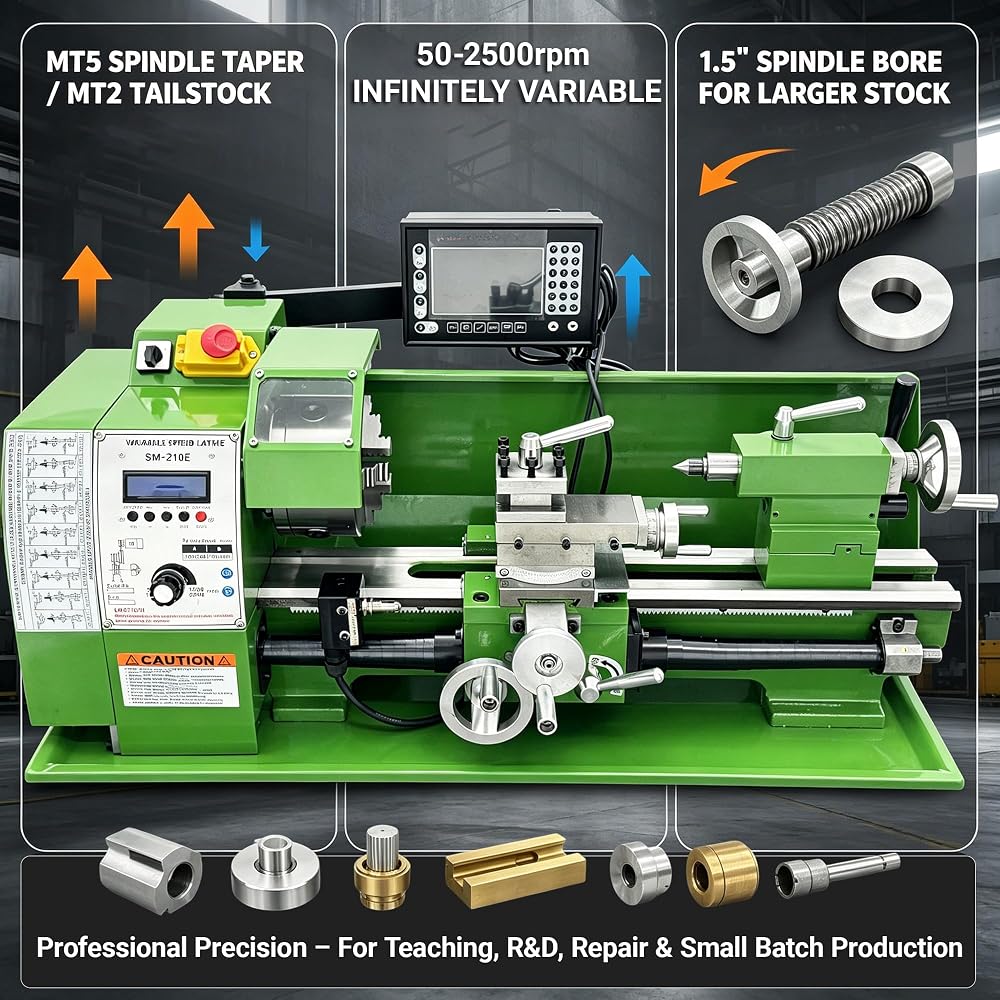

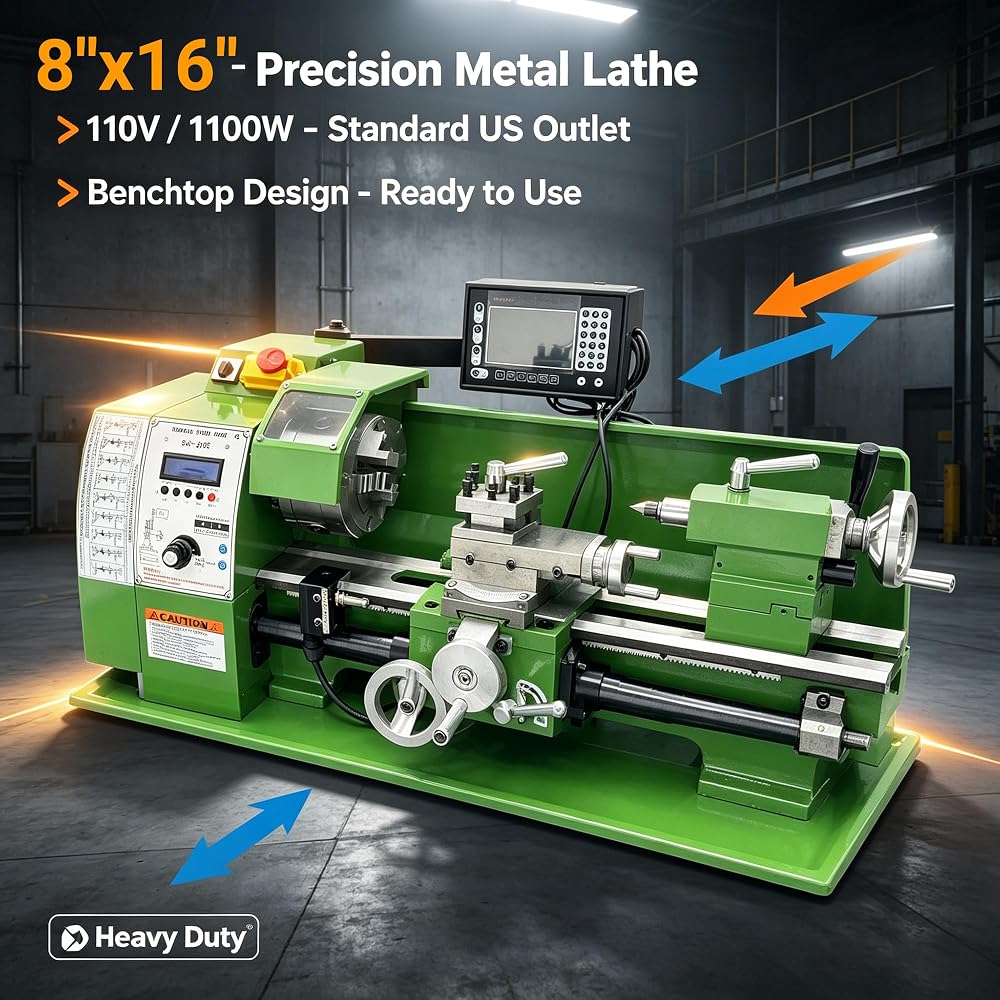

Powerful 1100W Motor & High Rigidity: The 110V 1100W motor delivers variable speed 50-2500rpm. With 8.27" swing over bed, 1.5" spindle bore (MT5 taper), and 3.94" wide lathe bed, this heavy duty benchtop lathe handles steel, aluminum, and brass easily

وصف

Product Parameters
Voltage:AC110V
Power:1100W
Length of center:15.75" (400mm)
Swing over bed:8.27" (210mm)
Rotary diameter of tool rest:5.51" (140mm)
Spindle bore:1.50" (38mm)
Diameter of chuck:4.92" (125mm)
Width of lathe bed:3.94" (100mm)
Thread standard:Metric/imperial/customized
Turning delay start time:1s-30s
Number of spindle speeds:Infinitely variable speeds
Range of inch threads:10-44T.P.I
Range of metric threads:0.02''-0.11'' (0.5mm-3mm)
Spindle taper:MT5
Knife rest labour:Horizontal four-station
Spindle rotation speed:50-2500rpm
Precision of spindle:0.01mm
Automatic feed range:0.01mm-0.4mm
Tail frame taper:MT2
Maximum stroke of tool rest plate:2.17" (55mm)
Maximum stroke of middle plate:2.95" (75mm)
Maximum stroke of bottom plate:19.69" (500mm)
Maximum stroke of tailstock sleeve:2.36" (60mm)
Grating scale power supply:AC 110V-220V, 50-60Hz
Grating scale accuracy:0.005mm
Grating scale power:10W
Packing dimension35.83*18.50*17.32 inches (91*47*44cm)Total net weight / Total gross weight153.2LB (69.5kg) / 180.8LB (82kg)

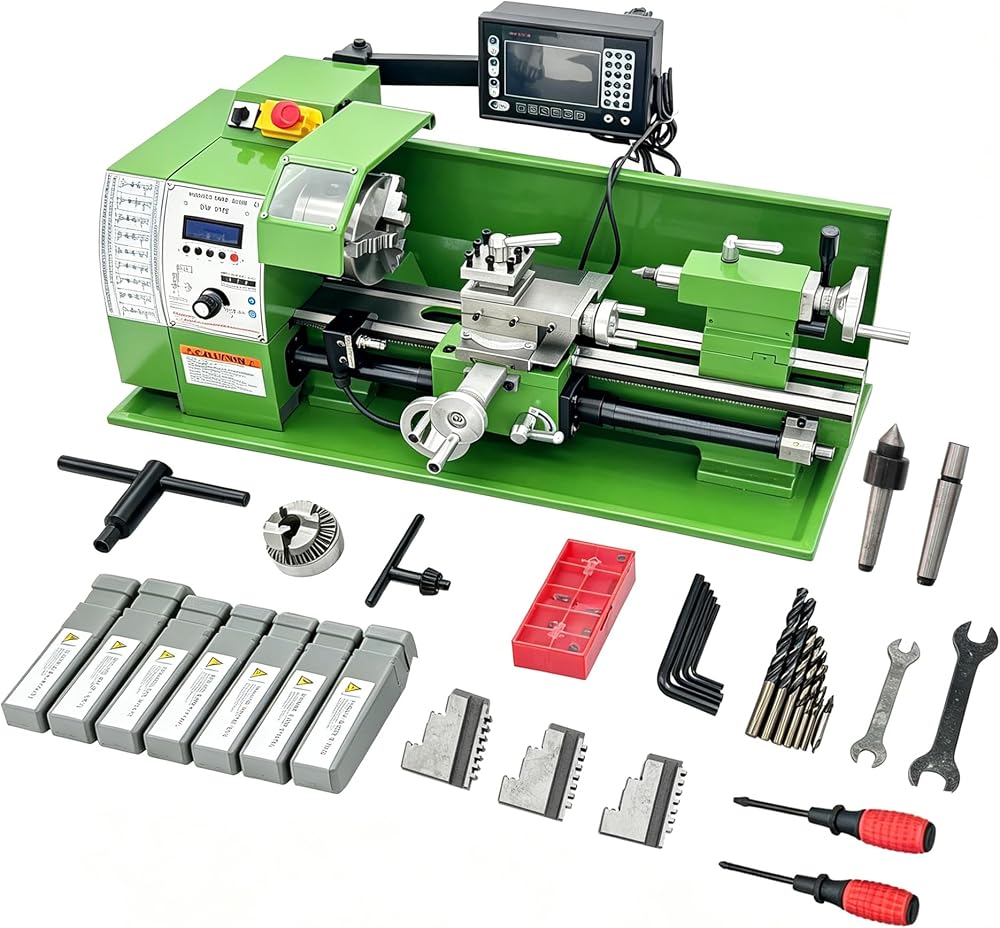

Item Included (028234): 1 x Precision Instrument Metal Lathe 110V
