الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠.قد تحتاج إلى محول كهرباء
مميزات خاصة

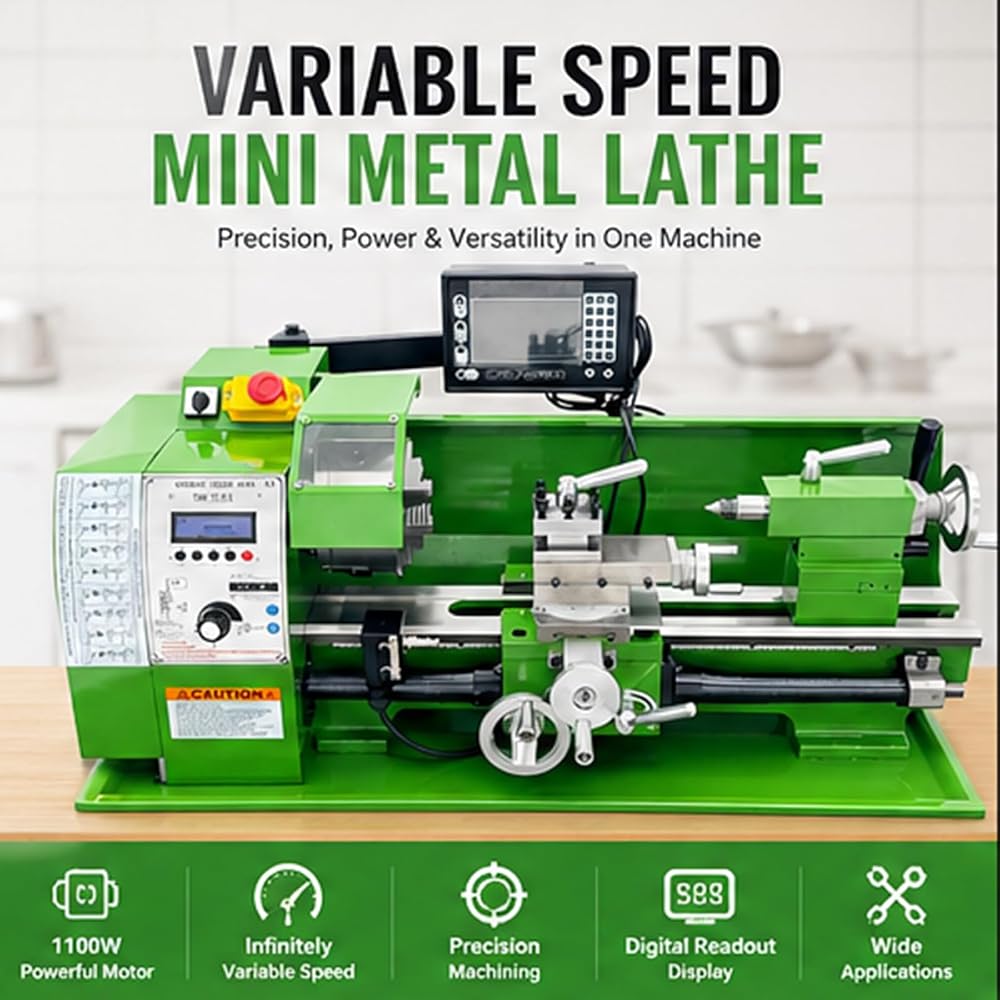

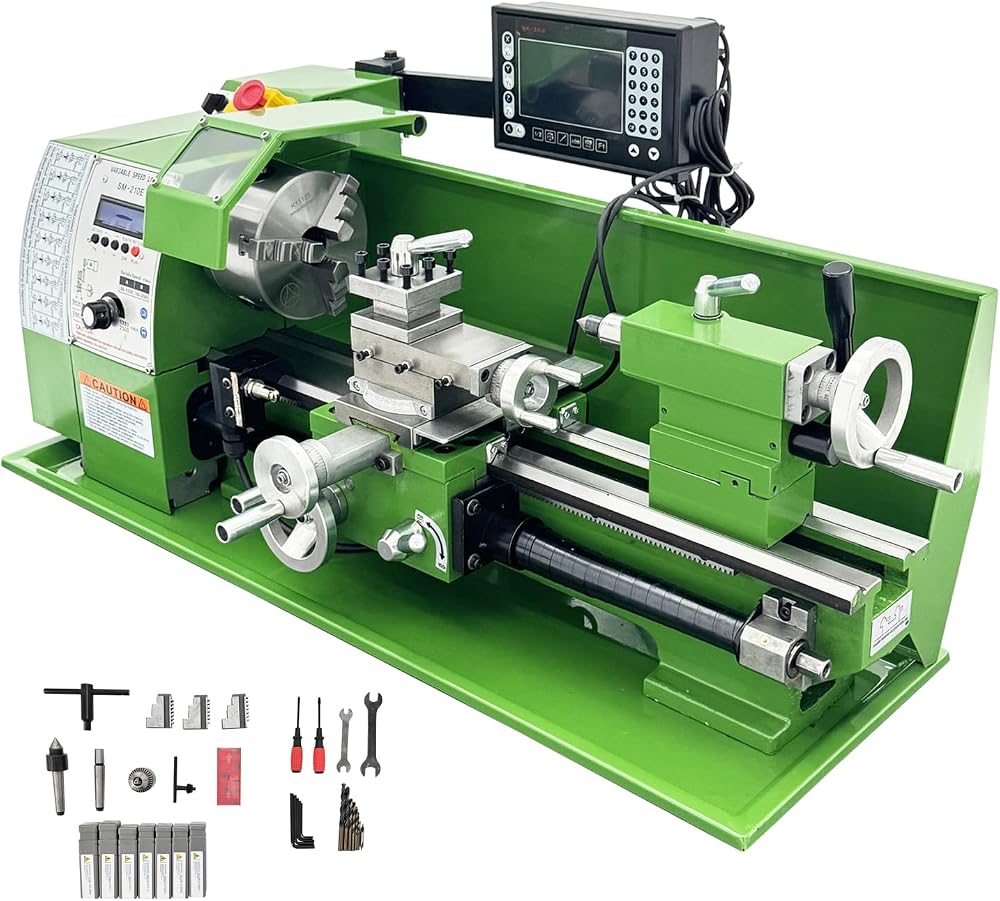

【Electronic Gear Change & Stepless Speed Control】 Powered by a 110V high-torque motor with electronic gear change system, this lathe eliminates manual gear replacement for instant metric/imperial switching. Stepless speed adjustment from 50–2500rpm via simple knob control, paired with automatic feed range of 0.01–0.4mm, delivers flexible and efficient turning, drilling, threading and cutting for small workshops, repair shops and DIY projects.

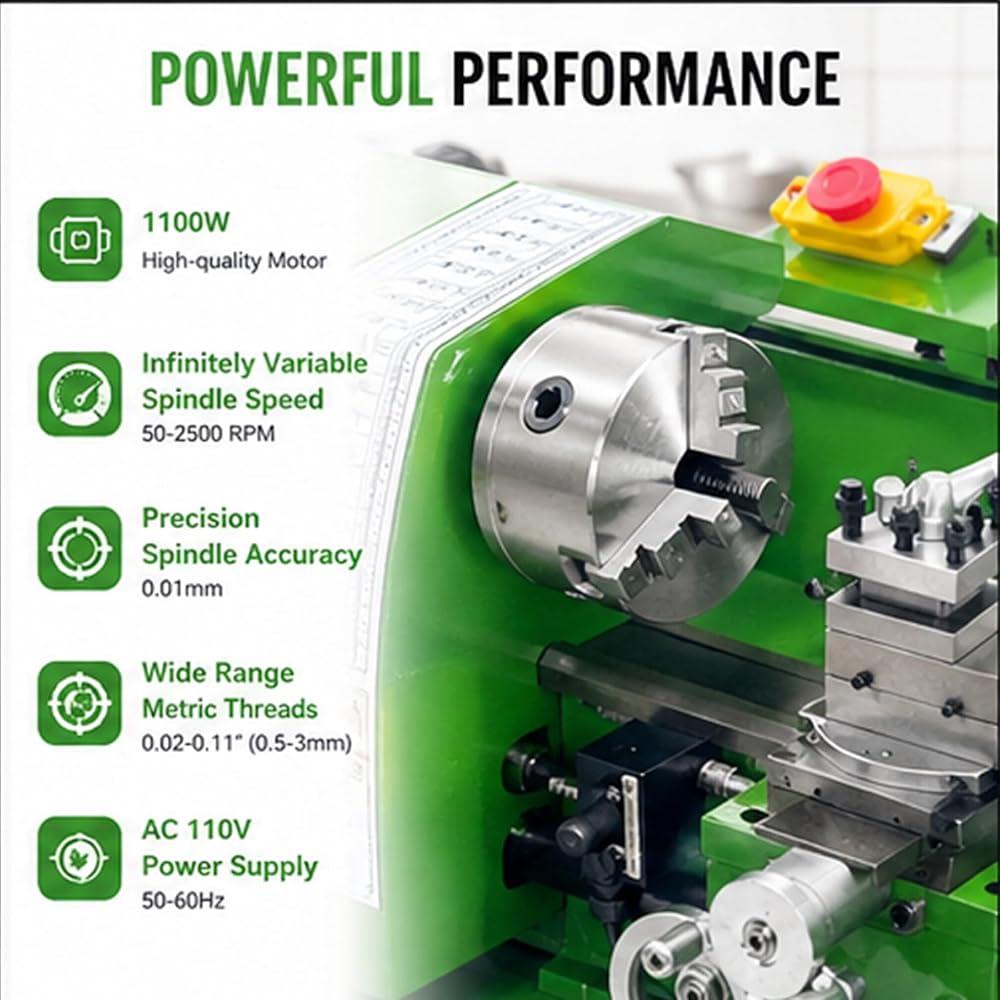

【MT5 Spindle & High-Precision Machining】 Equipped with MT5 spindle taper and 1.50" (38mm) bore, maintaining spindle runout accuracy within 0.01mm. One-key switching between metric threads (0.02”-0.11“) and inch threads (10–44 TPI) without gear changes. The Φ125mm high-precision three-jaw chuck ensures stable clamping and excellent concentricity for consistent workpiece quality.

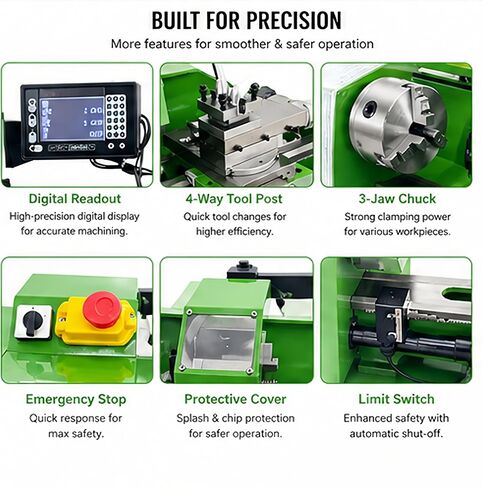

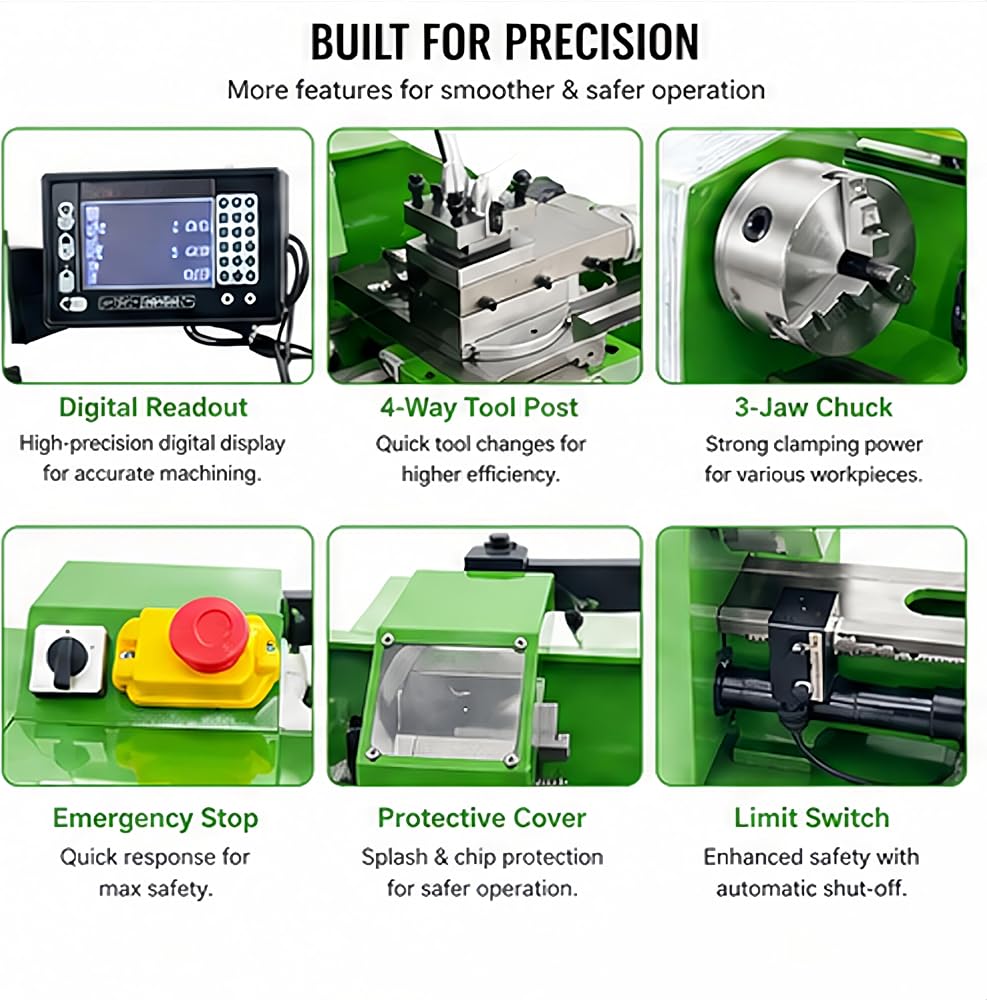

【0.005mm Digital Grating Scale & Real-Time Positioning】 Built-in high-precision digital linear scale delivers 0.005mm resolution with real-time tool position feedback on a clear digital display. This enables accurate measurement and positioning throughout every operation.
【4-Station Tool Post & Multi-Mode Operation】 Horizontal 4-station tool post enables quick tool changes and stable clamping to reduce setup time. Three startup modes—manual, automatic, and delayed automatic start (1–30s adjustable)—plus X-axis auto-feed (0.01–0.4mm) allow hands-free operation.
【Rugged Safety & Long-Term Durability】 Solid construction with 8.27" (210mm) swing over bed and 15.75" (400mm) center distance, plus high-rigidity tailstock and precision guide rails to minimize cutting vibration. Full protection includes emergency stop, limit switches, anti-collision power-off, and lead screw protective cover that blocks metal chips and dirt—extending core component life while ensuring safe, worry-free workshop operation.
وصف
Product parameter:
Voltage：AC110V
Power：1100W

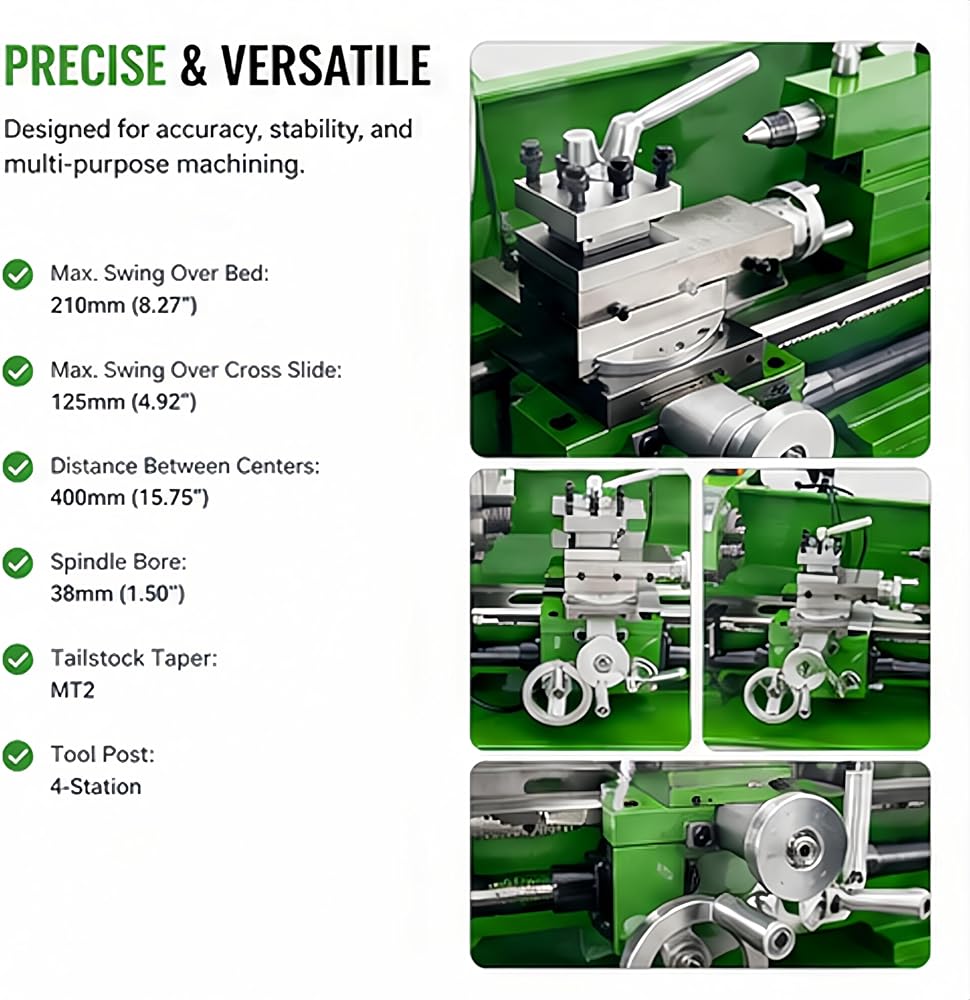

Length of center：15.75" (400mm)
Swing over bed：8.27" (210mm)
Rotary diameter of tool rest：5.51" (140mm)
Spindle bore： 1.50" (38mm)
Diameter of chuck：4.92" (125mm)
Width of lathe bed：3.94" (100mm)
Thread standard：Metric/imperial/customized
Turning delay start time：1s-30s
Number of spindle speeds：Infinitely variable speeds
Range of inch threads：10-44T.P.I
Range of metric threads：0.02''-0.11'' (0.5mm-3mm)
Spindle taper：MT5
Knife rest labour：Horizontal four-station
Spindle rotation speed ：50-2500rpm
Precision of spindle：0.01mm
Automatic feed range：0.01mm-0.4mm
Tail frame taper：MT2
Maximum stroke of tool rest plate：2.17" (55mm)
Maximum stroke of middle plate ：2.95" (75mm)
Maximum stroke of bottom plate：19.69" (500mm)
Maximum stroke of tailstock sleeve：2.36" (60mm)
Grating scale power supply；AC 110V-220V, 50-60Hz
Grating scale accuracy：0.005mm
Grating scale power：10W

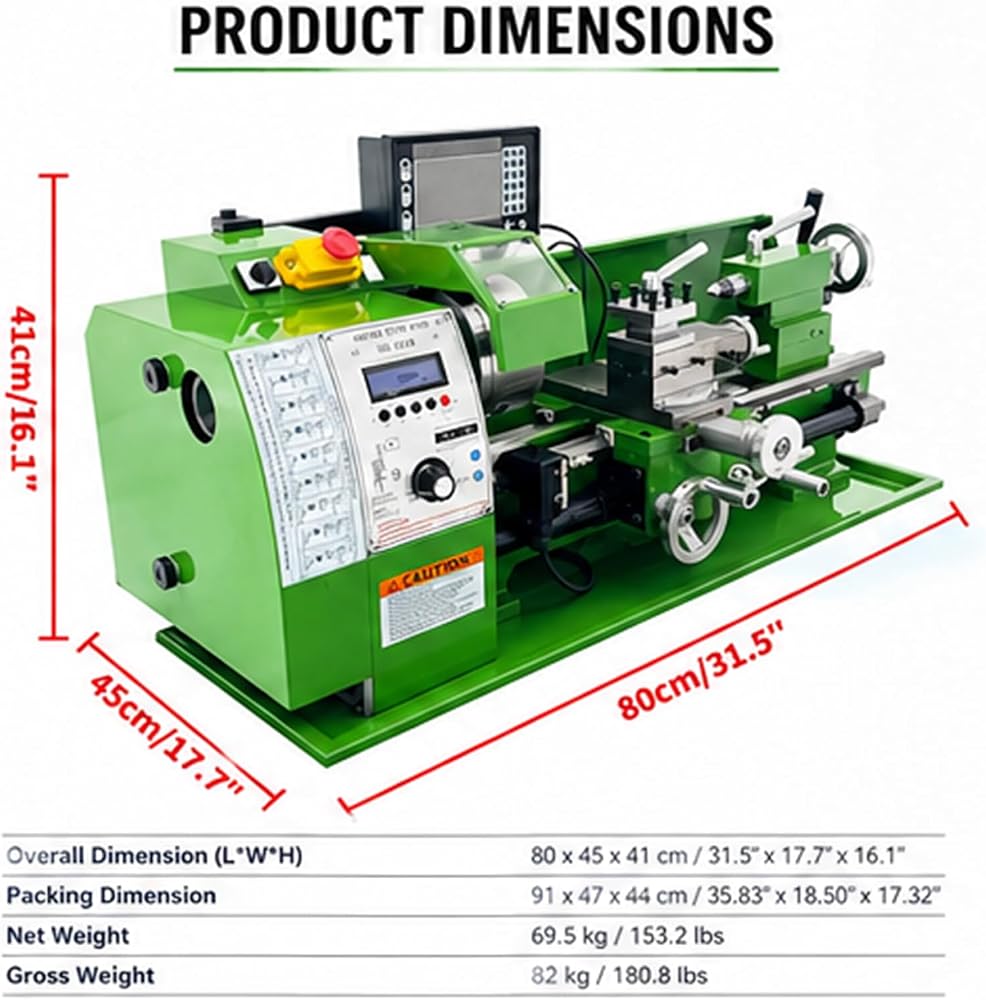

Packing dimension；35.83*18.50*17.32 inches (91*47*44cm)
Total net weight / Total gross weight:153.2LB (69.5kg) / 180.8LB (82kg)
