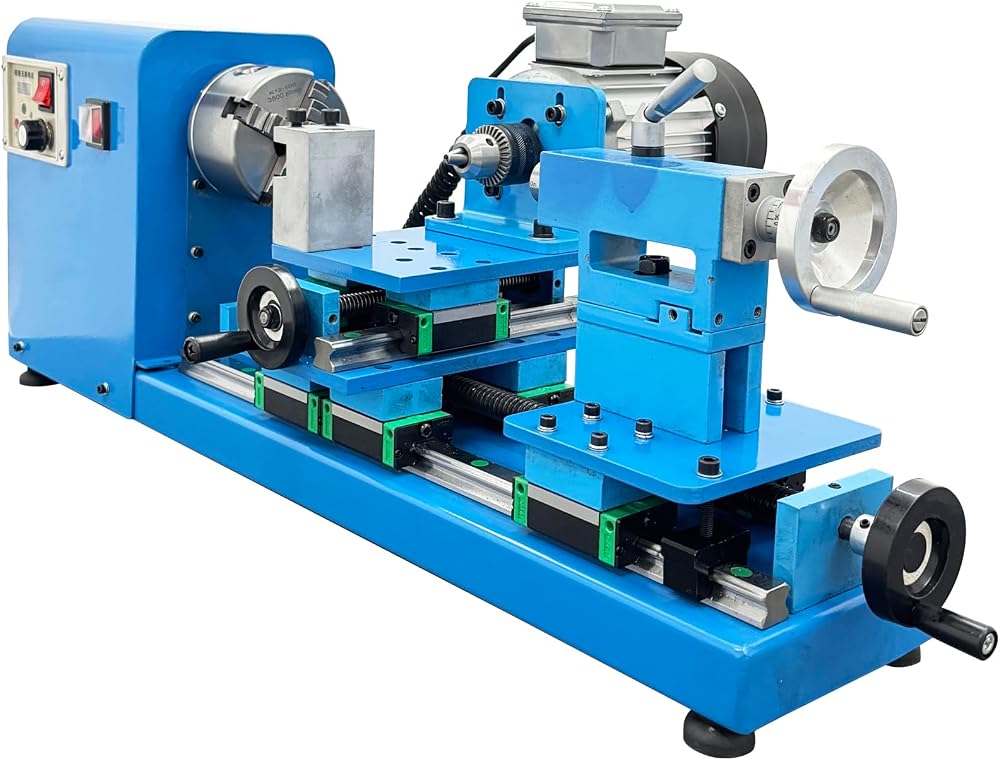

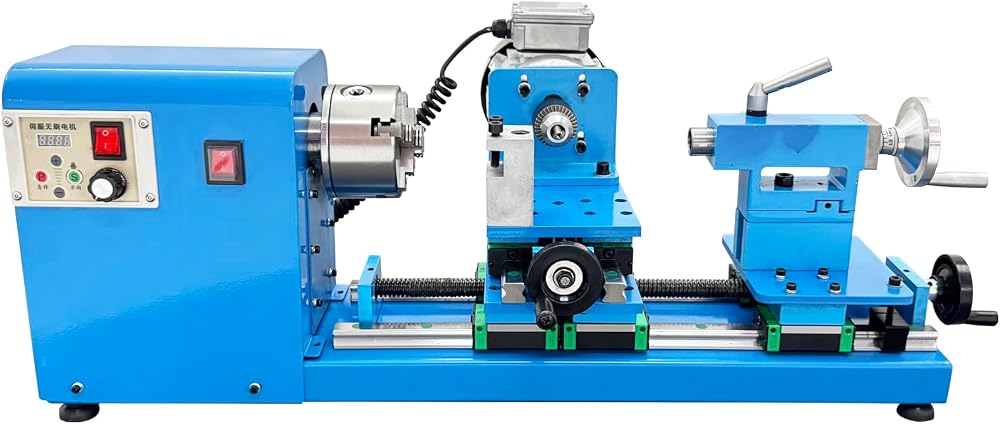

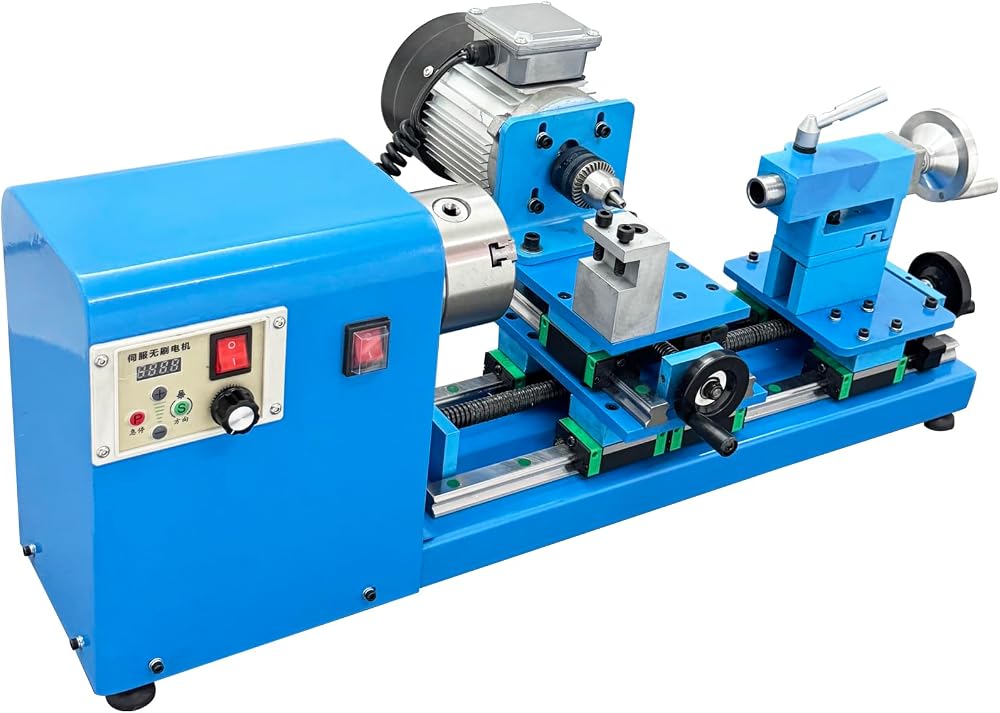

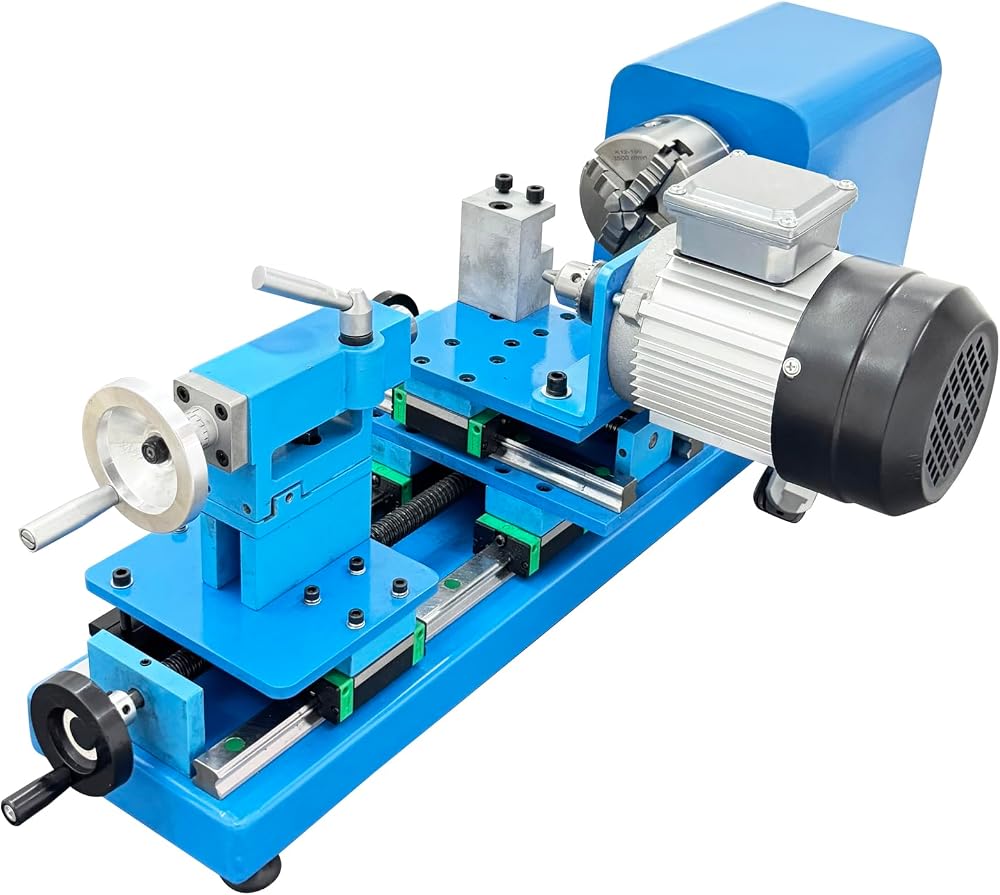

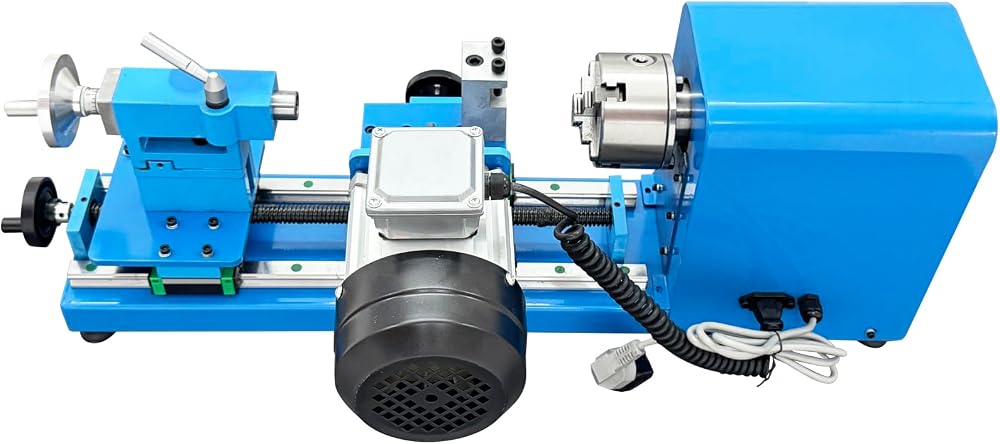

Dual Motor Wood Bead Lathe 750W+450W 220V Single Phase | 32mm Spindle Bore, MT2 Taper, 0-1600 r/min, with 4-Jaw Chuck for DIY Beads Bowl Processing

KWD 269.500
Brand
HayWHNKN
Category
Lathes
Weight
52.2 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • [Dual Motors]: 750W main + 450W auxiliary brushless motors for versatile operations.

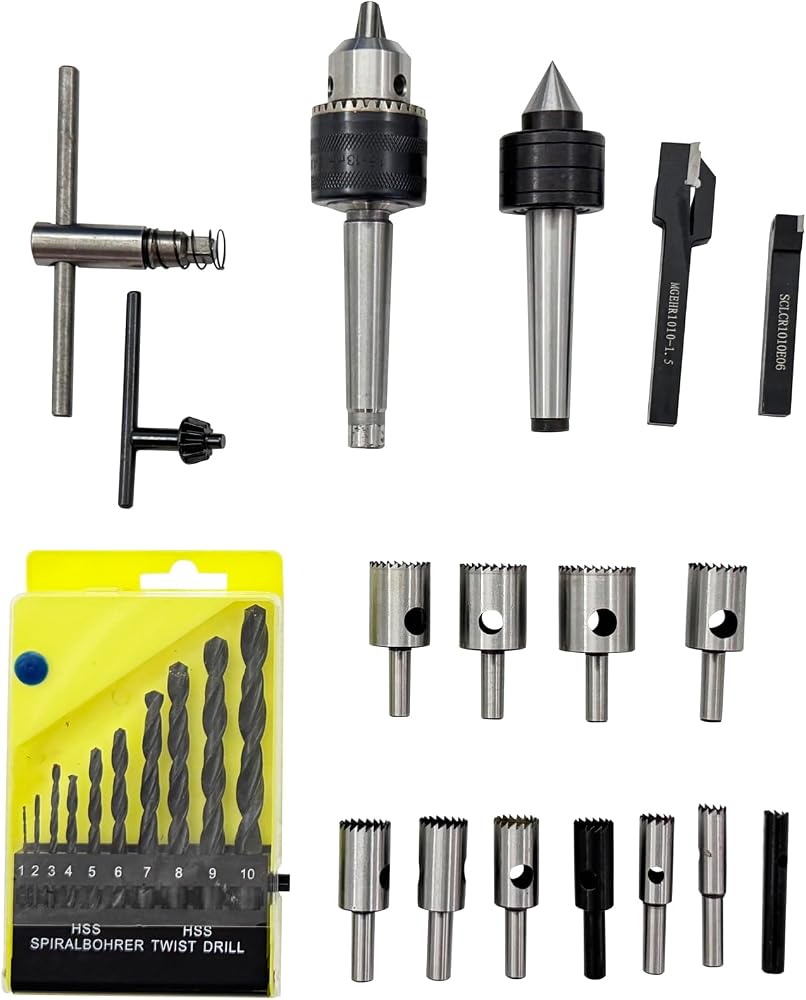

  • [4-Jaw Chuck]: K12-100 chuck handles round, square, and irregular stock up to 100mm.
  • [MT2 Tailstock]: Standard Morse taper accepts common lathe accessories.
  • [250mm Length]: Effective turning length for beads, bowls, spindles, and pens.
  • [60mm

Description

Product Parameters
Power Supply: AC 220V/60Hz Single Phase
Main Motor Power: 750W Brushless Motor
Auxiliary Motor Power: 450W Brushless Motor
Main Motor Speed: 0-1600 r/min (Stepless)
Auxiliary Motor Speed: 2800 r/min
Spindle Bore: 32 mm (1.26")
Tailstock Stroke: 60 mm (2.36")
Max. Turning Diameter: 60 mm (2.36")
Chuck to Tailstock Distance: 300 mm (11.81")
Effective Processing Length: 250 mm (9.84")
Chuck: 100 mm (4") 4-Jaw Chuck
Max. Chuck Capacity: 100 mm (3.94")
Chuck to Tool Max Distance: 230 mm (9.06")
Tailstock Taper: MT2 (Morse Taper No.2)
Guide Rail: Linear Guideway (HG20 Type)

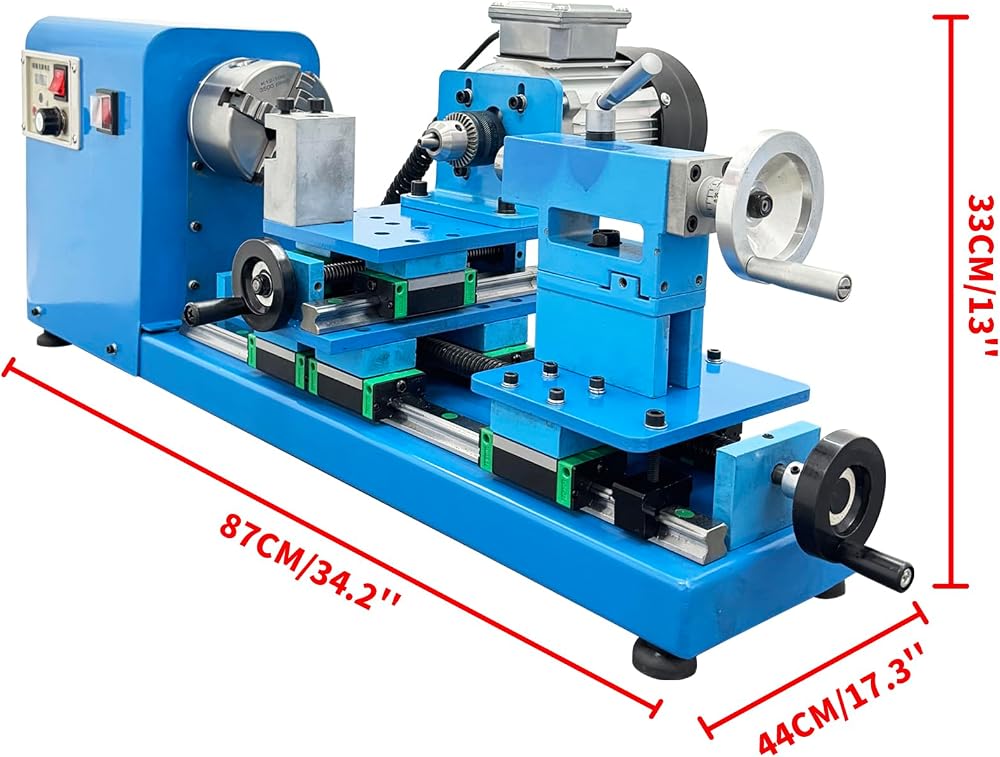

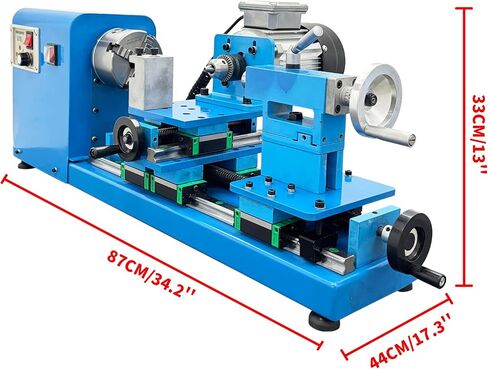

Machine Dimensions: 87 x 44 x 33 cm (34.2" x 17.3" x 13.0")
Package Dimensions: 88 x 31 x 43 cm (34.6" x 12.2" x 16.9")
Net Weight / Gross Weight: 43 kg (94.8 lb) / 52 kg (114.6 lb)
