Product Parameters:
Voltage: AC110V
Power: 1100W
Length of center: 15.75" (400mm)
Swing over bed: 8.27" (210mm)
Rotary diameter of tool rest: 5.51" (140mm)
Spindle bore: 1.50" (38mm)
Diameter of chuck: 4.92" (125mm)
Width of lathe bed: 3.94" (100mm)
Thread standard: Metric/imperial/customized
Turning delay start time: 1s-30s
Number of spindle speeds: Infinitely variable speeds
Range of inch threads: 10-44T.P.I
Range of metric threads: 0.02''-0.11'' (0.5mm-3mm)
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of spindle: 0.01mm
Automatic feed range: 0.01mm-0.4mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.17" (55mm)
Maximum stroke of middle plate: 2.95" (75mm)
Maximum stroke of bottom plate: 19.69" (500mm)
Maximum stroke of tailstock sleeve: 2.36" (60mm)
Grating scale power supply: AC 110V-220V, 50-60Hz
Grating scale accuracy: 0.005mm
Grating scale power: 10W

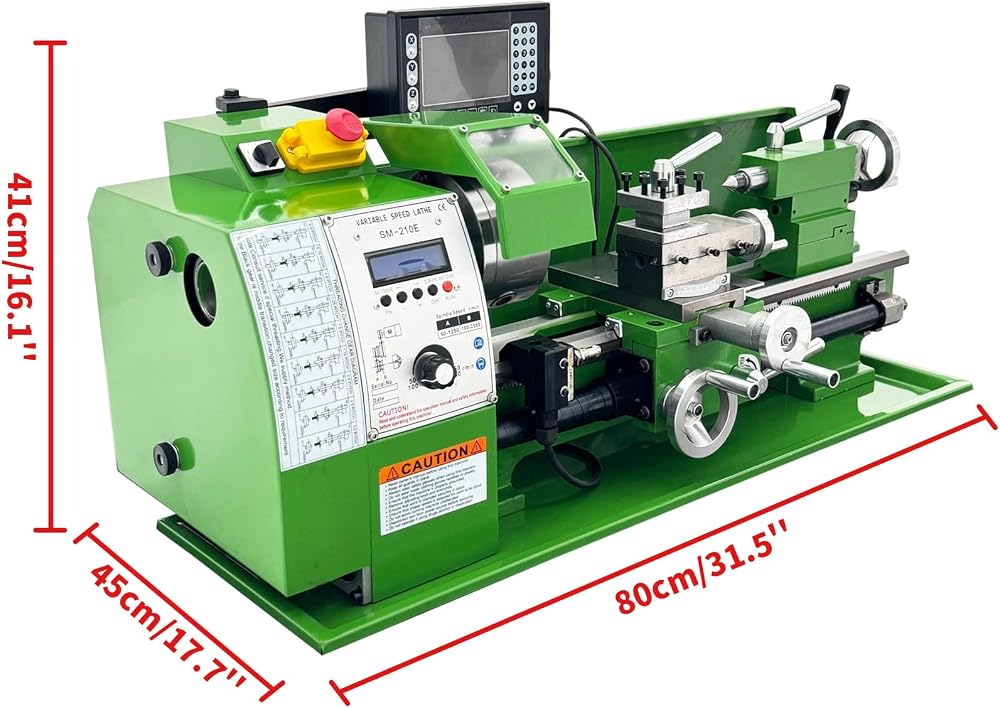

Packing dimension: 35.83*18.50*17.32 inches (91*47*44cm)
Total net weight / Total gross weight: 153.2LB (69.5kg) / 180.8LB (82kg)
Item Included: 1 x Precision Instrument Metal Lathe 110V
