Special Features

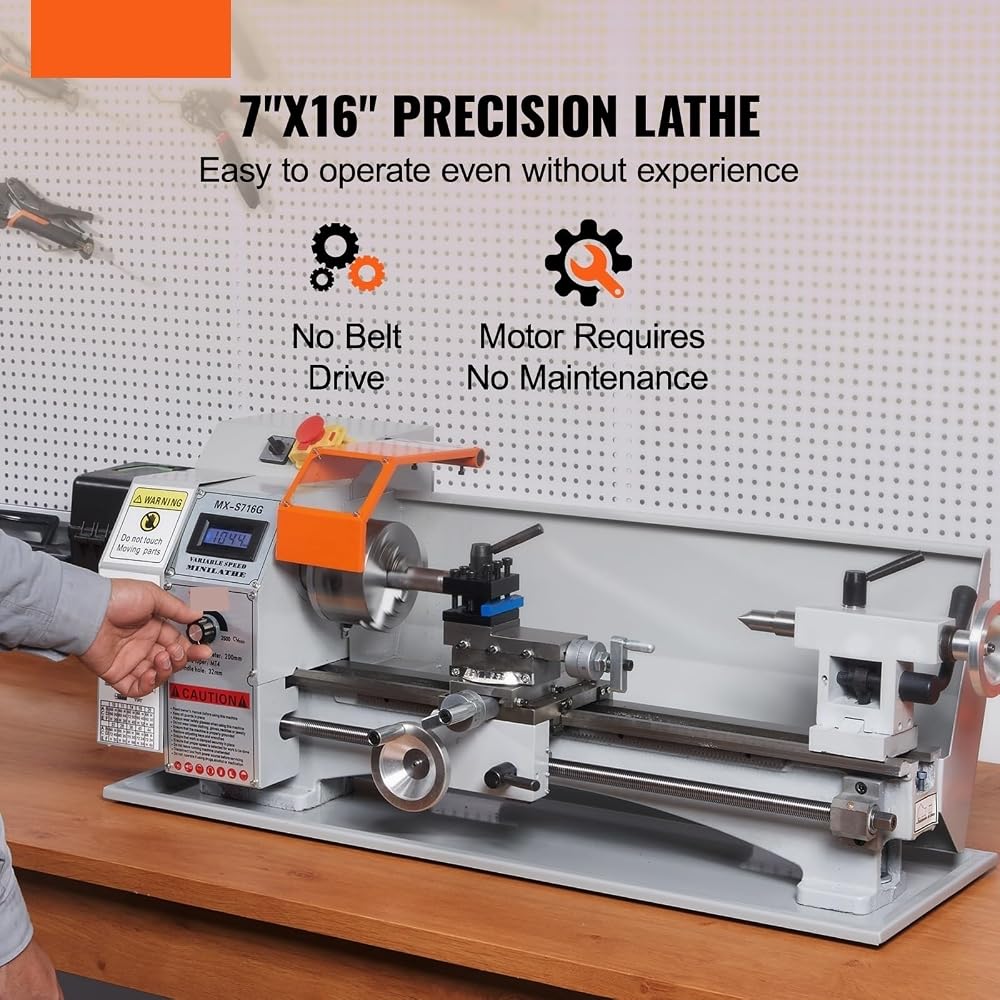

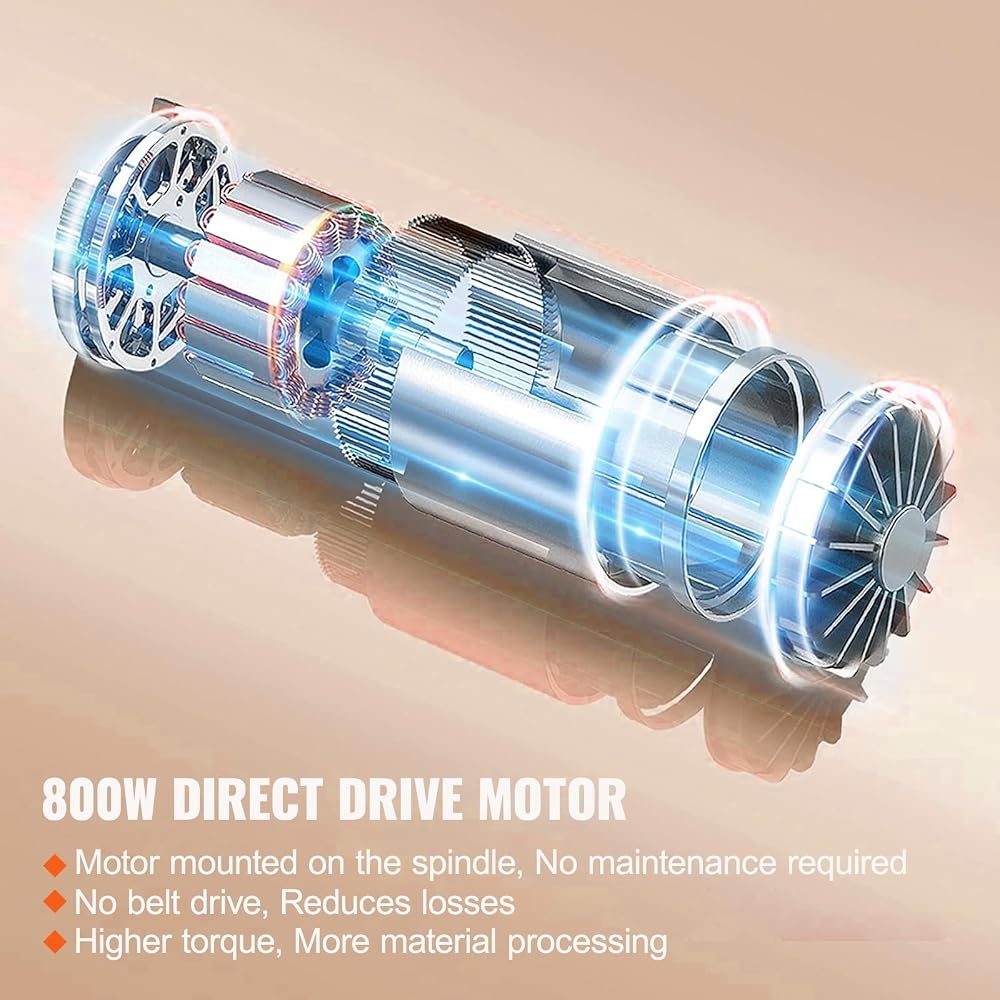

Direct Drive Motor The mini metal lathe machine adopts a direct drive motor no belt drive and no need to replace the belt. 800W brushless motor that provides more power and avoids the need for brush replacements, saving time and effort.

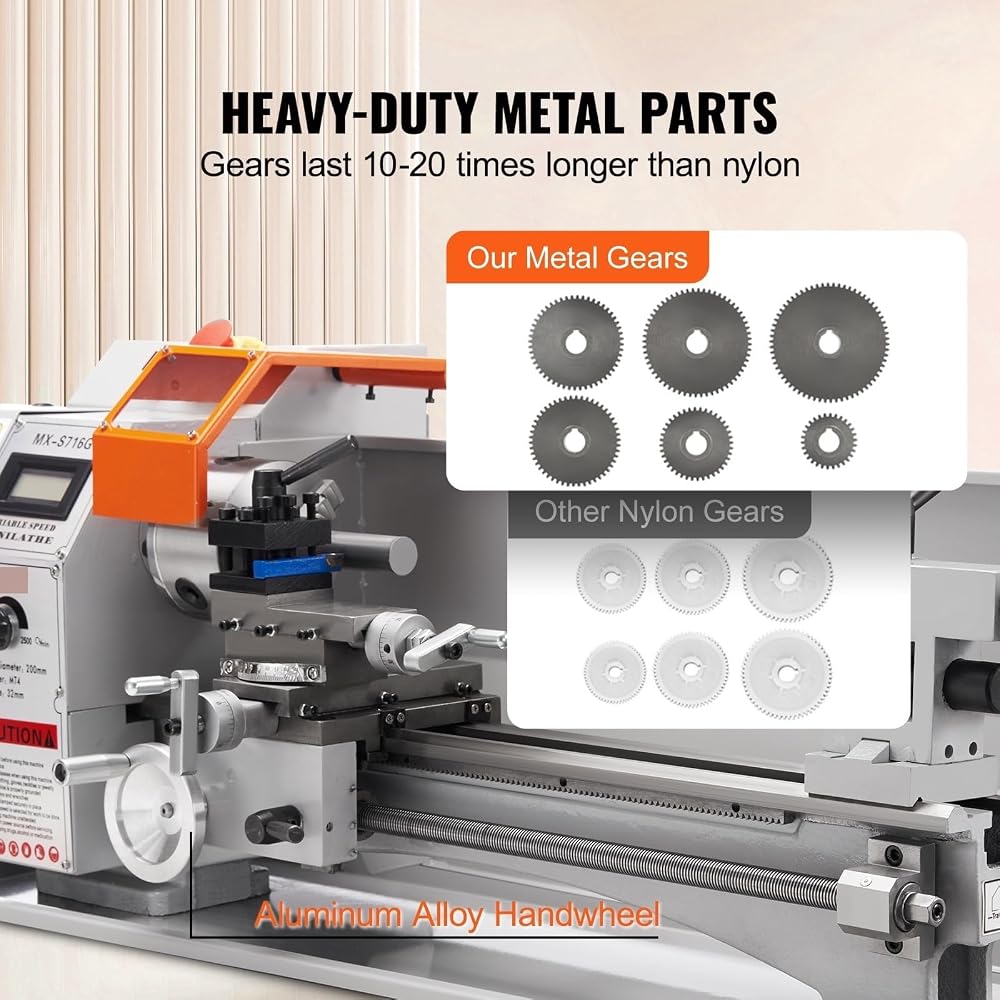

Built to Last: The mini metal lathe is built to last with high-quality HT200 cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.

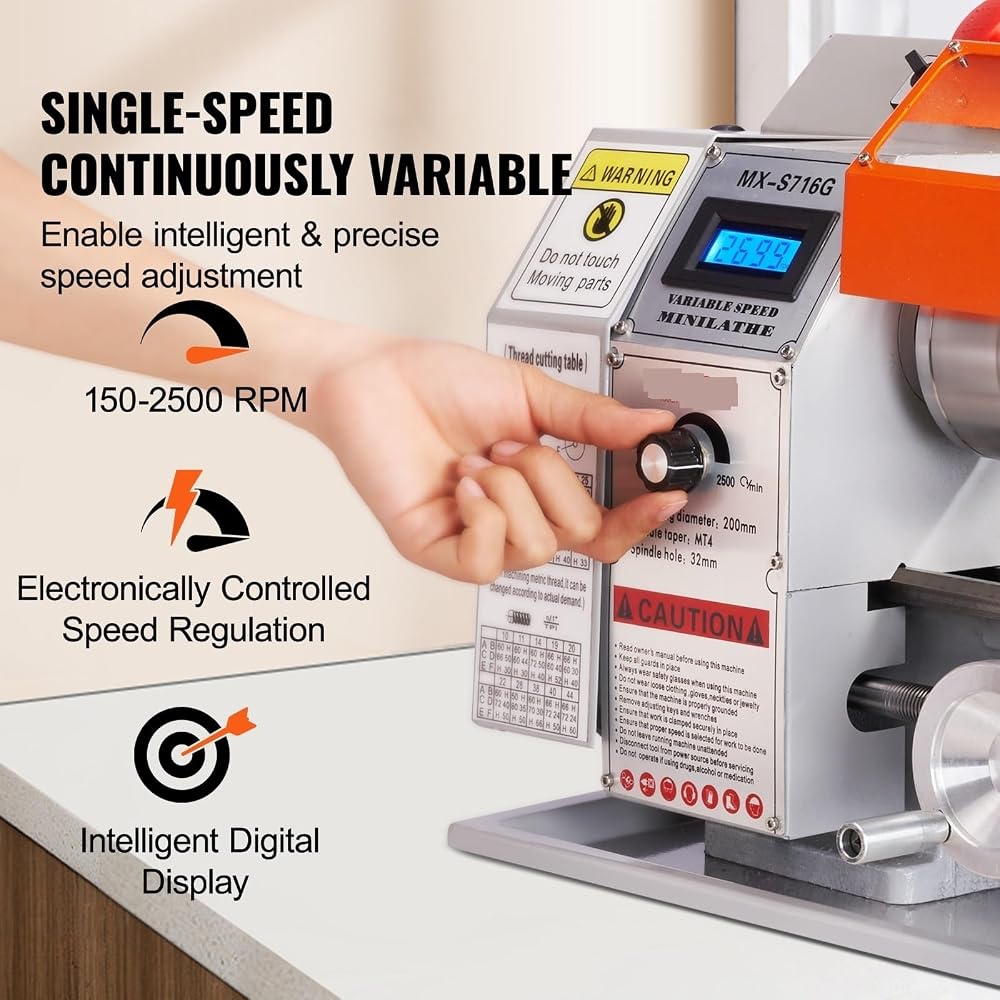

Continuously Variable: Features a spindle that can turn in both forward and reverse directions with 150-2500 RPM continuously variable speed range. It also has intelligent electric speed controls and a digital display, allowing for convenient data reading.
Widely Used: 7'' x 16'' metal lathe machine can be used for processing precision parts and models. A wide range of turning pitches can create 19 kinds of threads, 9 kinds of the metric system (0.5-3 mm), and 10 kinds of the imperial system (10-44 TPI).
Security Comes First: Our power metal lathes have multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, and a main control panel security switch.
Welcome and I wish you a happy life, my friend

Description

Industrial Machine Components:
Spindle Speed: 150-2500 RPM

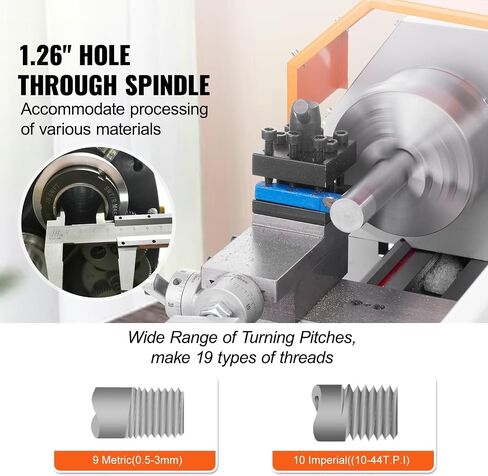

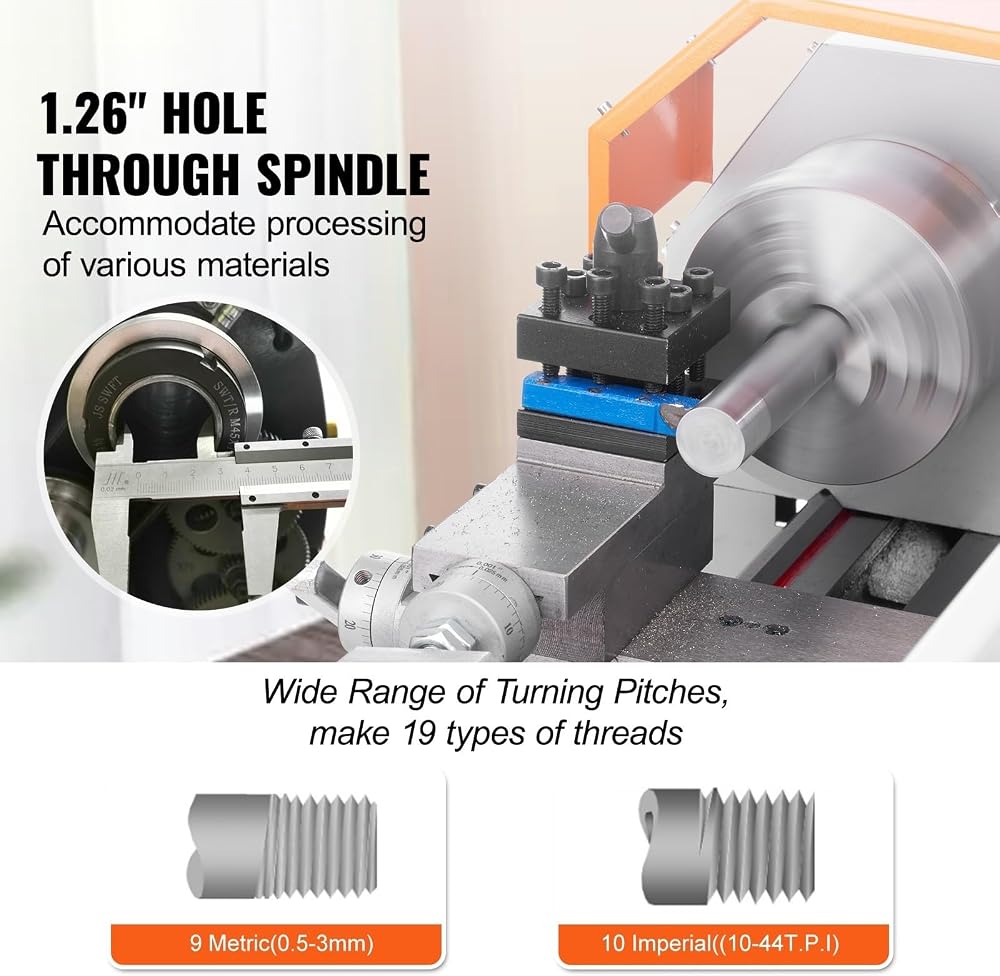

Hole Through Spindle Diameter: 32 mm / 1.26 in
Spindle Taper: MT5

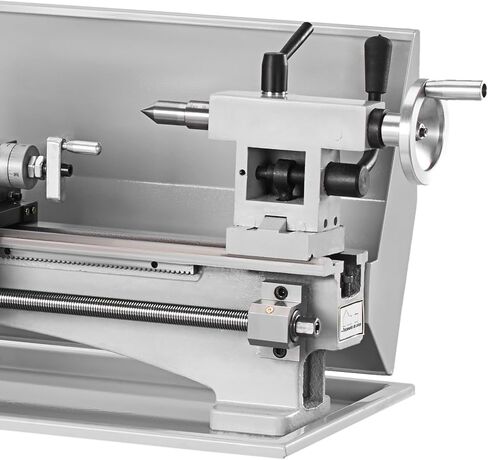

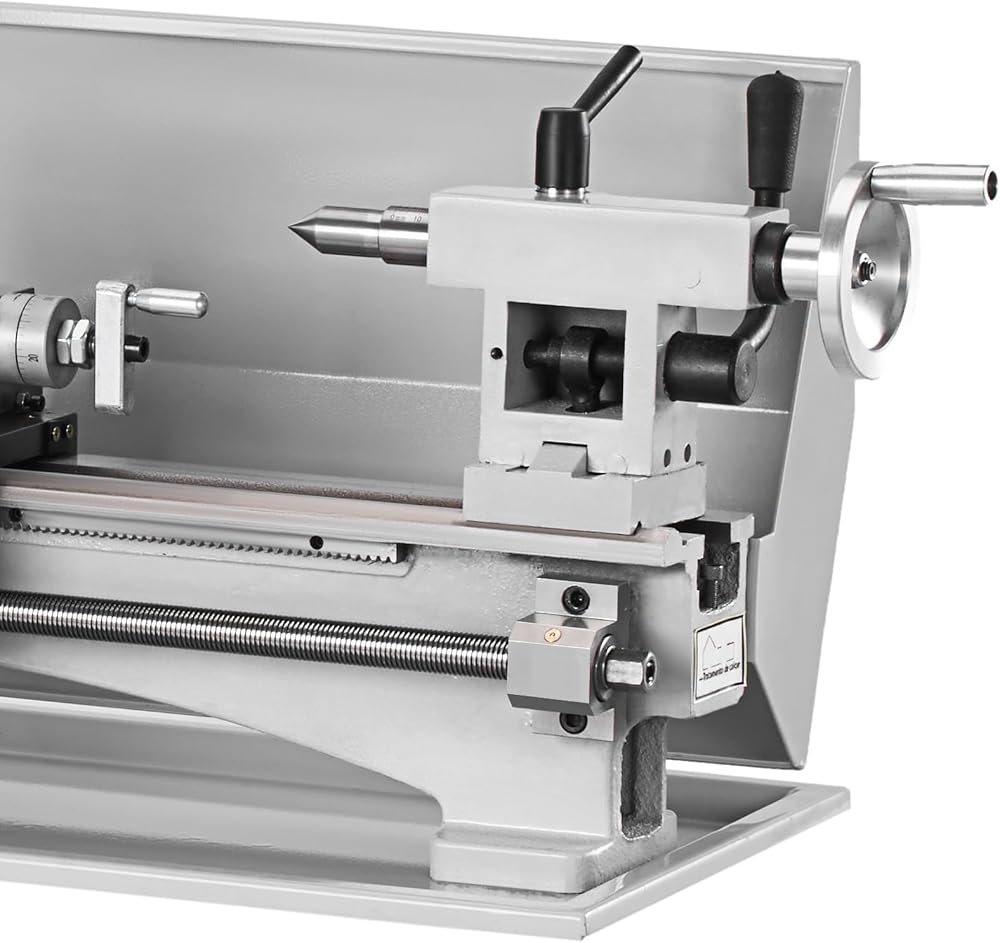

Tail Stock Taper: MT2
Motor Power: 800W
Chuck Diameter: 100 mm / 3.93 in
Net Weight: 39 kg / 85.98 lbs
Product Dimensions(L x W x H): 800 x 340 x 360 mm / 31.5 x 13.4 x 14.2 in

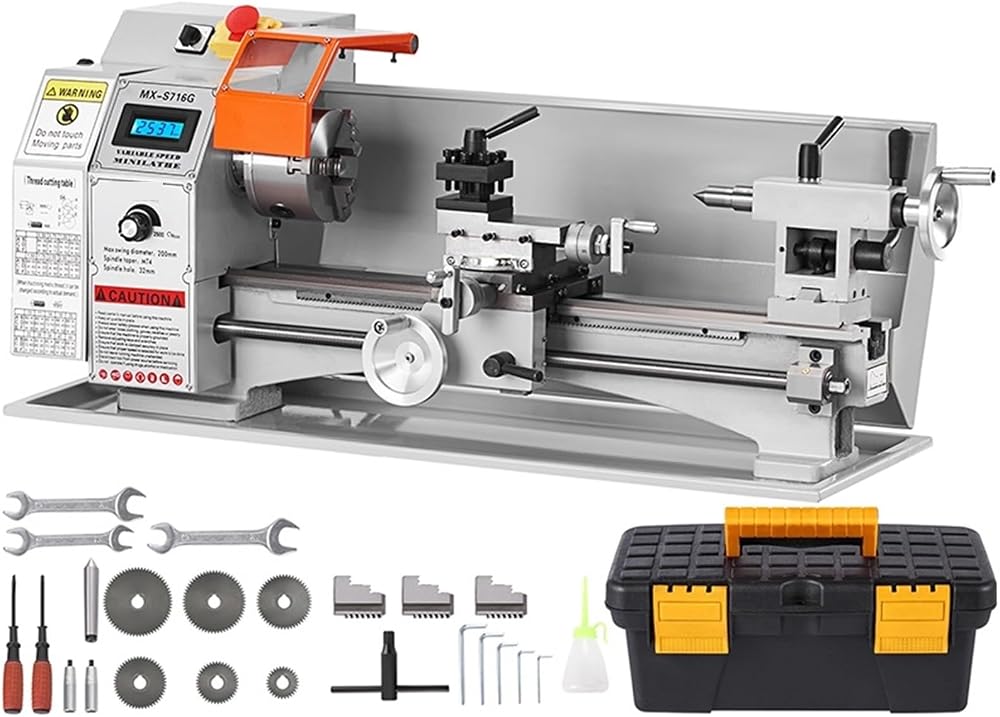

Package Content
1 x Oil Pan
1 x Oiler
2 x Open Spanner(6-10, 13-16)
1 x Cross Screwdriver
1 x Fiat Screwdriver
1 x Hex Socket Wrench
1 x Dead Center
1 x Pulley Set
1 x Tool Box
